来源记录显示 Expired
用于降低静电放电风险的搁板接地装置
Shelf grounding device for reducing electrostatic discharge risk
US-7456356-B2通过导电夹连接搁板和支柱，降低静电放电风险。
专利摘要
一种接地夹是一种搁板接地装置，包括弹性导电夹，其安装到完全组装好的搁架单元上，在搁板和支柱之间提供多个电连接，以降低静电放电（ESD）的风险。该夹子无需使用工具即可安装和移除，并且在附接时牢固地保持在适当位置。由于夹子在搁架单元组装后附接，因此在安装或重新配置过程中，安装者所需的技能较少。该夹子可重复使用，并且无论搁架单元是用导电还是塑料分离套筒组装的，都能在搁板和支柱之间提供电连接。
Original abstractA grounding clip is a shelf-grounding device includes a resilient conductive clip that installs onto a fully assembled shelving unit, providing a plurality of electrical connections between the shelf and post to reduce the risks from electrostatic discharge, or ESD. The clip can be installed and removed without the use of tools and is held securely in place when attached. Since the clip is attached after the shelving unit is assembled, less skill is required by the installer during the installation or reconfiguration process. The clip is reusable and provides electrical connectivity between the shelf and post regardless of whether the shelving unit was assembled with conductive or plastic split sleeves.

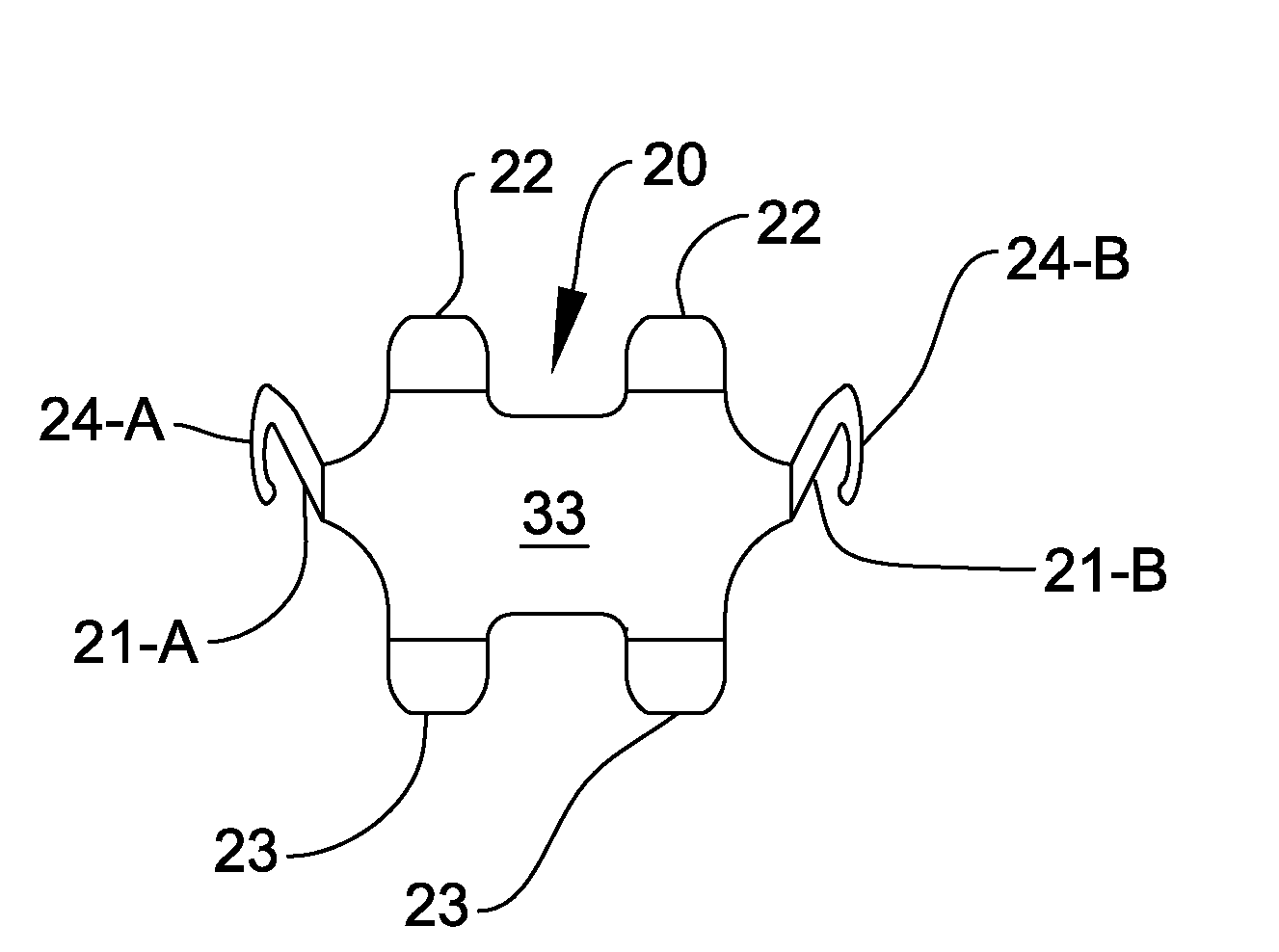

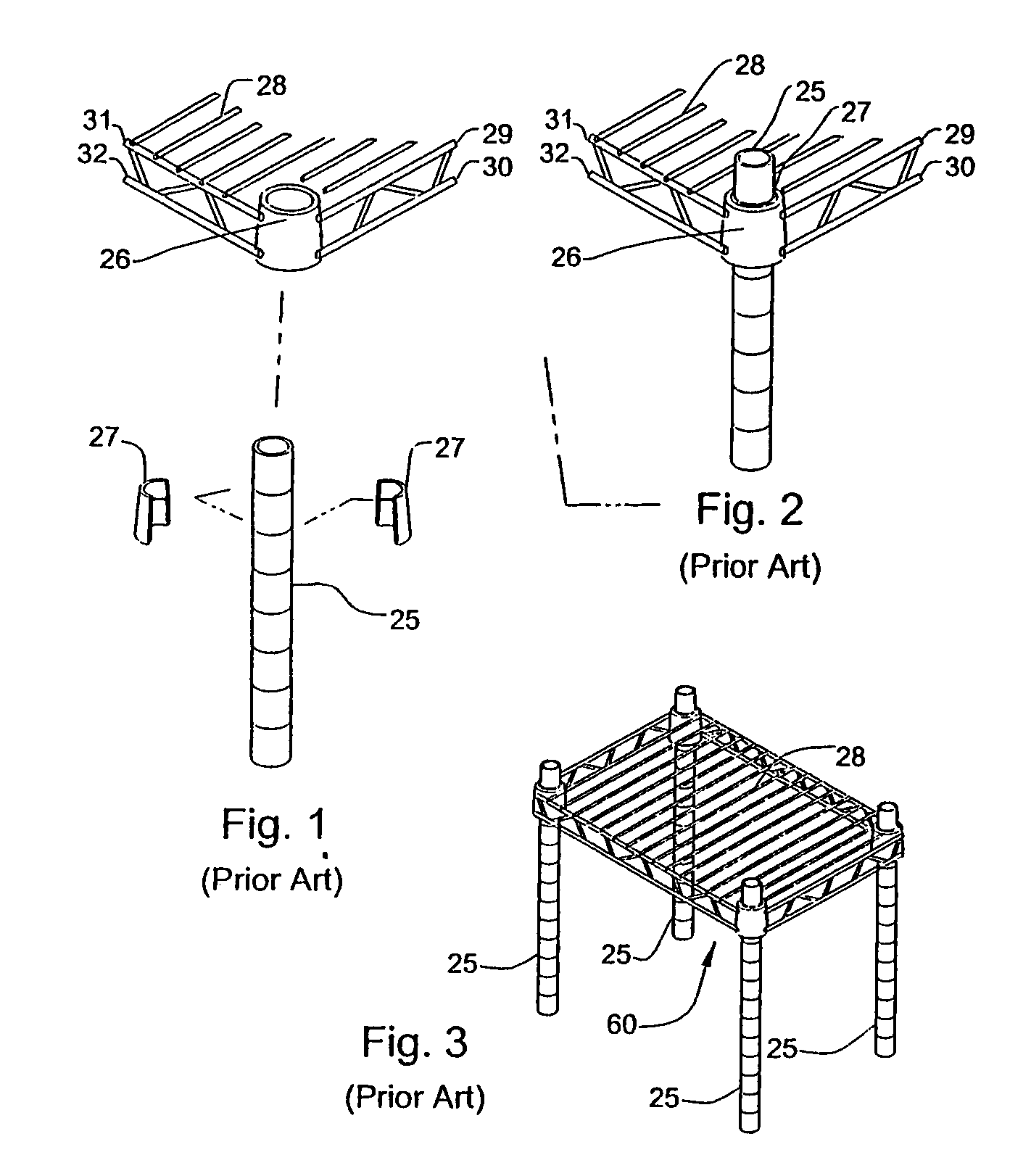

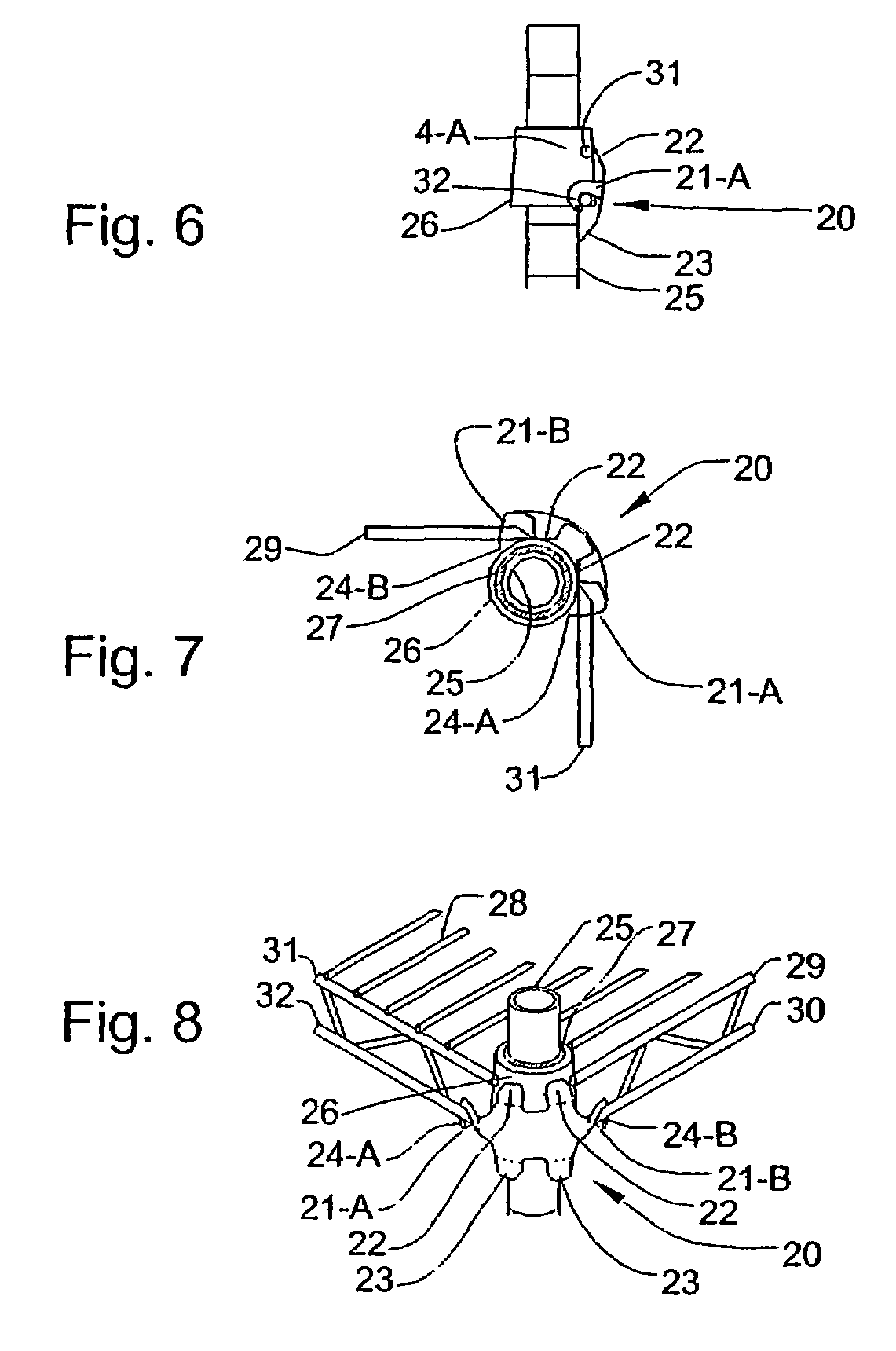

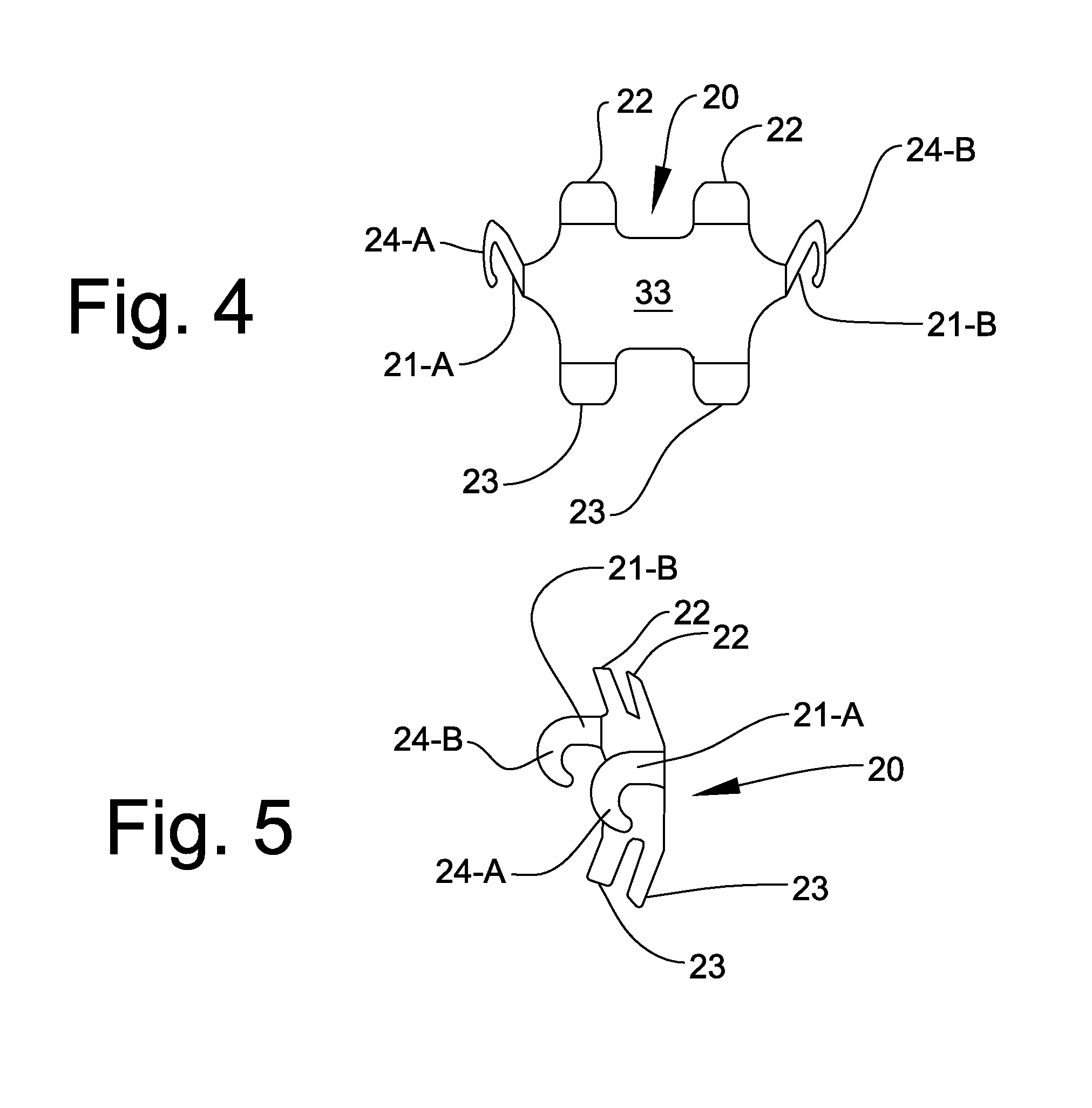

专利附图（8）
来源状态与事件
暂无可展示的状态事件记录。
相关专利（同品类）
