来源记录显示 Expired
用于将抽屉框架连接到抽屉底部的装置
Arrangement for connecting a drawer frame to the bottom of a drawer
US-7455374-B2将金属抽屉框架牢固连接到抽屉底部。
专利摘要

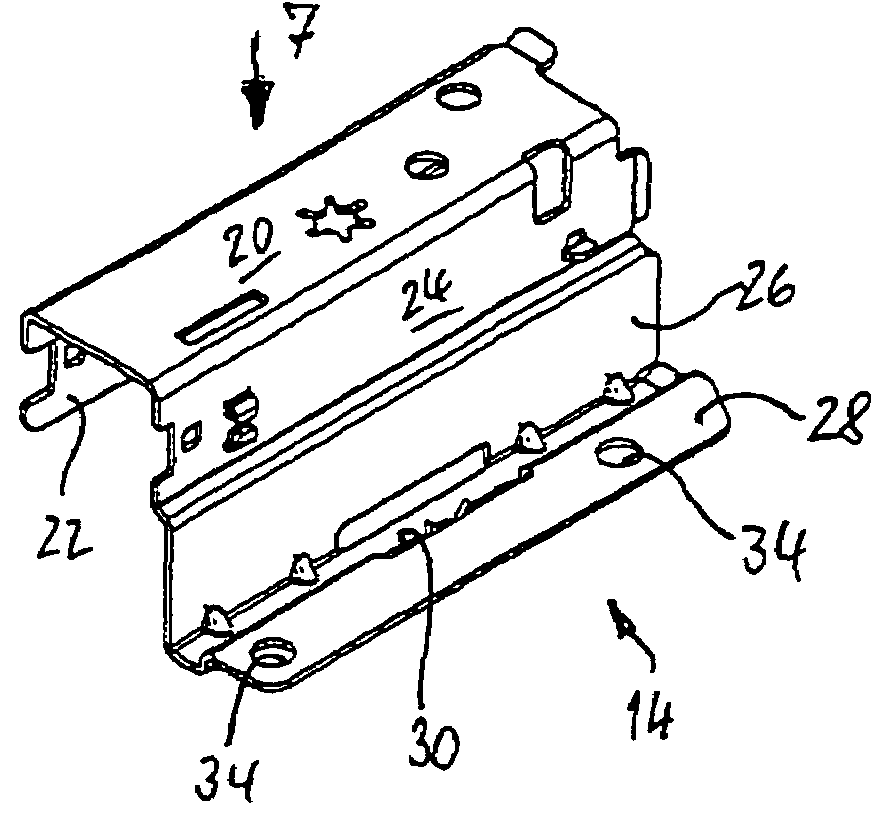

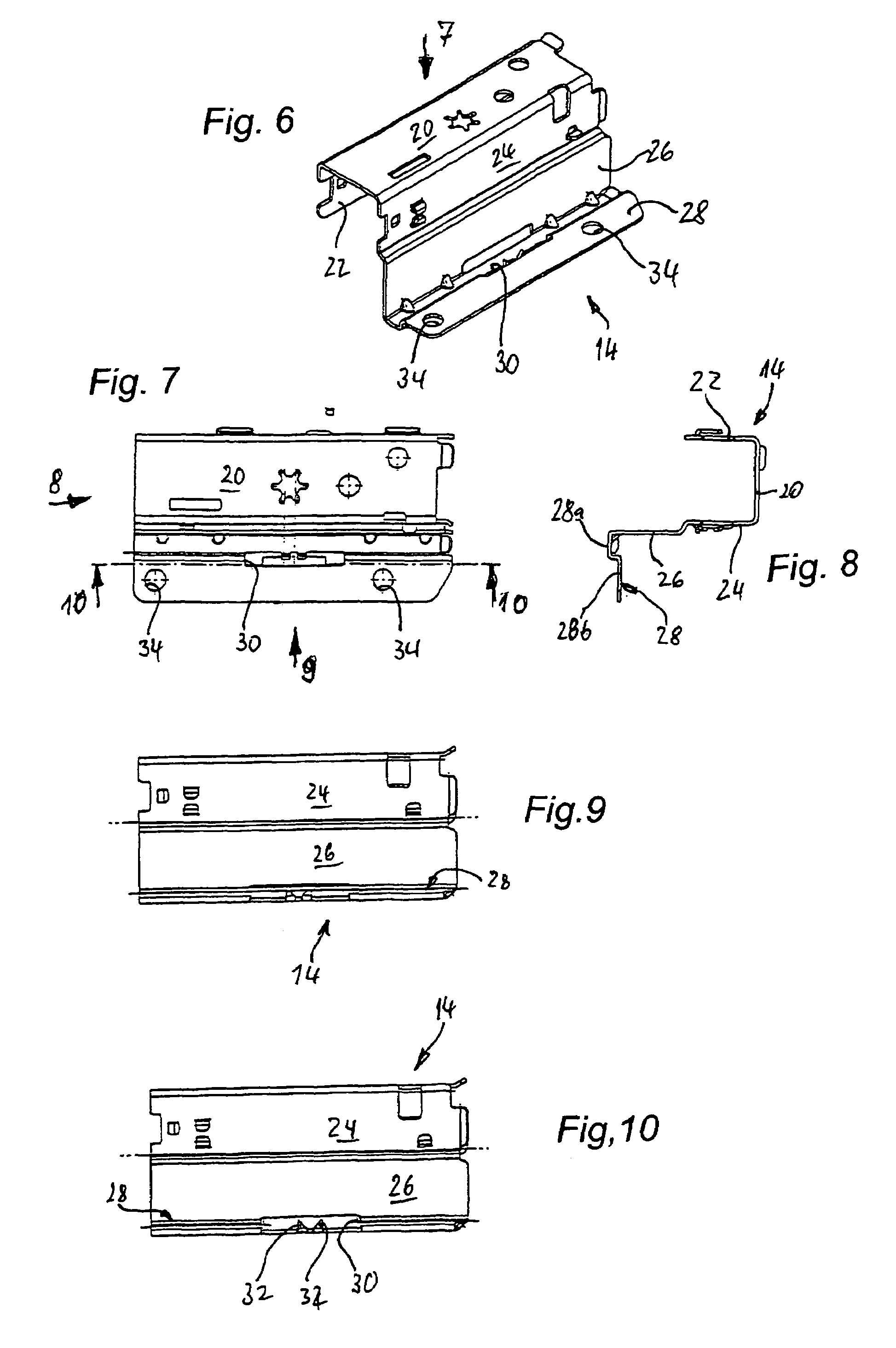

一种用于将由金属空心腔型材形成的抽屉框架（12）连接到相关板状抽屉底部（10）的面向侧边缘的装置，其中至少在其下端区域的部分区域中，与抽屉底部（10）边缘的端面相对，抽屉框架（12）分别具有用于抽屉底部（10）侧端面的条状垂直接触腹板（26），以及在正确连接位置中接合在抽屉底部下方的支撑腿（28），该支撑腿从接触腹板的下端弯曲离开。支撑腿具有从其一体突出的固定爪（32），其自由端为尖的或锐化的，突出超过支撑腿（28）的支撑表面，并且可以被压入待固定的抽屉底部的材料中。每个支撑腿（28）具有至少一个细长冲孔槽（30），其在条状接触腹板（26）和其自由边缘之间的区域中四周封闭。固定爪（32）一体地附接到冲孔槽（30）的一个边缘，并且是由支撑腿（28）本身的材料形成的延伸部，其基本上以直角朝向抽屉底部（10）的方向弯曲。
Original abstractArrangement for connecting a drawer frame ( 12 ) formed by a metal hallow chamber profile to the facing lateral edge of the associated plate-shaped drawer bottom ( 10 ), in which at least in part-regions of its lower end region opposite the end face of the edge of the drawer bottom ( 10 ) the drawer frame ( 12 ) has in each case a strip-shaped vertical contact web ( 26 ) for the lateral end face of the drawer bottom ( 10 ), and a supporting leg ( 28 ) which engages under the drawer bottom in the proper connection position is bent away from the lower end of the contact web. The supporting leg has integrally projecting from it fixing claws ( 32 ) which are pointed or sharpened at their free ends, project over the support surface of the supporting leg ( 28 ) and can be pressed into the material of a drawer bottom which is to be fixed. Each supporting leg ( 28 ) has at least one elongate punched-out slot ( 30 ) which is closed all round in its region between the strip-shaped contact web ( 26 ) and its free edge. The fixing claws ( 32 ) are attached integrally to one of the edges of the punched-out slot ( 30 ) and are extensions formed out of the material of the supporting leg ( 28 ) itself which are bent round substantially at right angles in the direction of the drawer bottom ( 10 ).

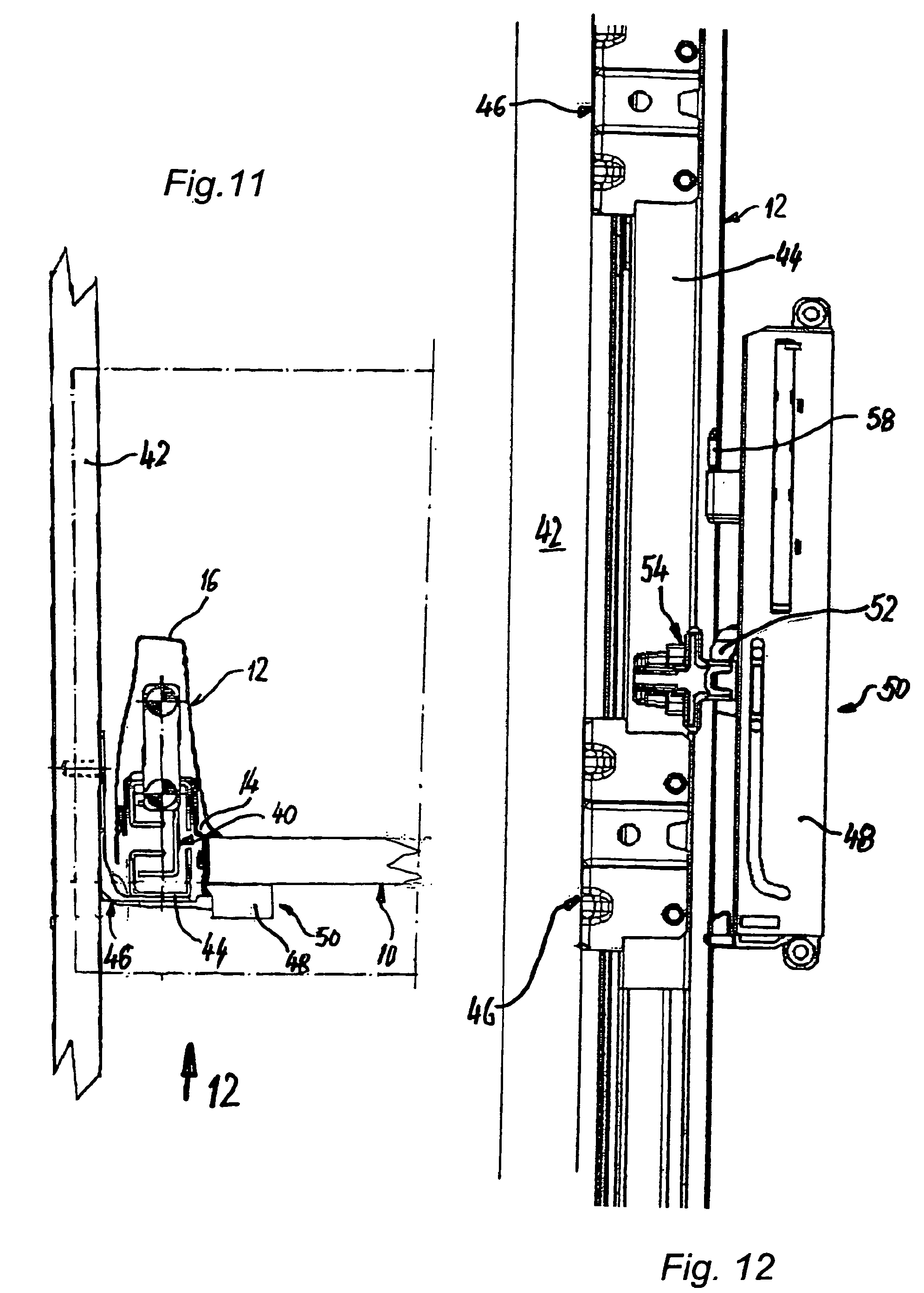

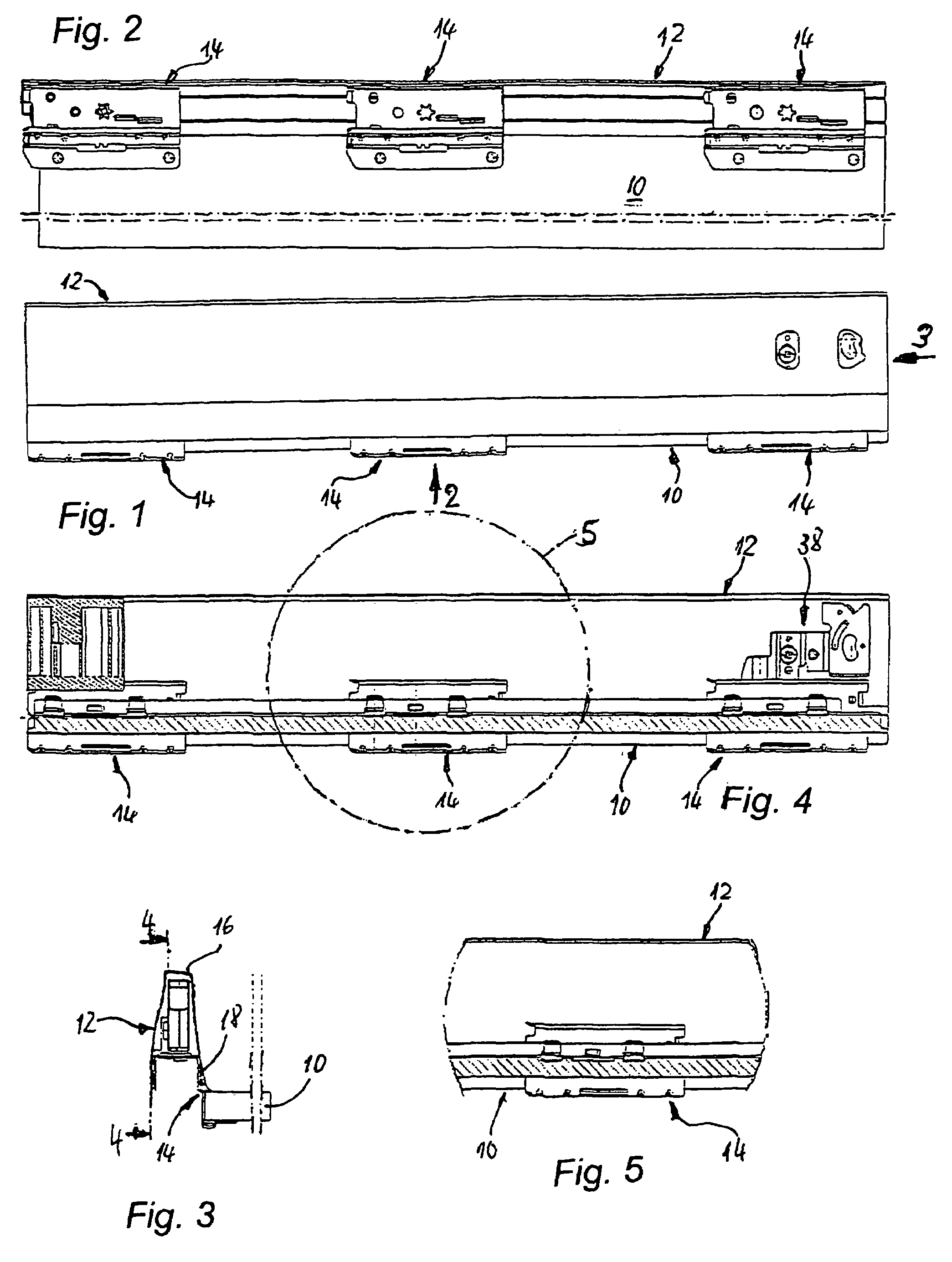

专利附图（8）
