可折叠的多用途包和广告载体
Collapsible utility bag and advertising vehicle
US-7451861-B2可折叠的多用途包，可作储物和广告展示。
专利摘要
本发明涉及一种可折叠的多用途包，其尺寸可例如适合放入运动储物柜中。该多用途包大致为矩形，具有一个门，铰接连接到包的前部。提供顶部和底部刚性面板，它们是铰接的或可拆卸的，并且在适当位置时支撑顶壁和底壁。可拆卸的侧面板为侧壁提供刚性。大致矩形的框架可以并入多用途包中，以为包的前部和后部提供进一步的刚性支撑。通过移除侧面板、拆卸顶部和底部面板以及将包的前部向包的后部折叠，可以折叠该多用途包以便于存储或运输。还描述了将本发明用作广告载体的方法。
Original abstractThe present invention relates to a collapsible utility bag which may, for example, be sized to fit within an athletic locker. The utility bag is generally rectangular in shape with a door that is hingedly attached to the front of the utility bag. Top and bottom rigid panels are provided, which are hinged or removable, and when in position support a top wall and a bottom wall. Removable side panels provide rigidity to side walls. Generally rectangular frames may be incorporated into the utility bag to provide further rigid support to the front and the rear of the bag. The utility bag can be collapsed for easy storage or shipping by removing the side panels, detaching the top and bottom panels, and collapsing the front of the bag towards the rear of the bag. A method for utilizing the present invention as a vehicle for advertising is also described.

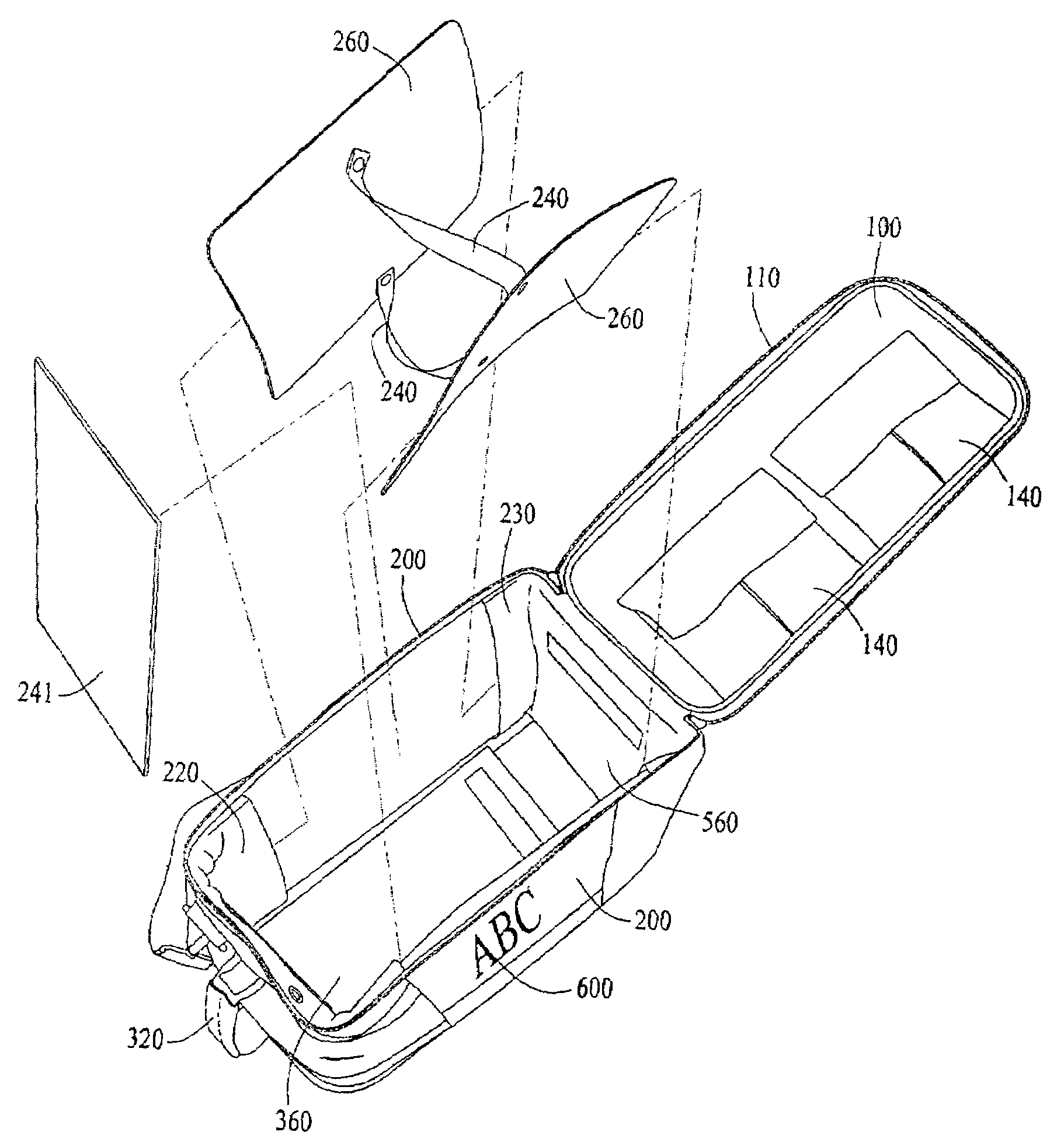

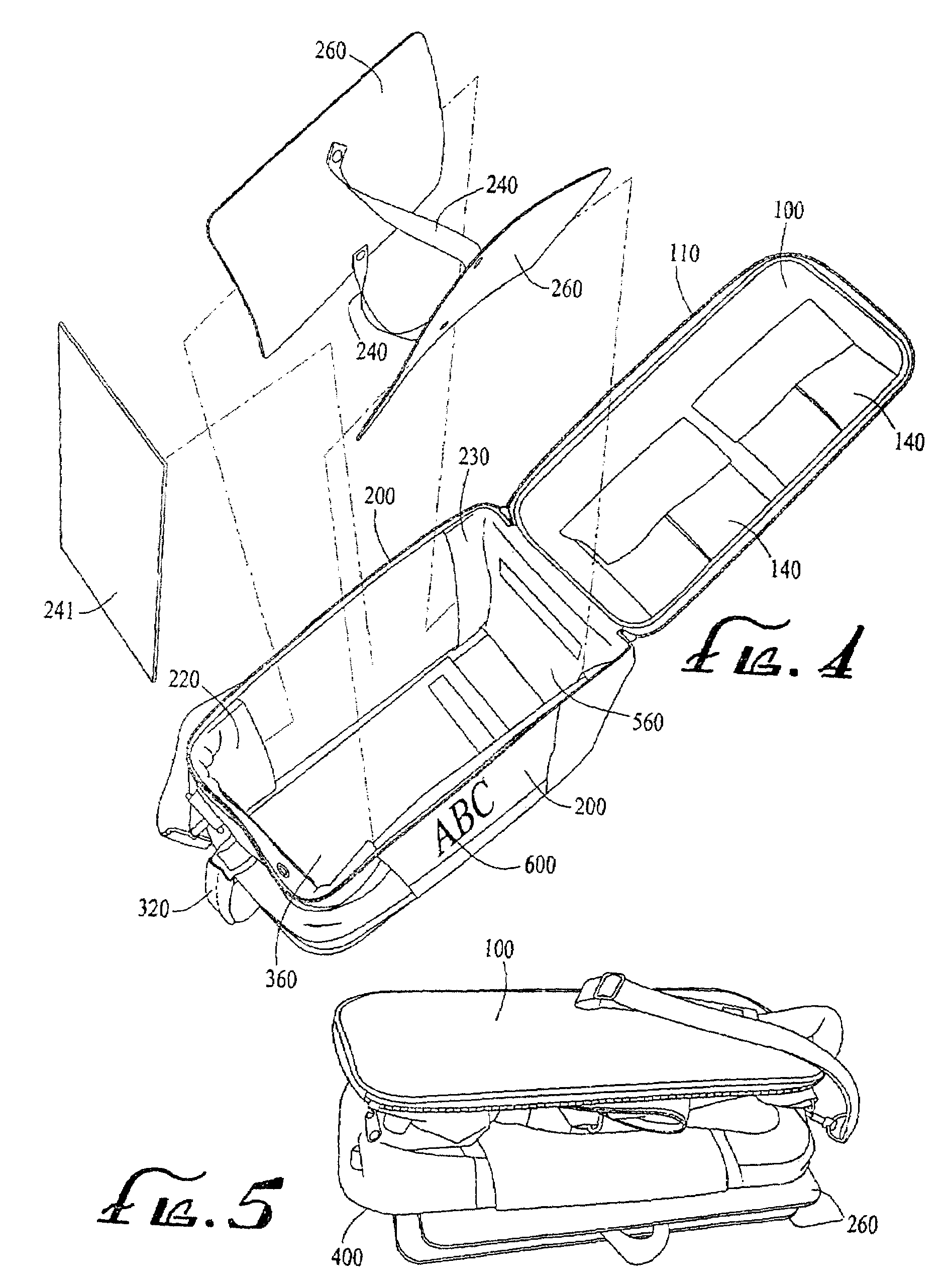

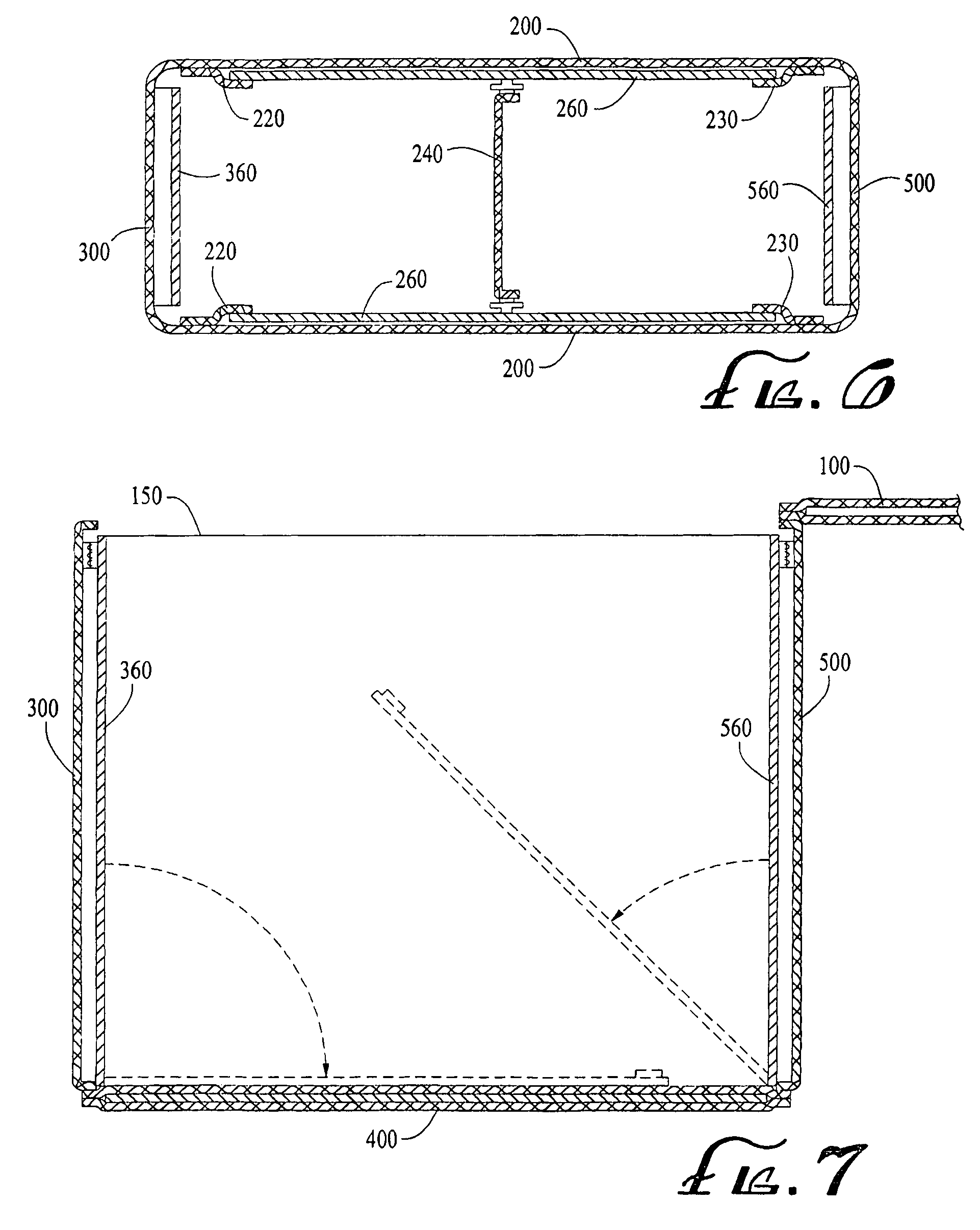

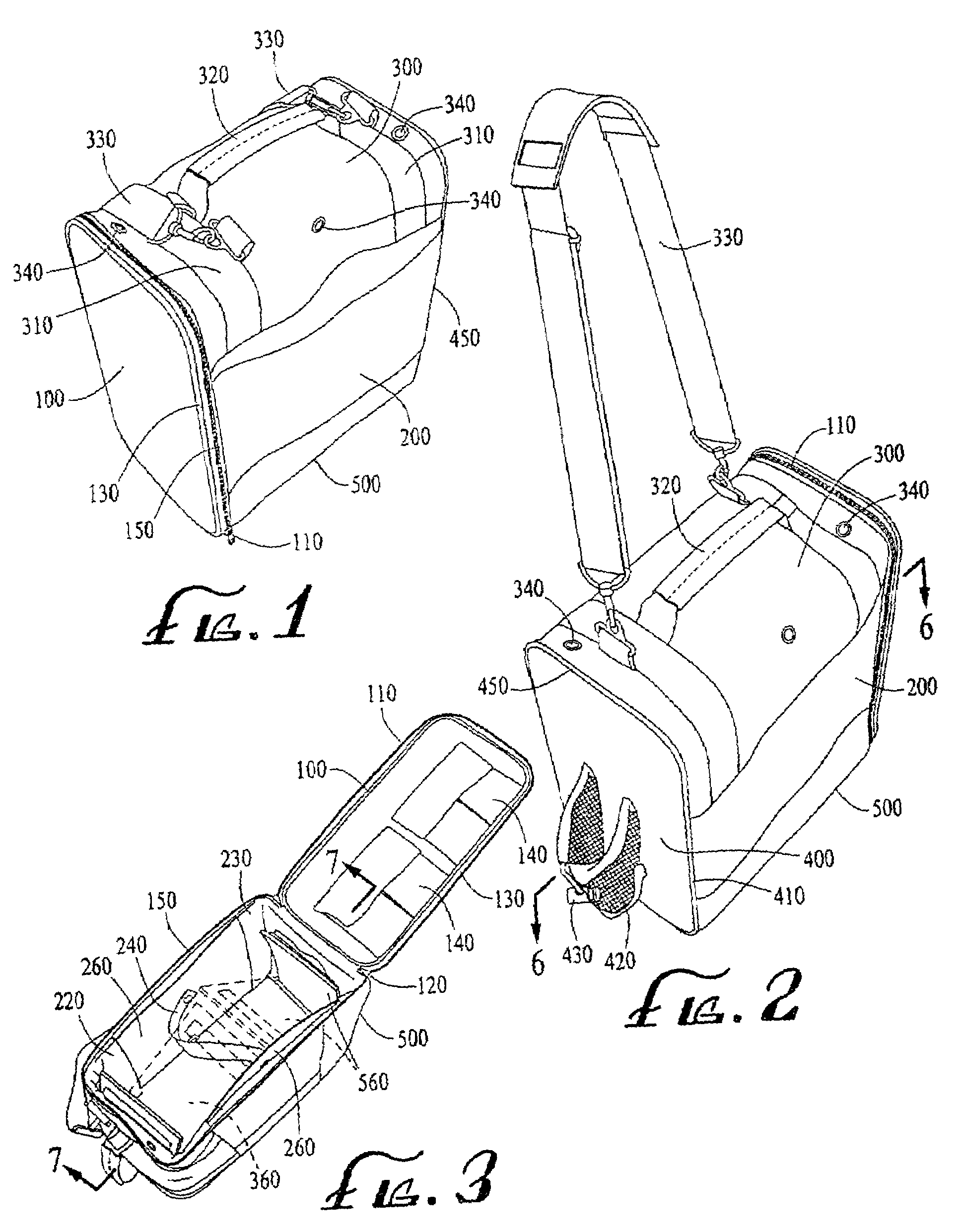

专利附图（8）
