来源记录显示 Expired
半无框橱柜及其制造方法
Semi-frameless cabinet and method for making the same
US-7451535-B2用于橱柜，结合有框和无框优点，内部齐平。
专利摘要
一种半无框橱柜系统，包括顶板、底板、两个侧板和一个背板。橱柜还可包括一个或多个中间搁板、抽屉或门。橱柜的每个朝前侧包括带槽表面，其中封边被固定到每个面板，使得面板和封边在橱柜内形成内部空间。封边重叠橱柜面板的外边缘，但不重叠内边缘，使得封边和面板在橱柜的内部空间内齐平。因此，橱柜兼具框架式和无框式橱柜的优点。
Original abstractA semi-frameless cabinet system including a top panel, bottom panel, two side panels, and a back panel. The cabinet may also include one or more middle shelves, drawers, or doors. Each of the forward facing sides of the cabinet include a grooved surface, wherein edging is secured to each panels such that the panels and edging form an interior space within the cabinet. The edging overlaps the outer edge of the cabinet panels, but not the inner edge, such that the edging and panels are flush within the interior space of the cabinet. As such, the cabinet employs the advantages of both framed and frameless cabinetry.

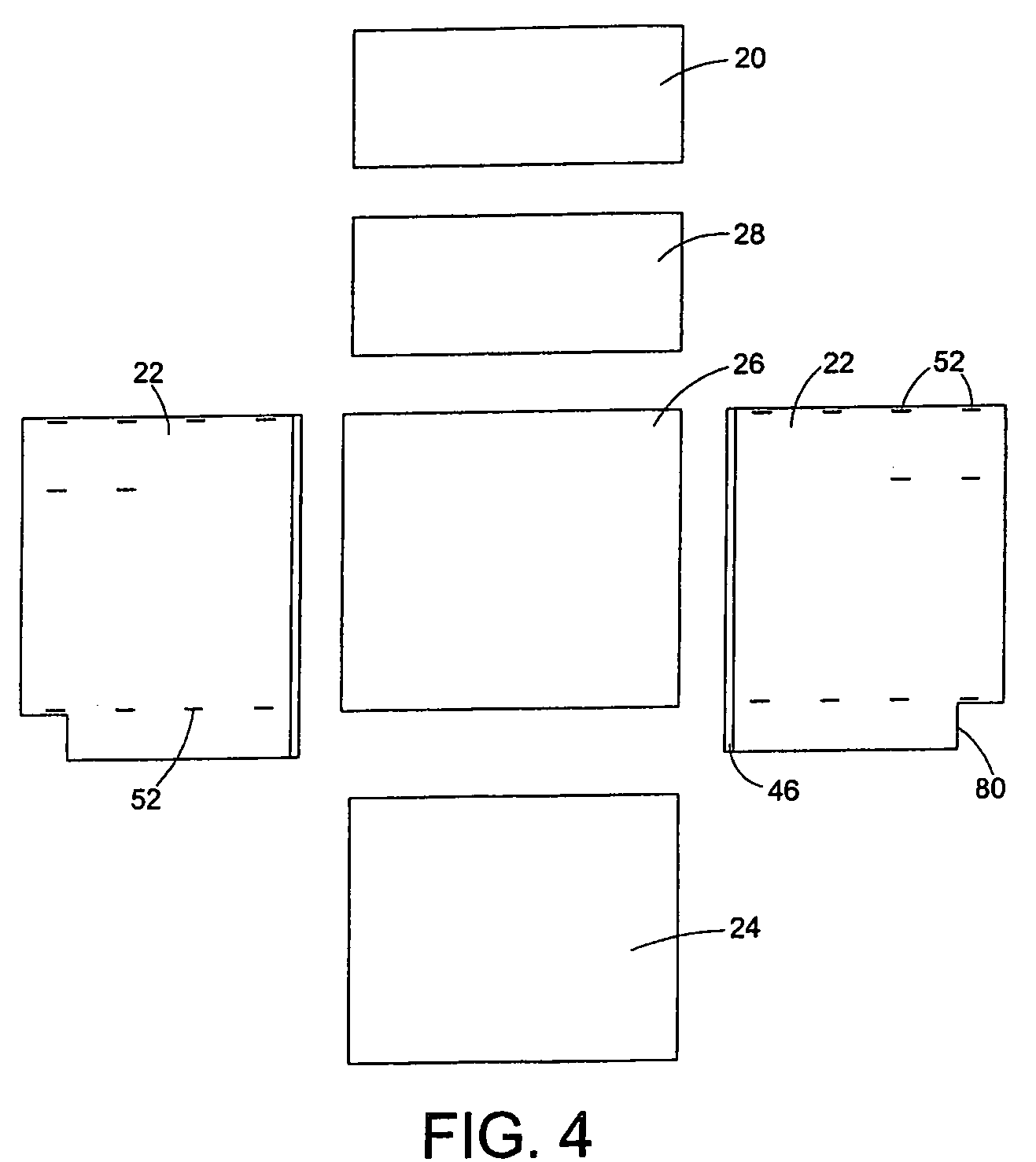

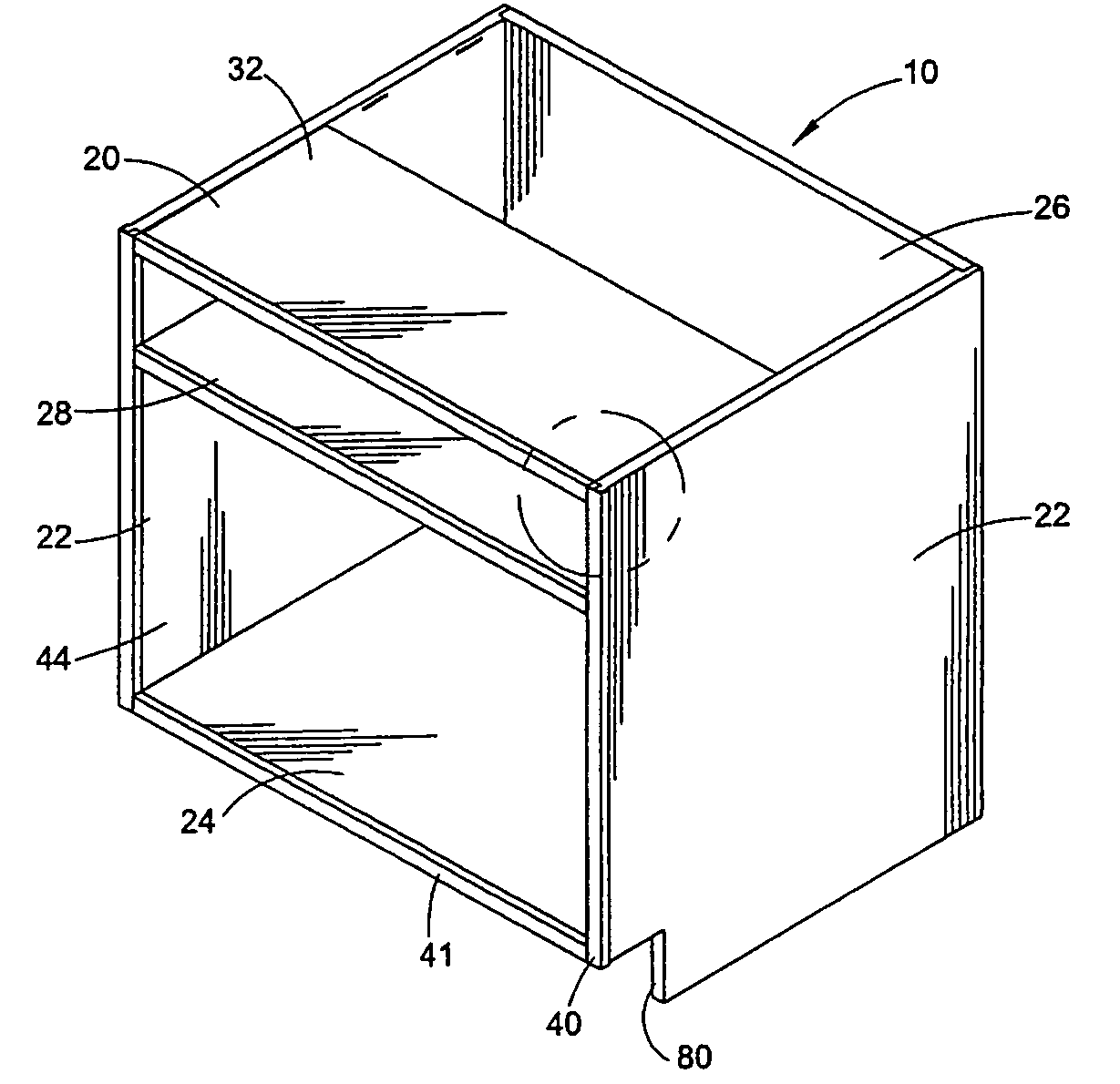

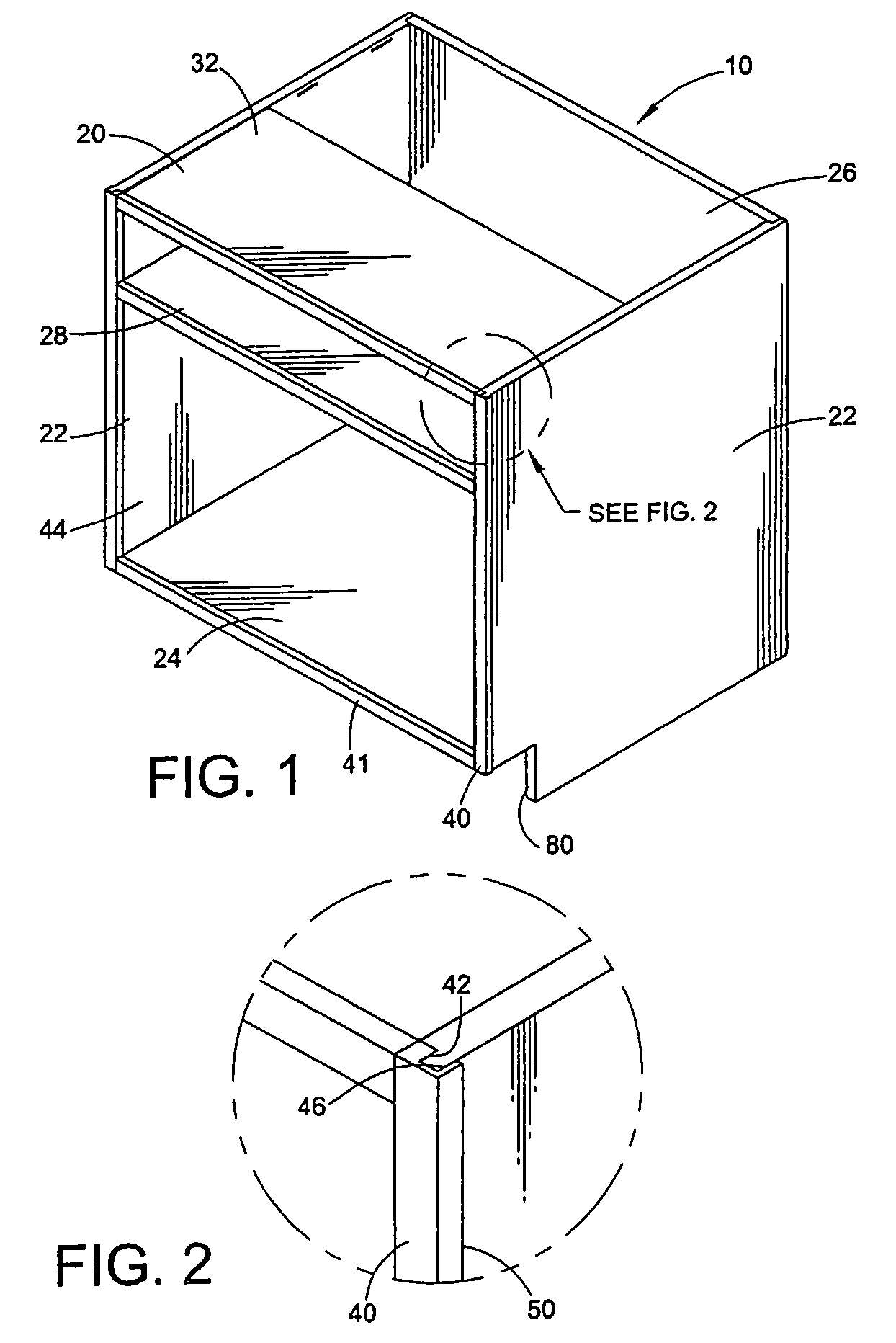

专利附图（8）
