移动通信系统中用户间同时呼叫尝试时提高通信成功率的方法

Method for improving communication success rate in simultaneous call trial between subscribers in mobile communication systems

US-7450938-B2

解决移动通信中双方同时呼叫时的冲突,提高接通率。

专利摘要

公开了一种在移动通信系统中用户间同时呼叫尝试时提高通信成功率的方法。该方法包括:当第一用户尝试呼叫第二用户时,由第二用户网络从第一用户网络接收IAM消息;在接收IAM后,由第二用户网络确定第二用户是否已请求终止到第一用户;当第二用户已请求终止时,由第二用户网络中止第二用户的始发呼叫尝试;在中止始发呼叫尝试后,由第二用户网络尝试寻呼第二用户;以及在成功寻呼第二用户后,由第一用户网络和第二用户网络设置第一用户和第二用户之间的呼叫。

Original abstractDisclosed is a method for improving a communication success rate in a simultaneous call trial between subscribers in a mobile communication system. The method includes receiving by a second subscriber network an IAM message from a first subscriber network when a first subscriber tries a call to a second subscriber; determining by the second subscriber network whether the second subscriber has requested a termination to the first subscriber, after receiving the IAM; aborting by the second subscriber network an originating call trial of the second subscriber when the second subscriber has requested the termination; trying by the second subscriber network a page to the second subscriber after aborting the originating call trial; and setting a call between the first subscriber and the second subscriber by the first subscriber network and the second subscriber network, after succeeding in paging the second subscriber.

专利附图(8)

US-7450938-B2 figure 1
1
US-7450938-B2 figure 2
2
US-7450938-B2 figure 3
3

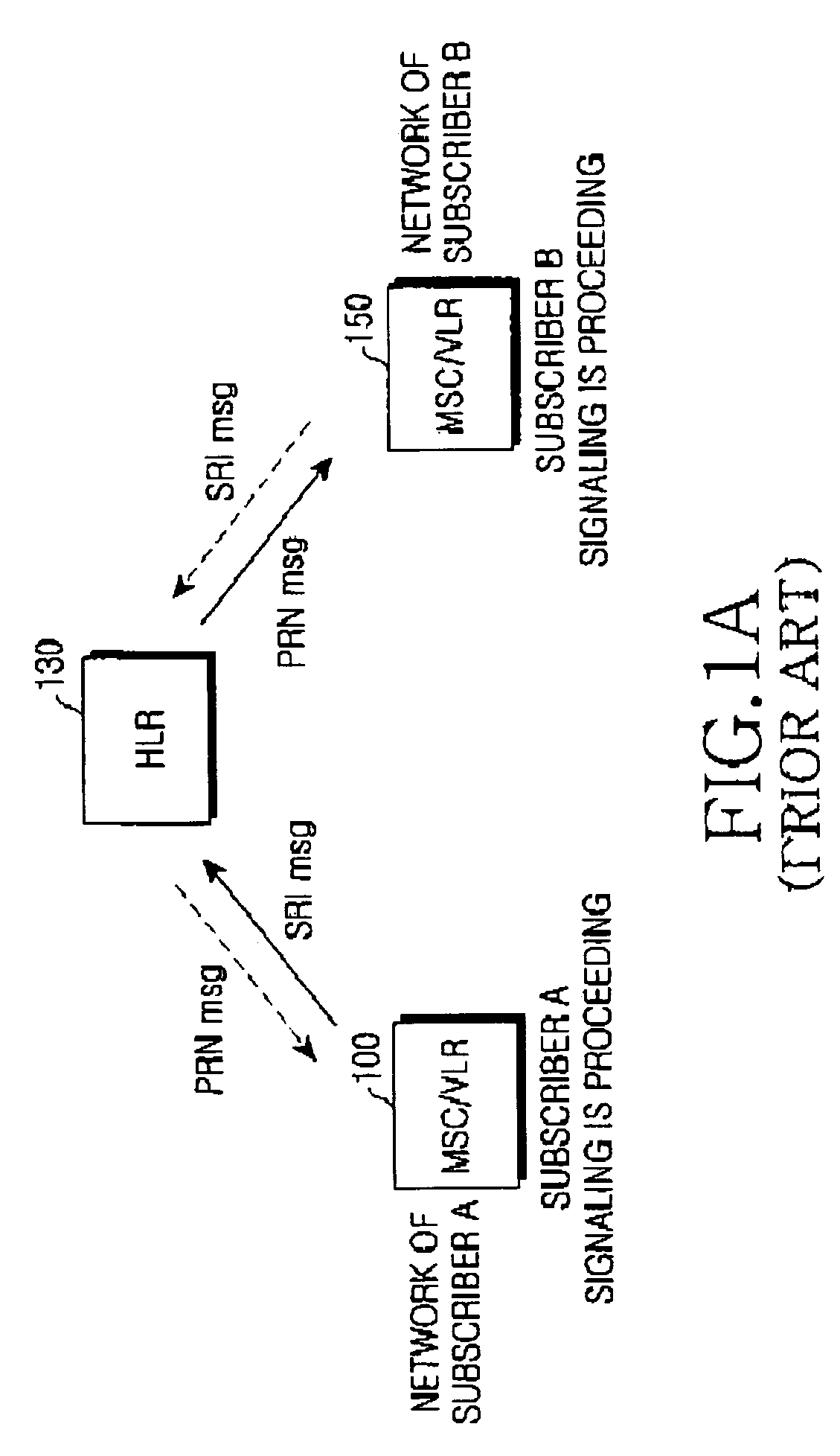

US-7450938-B2 figure 4
4
US-7450938-B2 figure 5
5

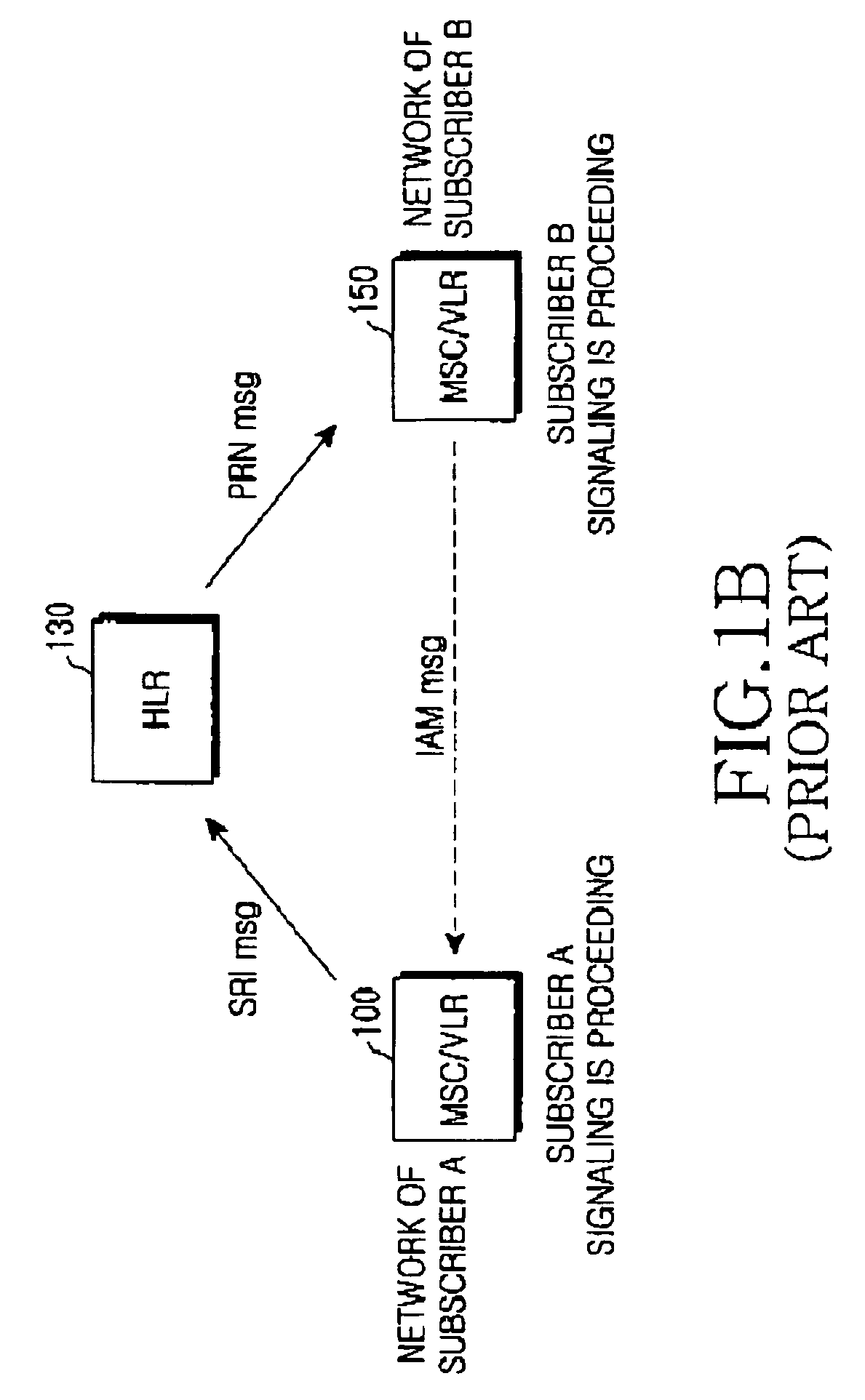

US-7450938-B2 figure 6
6
US-7450938-B2 figure 7
7

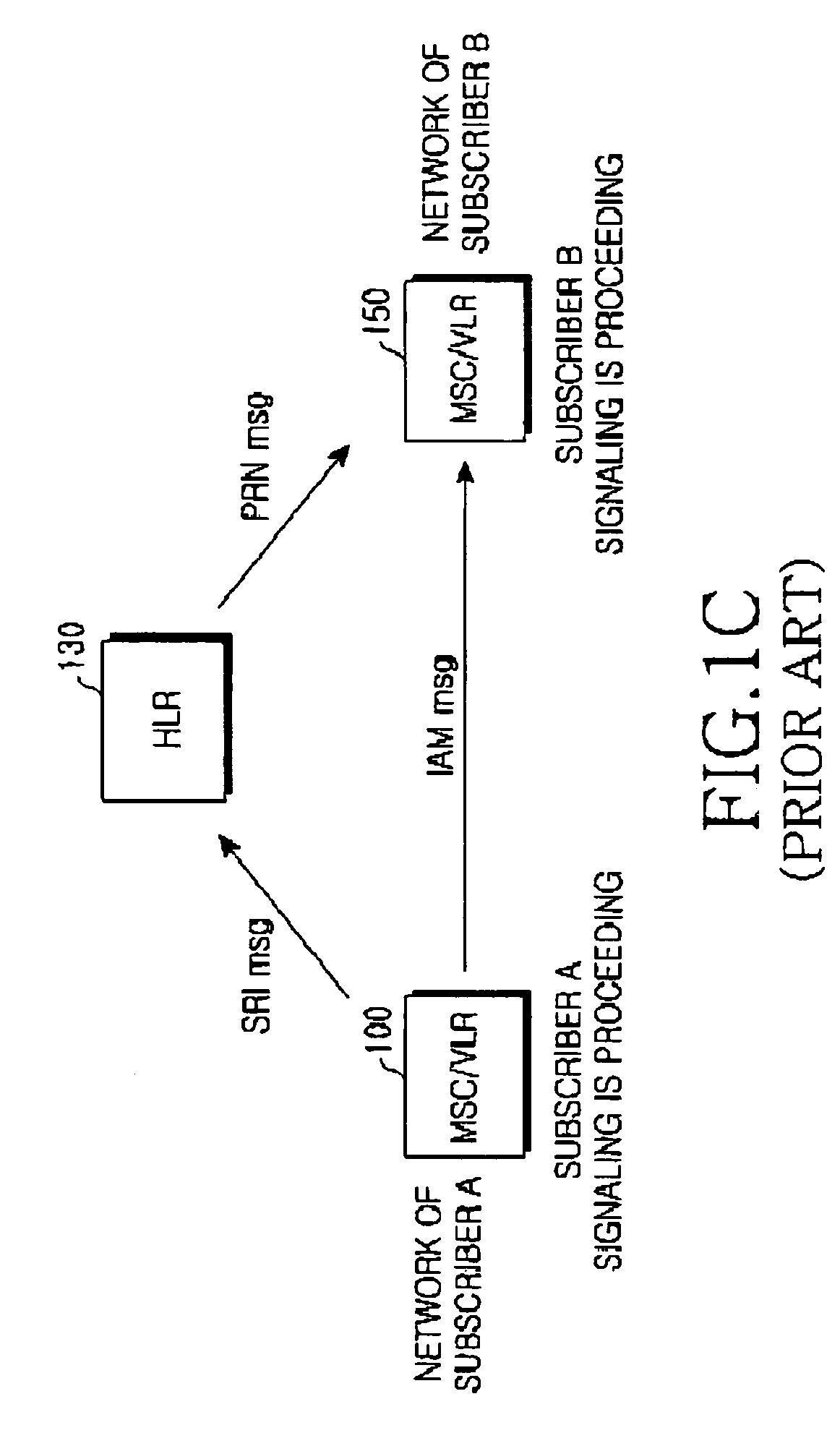

US-7450938-B2 figure 8
8
