用于旅行包称重，帮助用户避免超重。
专利摘要
一种用于旅行包的称重系统，用于测量和指示包和/或其内容的重量。该旅行包称重系统具有两个或三个重量传感器，以及用于将传感器感测到的重量相加的装置，以及由所述重量传感器承载的单个基本刚性的平台。该旅行包称重系统内置在包的内部或外部，或者适于放置在现有的所述包中。重量传感器从包中突出，测量并指示包空时的重量，同时指示航空公司设定的正常最大重量。该系统具有位于包外部和/或可见的控制和指示数字单元。数字单元具有一行控制装置和一行指示器，以不同颜色的组排列，这些指示器逐渐亮起直至最大重量，该最大重量可以预设或由用户设置，并具有语音指示器。旅行包称重系统还可以包含包内部的测量部分，并且包向上逐渐变细。
Original abstractA weighing system for a travel baa for measuring and indicating the weight of the bag and/or its contents. The travel bag weigh system has two or three weight sensors and means to add together the weights sensed by them, and a single substantially rigid platform borne by the said weight sensors. The travel bag weighing system is built into the bag internally or externally, or being adapted to be placed into an existing said bag. The weight sensors project from the bag, measure and indicates its weight when empty and simultaneously indicates a normal maximum weight set by airlines. The system has a control and indicating digital unit located and/or visible outside the bag. The digital unit has a line of control means and a line of indicators, in differently coloured groups, which light up progressively towards the maximum weight, which can be preset or user-set and has a vocal indicator. The travel bag weighing system may also contain a measuring part internal of the bag and the bag tapers upwardly.

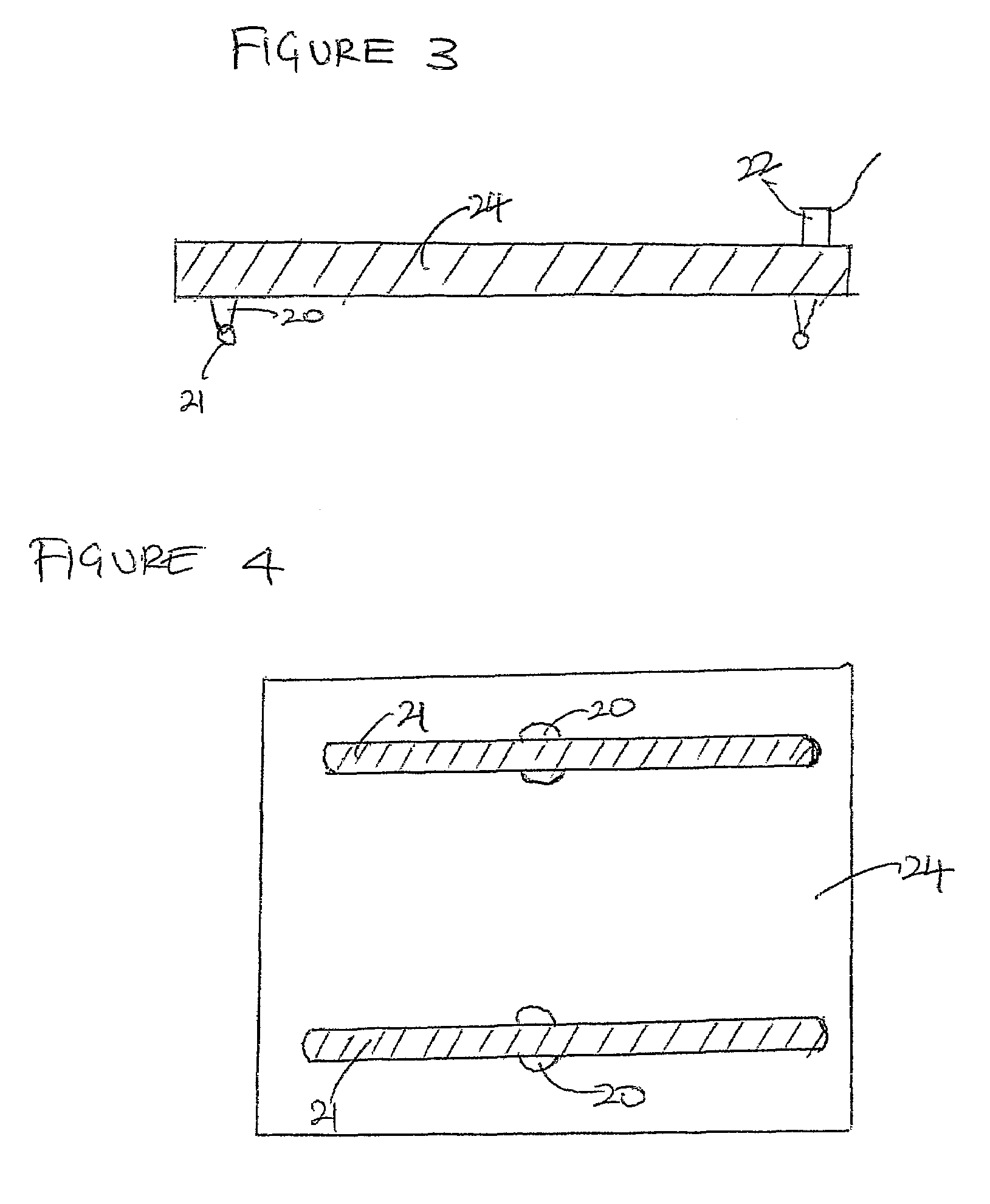

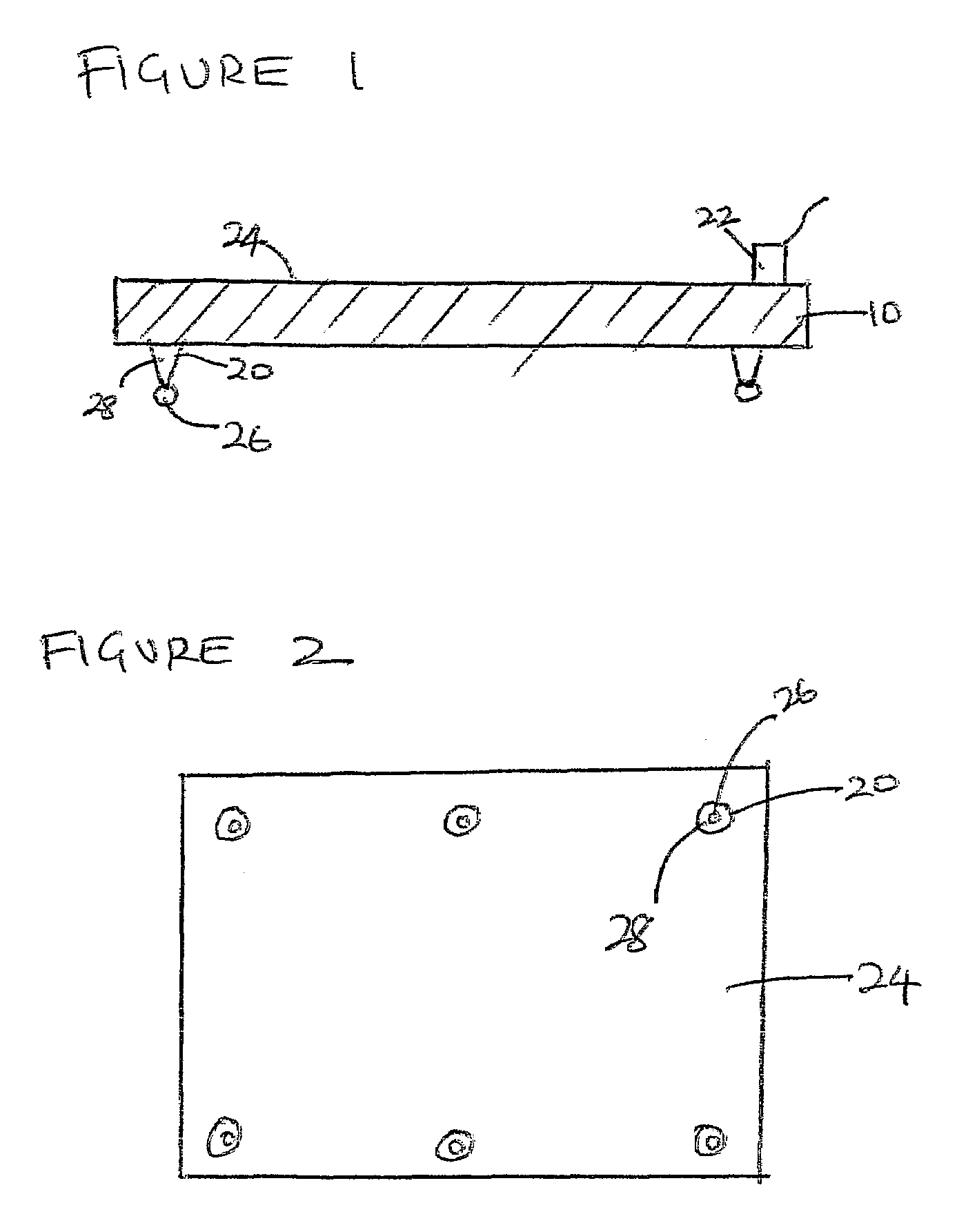

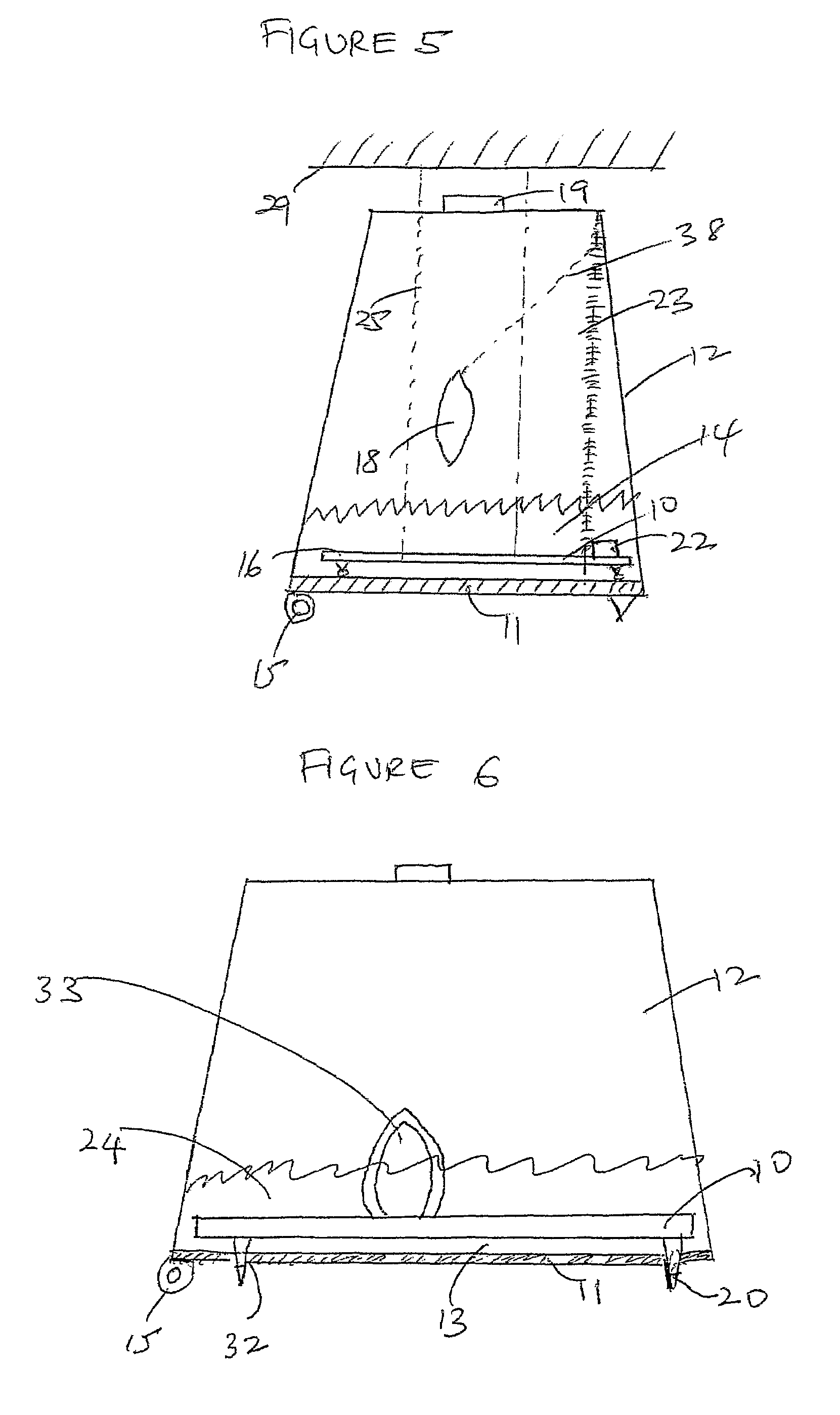

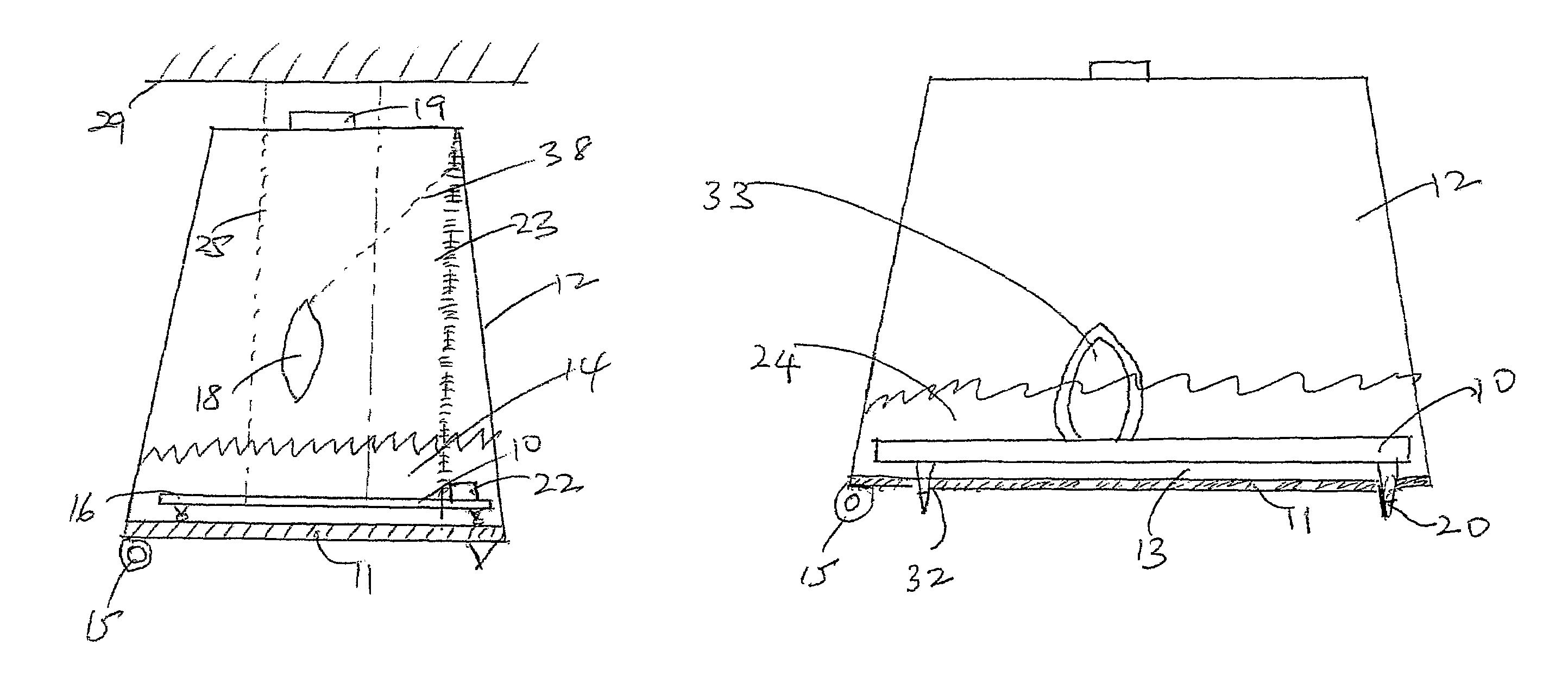

专利附图（8）
