用于分配卫生纸，防止纸卷失控转动并减少使用干燥卫生纸的不适。
专利摘要
描述了一种用于分配卷材的系统和方法，其基本上防止卫生纸失控转动，并有助于减少因使用干燥卫生纸而引起的刺激。在一个实施例中，分配器具有一个结构，该结构具有一个薄但坚固的弯曲刚性臂，该臂带有一个齿，该齿被偏压以与卫生纸卷接合，其方式使得仅允许纸卷沿一个方向转动。如果试图使纸卷沿相反方向转动，则朝向纸卷设置的齿将与纸卷接合并阻止沿第二方向旋转，而不会基本上损坏纸卷上的卫生纸。在第二实施例中，卫生纸分配器将预定量的卫生纸分配到接收器中，该接收器具有足够的尺寸，使卫生纸自身折叠预定次数。一旦预定量的卫生纸被置于接收器中，系统将分配计量的洗液、乳膏或其他类型的清洁液体，其不仅清洁所需组织区域，而且充当卫生纸的润滑剂，使其不会刺激组织。
Original abstractA system and method for dispensing roll material is described that substantially prevents toilet paper runaway and is useful in reducing irritation caused by using dry toilet paper. In one embodiment, the dispenser has a structure that has a thin, but strong curved, rigid arm with a tooth that is biased to engage the toilet paper roll in such a manner that it will only permit the roll to turn only in one direction. If the roll is attempted to be turned in the opposite direction, the tooth, which is disposed toward the roll, will engage the roll and prevent rotation in the second direction without substantially damaging the toilet paper on the roll. In a second embodiment, the toilet paper dispenser will dispense a predetermined amount of toilet paper into a receiver that has a sufficient size that it will fold over onto itself a predetermined number of times. Once the predetermined amount of toilet paper is disposed in the receiver, the system will dispense a measured amount of lotion, cream, or other type of cleansing liquid that will provide not only cleansing of the desired tissue area but also act as a lubricant for the toilet paper so that it will not irritate the tissue.

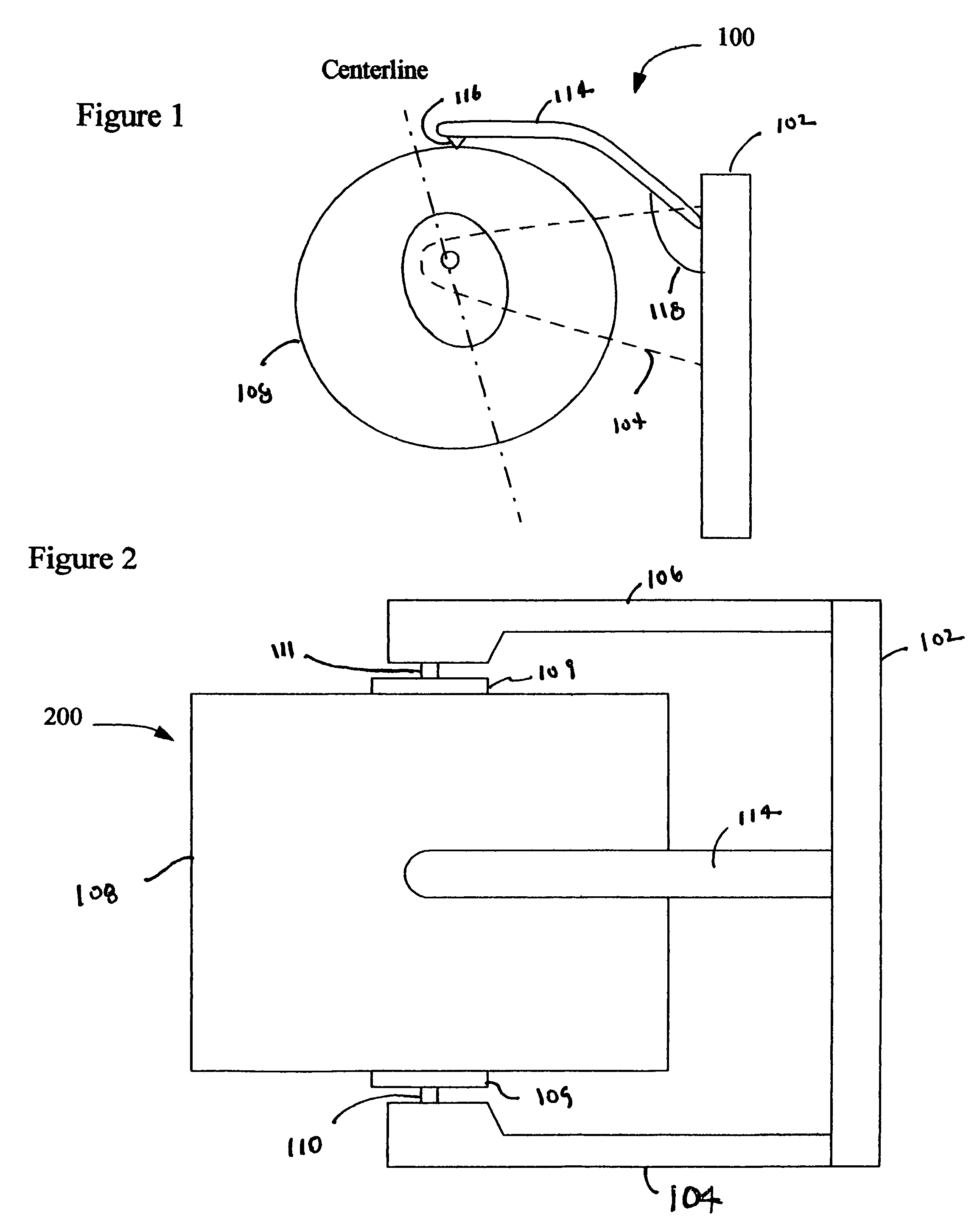

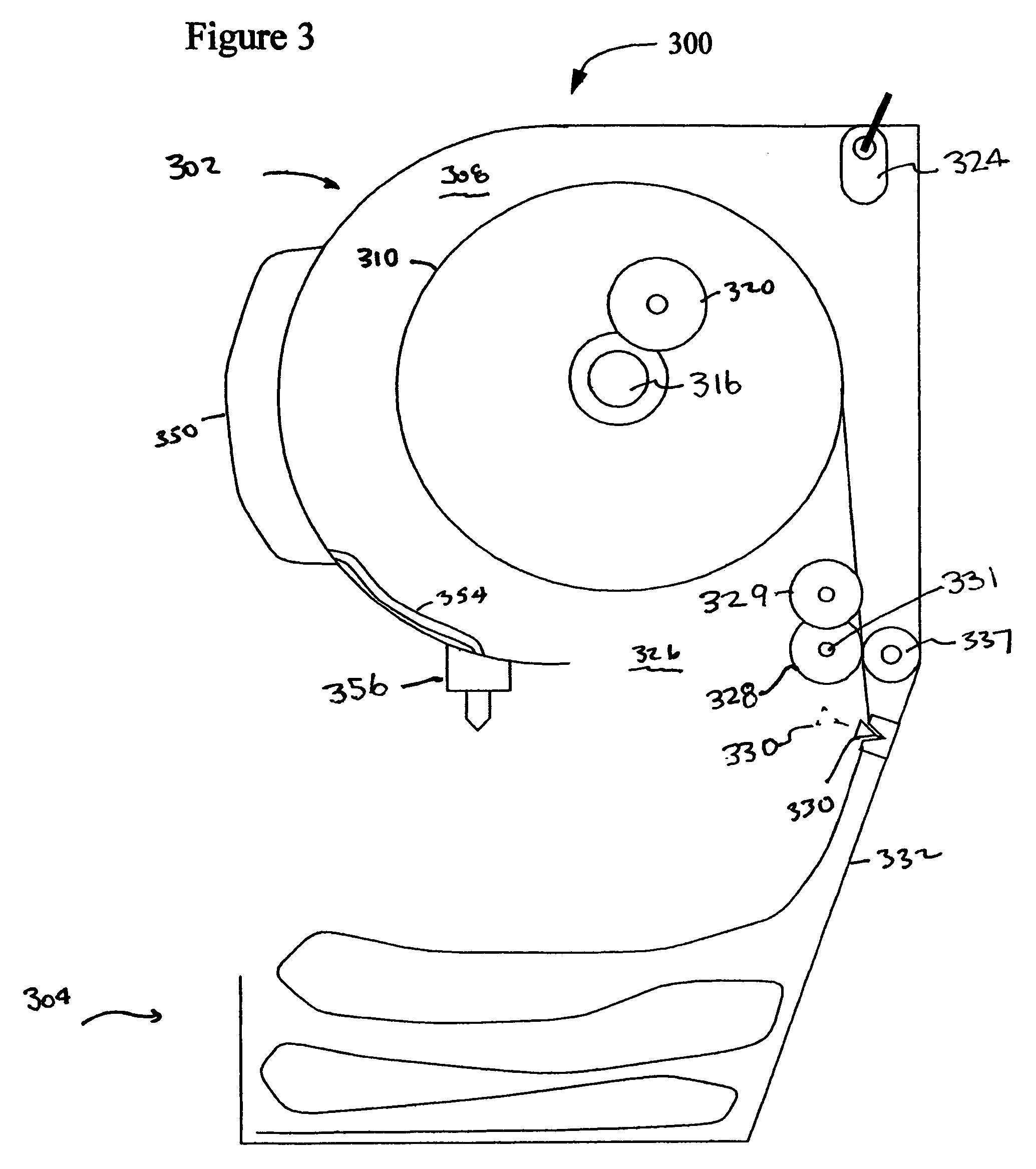

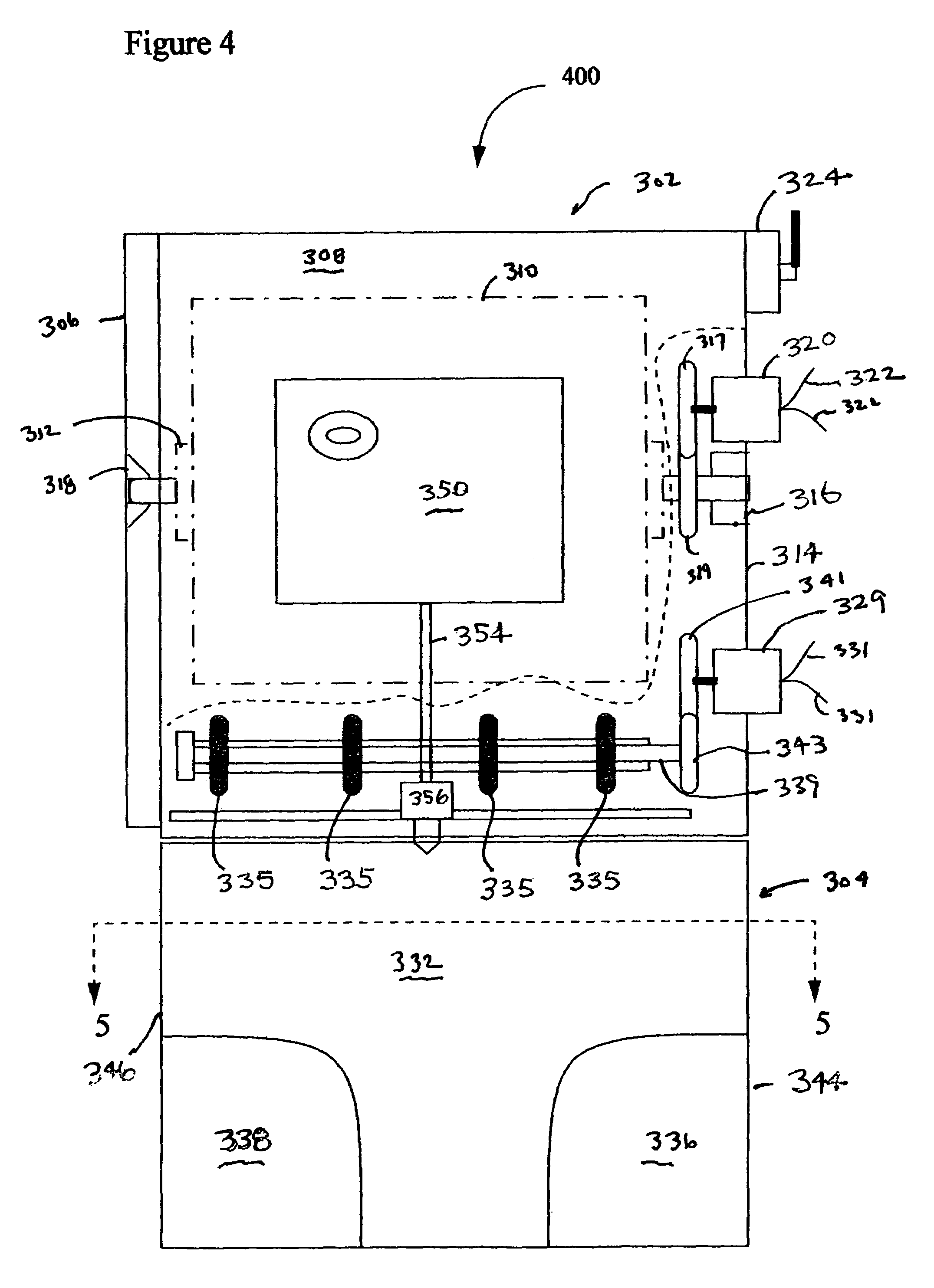

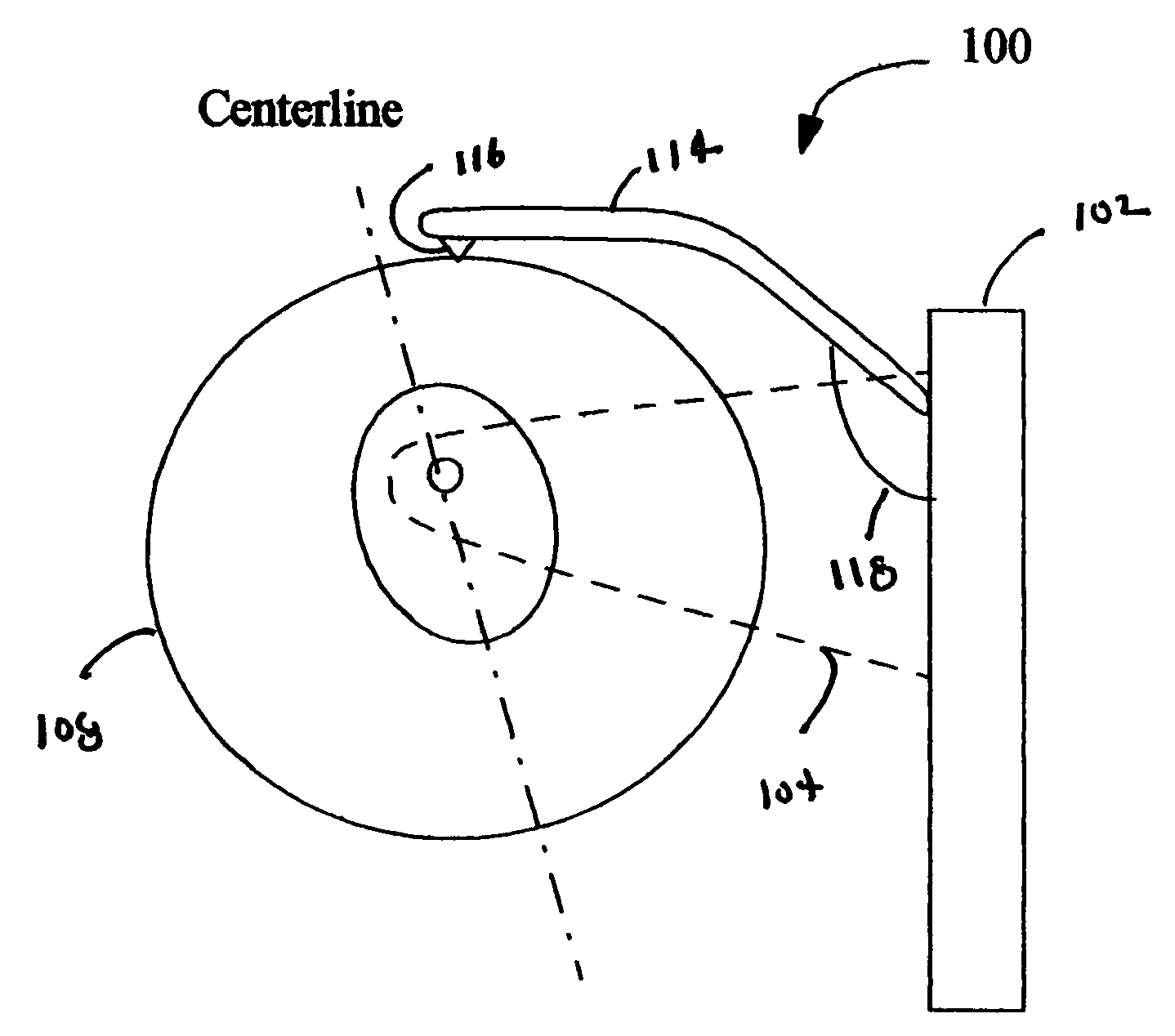

专利附图（8）
