用于保护浴缸、淋浴间等卫浴设施免受碰撞和刮擦。
专利摘要
卫浴设施防护板及系统为浴缸和淋浴间等卫浴设施提供保护。卫浴设施防护板可具有多种配置，例如包括由柔性材料形成的、包含衬垫层的外罩。防护板可放置在卫浴设施附近，从而保护卫浴设施免受撞击和磨损。防护板可包括用于包封衬垫的独立材料片，可包括不带外罩的衬垫，或者可包括不带衬垫的独立片材。独立片材可以是聚乙烯和/或防滑橡胶等材料。对于带有防滑橡胶的防护板，防护板可定位成使防滑橡胶部分接触卫浴设施且不会滑动。防护板可包括带有粘合剂的柔性片材，粘合剂粘附到卫浴设施上，例如在垂直的卫浴设施表面上。此外，多个防护板可作为系统包括在内。多个防护板可在连接处互连，使防护板能够贴合特定卫浴设施。
Original abstractFixture guard panels and systems provide protection for fixtures such as tubs and showers. The fixture guard panels may have a variety of configurations such as including an enclosure formed of a flexible material that contains a padding layer. The panel may be placed adjacent the fixture such that the panel protects the fixture from impacts and abrasions. The panel may include individual sheets of material to enclose padding, may include padding without an enclosure, or may include an individual sheet without padding. The individual sheets may be materials such as polyethylene and/or non-skid rubber. For panels with non-skid rubber, the panel may be positioned so that the non-skid rubber portion contacts the fixture and will not skid. Panels may include flexible sheets with adhesive that adheres to the fixture, such as upon vertical fixture surfaces. Additionally, multiple panels may be included as a system. The multiple panels may be interconnected at junctions that allow the panels to form fit to a particular fixture.

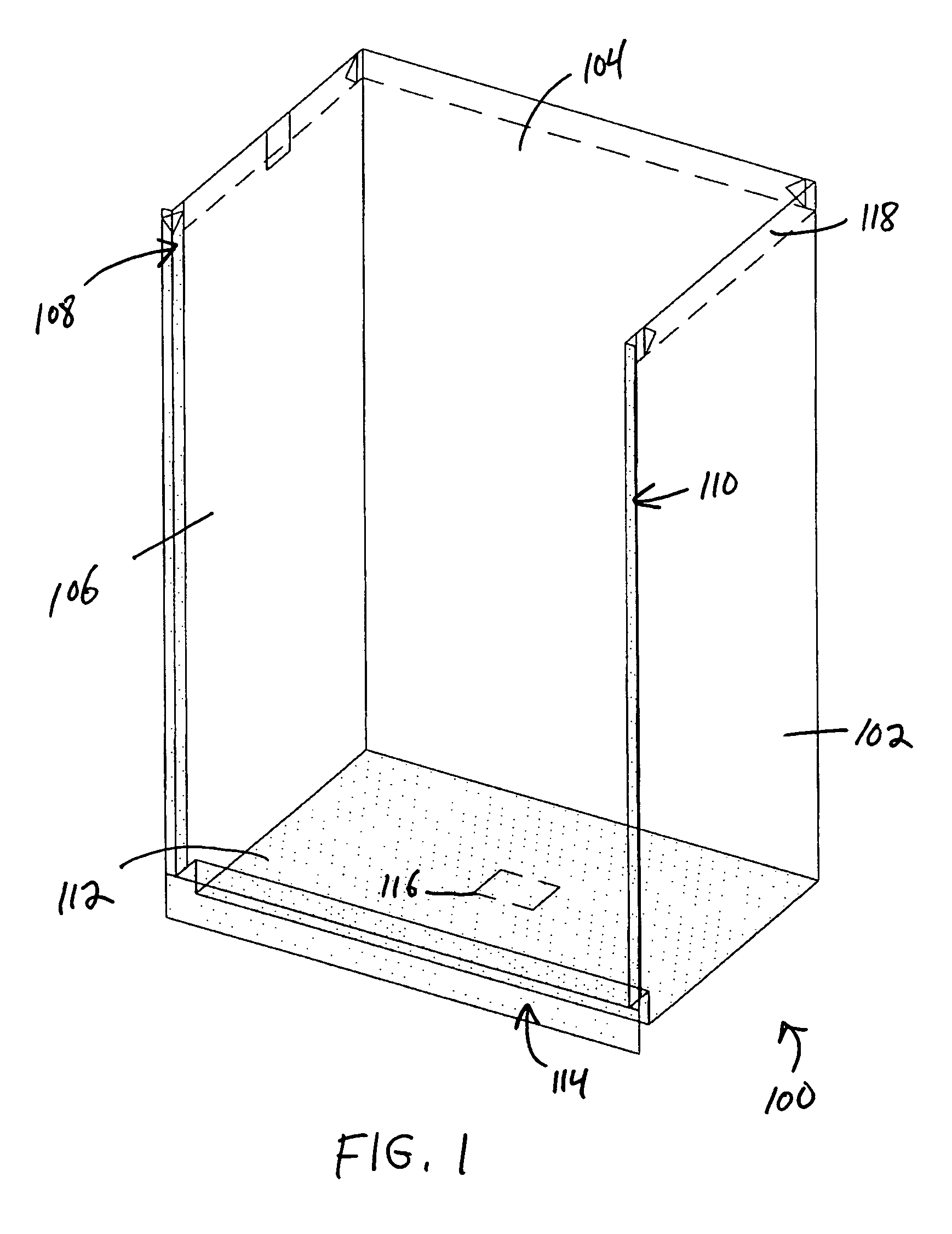

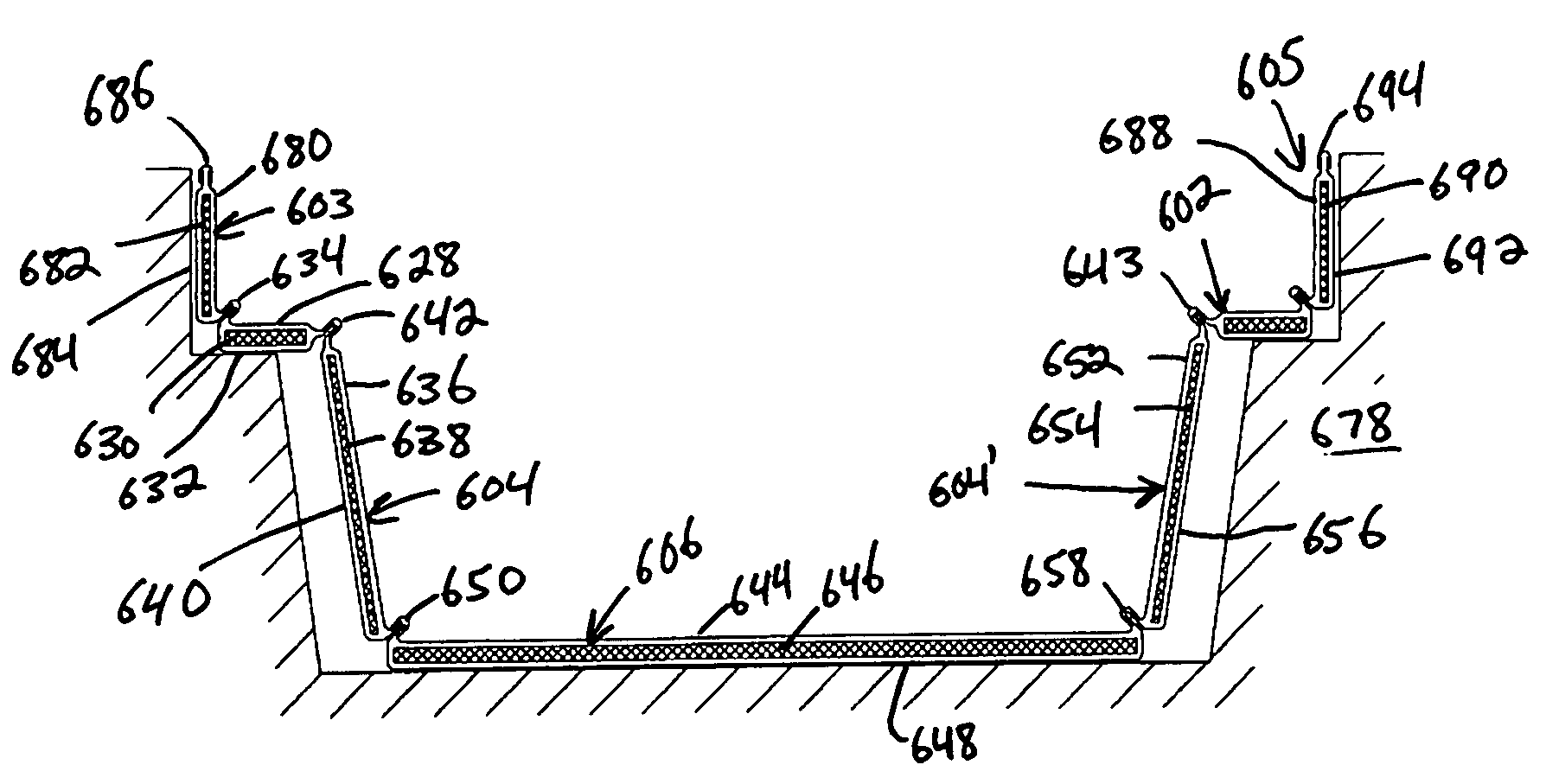

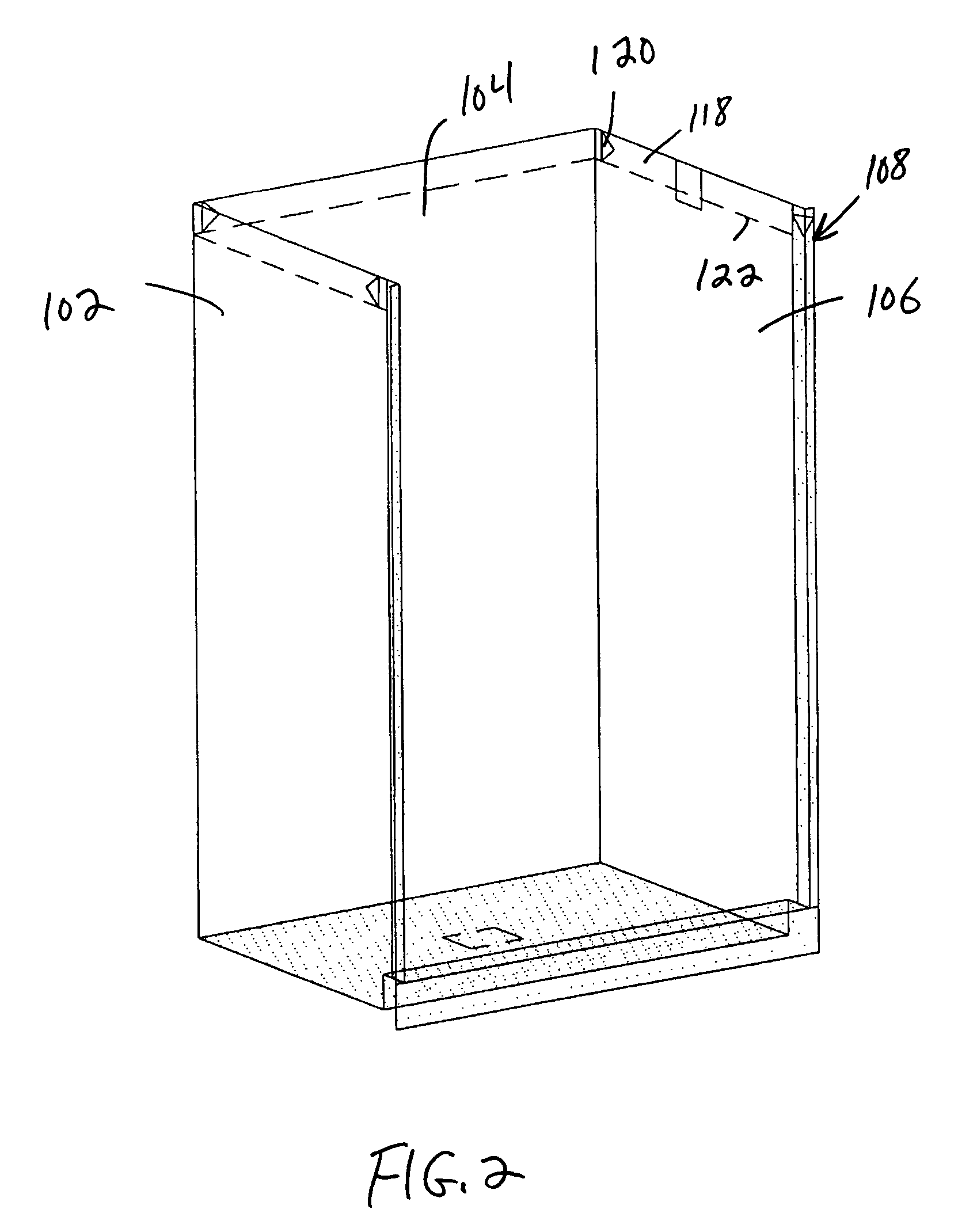

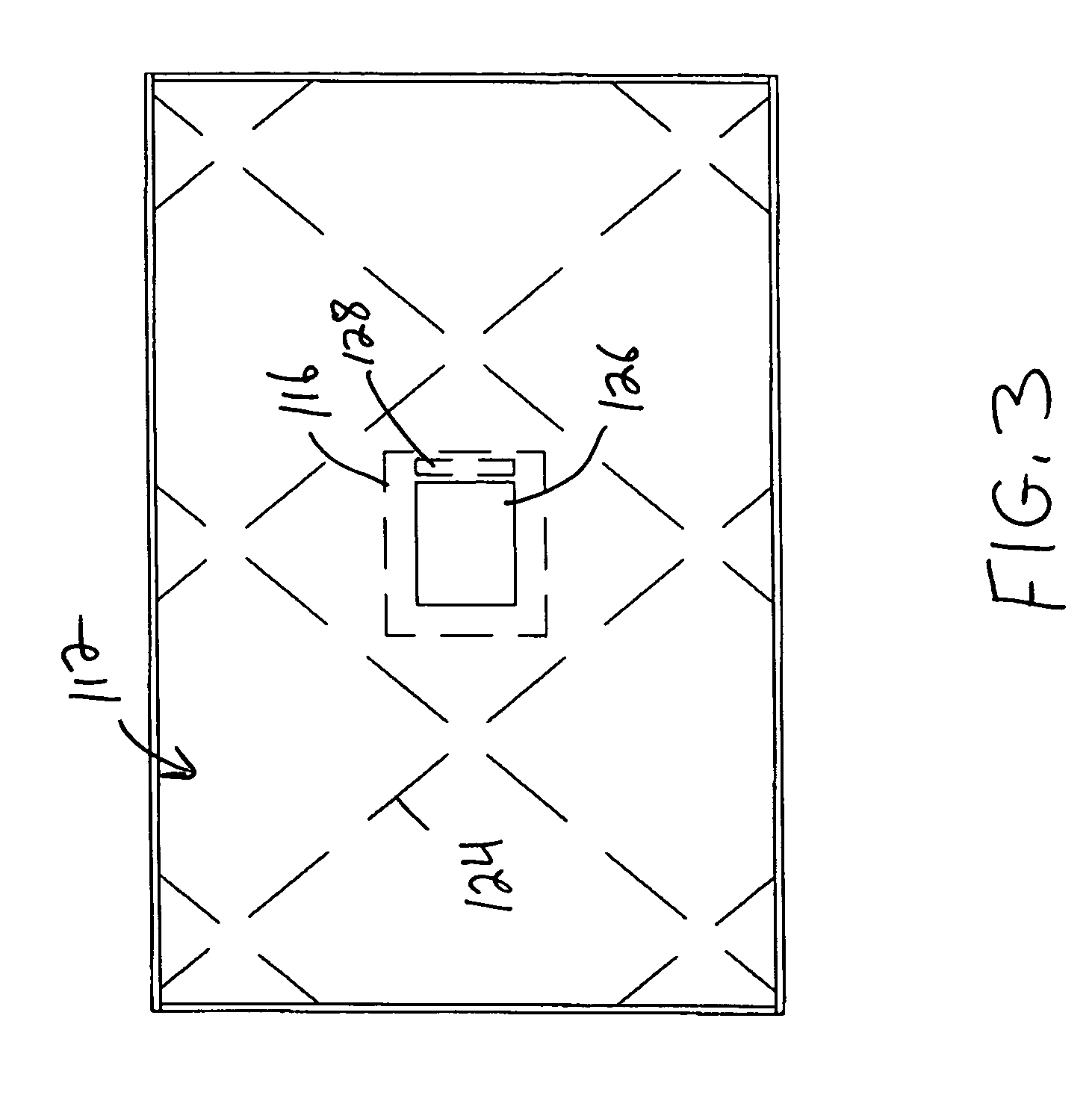

专利附图（8）
