纸巾分配器的低余量指示器
Low reserve indicator for a paper towel dispenser
US-7434760-B2用于纸巾分配器，提示纸巾即将用完。
专利摘要
一种纸巾分配器，包括壳体，该壳体具有被配置为支撑纸供应的内部腔室和用于从纸供应分配纸的分配孔。纸供应包括由来自纸供应的纸的叠置边缘部分形成的侧部。指示器机构固定在内部腔室内的壳体上，并邻近纸供应设置。指示器机构包括可操作地连接到释放机构的指示器。指示器可在缩回位置和指示位置之间移动。释放机构被枢转偏置远离壳体，并响应于纸供应减少到低于预定量而可释放。在释放机构释放时，释放机构使指示器移动到指示位置。
Original abstractA paper towel dispenser includes a housing with an inner chamber configured to support a paper supply and a dispensing aperture for dispensing paper from the paper supply. The paper supply includes a side that is formed by superimposed edge portions of paper from the paper supply. An indicator mechanism is affixed to the housing within the inner chamber and is disposed adjacent the paper supply. The indicator mechanism includes an indicator operably connected to a release mechanism. The indicator is movable between a retracted position and an indicating position. The release mechanism is pivotally biased away from the housing and is releasable in response to the paper supply being reduced below a predetermined amount. Upon release of the release mechanism, the release mechanism causes the indicator to move to the indicating position.

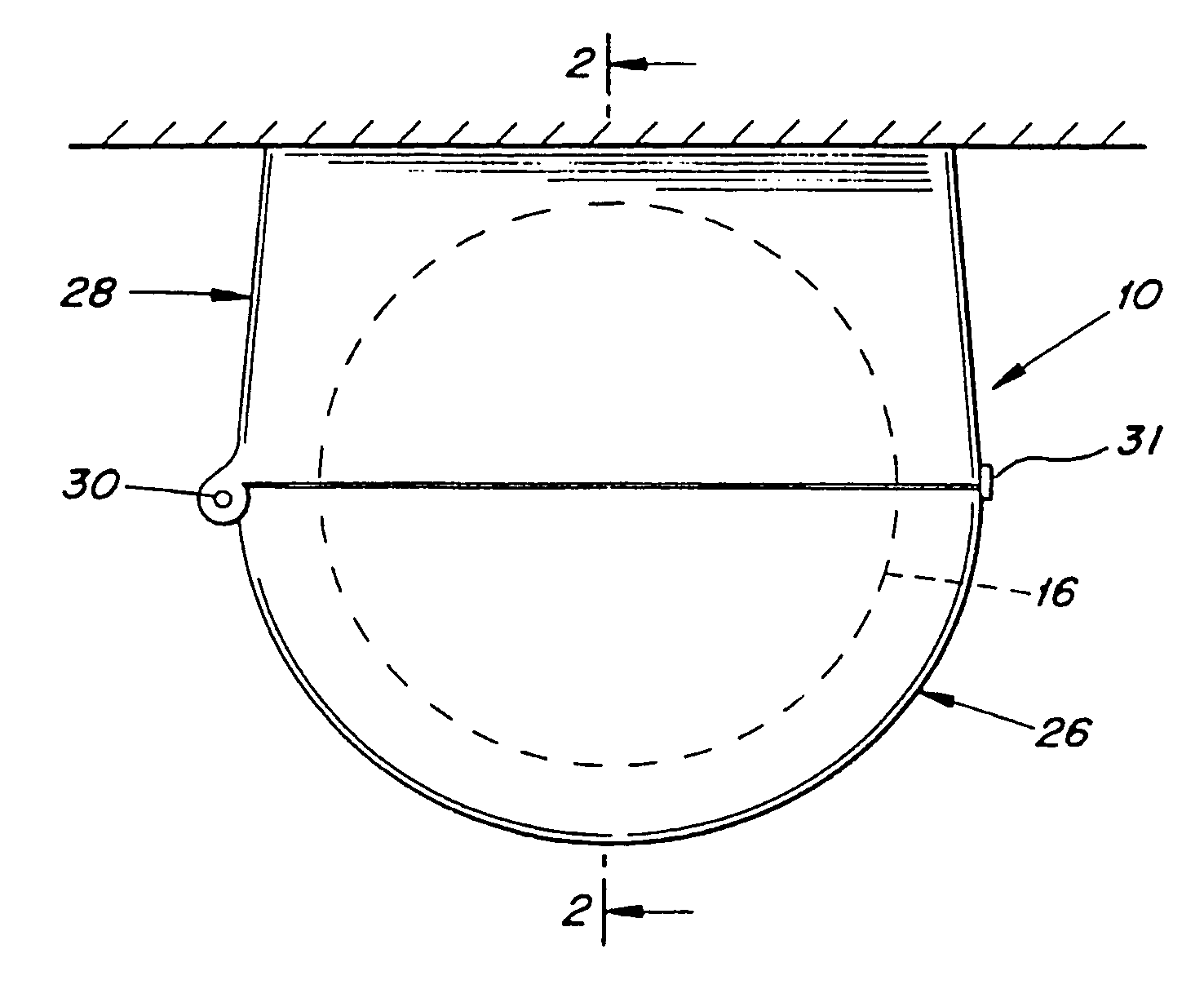

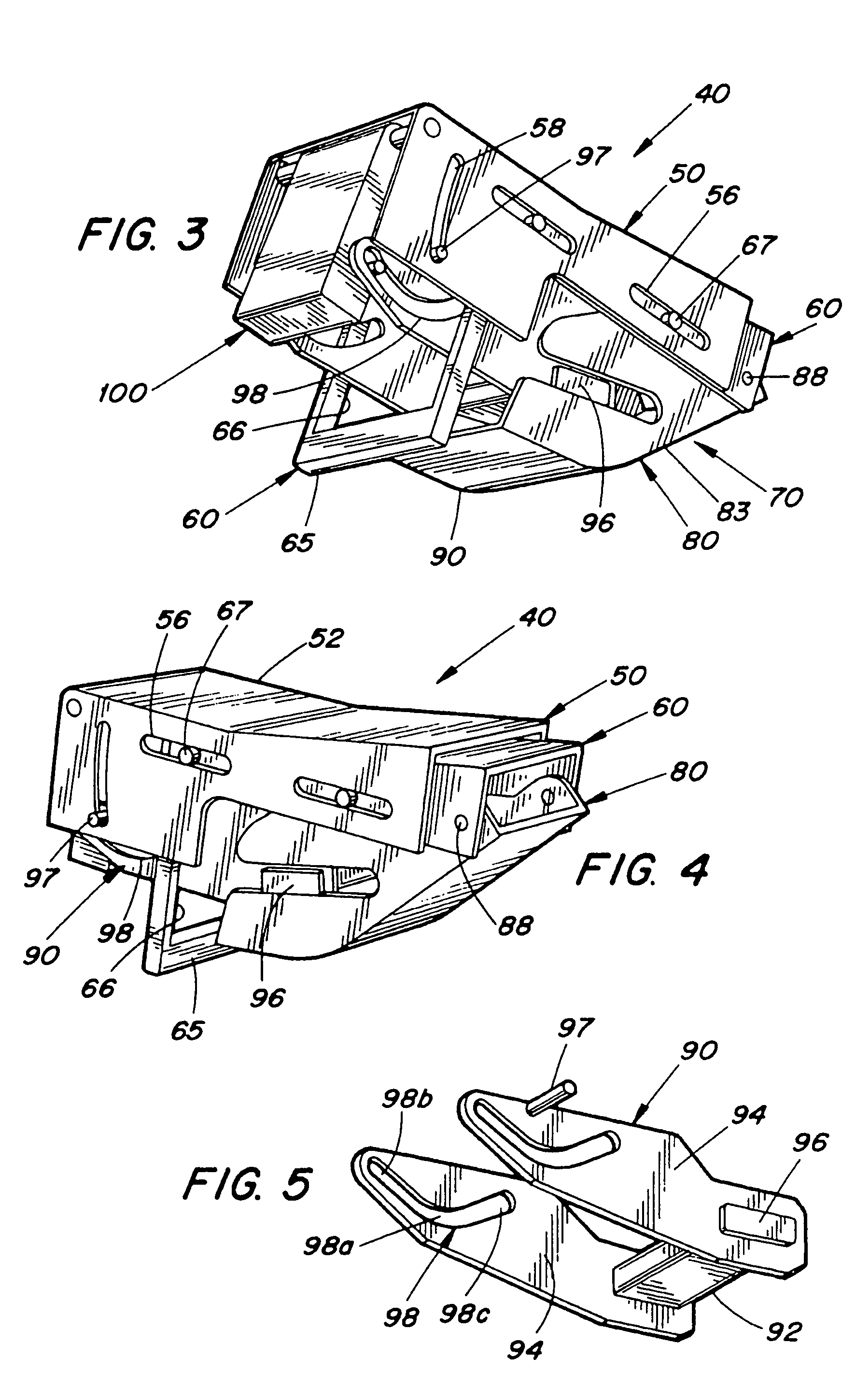

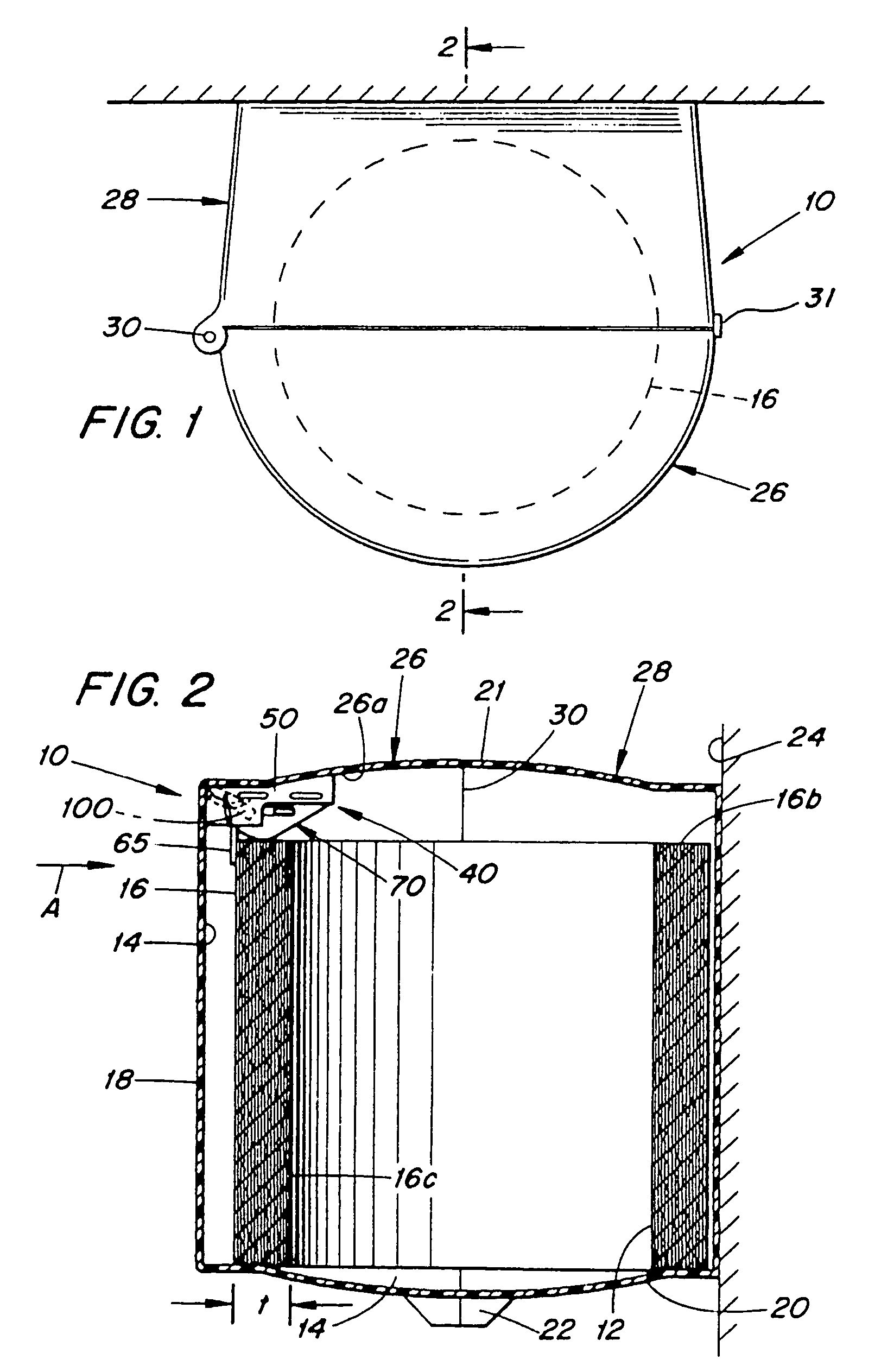

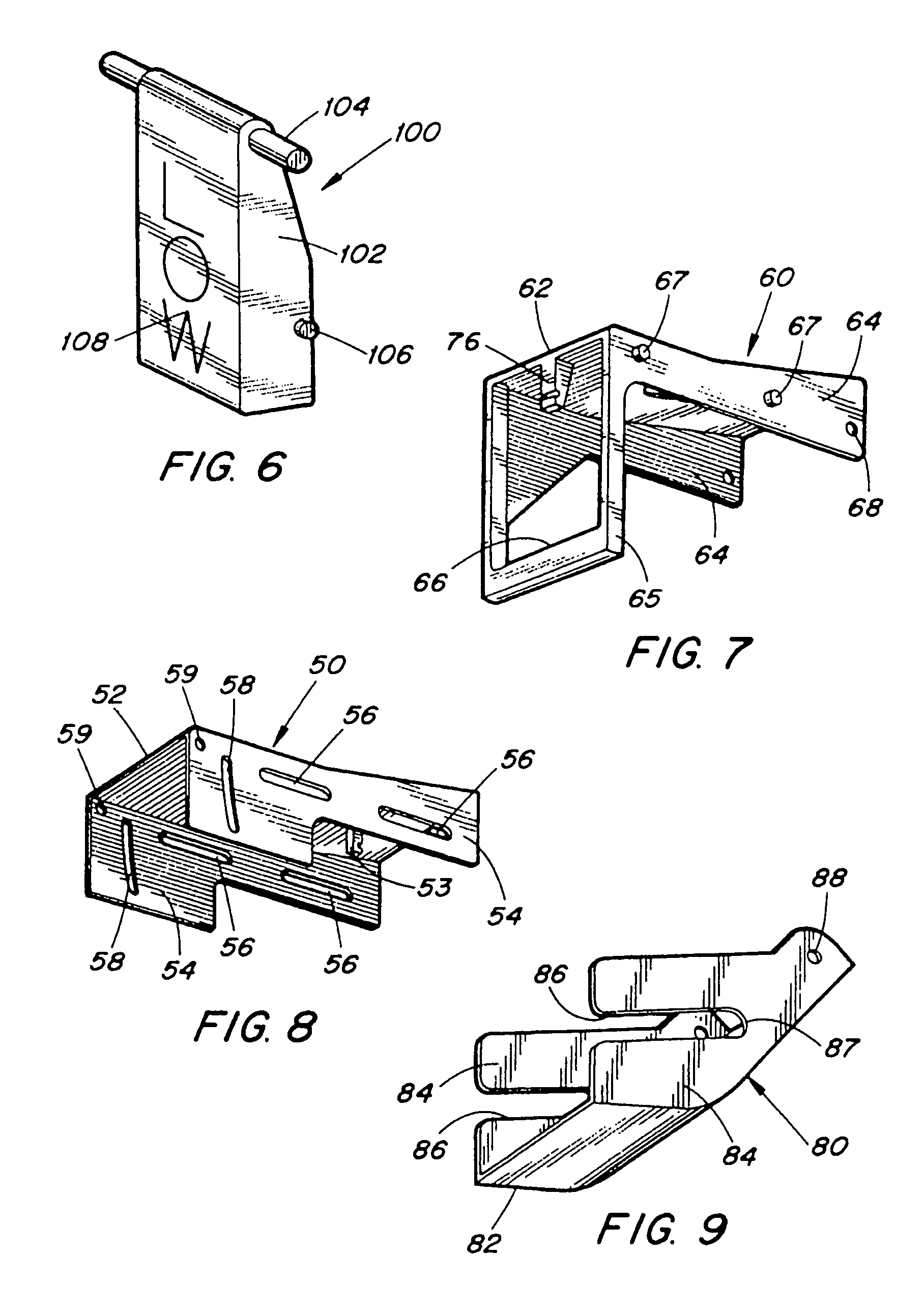

专利附图（8）
