用作便携式马桶和沐浴椅，可折叠存放。
专利摘要

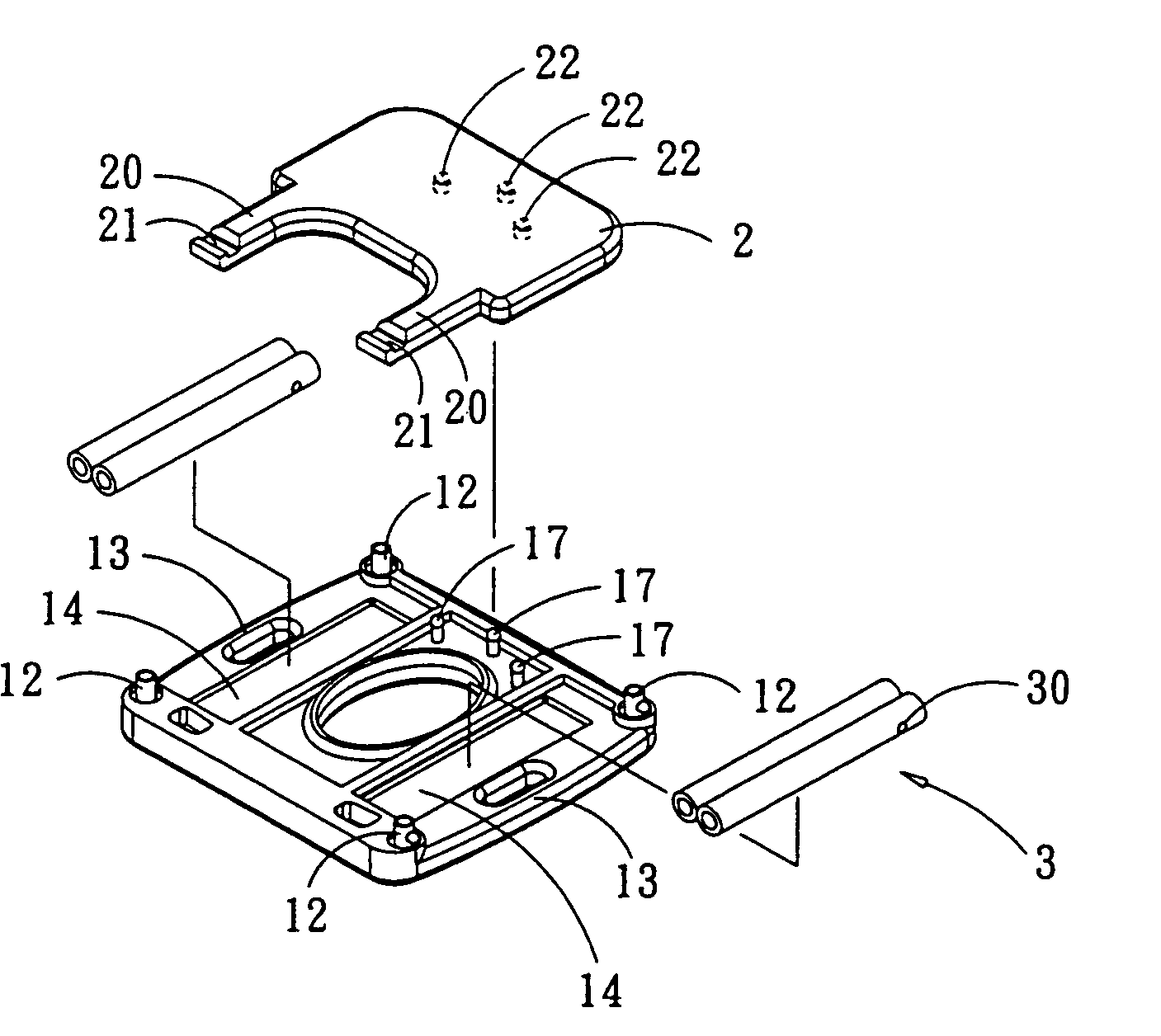

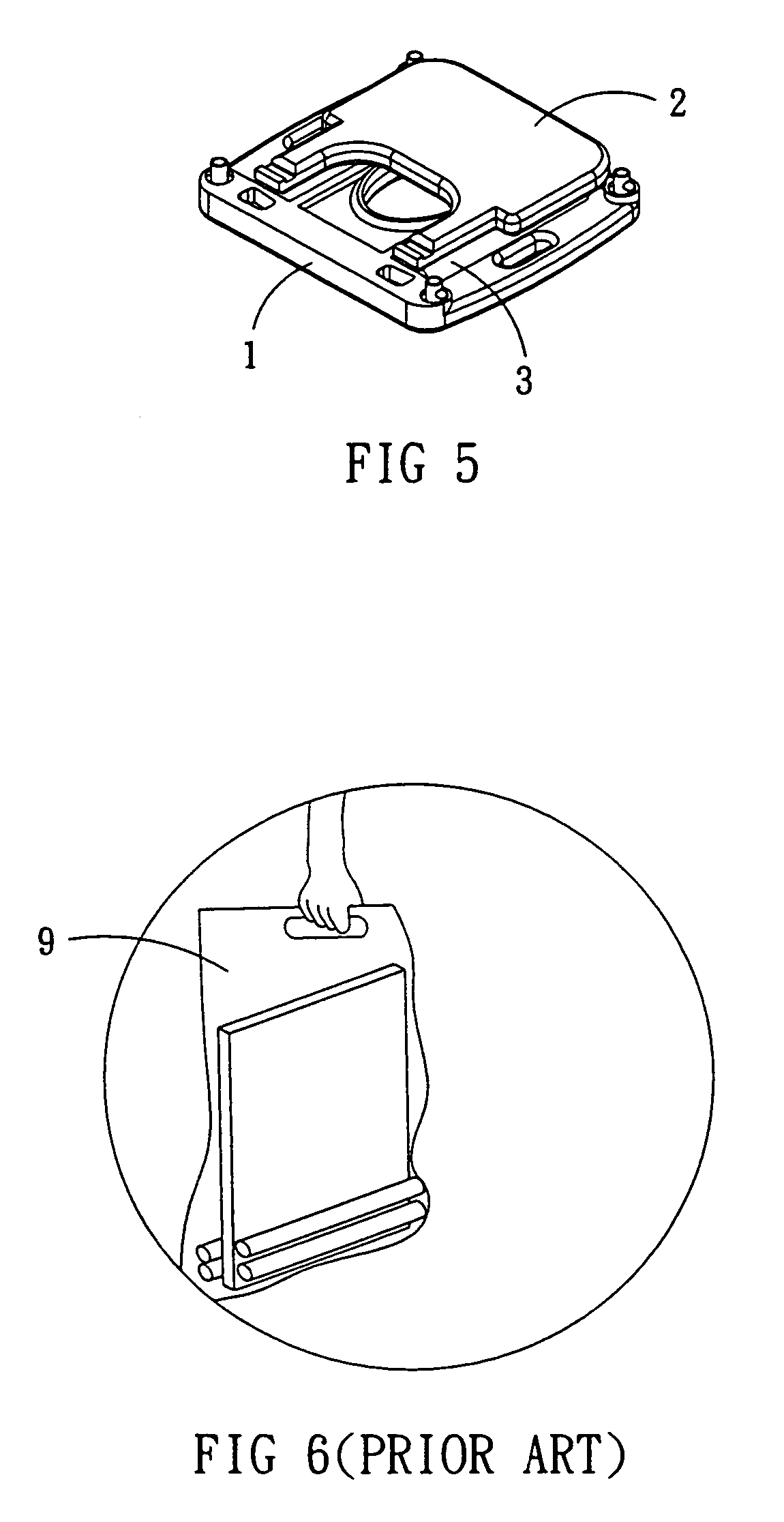

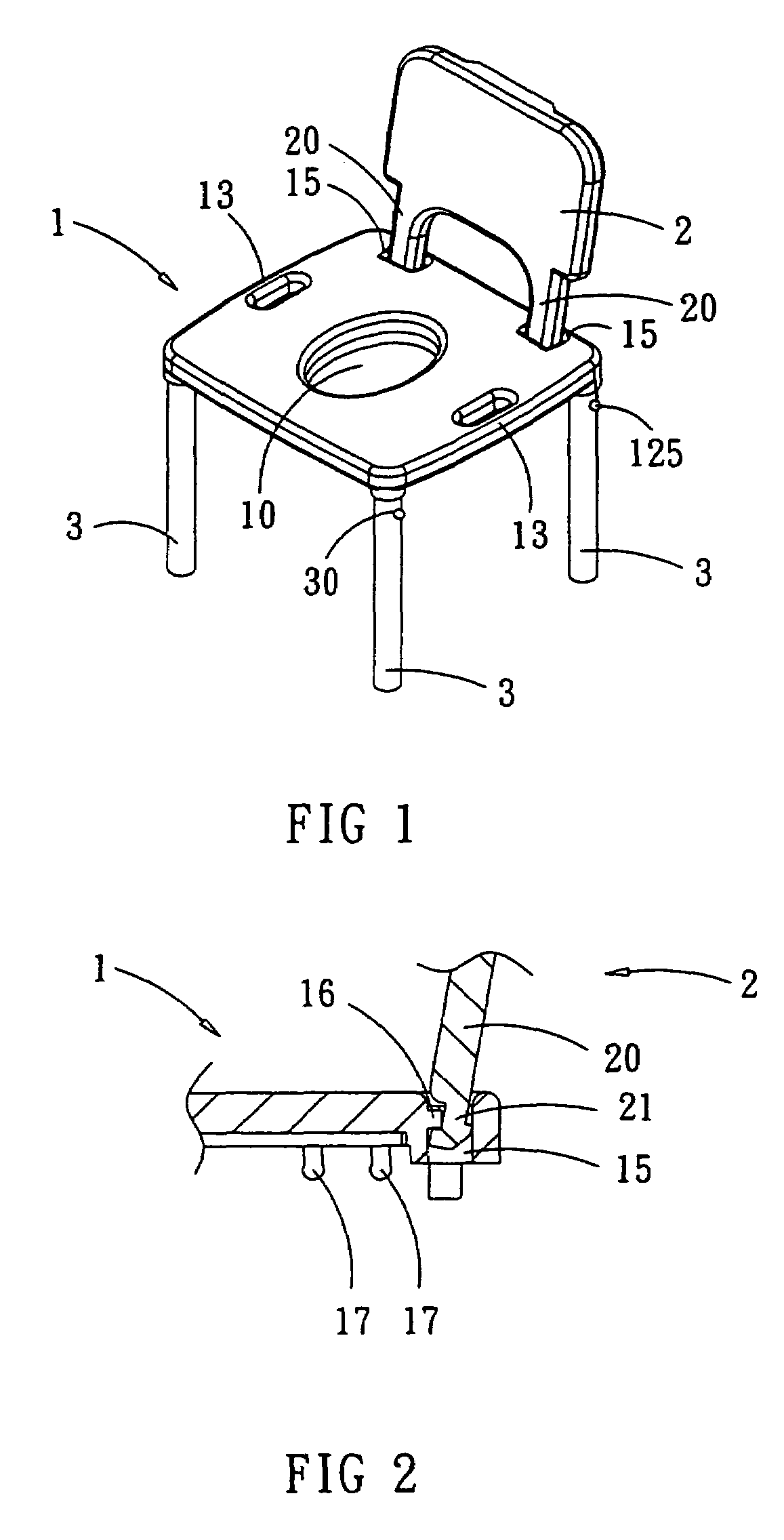

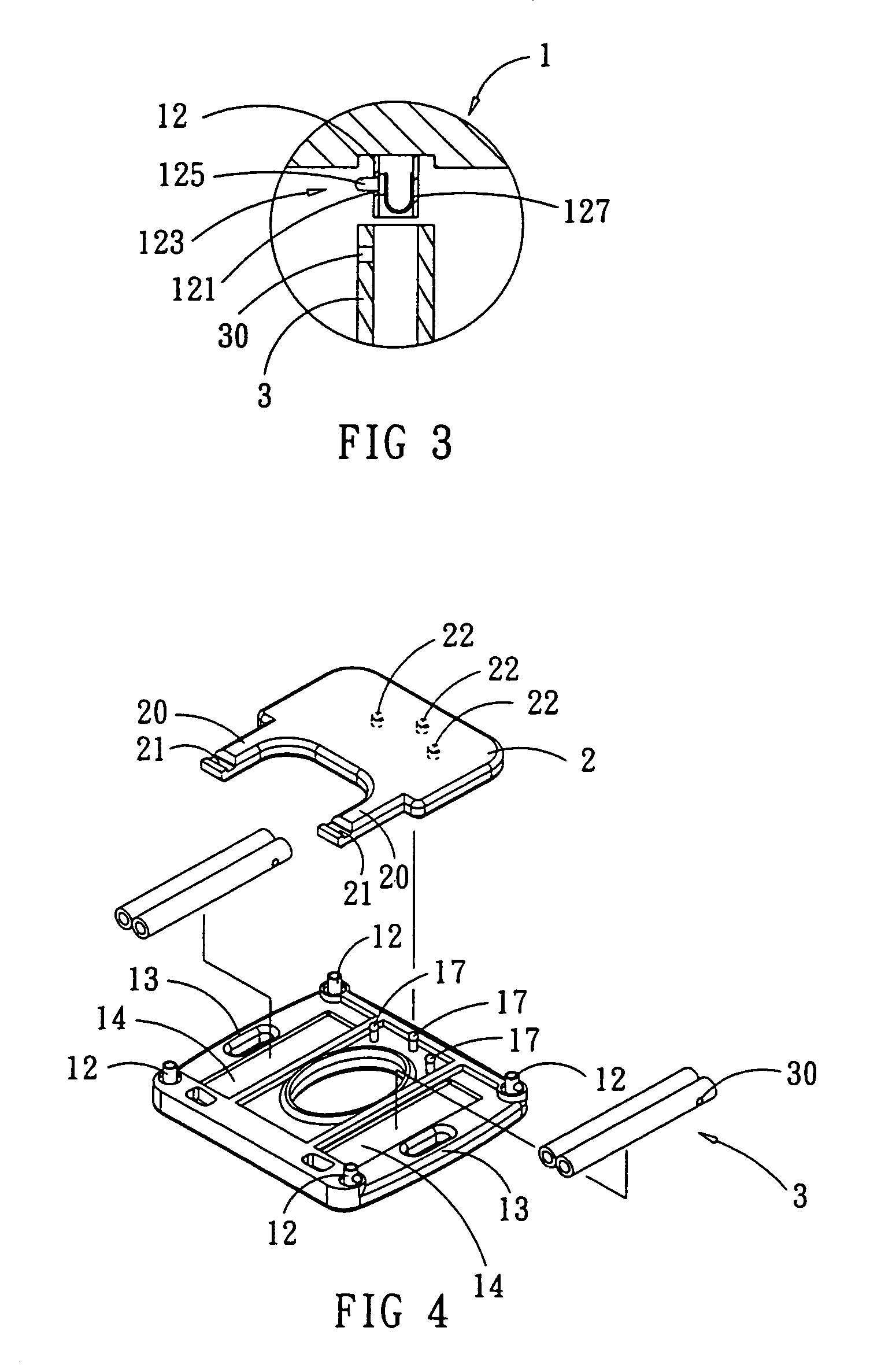

一种便携式马桶和沐浴椅，包括：矩形形状的座部，具有中心开口、左右边缘上的手柄、靠近后边缘的上侧上的两个定位开口、平行于并靠近左右边缘的下侧上的两个存放凹槽、下侧上的至少三个凸起、以及靠近四个角的下侧上的四个紧固组件；矩形形状的靠背，可移动到靠近座部下侧的折叠状态，在折叠状态下具有由座部的凸起进入的定位孔，以及带有两个保持延伸部的下边缘，所述保持延伸部插入座部的定位开口中；以及四个支脚，在安装状态下安装在其下侧靠近四个角的座部上，并可从其上拆卸，其中为了折叠，将四个支脚从座部拆下并存储在存放凹槽中，并将靠背置于其折叠状态。
Original abstractA portable toilet and bathing chair comprises a seat of rectangular shape, having a central opening, handles on left and right edges, two positioning openings on an upper side close to a rear edge, two storing depressions in a lower side parallel to and close to the left and right edges, at least three projections on the lower side, and four fastening assemblies on the lower side close to four corners, a backrest of rectangular shape, movable to a folded state close to the lower side of the seat, having positioning holes which are in the folded state entered by the projections of the seat and a lower edge with two holding extensions that are inserted into the positioning openings of the seat, and four feet, in a mounted state mounted on the seat at the lower side thereof close to the four corners thereof and being removable therefrom, wherein for folding, the four feet are removed from the seat and stored in the storing depressions, and the backrest is brought into the folded state thereof.
专利附图（8）
