用于辅助抽屉或滑门等滑动操作，提供助力。
专利摘要
一种用于辅助滑动操作的滑动辅助装置，其中与基座可滑动地接合的可移动体在第一滑动位置和第二滑动位置之间滑动，包括滑块、弹簧构件、锁定构件和操作构件。滑块与可移动体接合，并能够沿与可移动体相同的一个或多个方向滑动。弹簧构件能够在可移动体的滑动操作中积累力，并将各个滑块连接在一起。锁定构件每个能够与一个滑块接合以将积累的力施加在滑块上，并与滑块脱离以从滑块释放积累的力。操作构件每个能够与锁定构件接合和脱离，以使锁定构件与滑块接合并使锁定构件与滑块脱离。
Original abstractA sliding assisting apparatus for assisting a sliding operation wherein a movable body slidably engaged with a base is slid between a first sliding position and a second sliding position includes sliders, a spring member, lock members and operation members. The sliders are engaged with the movable body and capable of sliding in the same one or more directions as the movable body. The spring member is capable of accumulating force in the sliding operation of the movable body and connecting the respective sliders together. The lock members are each capable of engaging with one of the sliders to exert the accumulated force on the slider, and disengaging from the slider to release the accumulated force from the slider. Operation members are each capable of engaging and disengaging with the lock member for engaging the lock member with a slider and disengaging a lock member from the slider.

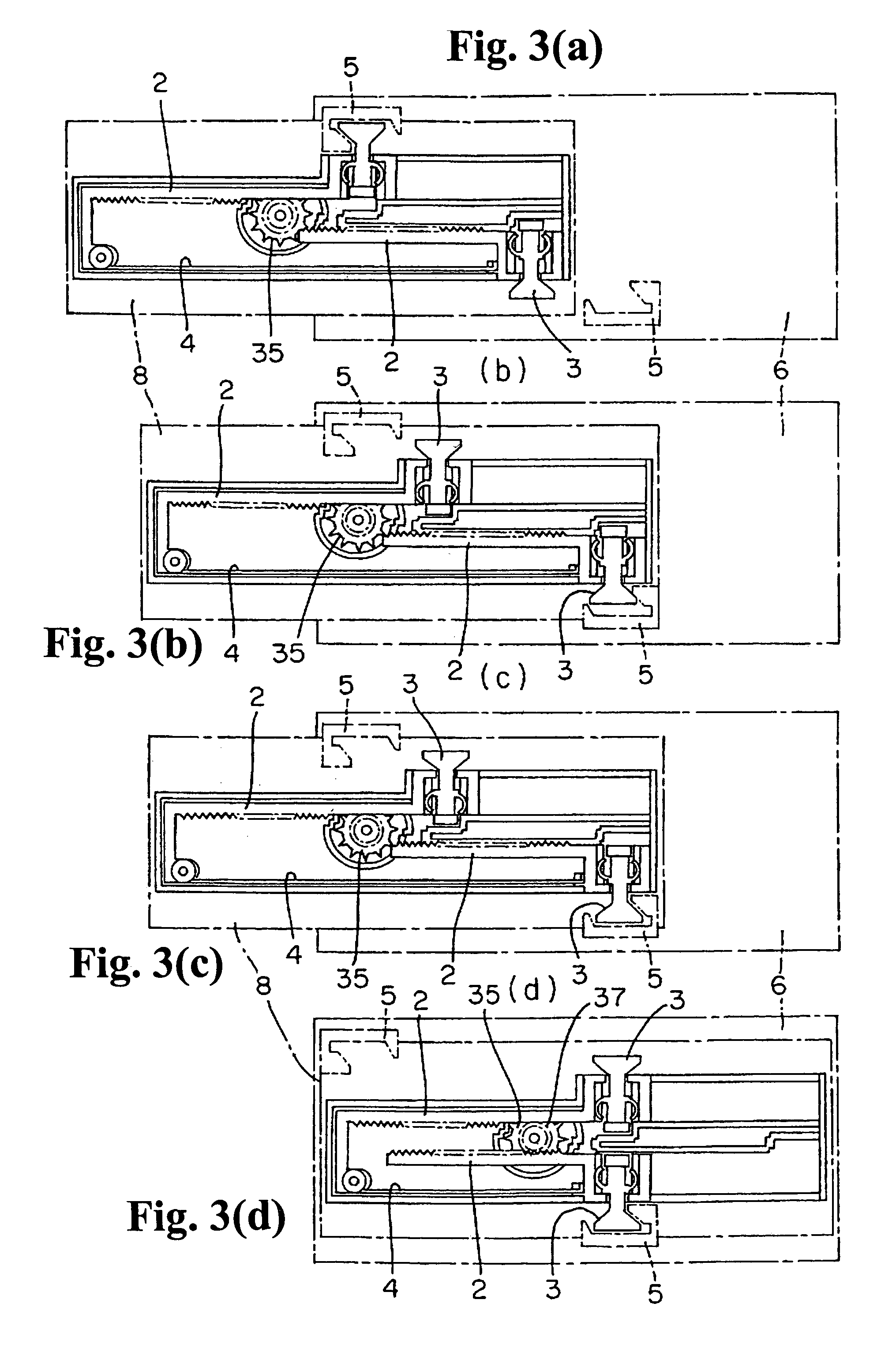

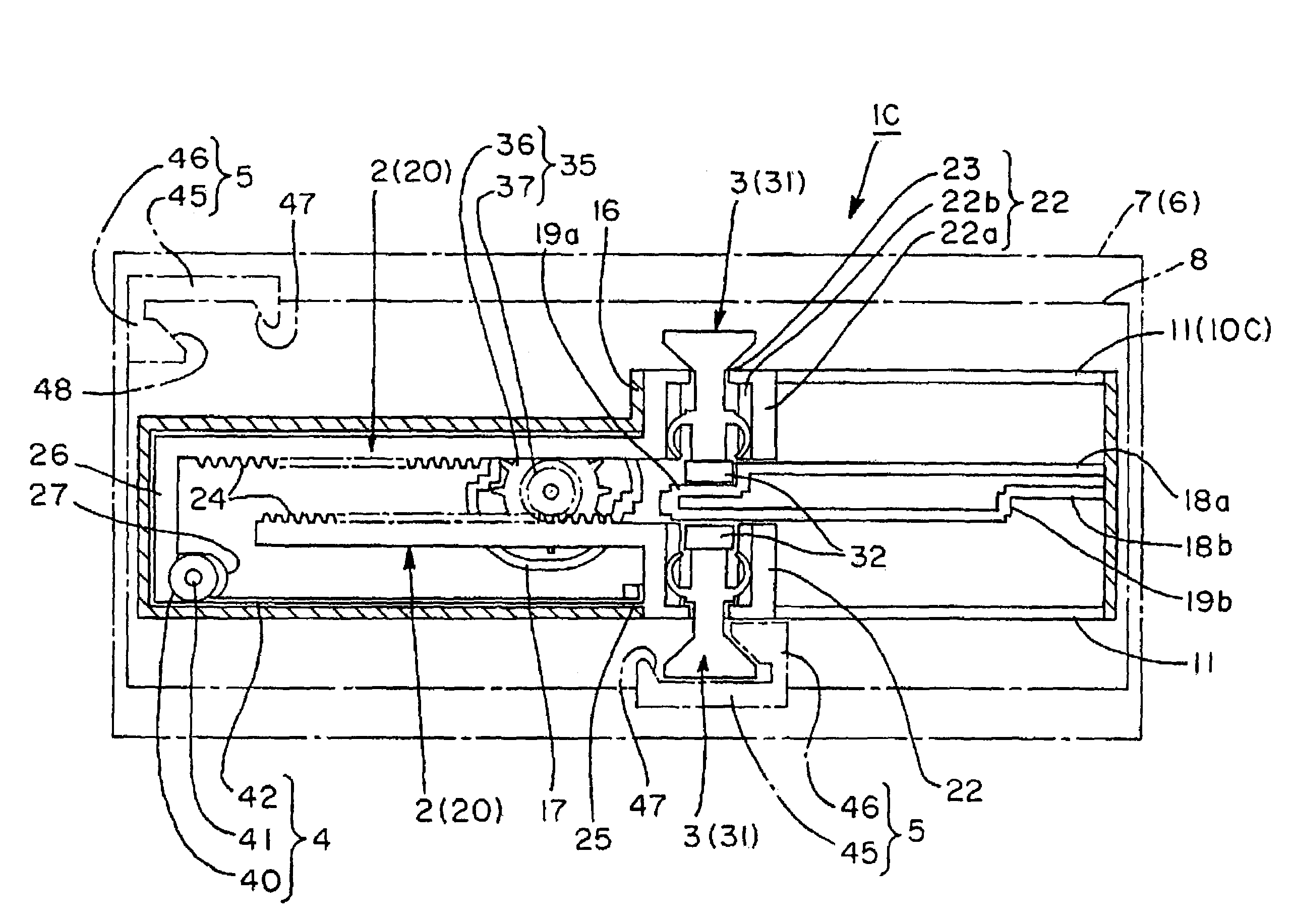

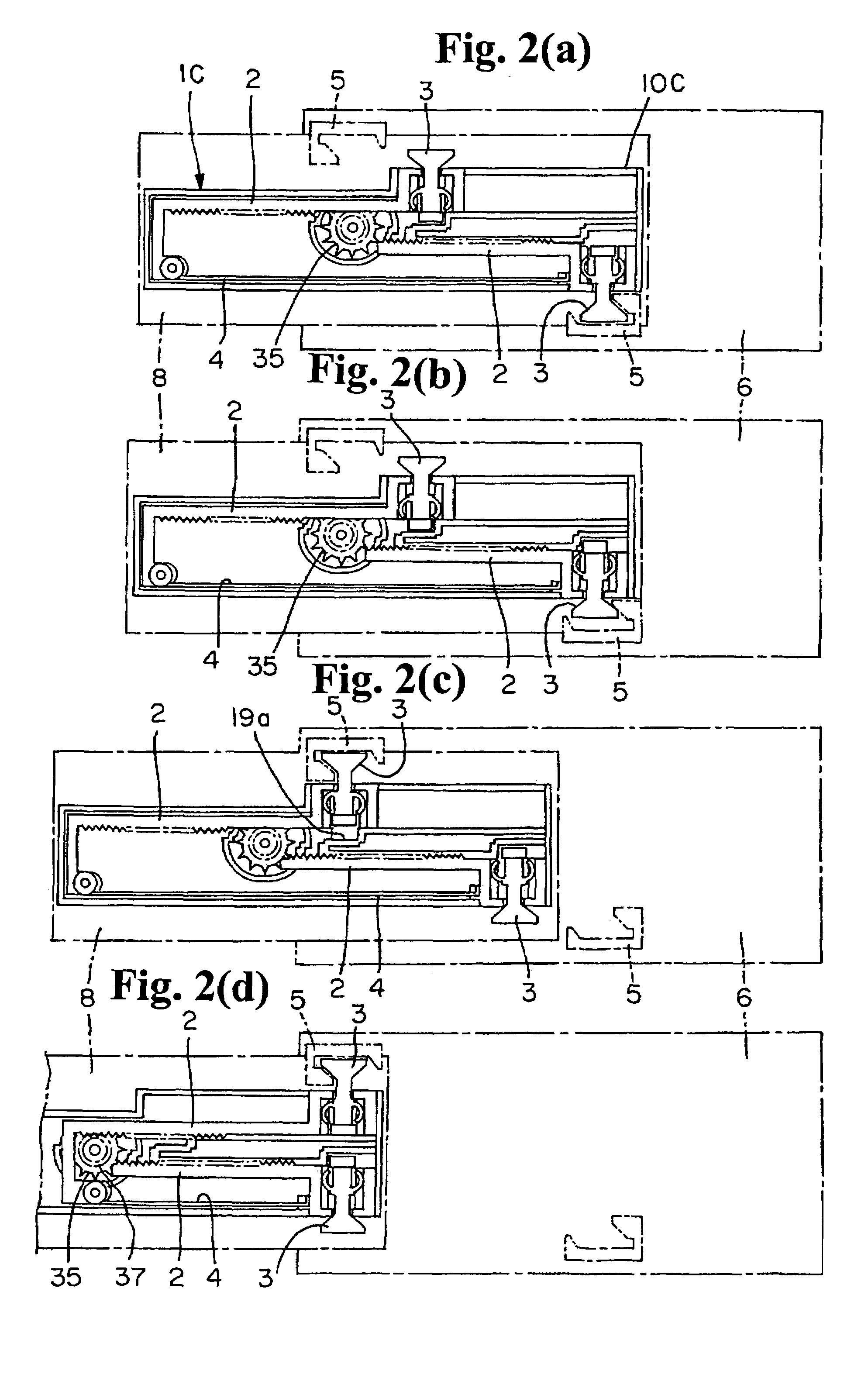

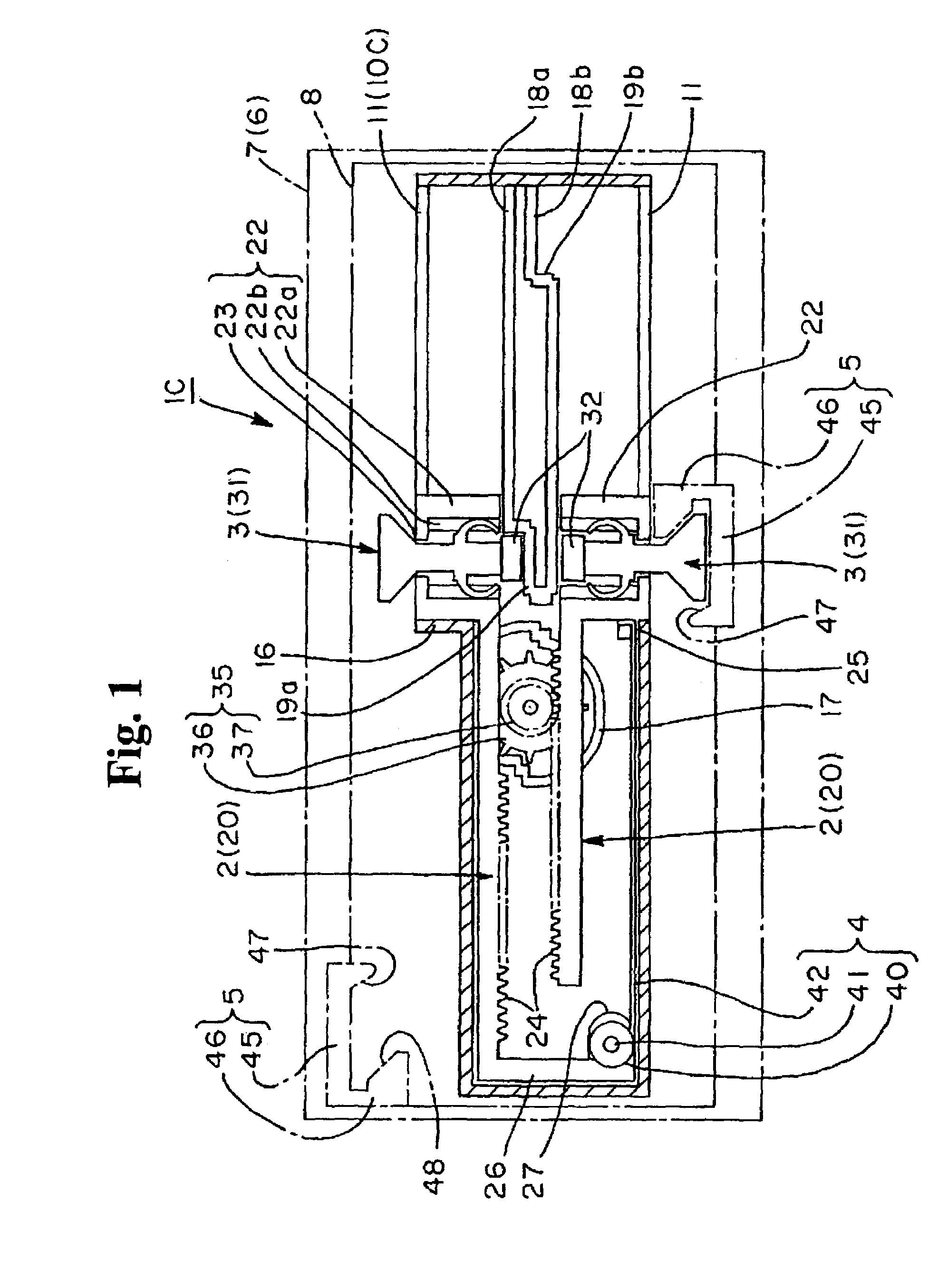

专利附图（8）
