抽屉前面板附接装置
Attachment device for drawer front panels
US-7429090-B2用于将前面板附接到抽屉框架。
专利摘要
本发明涉及一种用于将前面板附接到抽屉框架的装置，每个抽屉框架在其面上具有凹部，附接到前面板的块可插入抽屉的任一侧，该块具有限定凹槽的保持部分，使得抽屉框架的前端在两侧被保持部分包围，并通过穿透凹部的附接装置锁定。根据本发明，所述块具有突出的板簧，其平行于抽屉框架对齐，或具有弹簧加载的杠杆，在组装状态下，其一个边缘接合在抽屉框架凹部区域中的横向成角度的突出部后面。此外，由偏心轮驱动并可附接到前面板的支撑板在块上被引导。
Original abstractThe present invention relates to a device for attaching a front panel to drawer frames, each of which has a recess on its face in which a block attached to the front panel, which has holding parts delimiting a groove, may be inserted on any side of the drawer in such a way that the front ends of the drawer frame are enclosed on both sides by the holding parts and are locked by attachment means which penetrate the recess. According to the present invention, the block has a projecting leaf spring, which is aligned parallel to the drawer frame, or a spring-loaded lever, one edge of which engages behind a transversely angled projection in the region of the recess of the drawer frame in the assembled state. Furthermore, a support plate, which is displaceable by an eccentric and is attached to the front panel, is guided on the block.

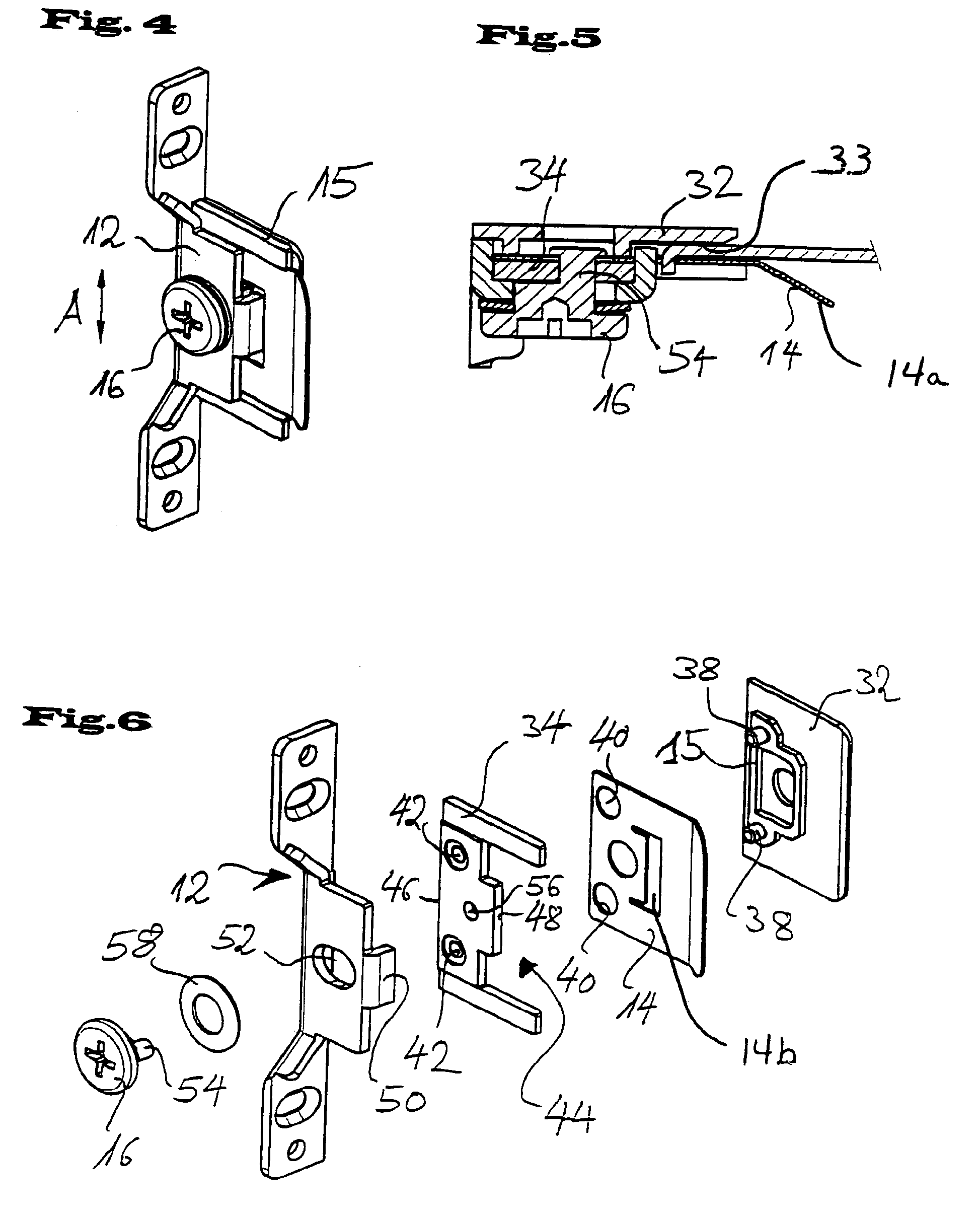

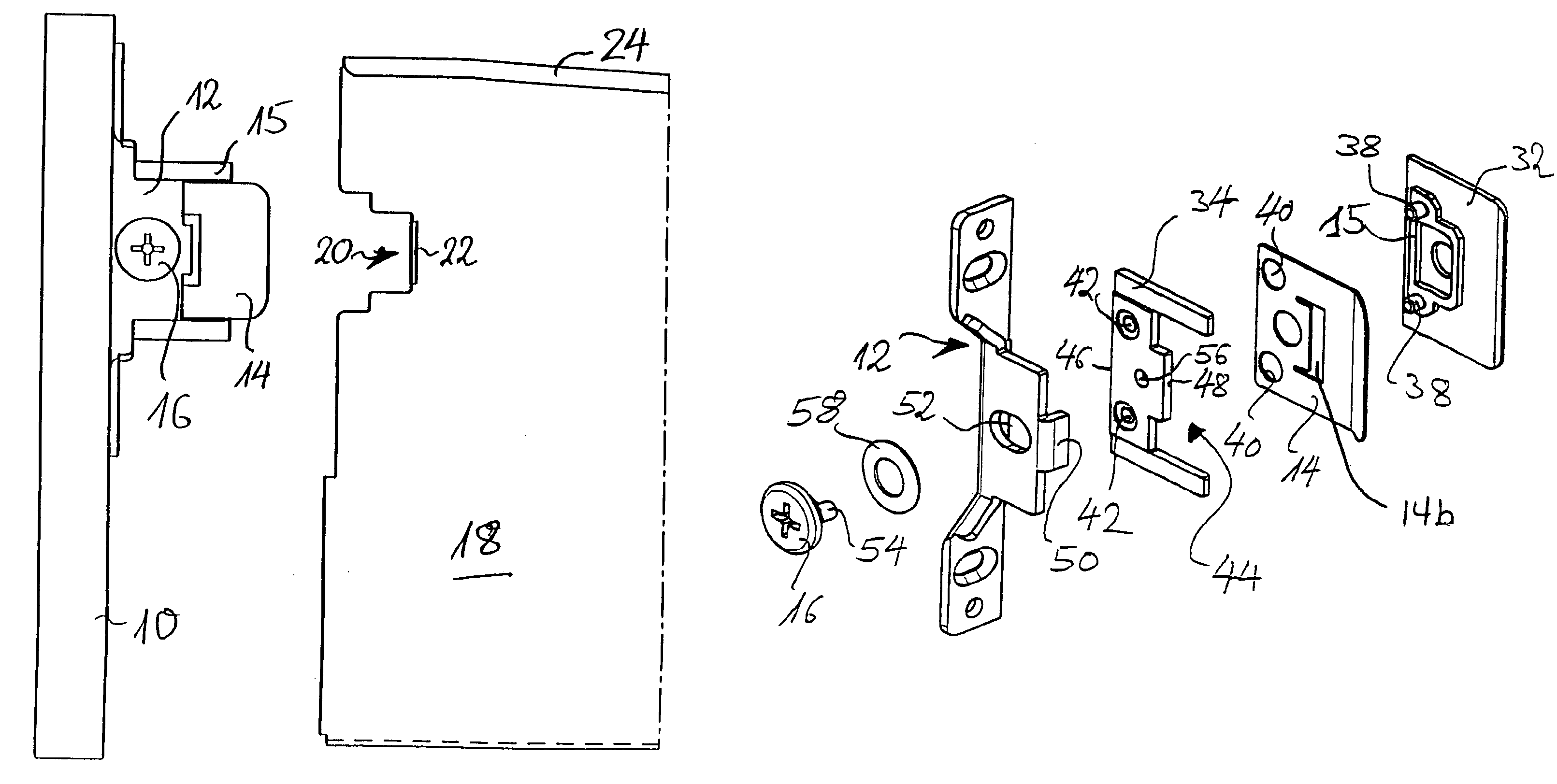

专利附图（6）
