用于壁橱，支撑滑动门和抽屉，分散重量。
专利摘要

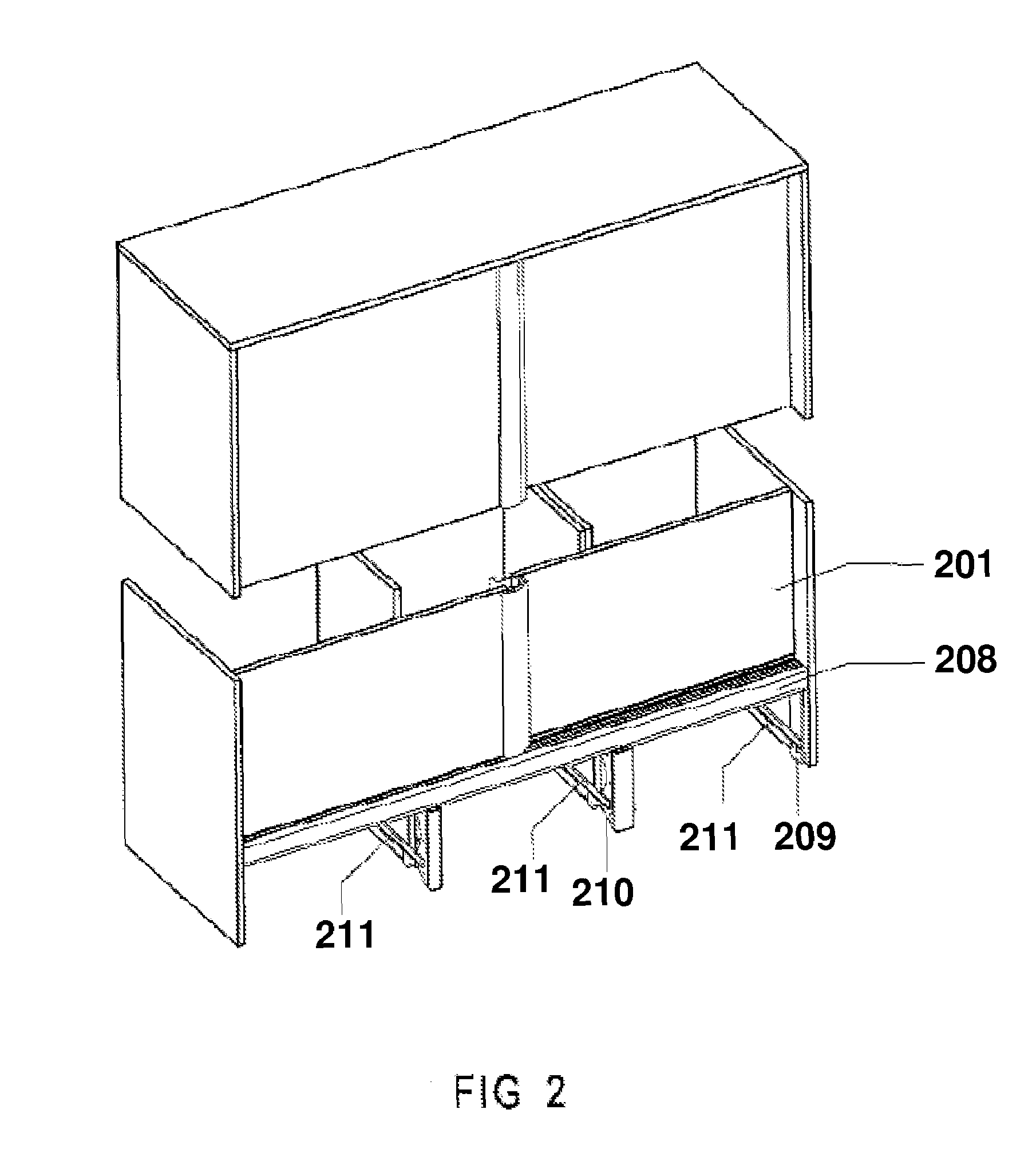

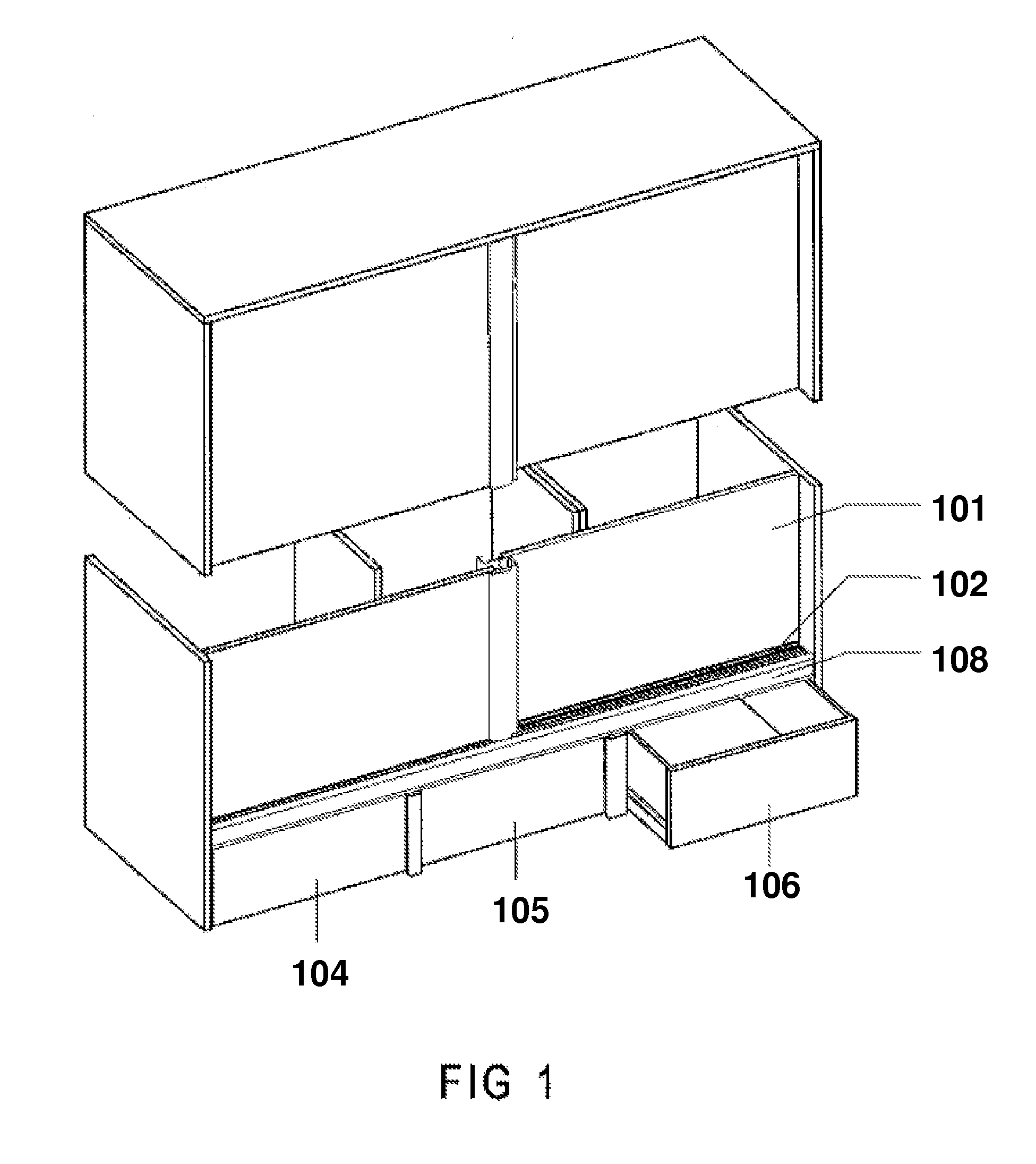

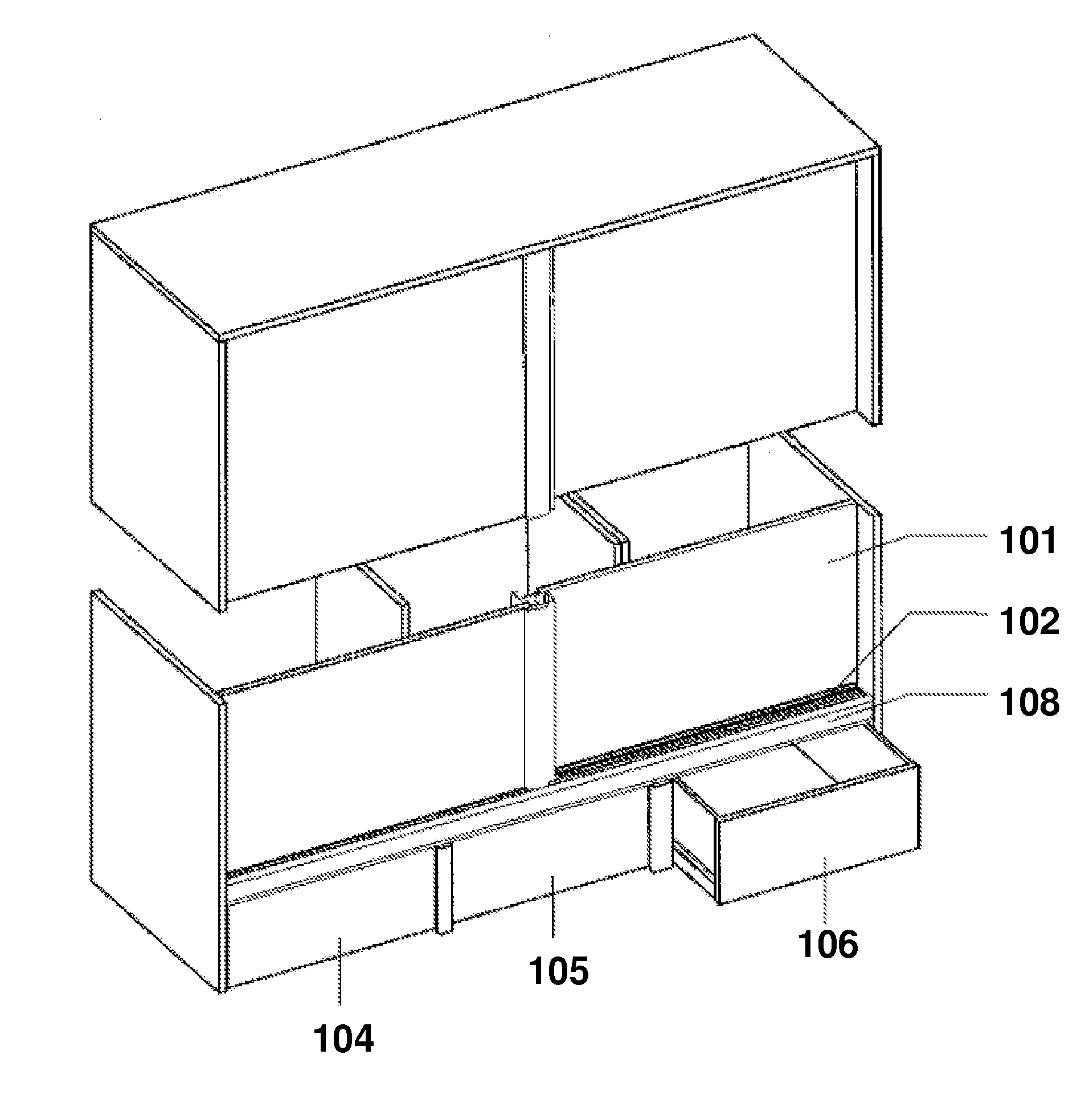

所公开的支撑系统设计用于任何包含滑动门和底排两个或多个抽屉的壁橱系统。该系统的组件将滑动门和壁橱上部隔间的重量传递到地板。该系统包括两个附接到壁橱内侧壁的外支撑支架、至少一个附接到抽屉分隔件的内支架，以及一个沿抽屉上方搁板的前边缘附接的金属型材，该金属型材延伸到壁橱滑动门的轨道。每个支架的下部位于地板上，外支架的上端支撑抽屉上方的搁板，而内支架的上端连接到金属型材的下端。
Original abstractThe disclosed supporting system is designed for use with any closet system containing a sliding door and bottom row of two or more drawers. The components of this system transfer the weight of the sliding door and of the upper compartments of the closet to the floor. The system comprises of two outer supporting braces attached to the closet's inners side walls, at least one inner brace attached the drawer divider, and a metal profile attached along the front edge of the shelf above the drawers, reaching the closet's sliding doors' rail. The lower part of each brace is situated on the floor and the upper end of an outer brace supports the shelf above the drawer, while the upper end of an inner brace connects to the lower end of the metal profile.
专利附图（8）
