来源记录显示 Expired
提供工作空间的设备和方法
Apparatus and method for providing a workspace
US-7421958-B2一种便携可壁挂的工作空间设备，用于携带和展示图纸等。
专利摘要
一种便携且可壁挂的设备，包括柔性壳体，该柔性壳体具有一个或多个内部隔室，用于可移除地接收加强件，从而形成一对面板。面板枢转地连接并彼此折叠关闭，形成用于诸如建筑图纸等物品的便携式载体。手柄附接到柔性壳体以便于运输。多个带金属扣眼的接片附接到柔性壳体，以允许面板可移除地安装到墙壁上，使得其中一个面板可用作桌面或工作空间。当壳体安装到墙壁上时，一个或多个约束装置将用作桌面或工作空间的面板悬挂在水平位置。当不使用时，柔性壳体还可通过移除加强件并将外壳卷成紧凑形状来方便地存放。
Original abstractA portable and wall mountable apparatus comprising a flexible case having one or more internal compartments for removably receiving stiffeners to thereby form a pair of panels. The panels are pivotally joined and fold shut against each other to form a portable carrier for articles such as architectural plans and the like. Handles are attached to the flexible case to facilitate transport. A plurality of tabs with grommets are attached to the flexible case to allow the panels to be removably mounted to a wall such that one of the panels may be used as a desktop or workspace. One or more restraining devices suspend the panel being used as a desktop or workplace in a horizontal position when the case is mounted to a wall. The flexible case may also be conveniently stored by removing the stiffeners when not in use and rolling up the shell into a compact shape.

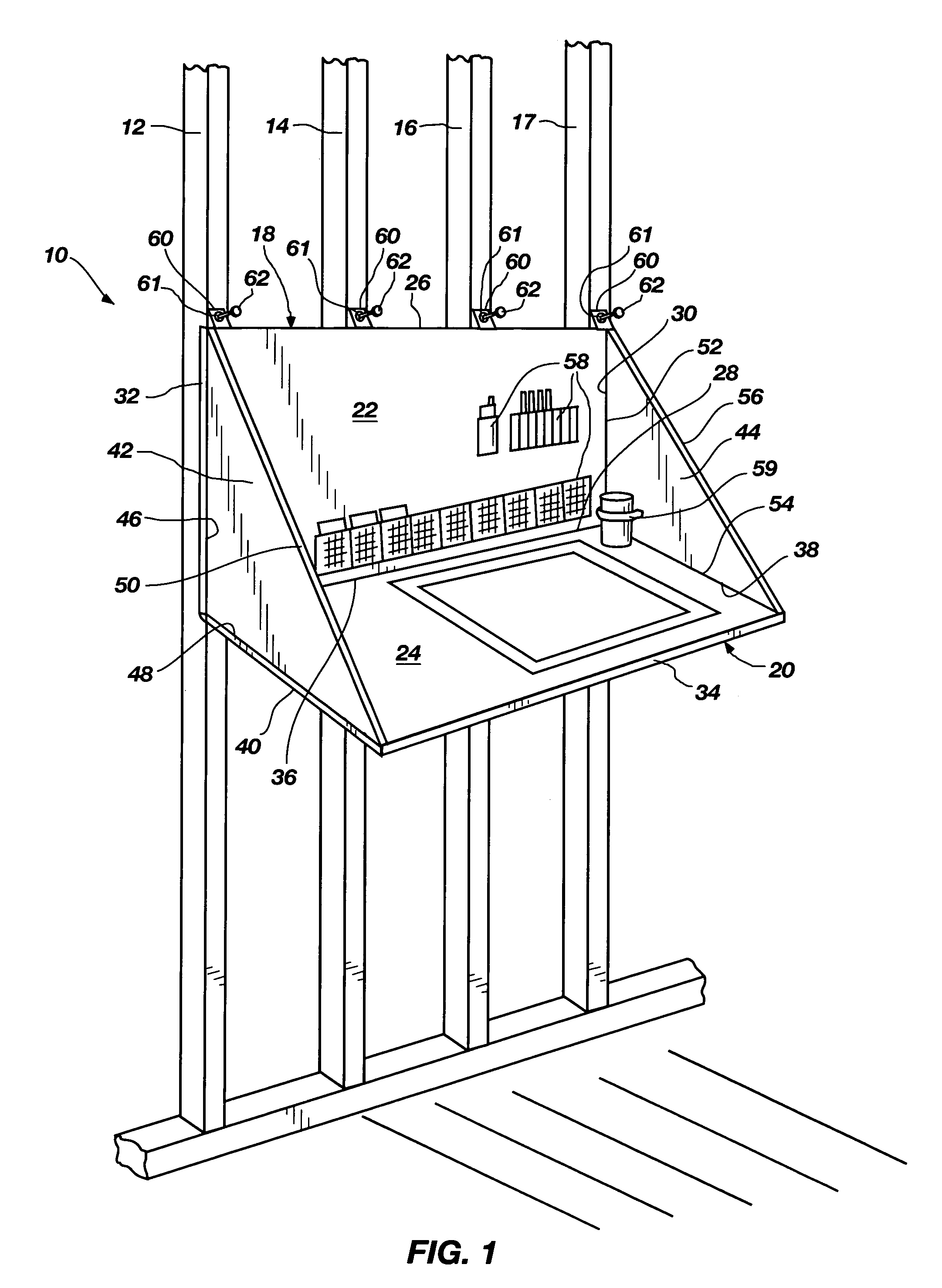

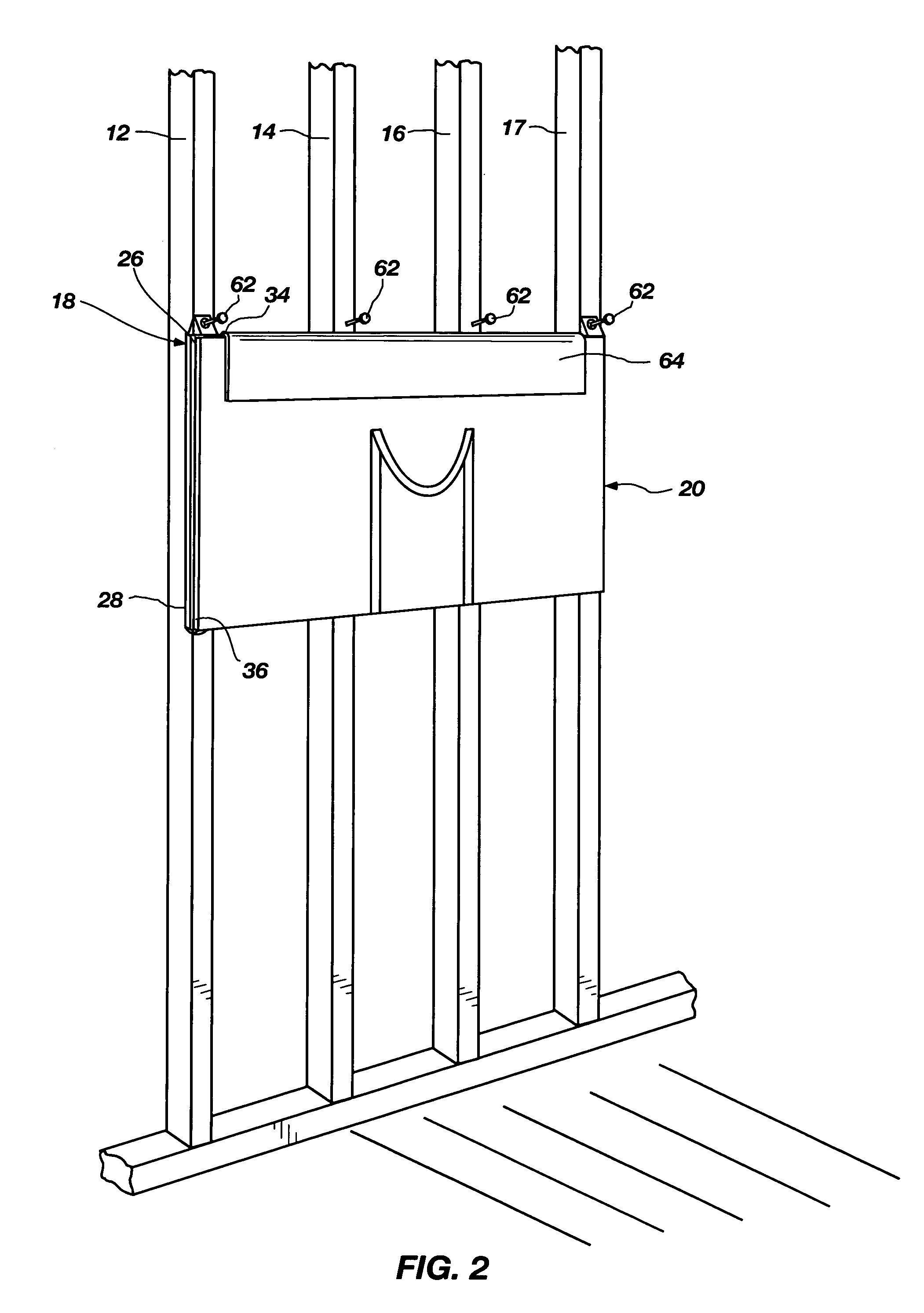

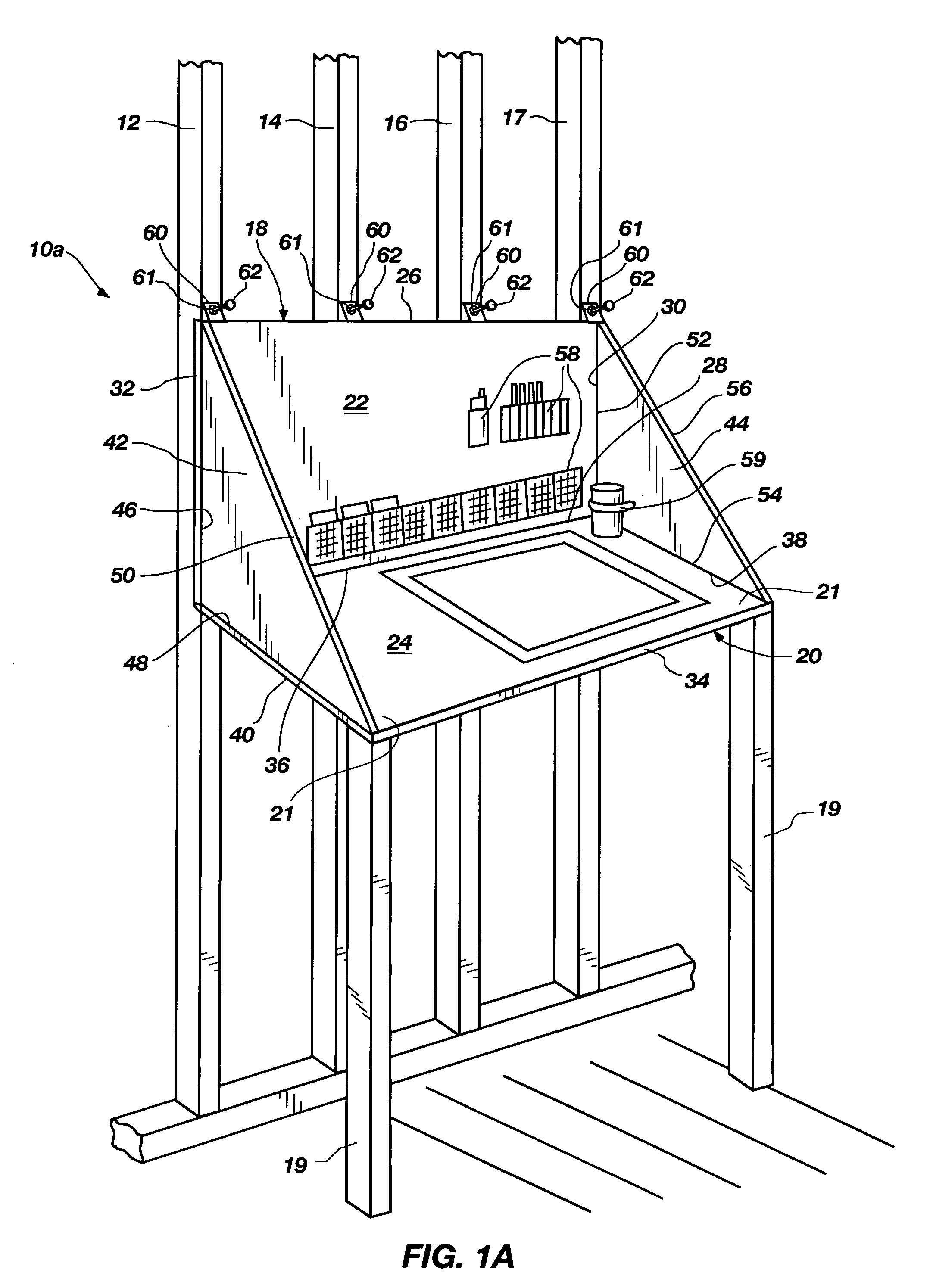

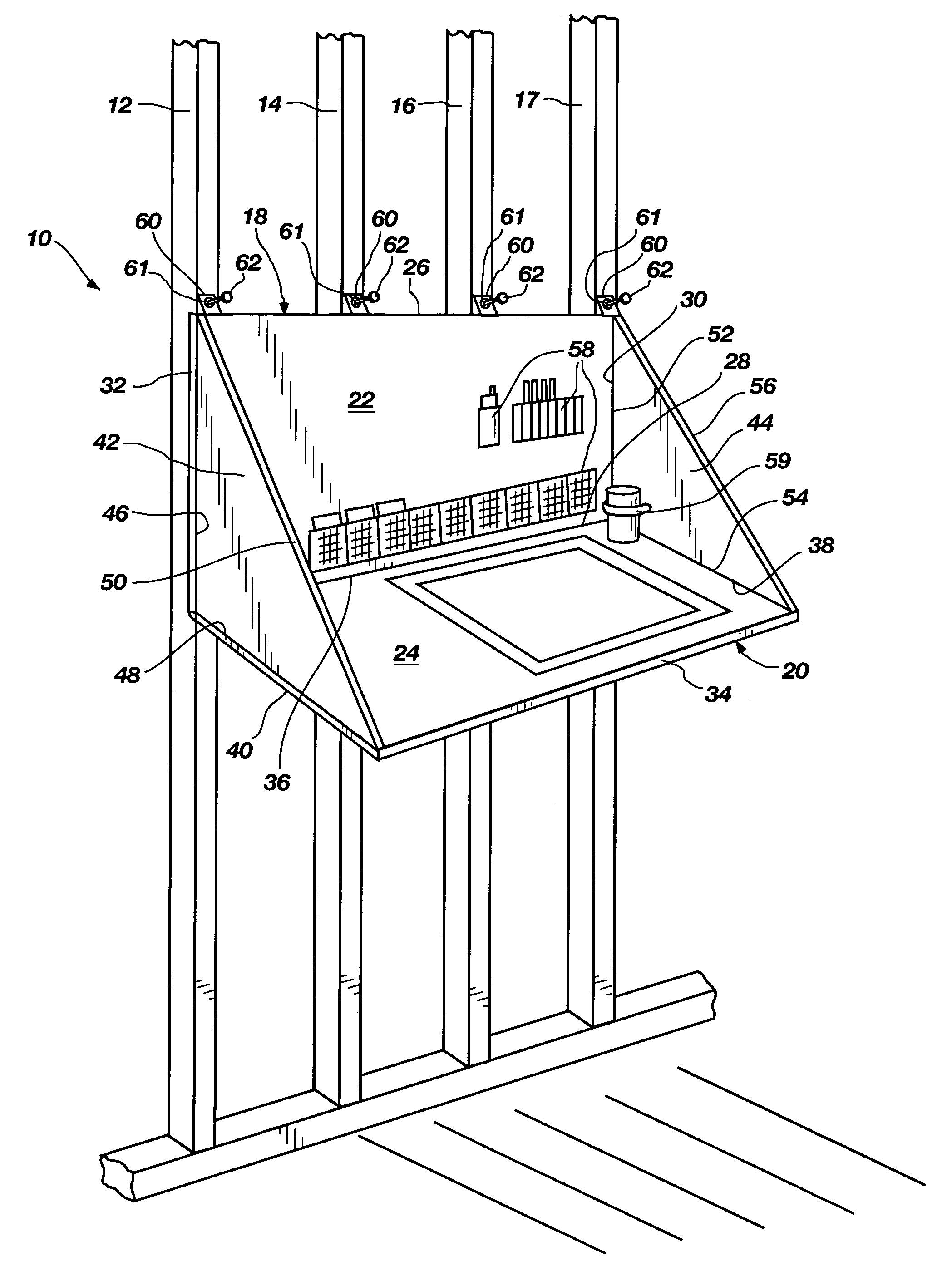

专利附图（8）
