一种悬挂于天花板的储物系统，用于存放物品。
专利摘要

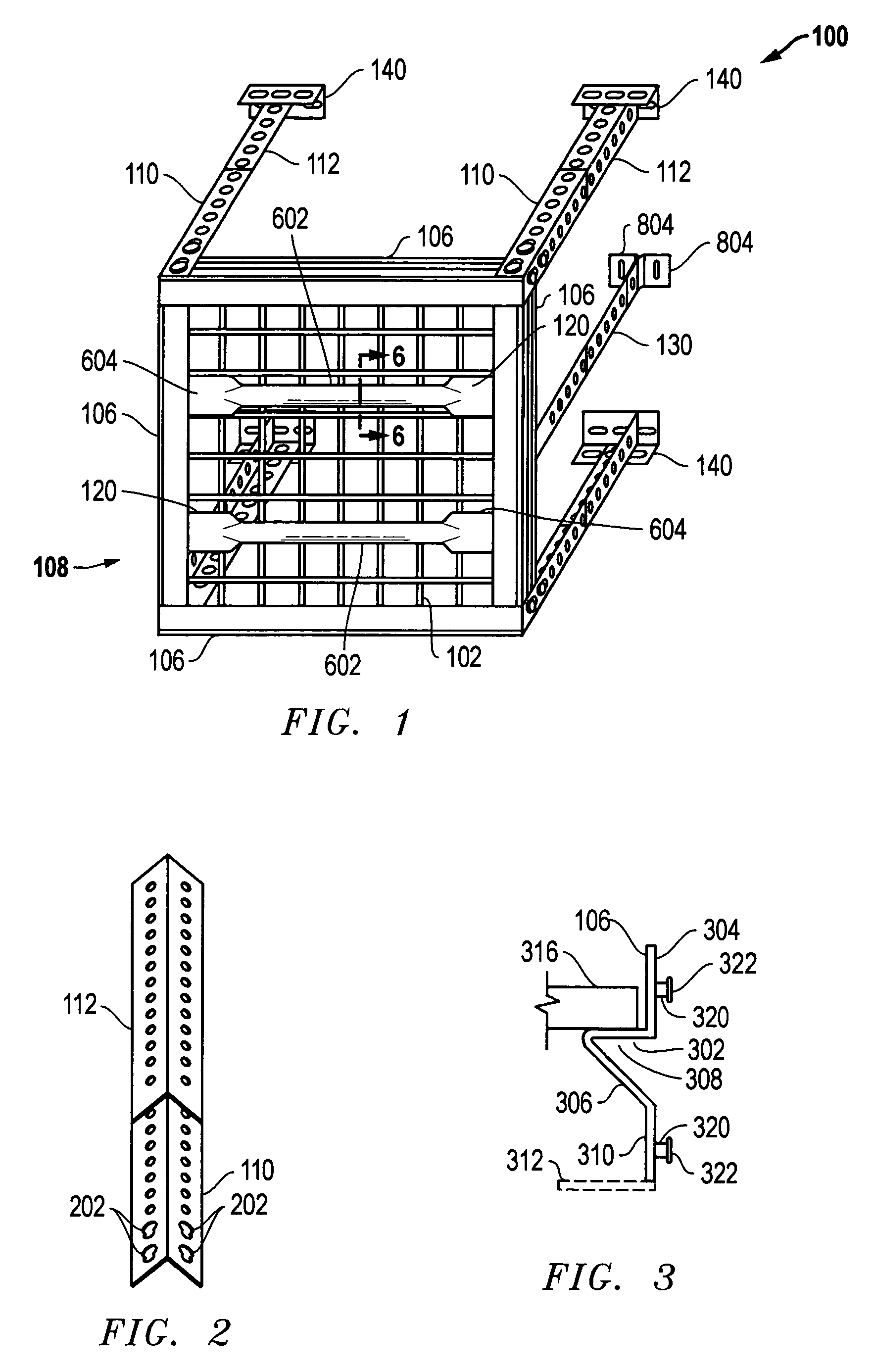

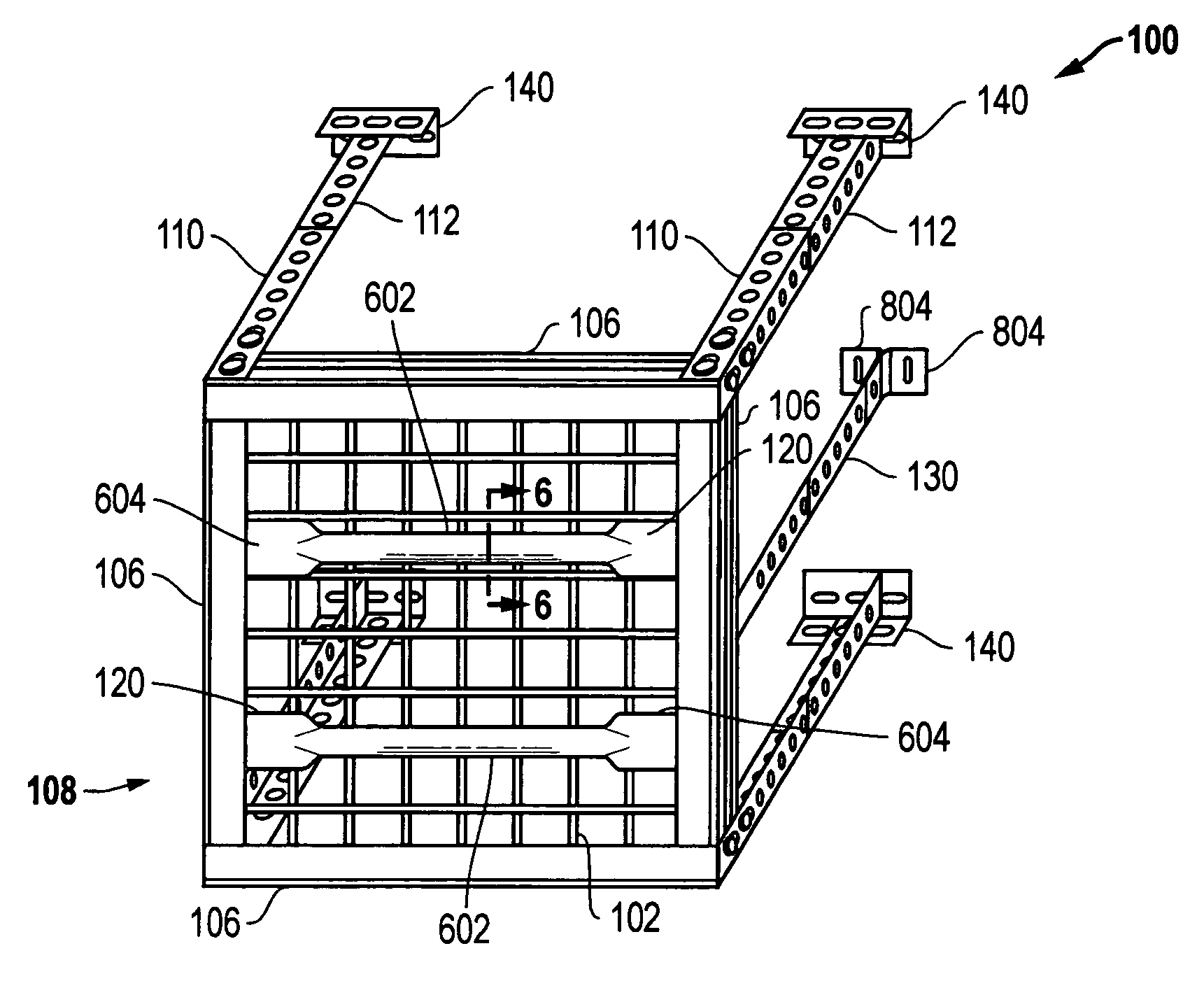

一种顶部储物系统，包括形成平台周边框架的支撑梁和用于将平台悬挂在天花板上的四个角部垂直安装件。框架优选由Z形梁制成，由垂直L形角部支撑件支撑，为平台提供强力支撑。Z形梁提供强度以及可放置平台的水平表面。焊接网平台可通过将其粘合到肋条来加强。在一些实施例中，中心支撑件可优选地定位在支撑梁长度上的任何位置，并且不需要在梁上开孔进行安装。梁优选不使用螺纹紧固件连接到垂直角部支架，从而使房主更容易组装。
Original abstractAn overhead storage system includes support beams forming a frame to a deck around its perimeter and four corner vertical mounts for suspending the deck from a ceiling. The frame is preferably made of Z-shaped beams supported by vertical L-shaped corner supports to provide strong support for a deck. The Z-shaped beams provide strength and a horizontal surface on which a deck can be rested. A welded wire deck can be strengthened by bonding it to ribs. In some embodiments, center supports can preferably be positioned anywhere along the length of the support beams, and do not require holes in the beams for mounting. The beams are preferably connected to the vertical corner brackets without using threaded fasteners, thereby making the assembly easier for assembly by a homeowner.
专利附图（8）
