双安装卷分配器

Dual-mount roll dispenser

US-7416152-B2

用于分配卷状材料，可嵌入式或壁挂式安装。

专利摘要

一种双安装卷分配器，具有盖和主体。主体部分适于嵌入式安装，但也适合在壁挂应用中暴露。允许盖打开的铰链或枢轴定位得足够靠前，与盖的形状一起，即使分配器深度的一半以上嵌入周围墙壁中，盖也可以宽幅打开。

Original abstractA dual-mount roll dispenser has a cover and a body. The body portion is adapted for recess mounting but is also suitable to be exposed in a wall mount application. The hinge or pivots that permit the cover to be opened are positioned sufficiently far forward that, together with the shape of the cover, the cover can be opened wide even when more than half the depth of the dispenser is recessed with a surrounding wall.

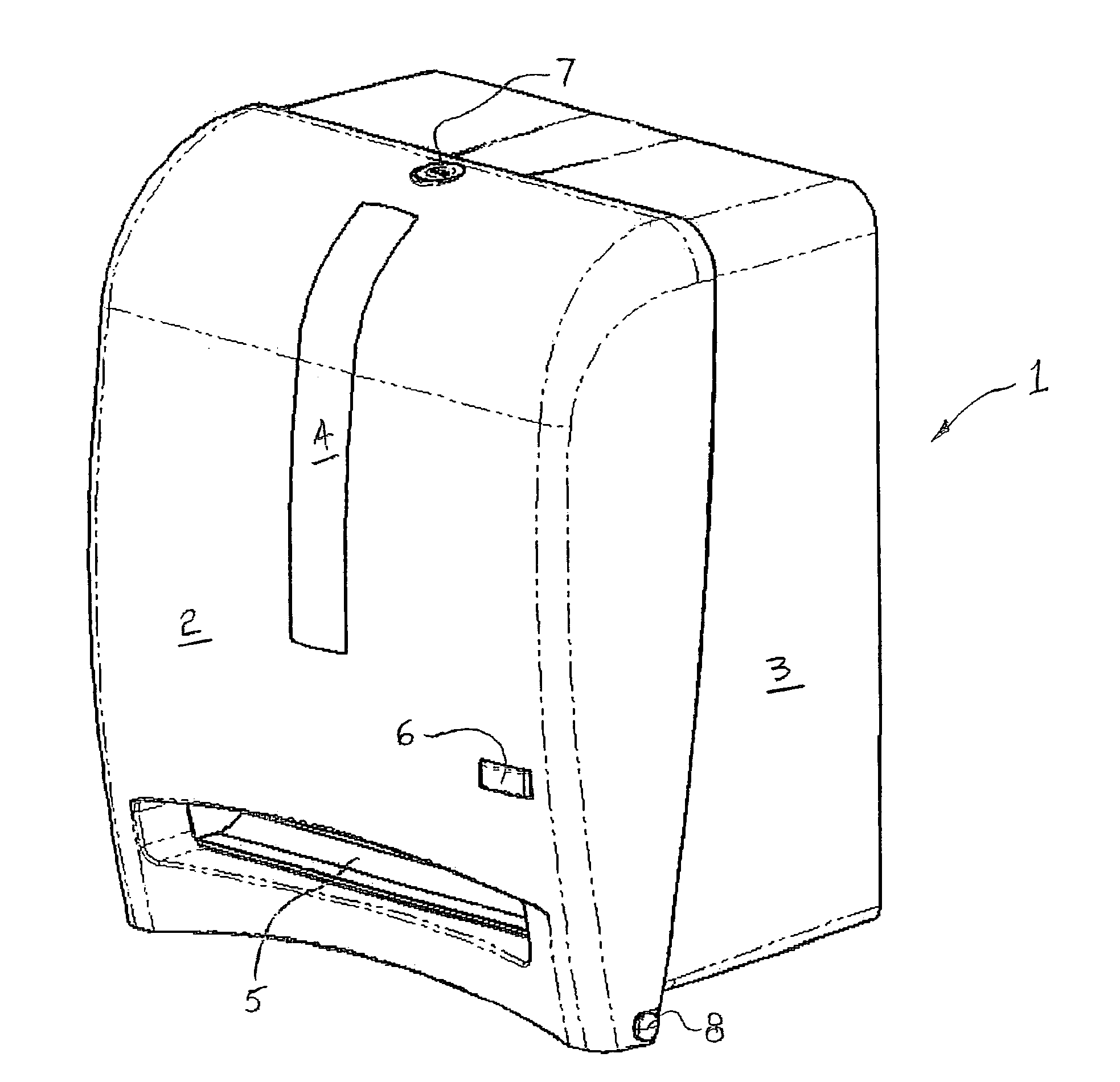

专利附图（8）
