一种一次性隐形眼镜盒，打开后无法重新密封，确保卫生。
专利摘要
一种一次性携带盒，其中容纳隐形眼镜的部分无法重新密封，通过易于使用的结构实现。在隐形眼镜携带盒10的盒主体10B中，当与盖单元20B一体形成的手柄12沿顺时针方向旋转时，与手柄12一体形成的端部27G和27H从靠近手柄12的部分开始逐渐抬起，同时接合构件40G和40H固定在适当位置。此时，连接到端部27G和27H的第一桥29G和29H在手柄12的旋转方向上被强力拉动，同时保持与顶部41G和41H的连接。结果，第一桥29G和29H从端部27G和27H剪切掉，接合部分40G和40H从盖单元20B脱离。
Original abstractA disposable-type carrying case wherein the parts that house contact lenses cannot be re-sealed is realized via an easy-to-use construction. In the case main unit 10 B of a contact lens carrying case 10 , when a handle 12 that is integrally formed with a cover unit 20 B is rotated in the clockwise direction, end portions 27 G and 27 H that are integrally formed with the handle 12 are gradually lifted up starting with the parts thereof that are near the handle 12 while engaging members 40 G and 40 H are fixed in position. When this occurs, first bridges 29 G and 29 H that are connected to end portions 27 G and 27 H are strongly pulled in the direction of rotation of the handle 12 while maintaining connection to top portions 41 G and 41 H. As a result, the first bridges 29 G and 29 H are sheared off from the end portions 27 G and 27 H and the engaging portions 40 G and 40 H detach from the cover unit 20 B.

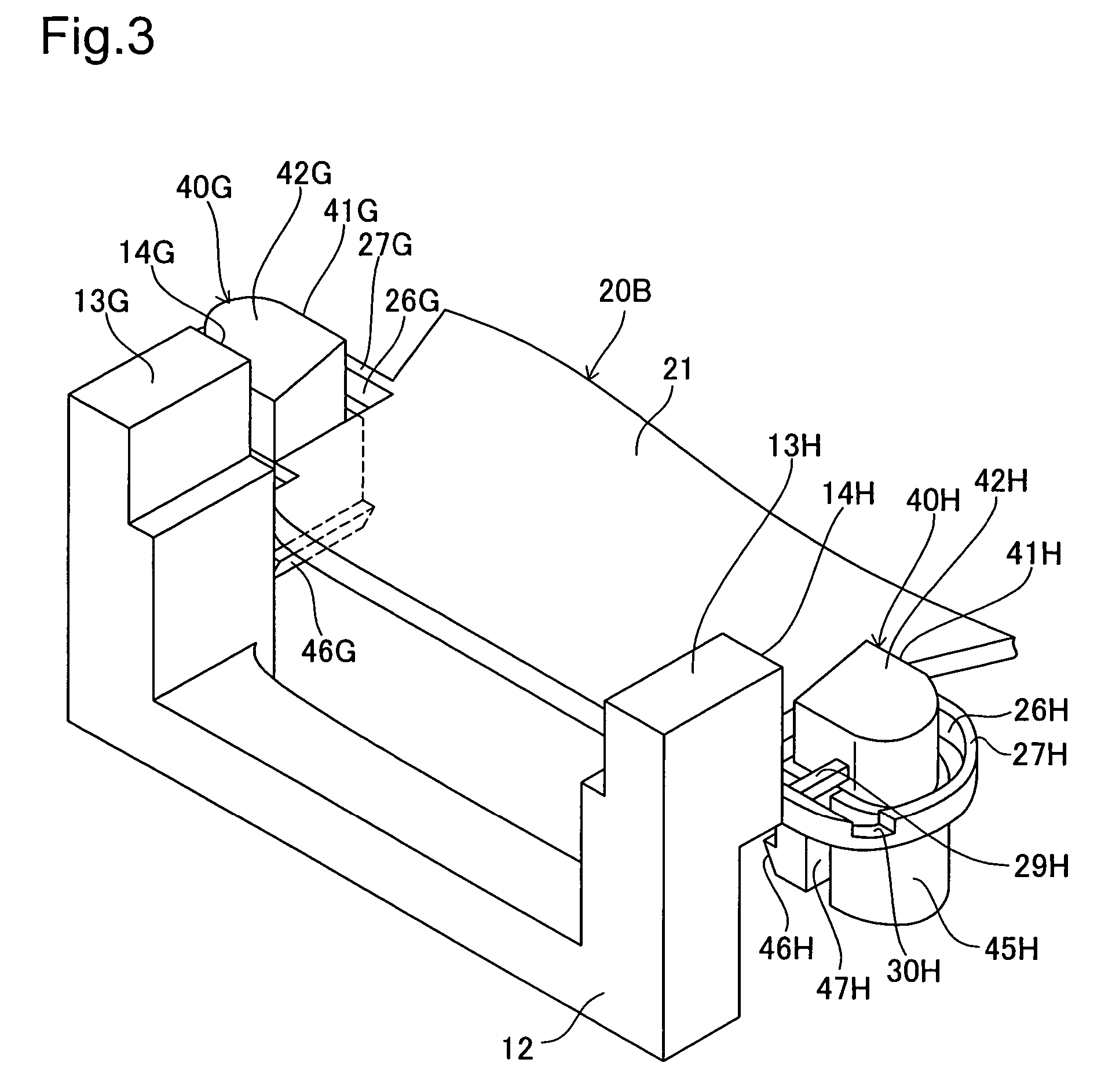

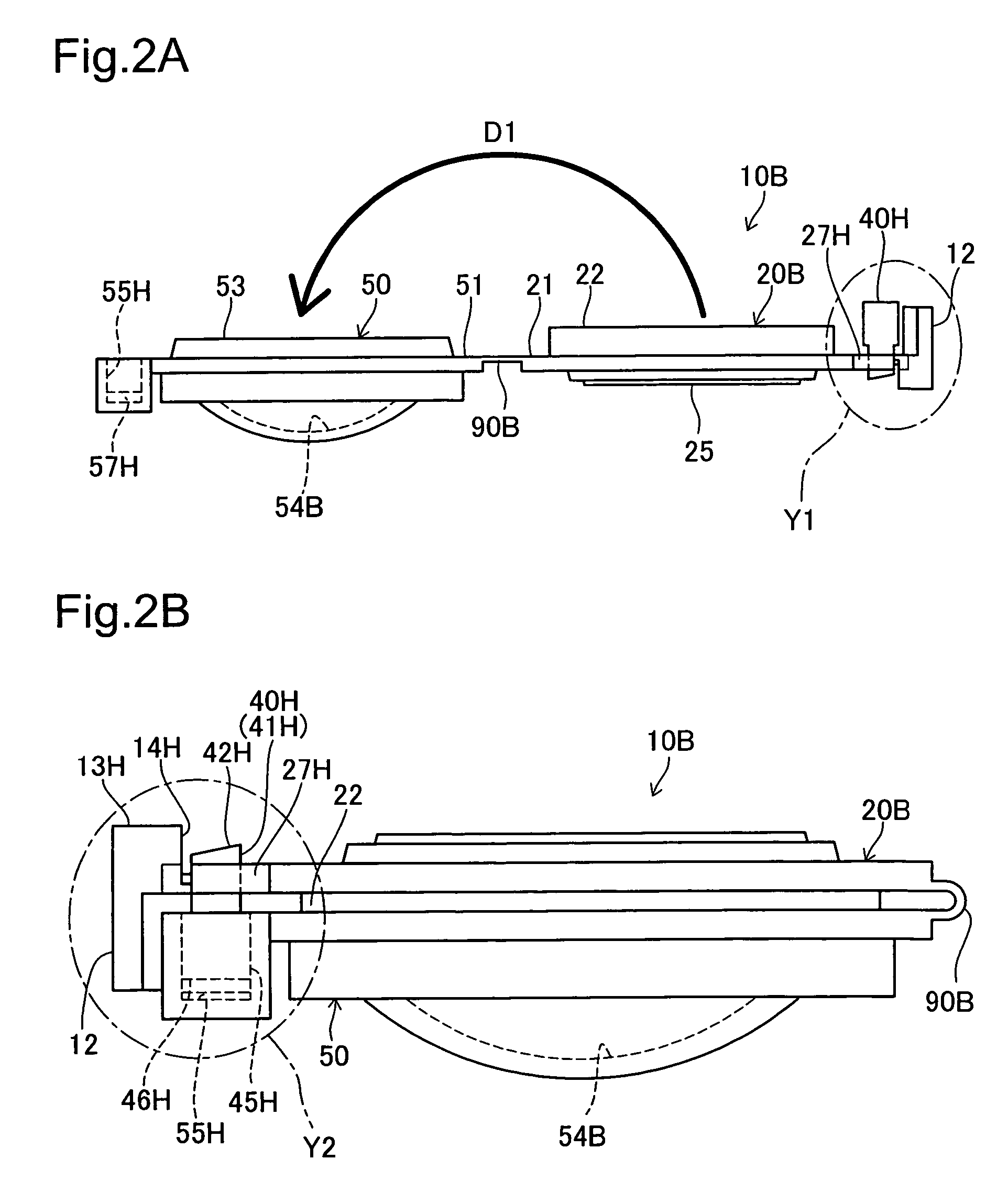

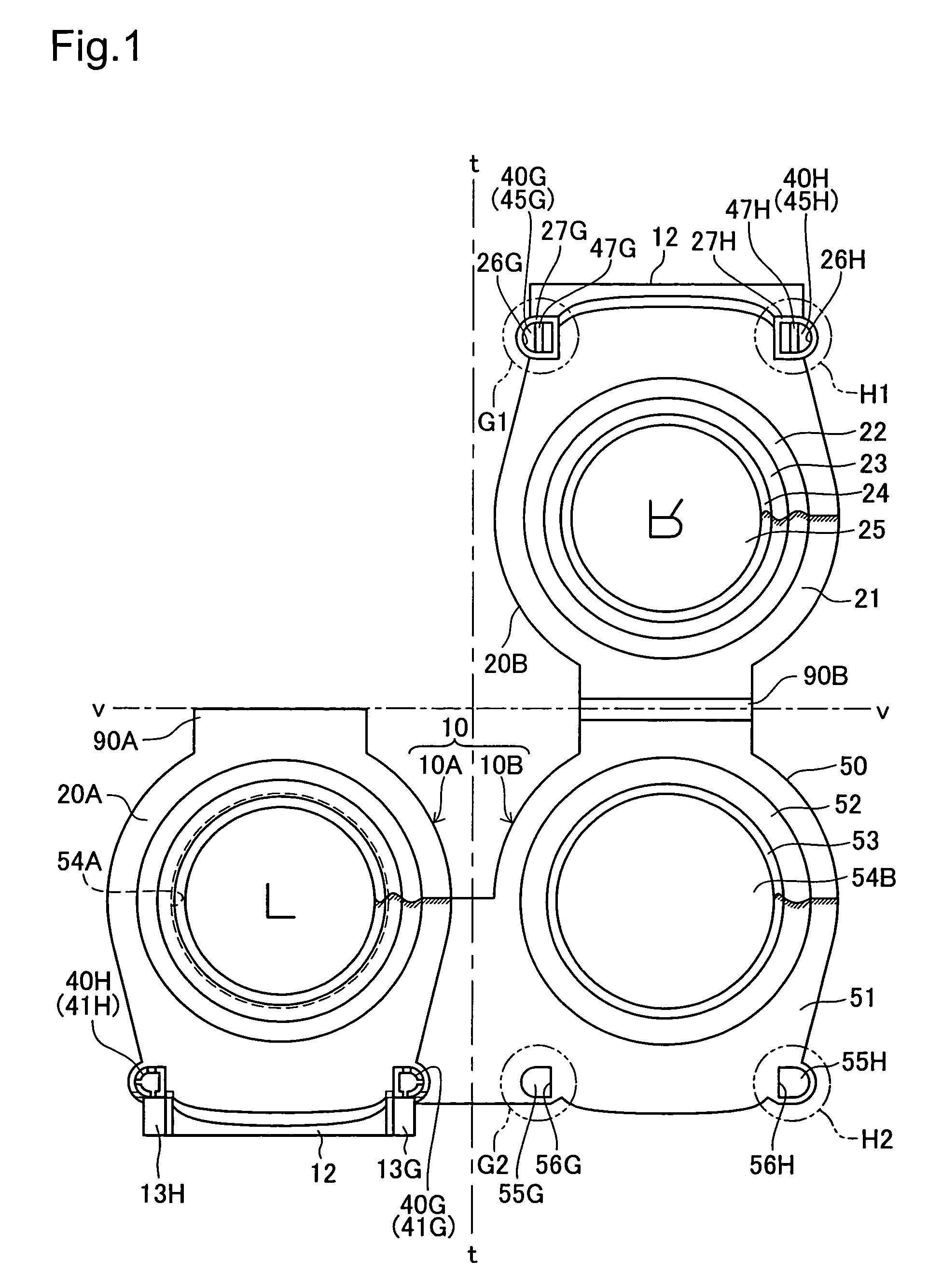

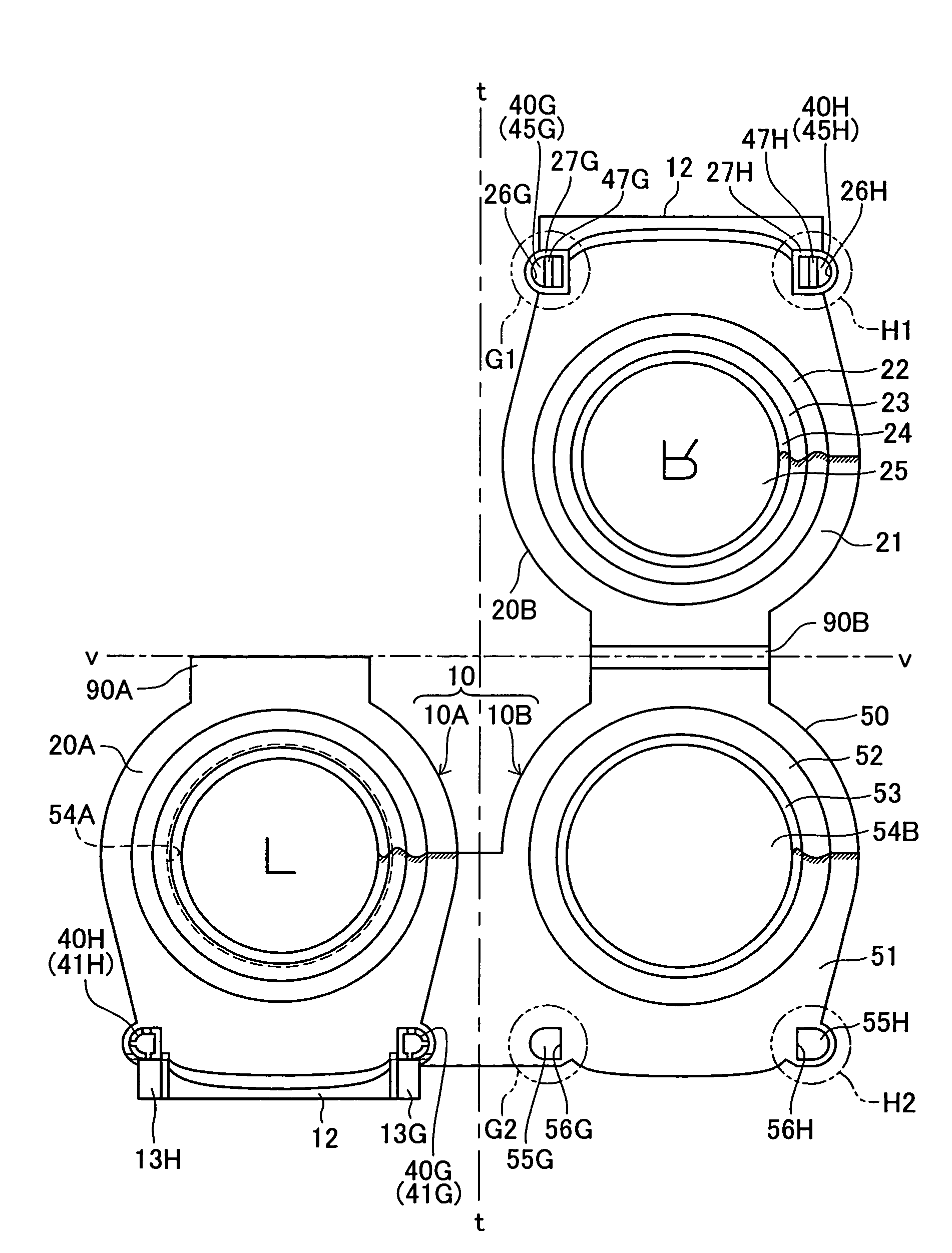

专利附图（8）
