一种带轮子和手柄的鞋盒，便于运输和悬挂鞋子。
专利摘要

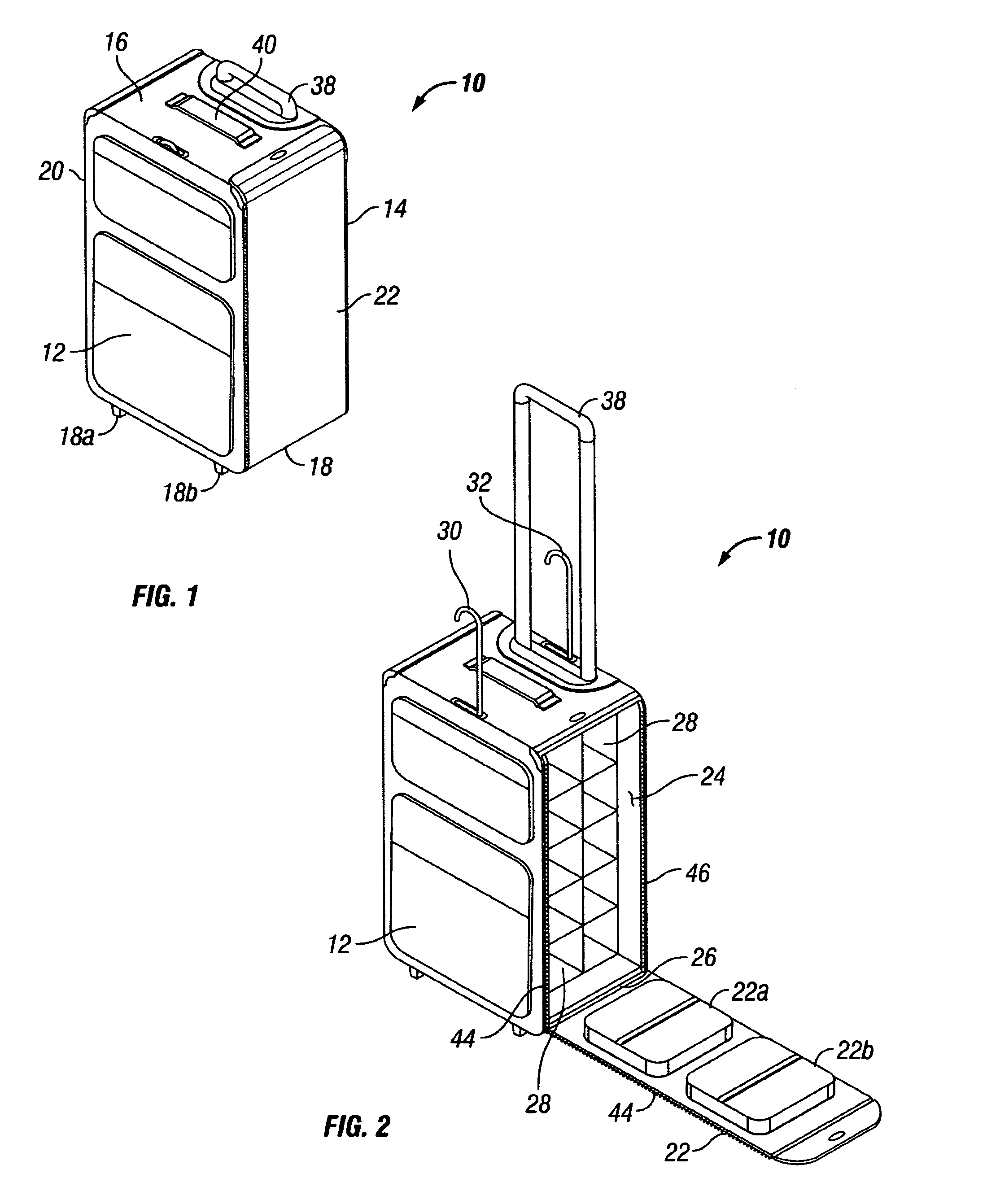

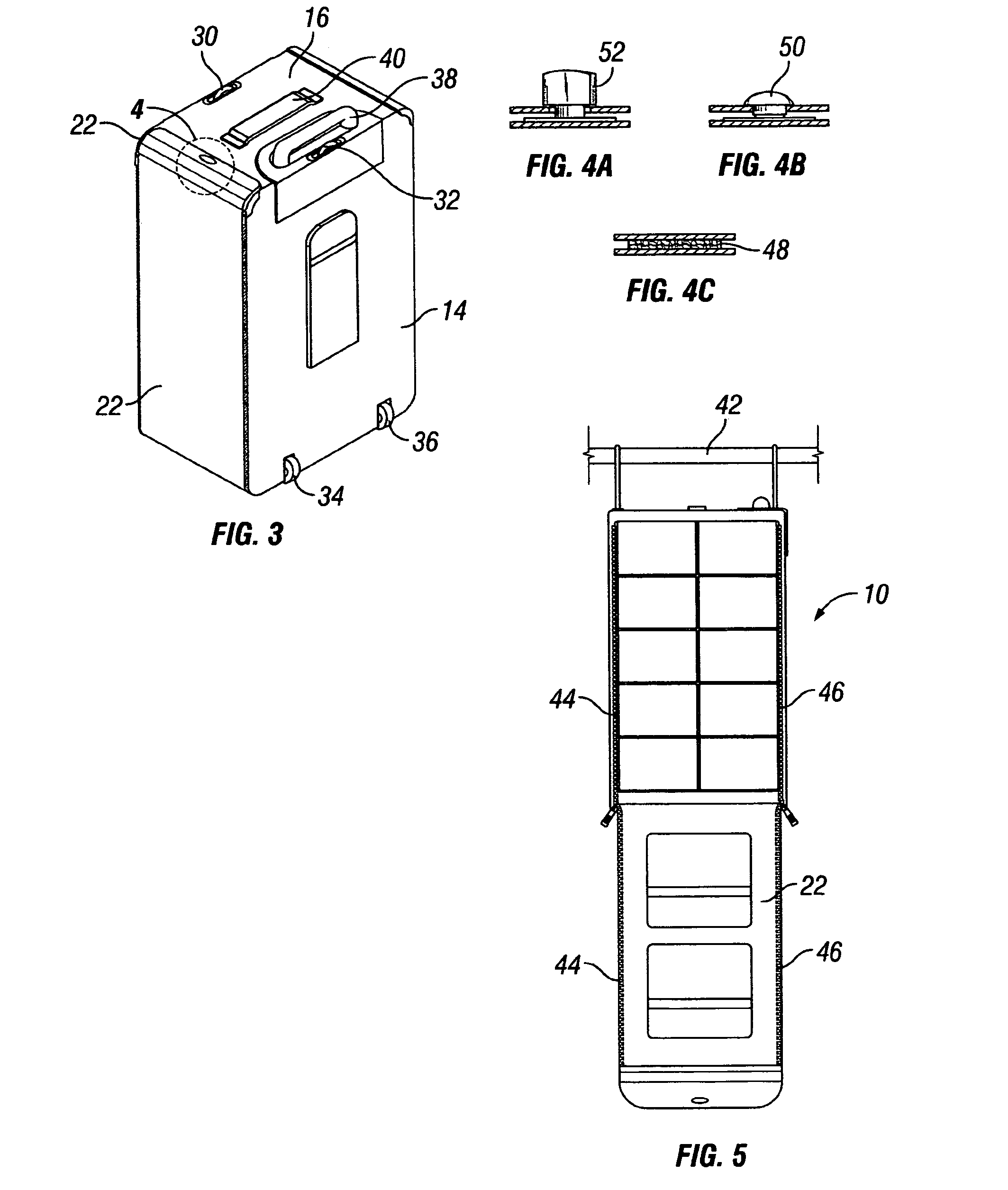

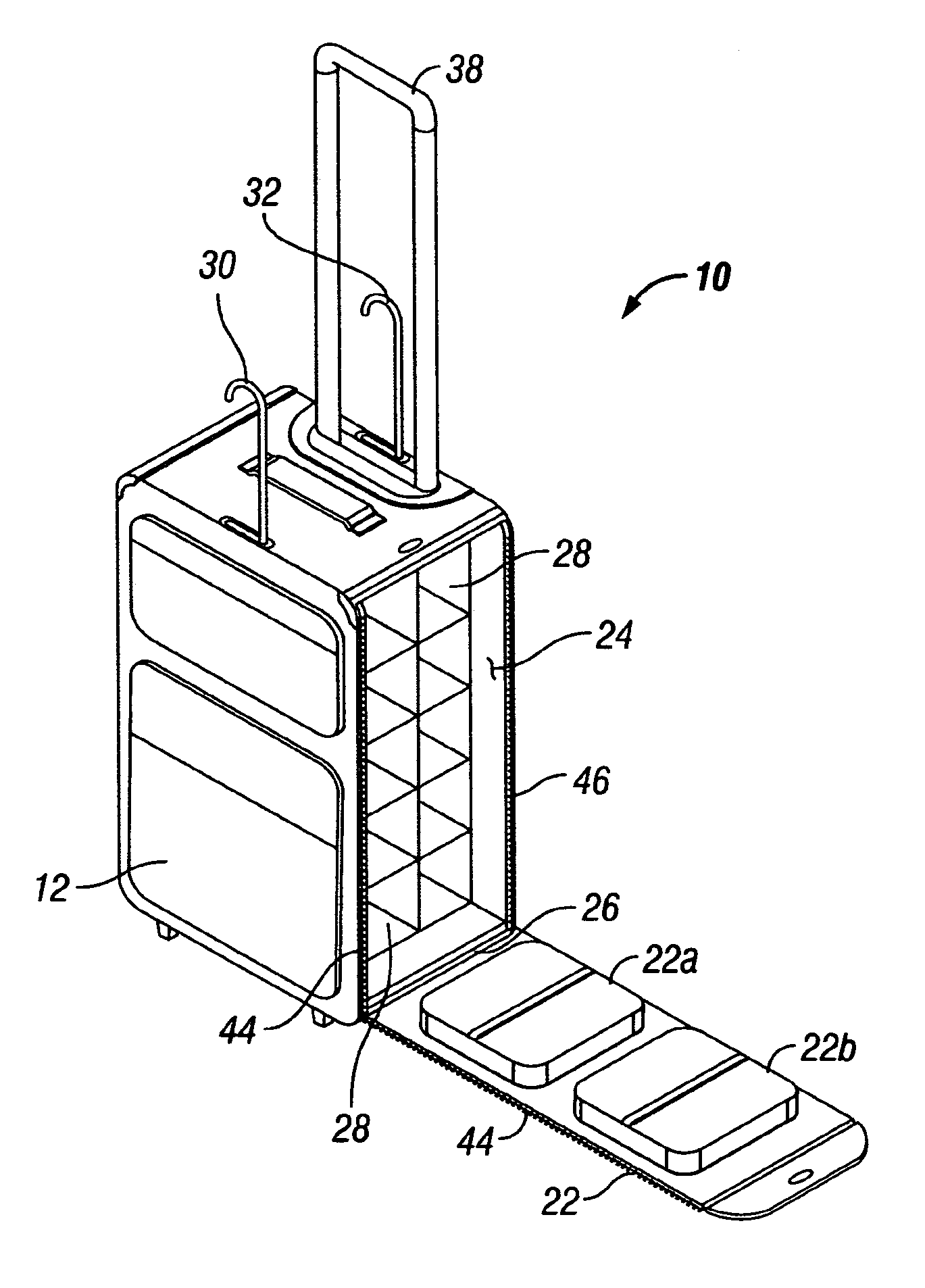

一种用于运输鞋子的盒子，包括前壁和后壁、顶壁和底壁，以及第一侧壁和第二侧壁，它们限定了一个腔室。前壁和后壁、顶壁和底壁以及第一侧壁形成为一体结构。第二侧壁在靠近底壁处铰接，以使第二侧壁能够从关闭位置移动到打开位置，从而允许进入腔室。腔室包括多个用于容纳鞋子的隔间。盒子包括两个钩子，它们彼此大致平行设置，并且可以从缩回位置移动到伸出位置以悬挂盒子。通过安装在靠近后壁和底壁相交处的轮子，以及可从盒子内部的缩回位置移动到从盒子顶部伸出的伸出位置的手柄，便于盒子的运输。
Original abstractA case for transporting shoes is disclosed which comprises front and back walls, top and bottom walls, and first and second side walls which define a chamber. The front and back walls, top and bottom walls and the first side wall are formed as an integral structure. The second side wall is hinged proximate the bottom wall to permit the second side wall to move from a closed position to an open position to permit access to the chamber. The chamber comprises a plurality of compartments for receiving shoes. The case includes two hooks which are disposed in substantially parallel relationship to one another and which can move from a retracted to an extended position for hanging the case. Transportation of the case is facilitated by wheels mounted proximate the intersection of the back and bottom walls, and by a handle which is movable from a retracted position inside the case to an extended position out the top of the case.
专利附图（6）
