用于悬挂或独立支撑饮料等物品的工作台。
专利摘要

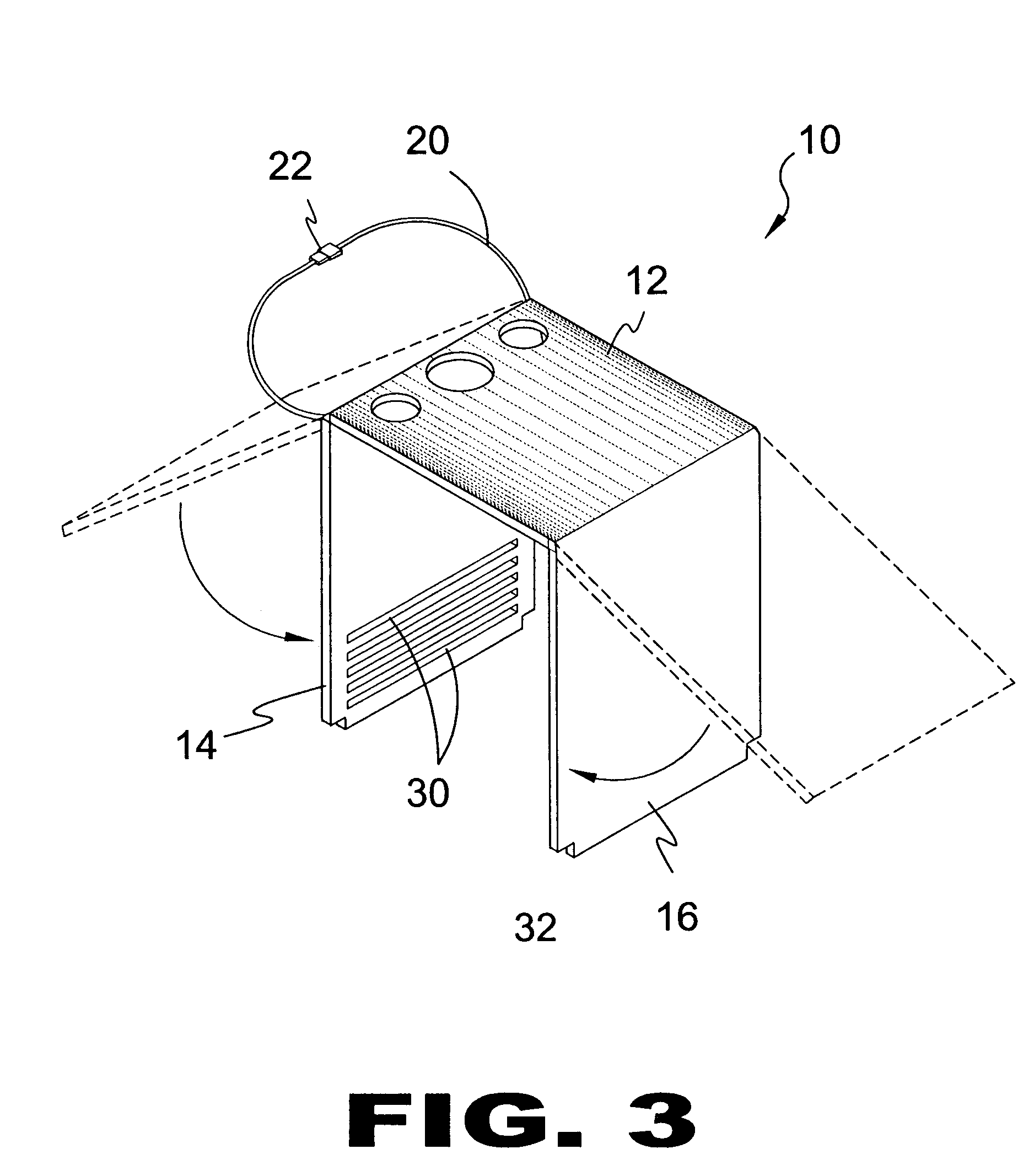

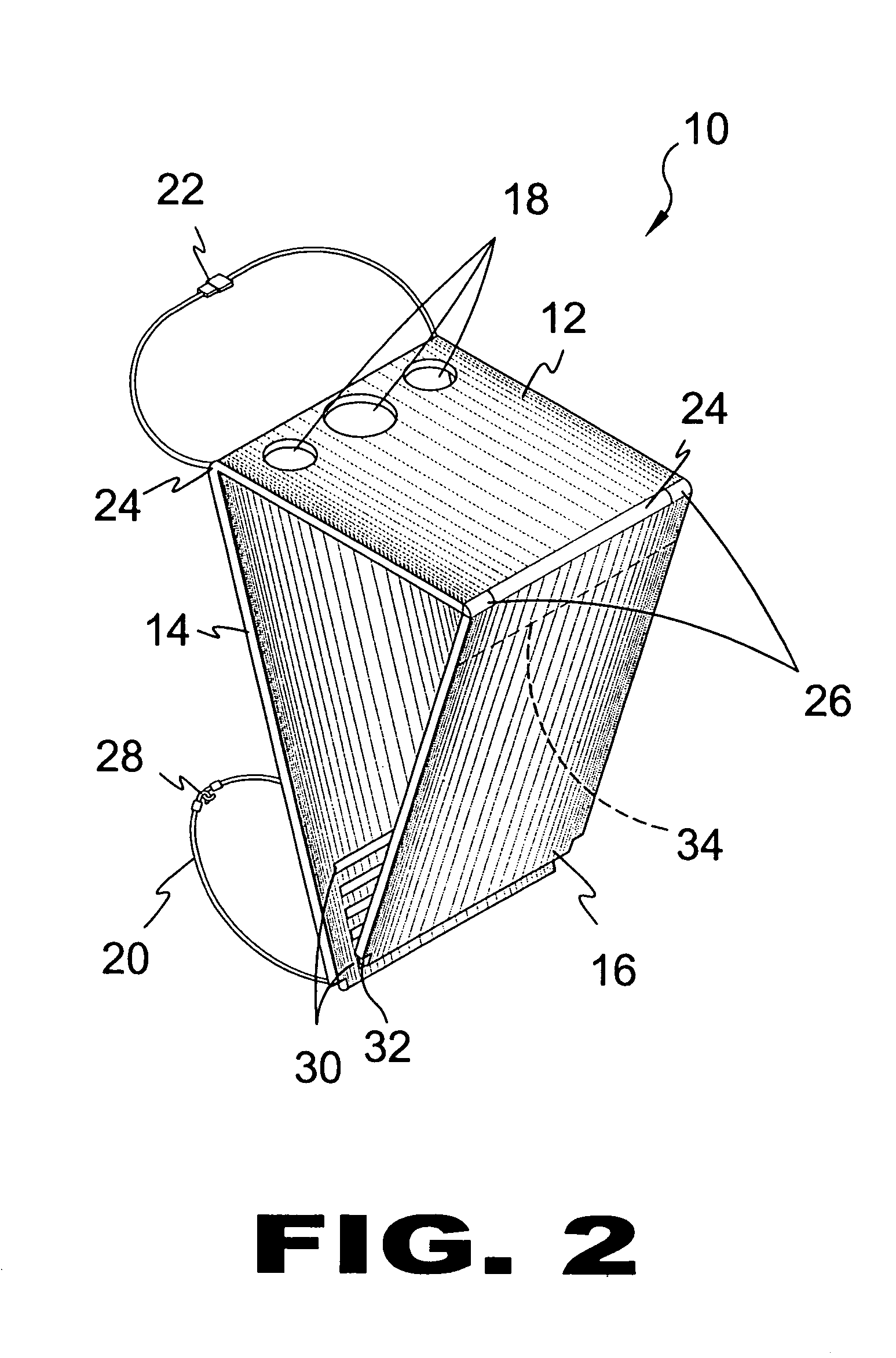

一种可折叠支撑结构，用作工作表面，其具有直径可能不同的孔，用于支撑容器化物品，如饮料。该可折叠支撑结构具有三个铰接的平面部分，中心部分具有上述孔，左和右部分包括用于固定地相互接合的装置。配合带基本上从铰接接头和部分基座延伸，由此所述可折叠支撑件可从结构（如机动车座椅）悬挂。位于相对部分端部的舌片和槽提供用于选择性地改变工作表面俯仰的装置。该装置可用作床或海滩的独立桌子，其具有位于中心部分四个角上的选择性可接合锁定机构，通常处于脱离位置，使得左和右部分自由移动至用户在凸片和槽之间的选择性接合。

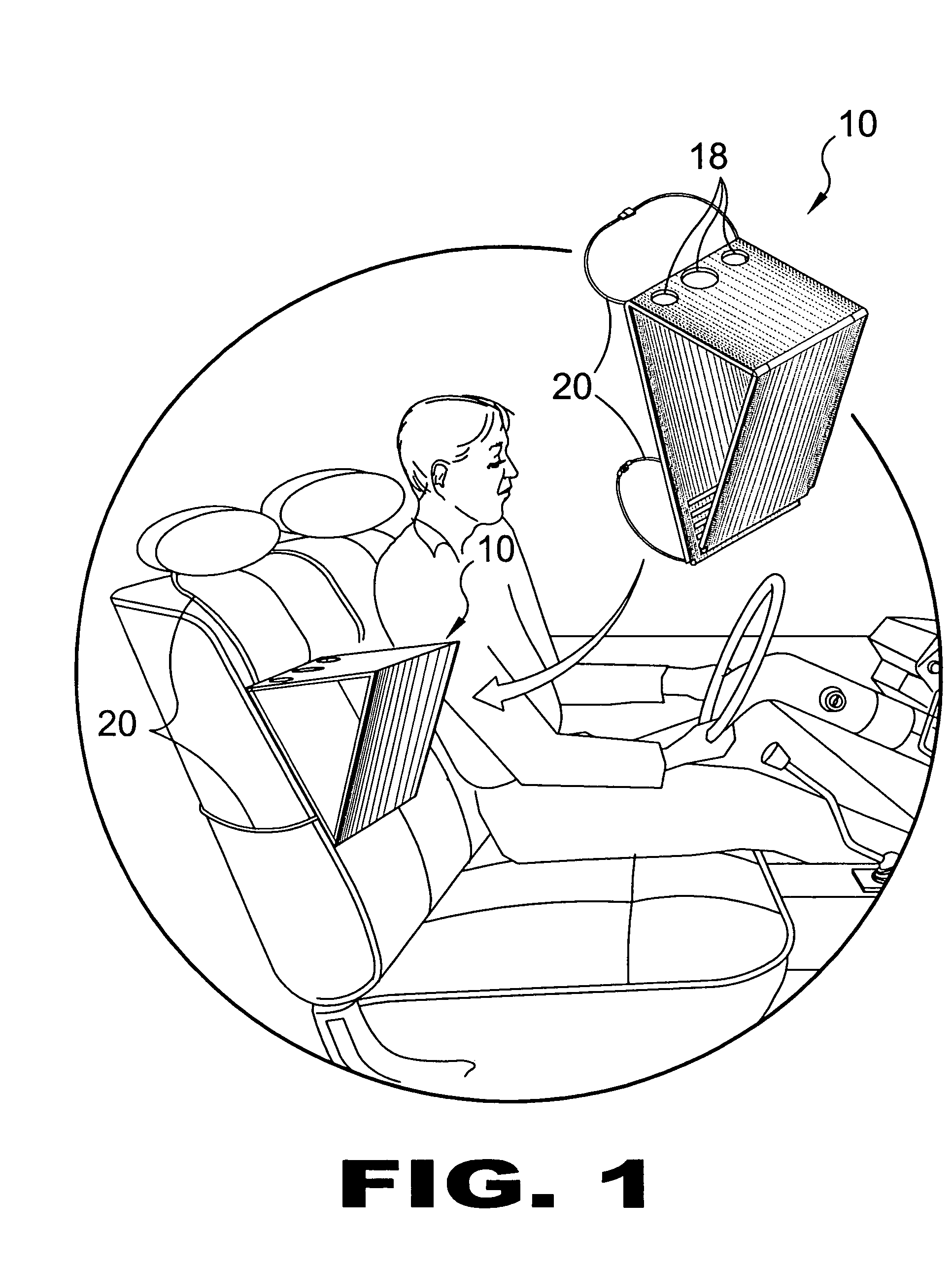

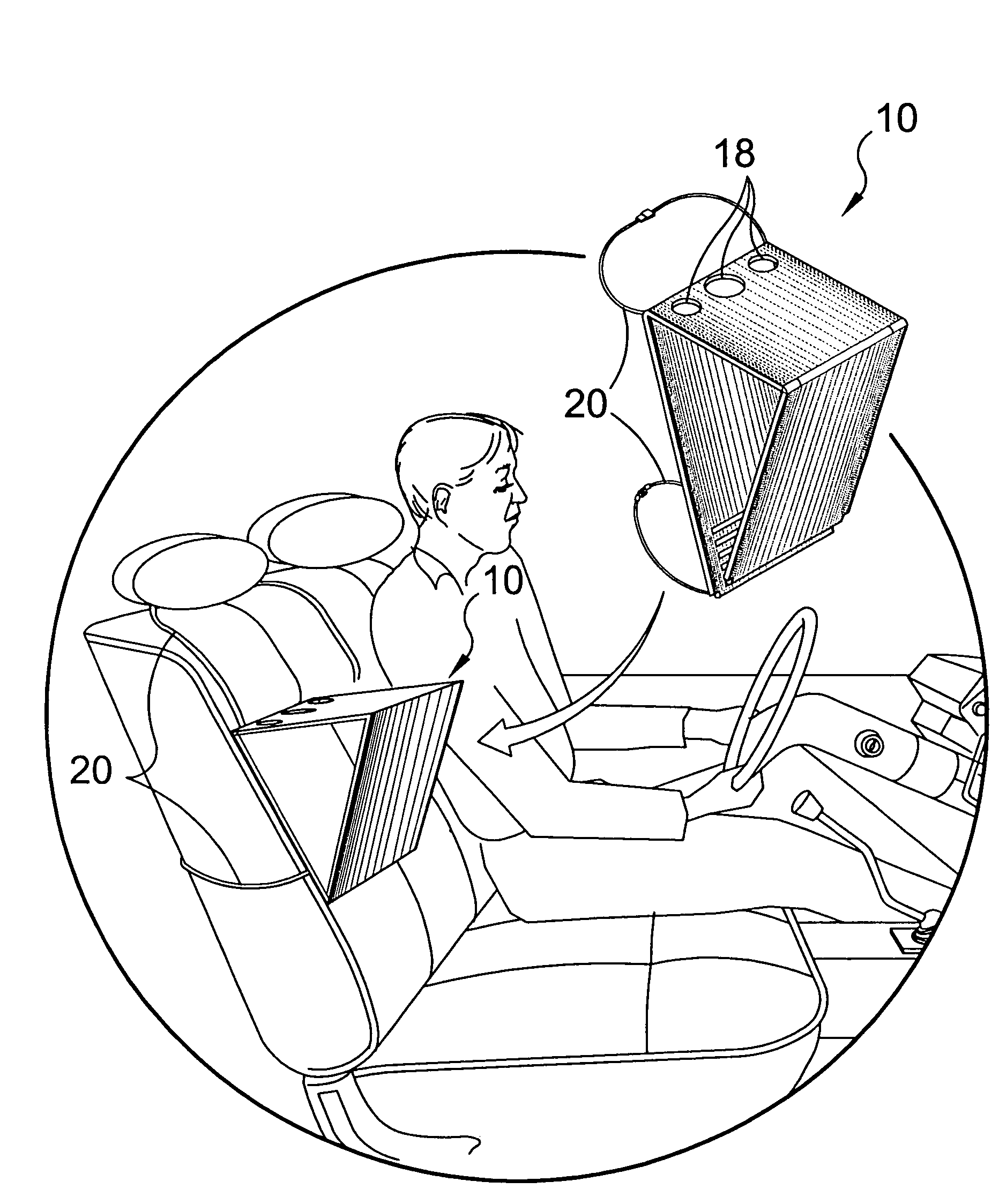

Original abstractA foldable support structure serving as a work surface having apertures that may differ diametrically for support of containerized articles, such as beverages. The foldable support structure has three hinged planar sections with the center section having the aforementioned apertures and the left and right sections incorporating means for fixedly engaging each other. Mating straps extend substantially from a hinged joint and from a section base whereby said foldable support can be suspended from a structure, such as a motor vehicle seat. Tongue and slots positioned on opposing section ends provide means for selectively varying the pitch of the work surface. The device can be used as a free standing table for bed or beach having selectively engageable locking mechanisms positioned on the four corners of the center section and normally in a disengaged position so that the left and right sections are free to move to a user selective engagement between tab and slot.
专利附图（8）
