来源记录显示 Expired
用于车内显示器的铰接式安装架
Articulating mount for an in-vehicle display
US-7408596-B2一种可使车内显示器多角度调节的铰接安装架。
专利摘要

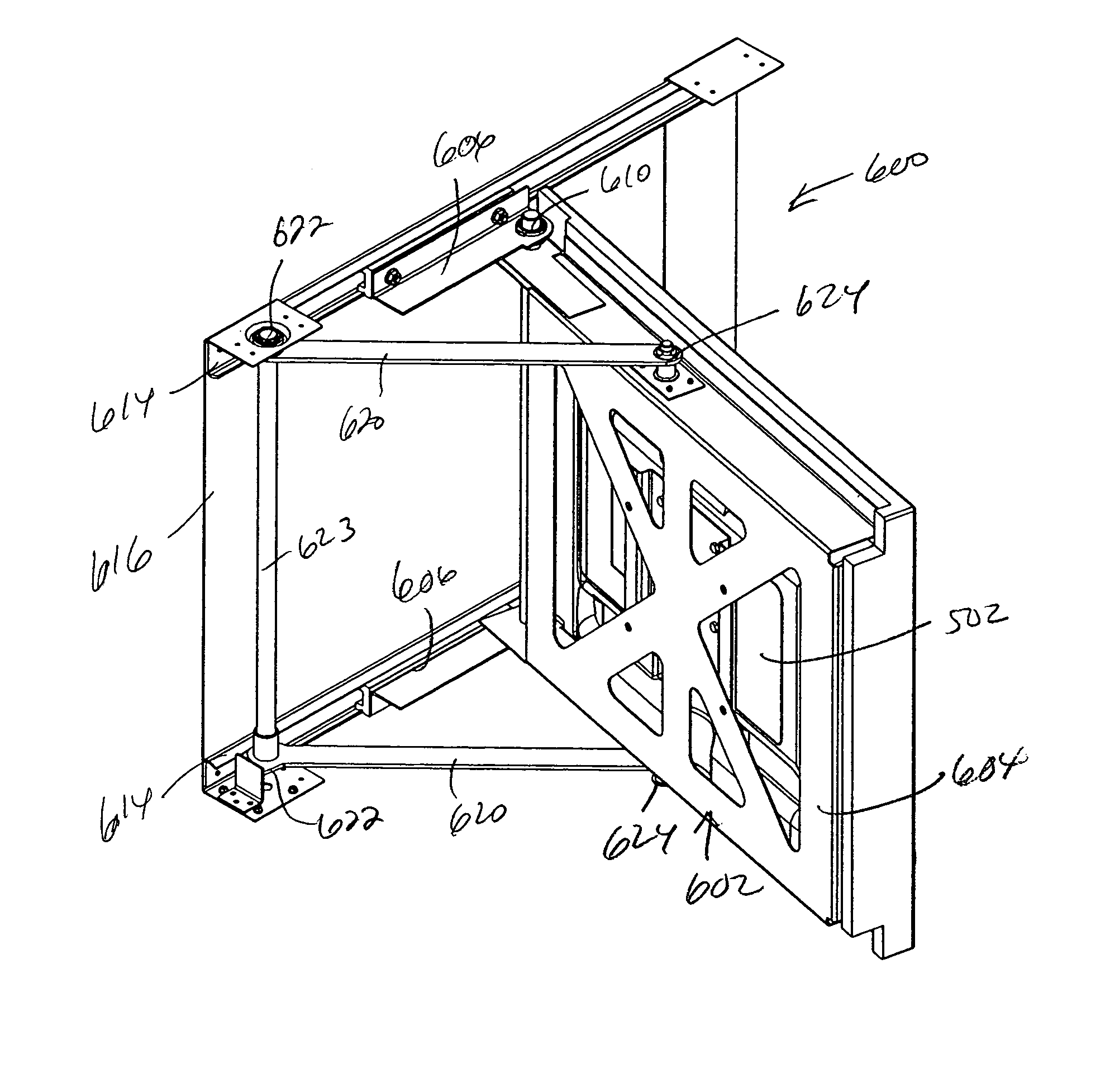

本发明提供一种用于车内视频显示器的铰接式安装架。支撑构件将显示器安装至固定于车辆壁的导轨。导轨具有一对竖直间隔开的水平轨道，一对滑架在轨道上通过滑块或滚轮行进。滑架在枢轴处安装至支撑构件一端的顶部和底部。在轨道的一端处，两个摆臂在支撑构件两端之间的中间位置处枢转地安装至支撑构件的顶部和底部。因此，支撑构件和显示器可通过滑架沿轨道平移支撑构件的一端并将支撑构件的另一端枢转离开轨道平面而相对于导轨进行铰接运动。
Original abstractThe invention provides an articulating mount for an in-vehicle video display. A support member mounts the display to a guide fixed to a vehicle wall. The guide has a pair of vertically spaced horizontal tracks on which a pair of carriages travel on slides or rollers. The carriages mount at pivots to the top and bottom of one end of the support member. At one end of the tracks are two swing arms that pivotally mount to the top and bottom of the support member at an intermediate location between its ends. The support member and display can thus articulate with respect to the guide by the carriages translating one end of the support member along the tracks and pivoting the other end of the support member out away from the plane of the tracks.
专利附图（8）
