一种可使车辆货箱抽屉完全滑出的滑动装置。
专利摘要

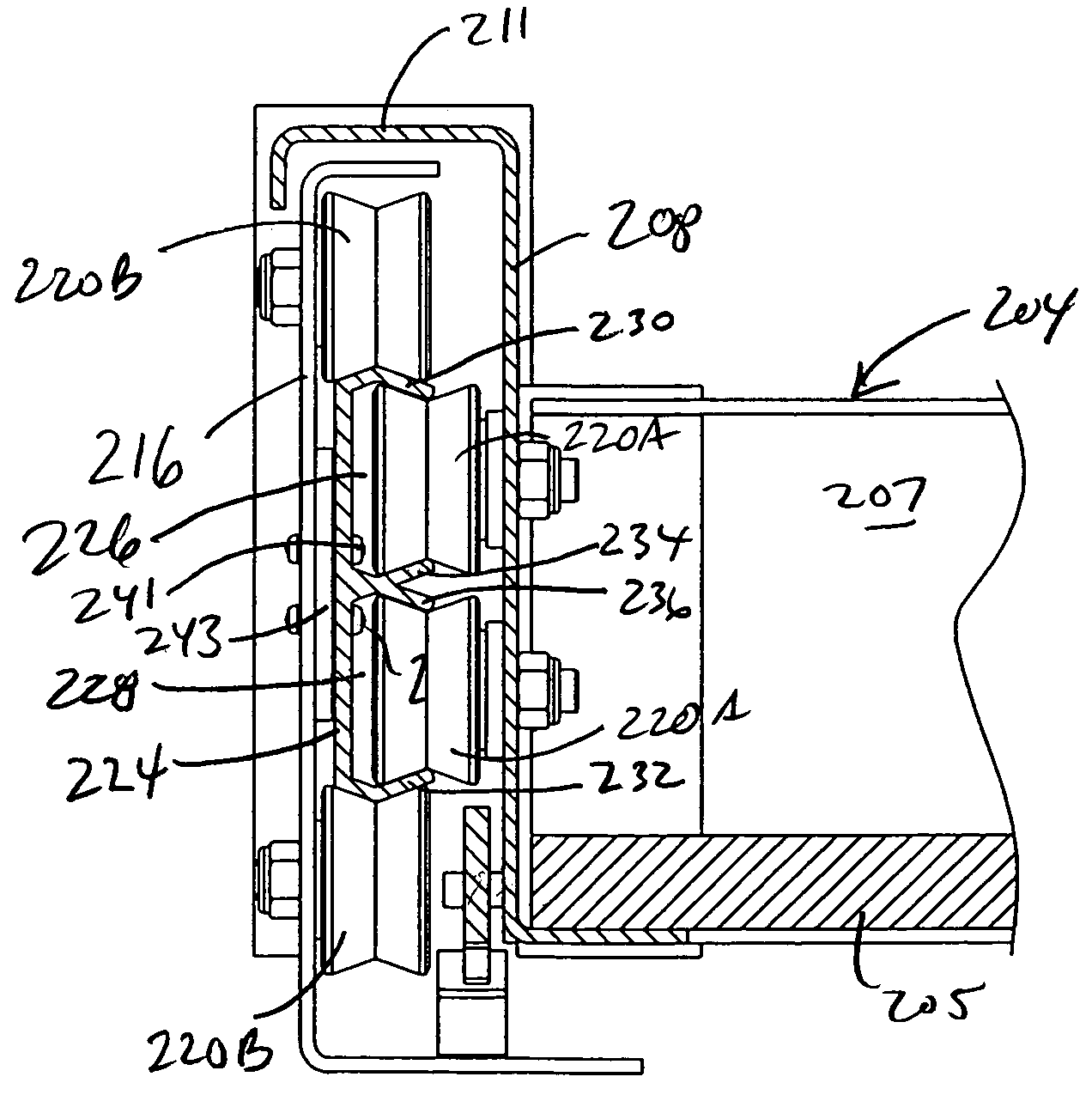

一种用于车辆的货物滑出装置，包括可在导向框架内滑动的抽屉。诸如滚轮或滑块的滑动件安装至抽屉的两侧以及导向框架的相关侧，使得在抽屉的每一侧，至少一个滑动件朝向导向框架延伸，至少一个滑动件朝向抽屉延伸。在抽屉的两侧，在抽屉与导向框架之间设置有滑动的双列轨道。轨道和滑动件的滑动接合将抽屉连接至导向框架，并允许抽屉从导向框架完全滑出，使得用户能够接近抽屉的后部。优选地，每条轨道限定一对V形槽和一对V形轨，其可与滑动件的V形表面配合。
Original abstractA cargo slide-out for a vehicle includes a drawer slideable within a guide frame. Glides, such as rollers or sliders, are mounted to two sides of the drawer and to the associated sides of the guide frame so that at each side of the drawer at least one glide extends toward the guide frame and at least one extends toward the drawer. A sliding double-run track is disposed between the drawer and the guide frame at the two sides of the drawer. Sliding engagement of the tracks and glides connect the drawer to the guide frame and allow the drawer to slide out fully from the guide frame so that the user can access the back of the drawer. Preferably, the tracks each define a pair of v-shaped grooves and a pair of v-shaped rails matable with v-shaped surfaces of the glides.
