用于墙壁安装的搁架系统。
专利摘要

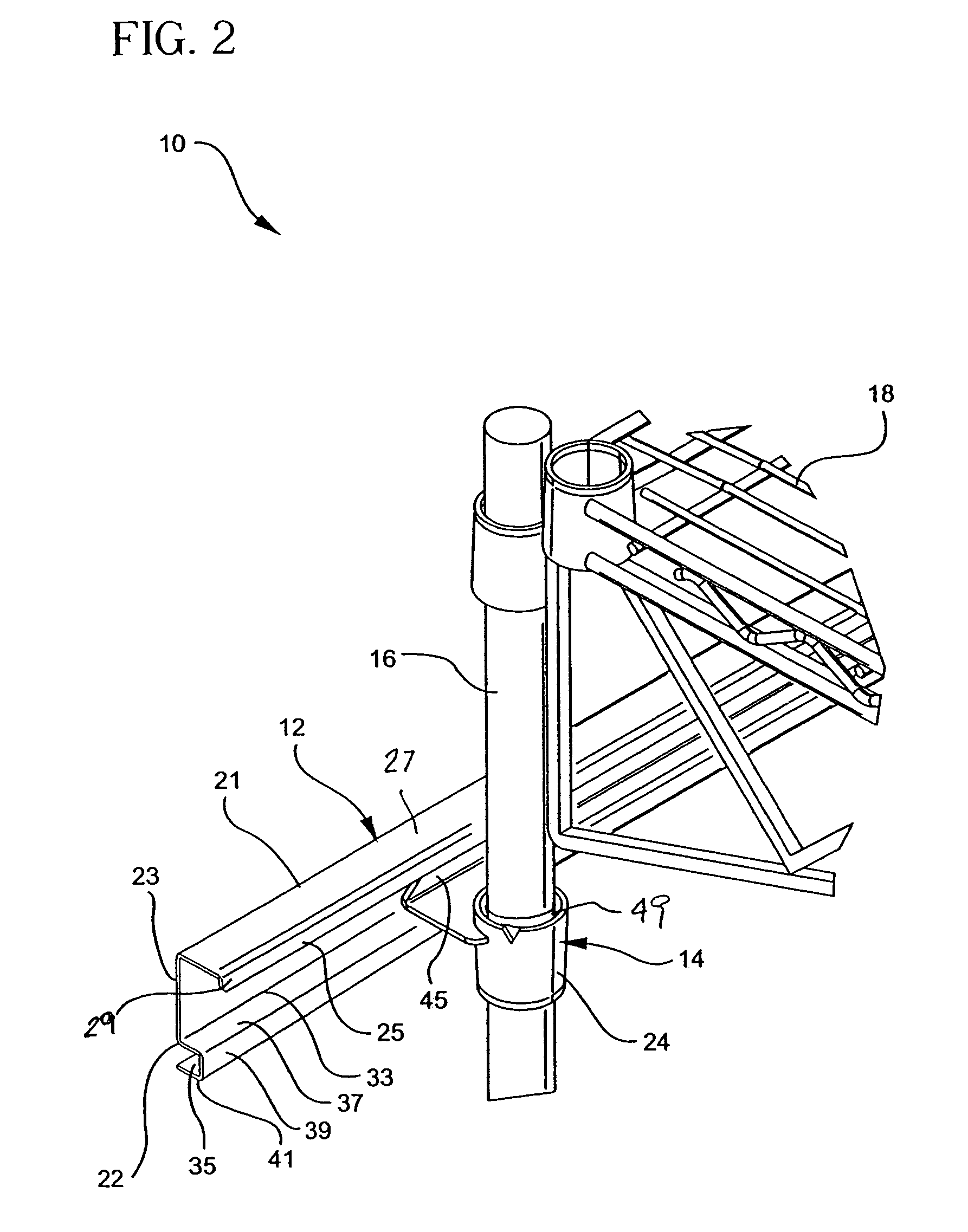

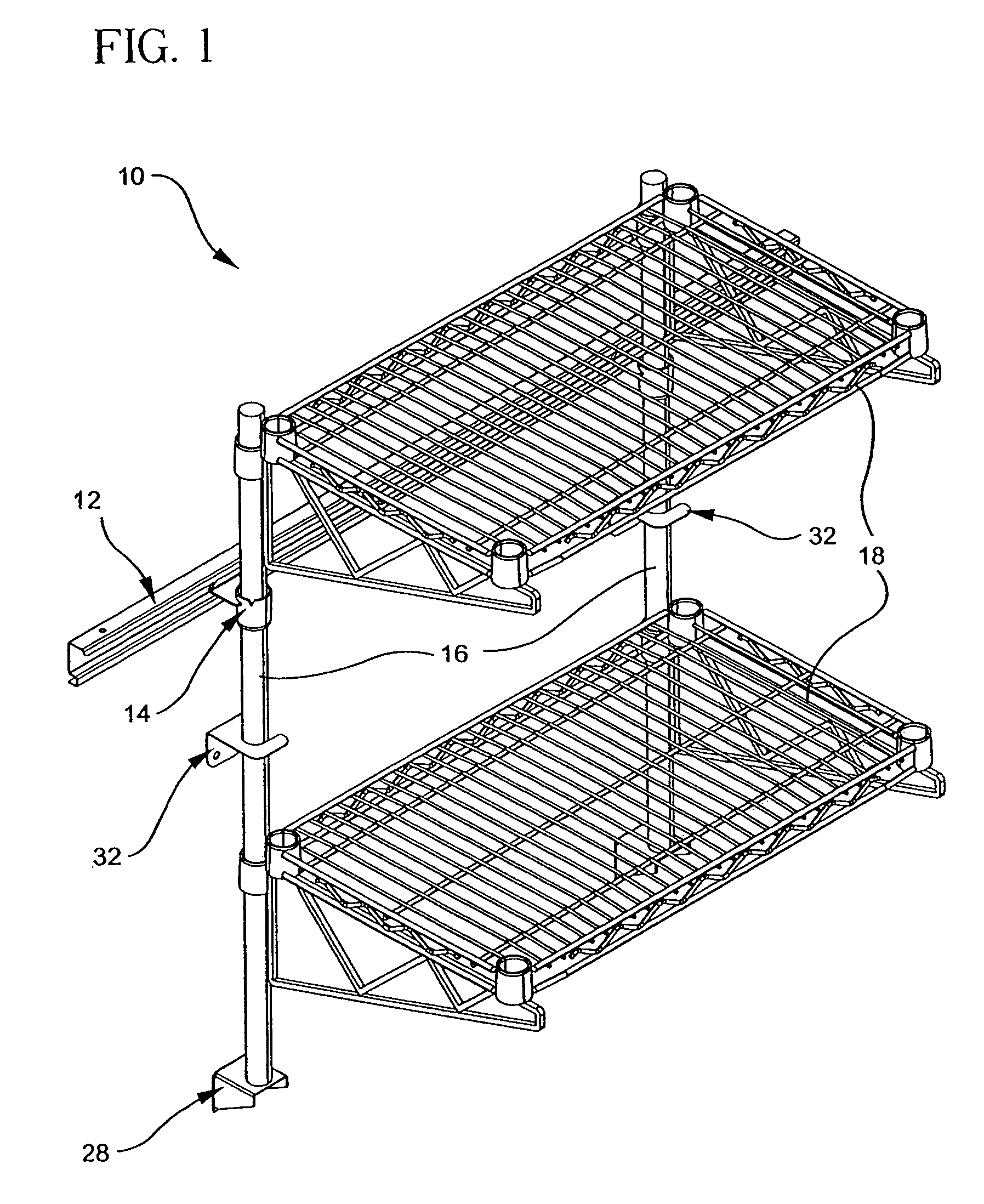

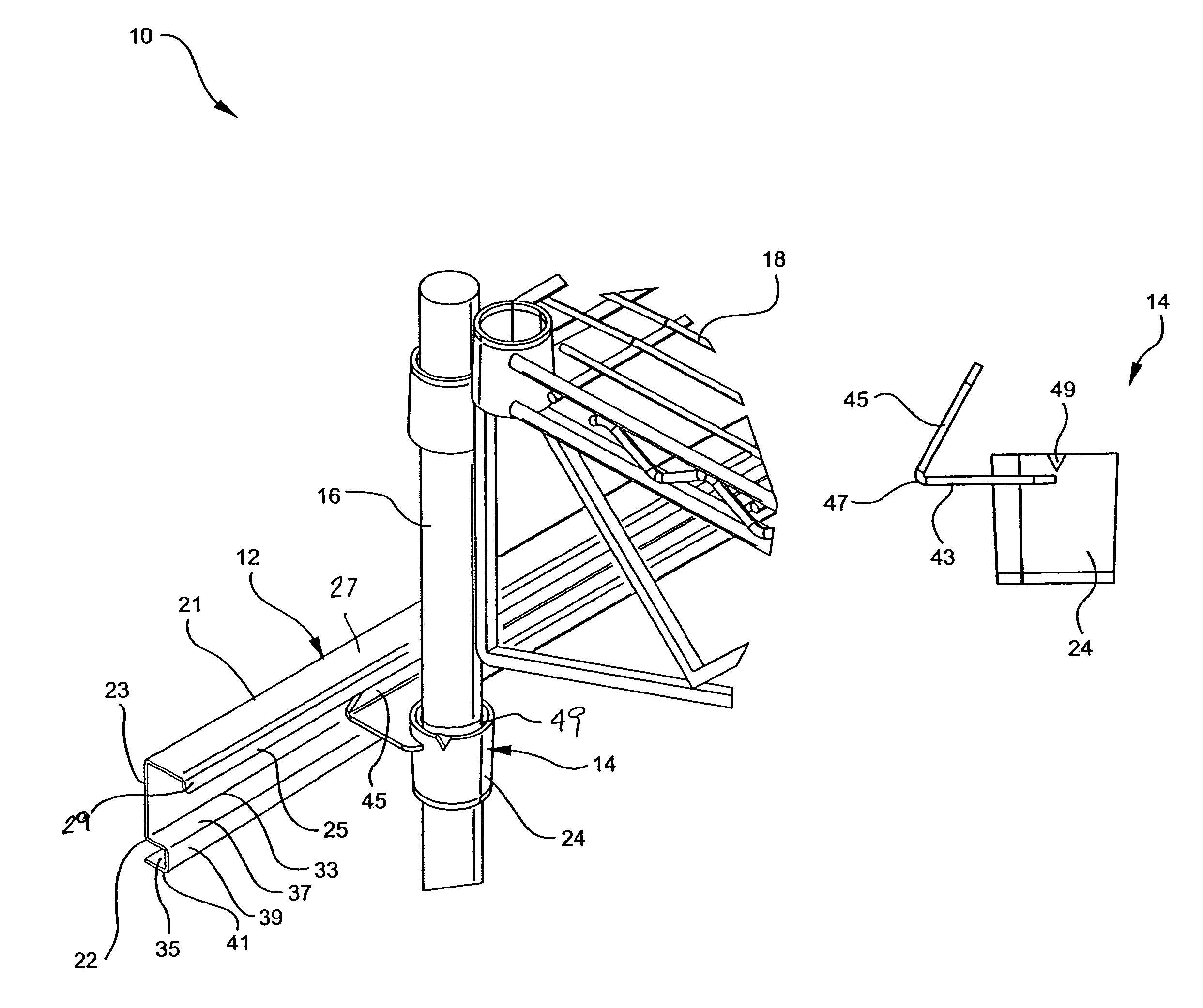

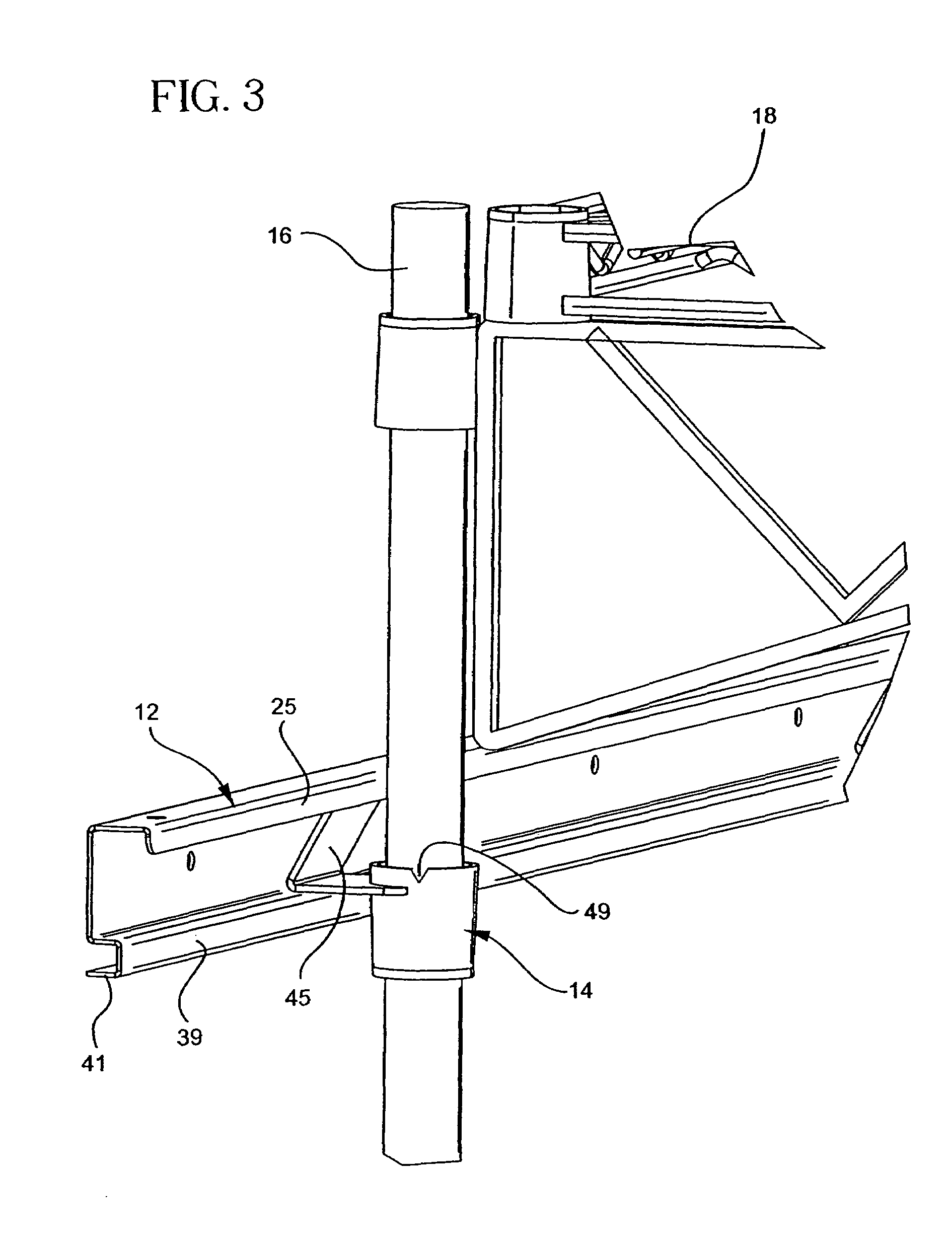

一种壁挂式搁架系统，包括轨道和可与轨道接合的支架。支架具有用于支撑承载搁架的壁柱的套环和从套环突出的接合元件，该接合元件包括底部和从底部向上突出以限定肘部的臂。轨道适于水平安装在墙上，并包括在其顶部的向下开口的通道和在其底部的向外突出的凸缘。接合元件臂的上端被接收在轨道的通道中，而肘部可以被支撑以搁置在凸缘上。然后壁柱适于通过中间楔形构件支撑在套环中，并且搁架和其他物体可以支撑在壁柱上。
Original abstractA wall-mounted shelving system includes a track and a bracket engagable with the track. The bracket has a collar for supporting a shelf-carrying pilaster and an engaging element protruding from the collar that includes a floor and an arm projecting upwardly from the floor to define an elbow. The track is adapted to be mounted horizontally on a wall and includes a downwardly open channel at its top and an outwardly projecting ledge at its bottom. The upper extreme of the engaging element arm is received in the channel of the track while the elbow can be supported to rest on the ledge. A pilaster is adapted to then be supported in the collar through an intermediate wedge member, and shelves and other objects can be supported on the pilaster.
专利附图（8）
