具有圆柱形支撑柱并提供改进的稳定性和刚性的搁架支撑系统
Shelf support system having a cylindrical support post and providing improved stability and rigidity
US-7401754-B2用于支撑搁架，提高稳定性和刚性。
专利摘要
一种搁架支撑系统，包括套筒或楔形构件以及适于固定到大致圆柱形支撑柱（即径向横截面为圆形）的套环。套筒具有构造成包围支撑柱的内表面和形成有第一轴向向外倾斜楔形部分和至少一个第二轴向向外倾斜楔形部分的外表面，当以这种径向横截面观察时，第二楔形部分以一定角度延伸到第一楔形部分。此外，套环适于固定到待支撑的构件并包围套筒。套环具有形成为与套筒外表面的第一部分配合的第一楔形表面和形成为与套筒外表面的第二部分配合的至少一个第二楔形表面。因此，当套筒包围柱并且套环包围套筒时，在一个方向上轴向加载套环导致第一楔形表面与套筒外表面的第一部分配合，第二楔形表面与套筒外表面的第二部分配合，从而在至少两个大致径向方向上推动套筒朝向柱。
Original abstractA shelf support system includes a sleeve or wedge member and a collar adapted to be secured to a generally cylindrical support post, that is one that is circular when viewed in radial cross-section. The sleeve has an inner surface that is configured to embrace the support post and an outer surface formed with a first axially outwardly inclined wedge portion and at least one second axially outwardly inclined wedge portion that, when viewed in such radial cross-section, extends at an angle to the first portion. Additionally, the collar is adapted to be secured to a member to be supported and to embrace the sleeve. The collar has a first wedge surface formed to mate with the first portion of the outer surface of the sleeve and at least one second wedge surface formed to mate with the second portion of the outer surface of the sleeve. Thus, when the sleeve embraces the post and the collar embraces the sleeve, axial loading of the collar in one direction causes the first wedge surface to mate with the first portion of the outer surface of the sleeve and the second wedge surface to mate with the second portion of the outer surface of the sleeve, thereby urging the sleeve toward the post in at least two generally radial directions.

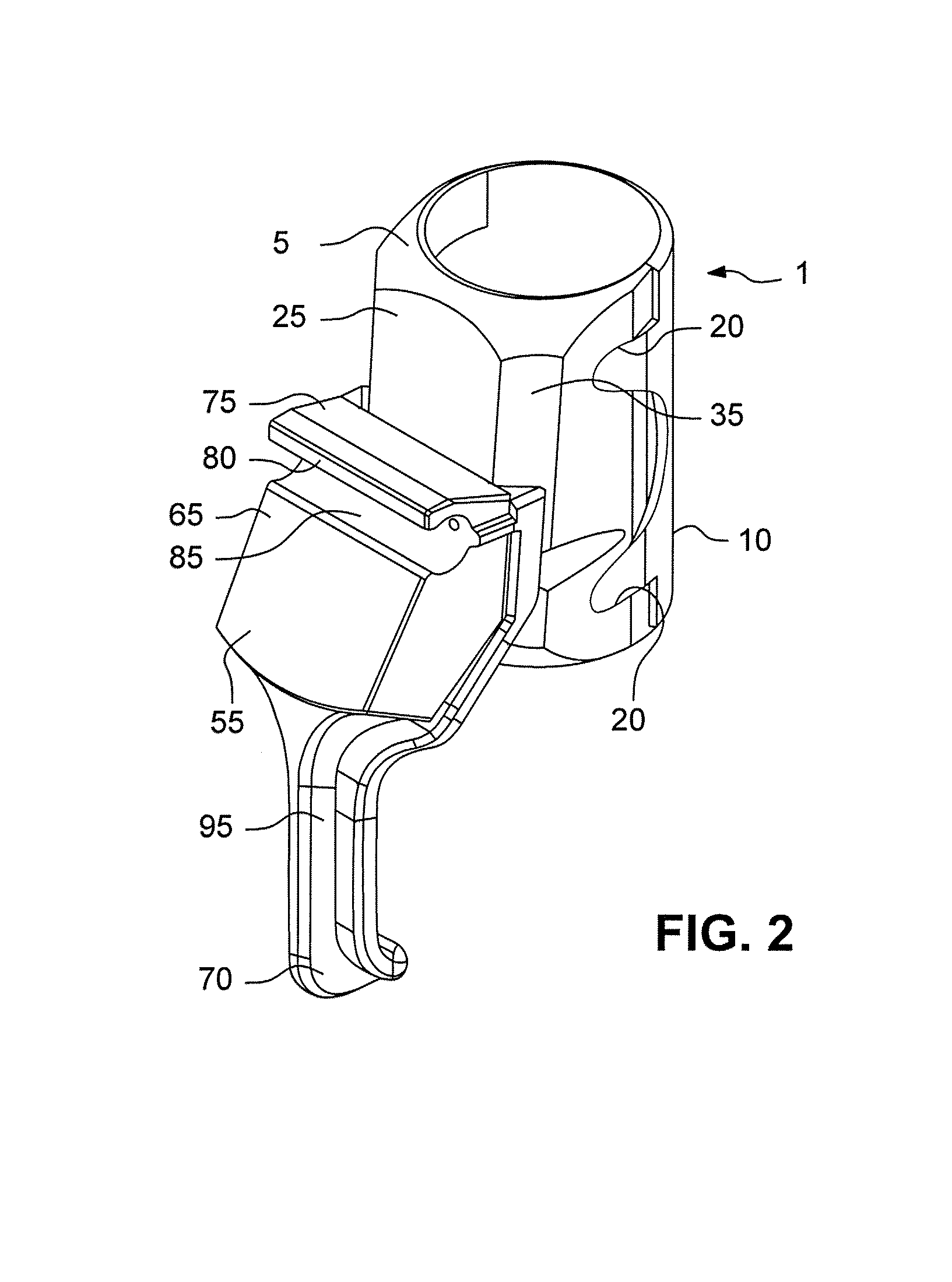

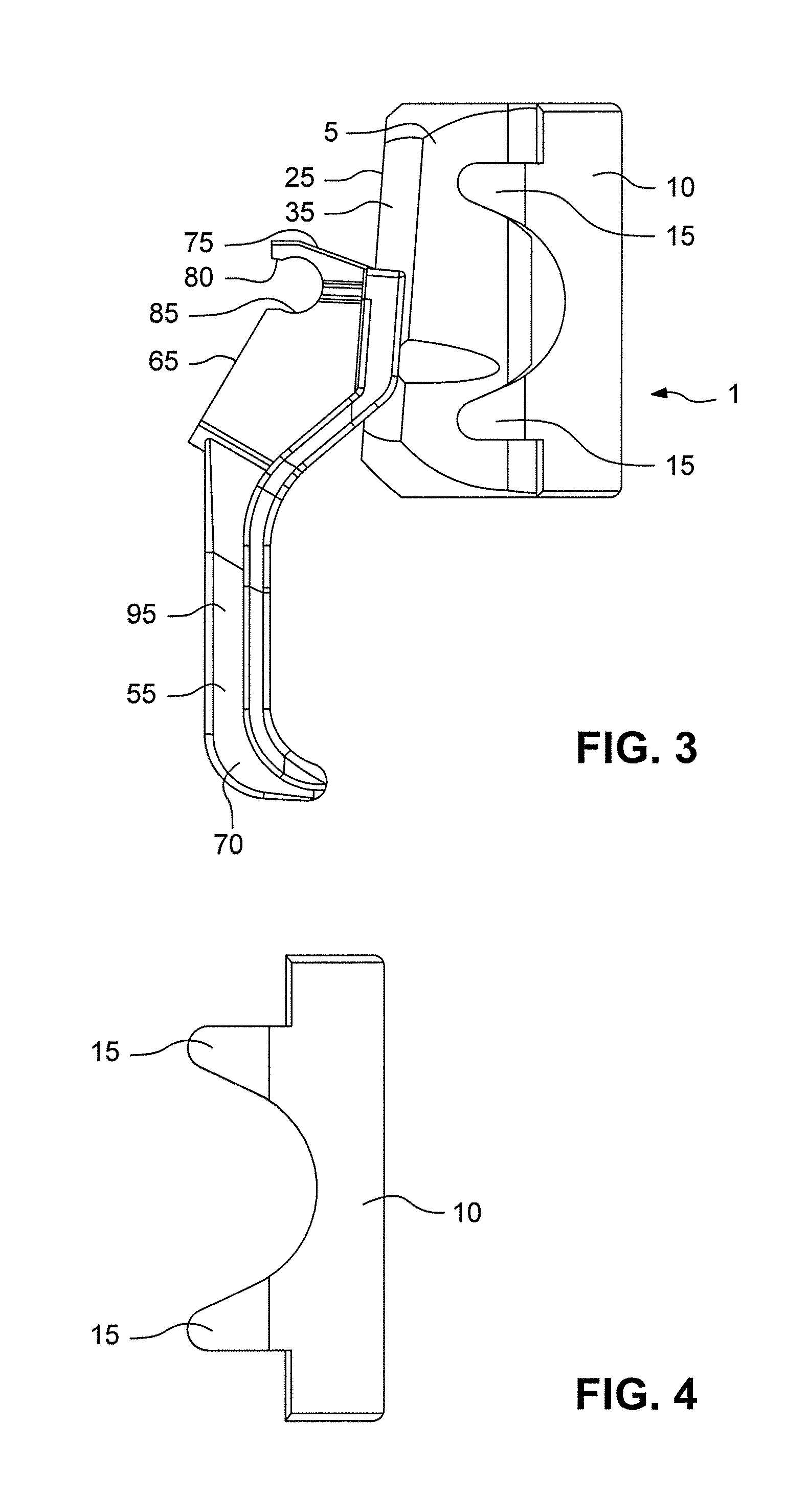

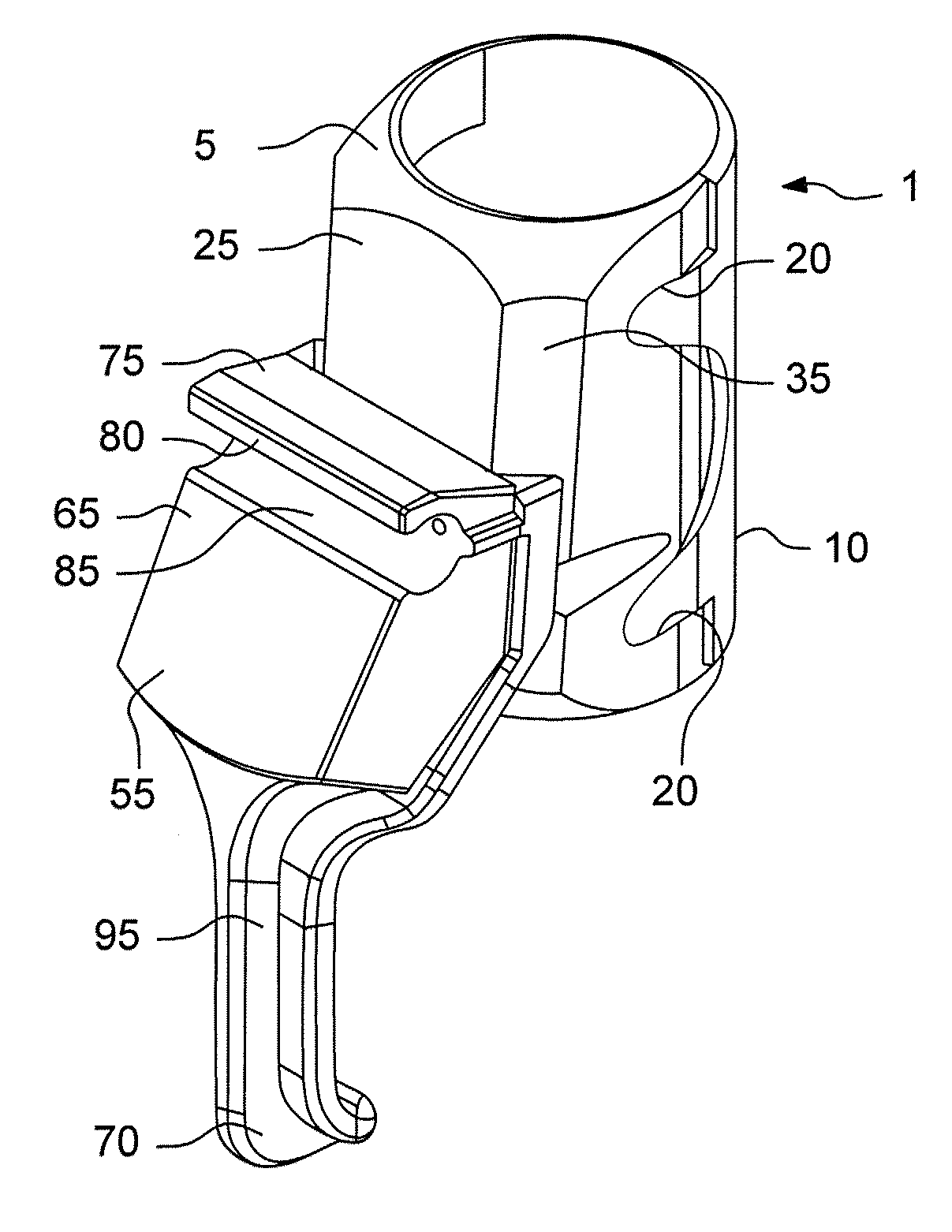

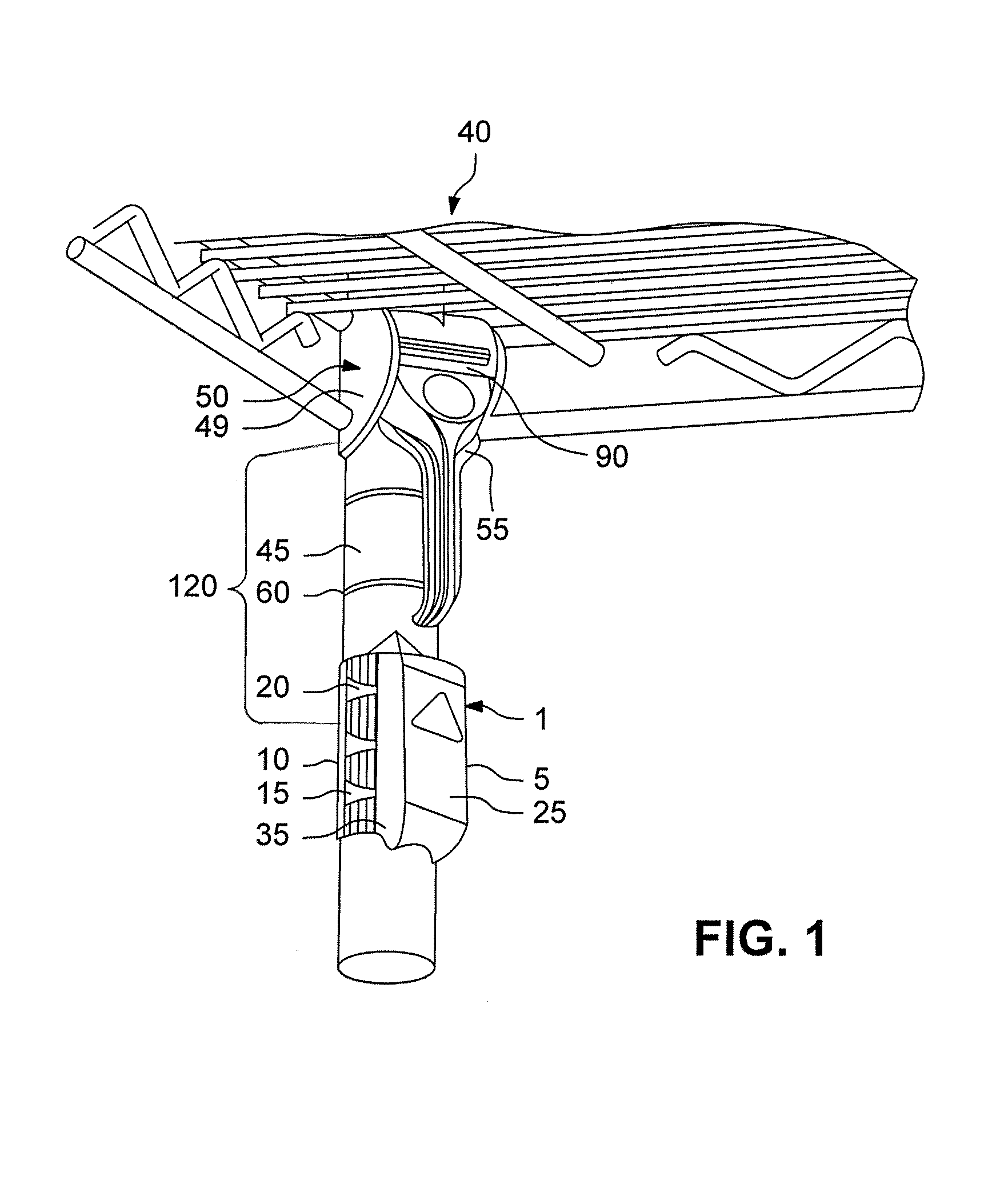

专利附图（8）
