用于存储物品，通过旋转桶方便取放，节省空间。
专利摘要
标准、新的或旧木桶的存储单元，端部安装在旋转平台上，并具有侧开口切入内部，以访问安装在内部的搁架、抽屉、酒架或其他存储装置。桶安装并固定到可旋转平台上，平台包括转盘机构，平台尺寸专门适配桶的底部凹槽，使其被桶唇隐藏，同时将桶保持足够离地以避开地毯或其他不规则地板（如石板、砖或瓷砖铺地），否则可能干扰其旋转。平台包括摩擦滑块，使得桶在手压下旋转但不会自由旋转。使用选定的脚或间隔盘提供最小所需间隙，使桶看起来悬浮在地板表面上方。
Original abstractStorage units of standard, new or used wood stave barrels, mounted on end on a rotating platform and having a side opening cut-out to the interior for access to shelving, drawers, wine racks or other storage devices fitted in the interior. The barrel is mounted on and secured to a rotatable platform that includes a turntable mechanism, the platform being specifically sized to fit inside the base recess of the barrel, so that it is hidden by the barrel lip, yet holds the barrel sufficiently off the ground to clear carpeting or other irregular flooring such as slate, brick or tile pavers, that might otherwise interfere with its rotation. The platform includes friction sliders so that the barrel rotates under hand pressure but does not spin freely. Selected feet or spacer disks are used to provide minimum needed clearance so the barrel appears to float just above the flooring surface.

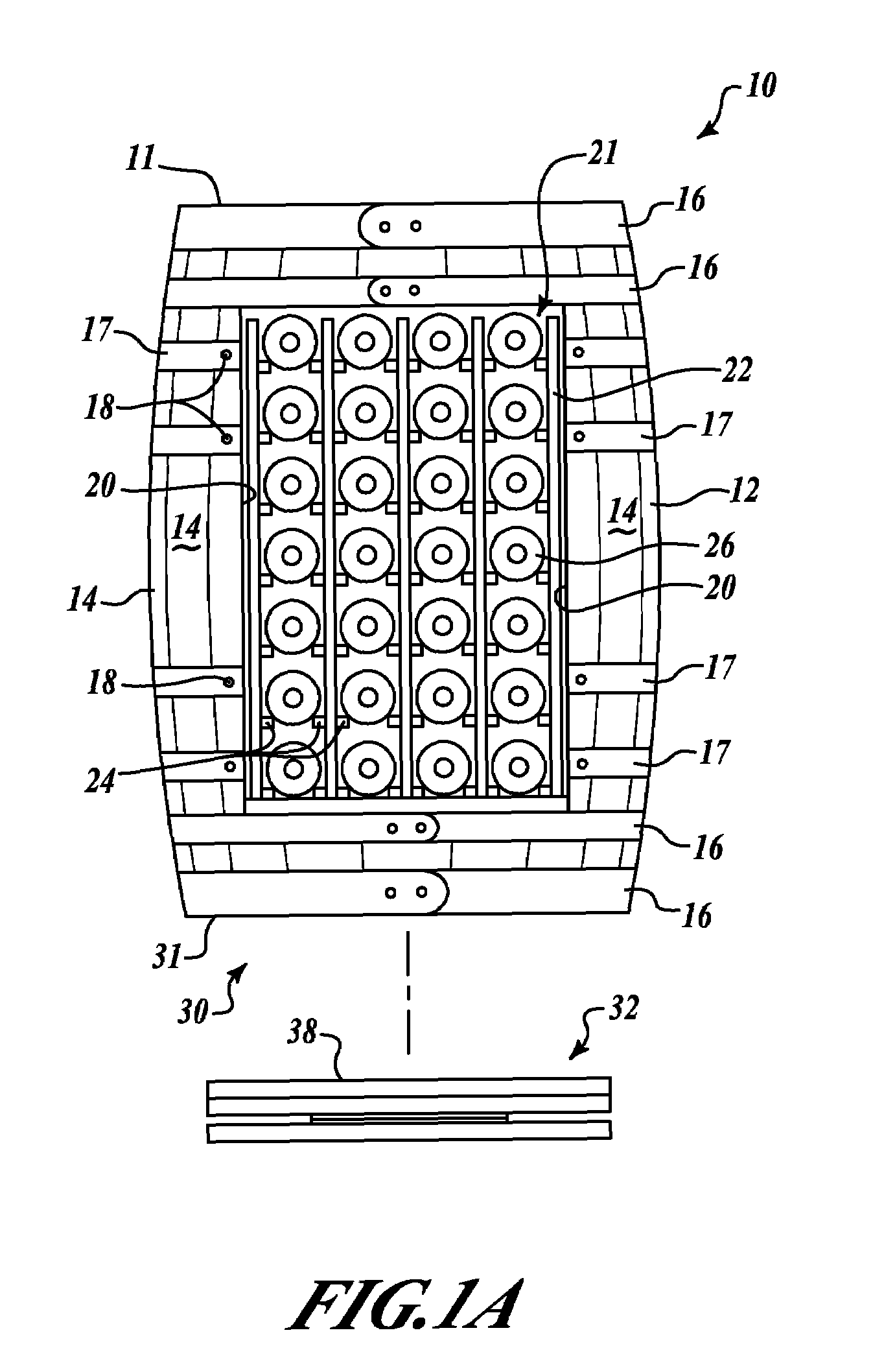

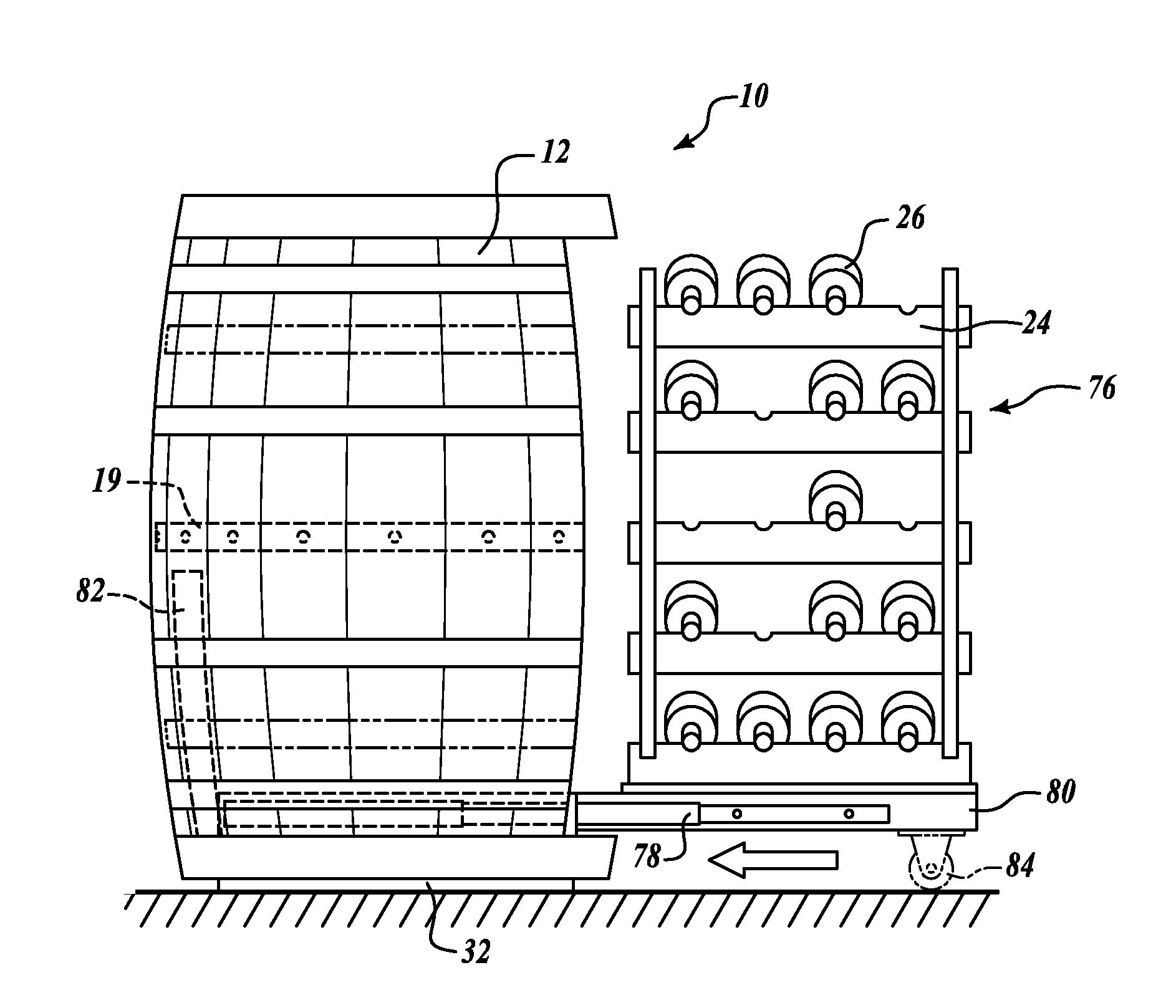

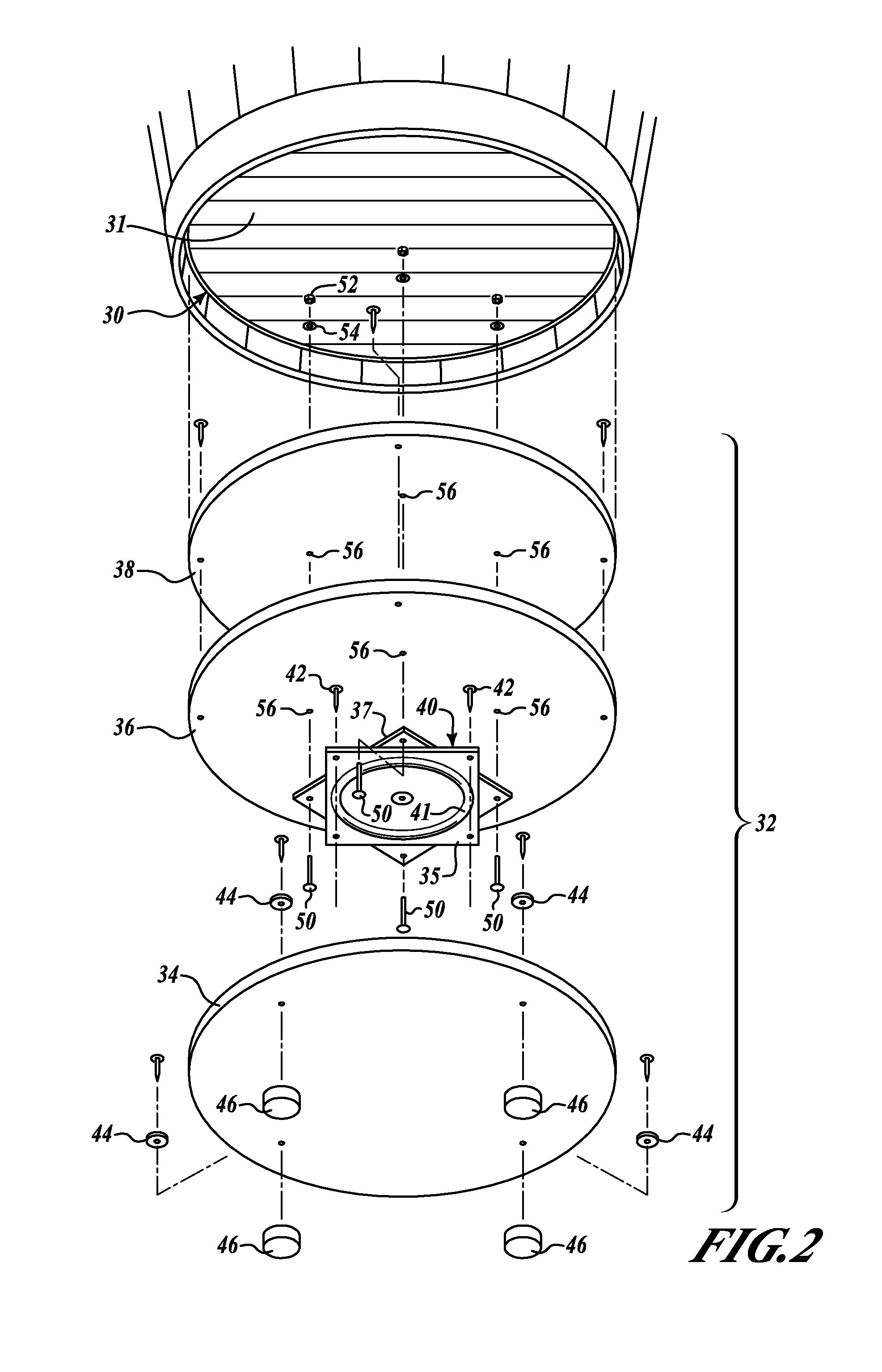

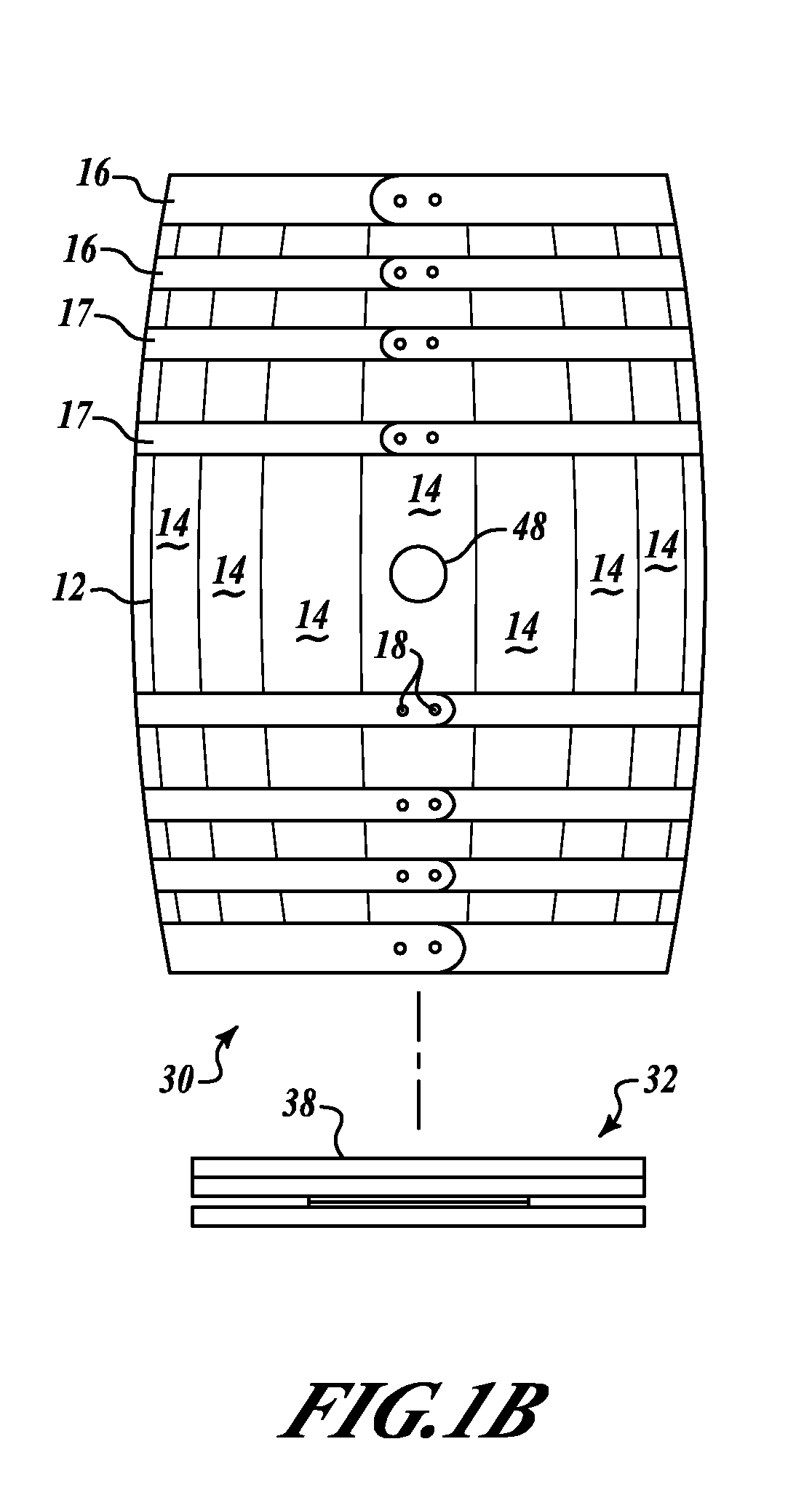

专利附图（8）
