用于户外提供遮阳棚和吧台桌功能，方便实用。
专利摘要

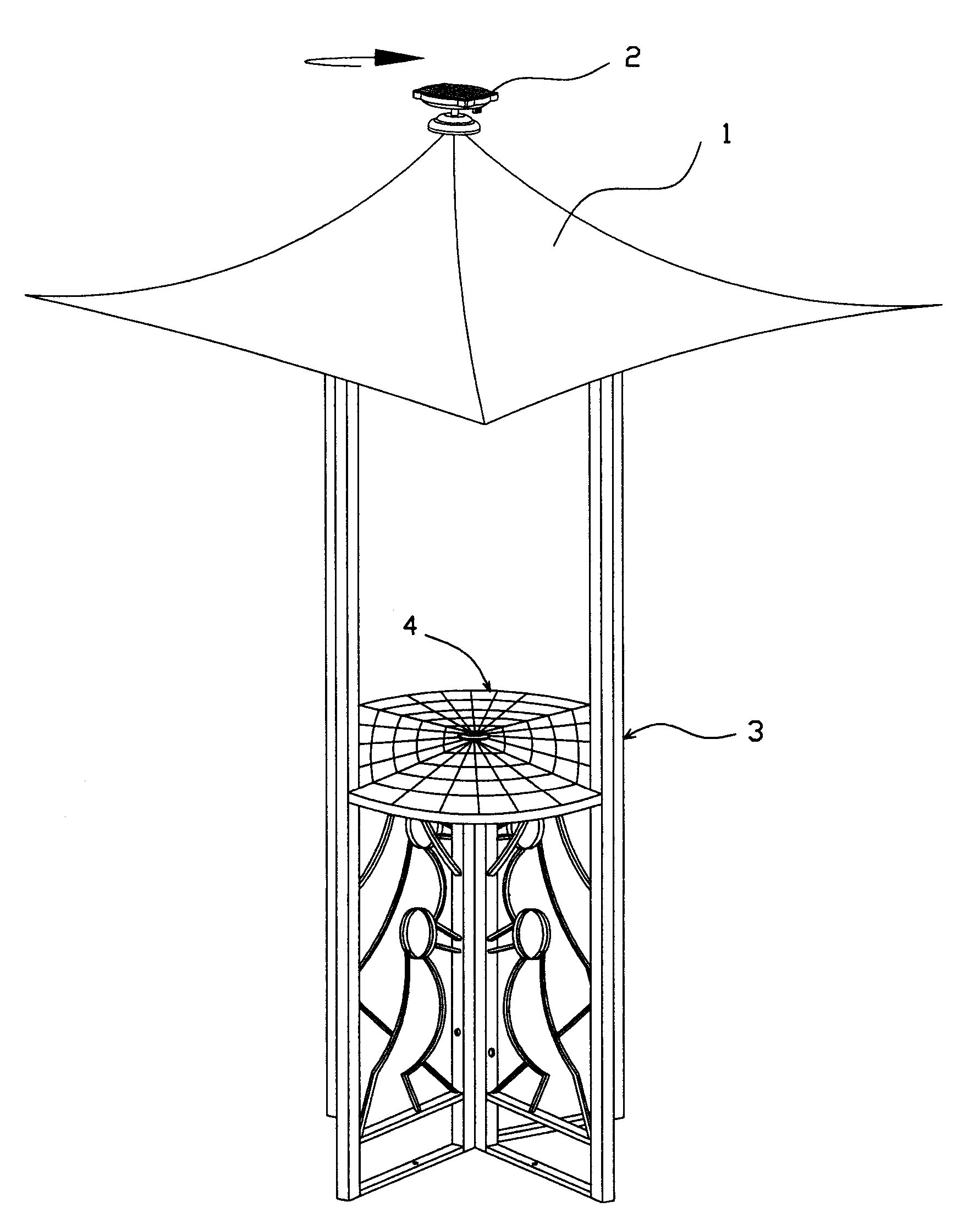

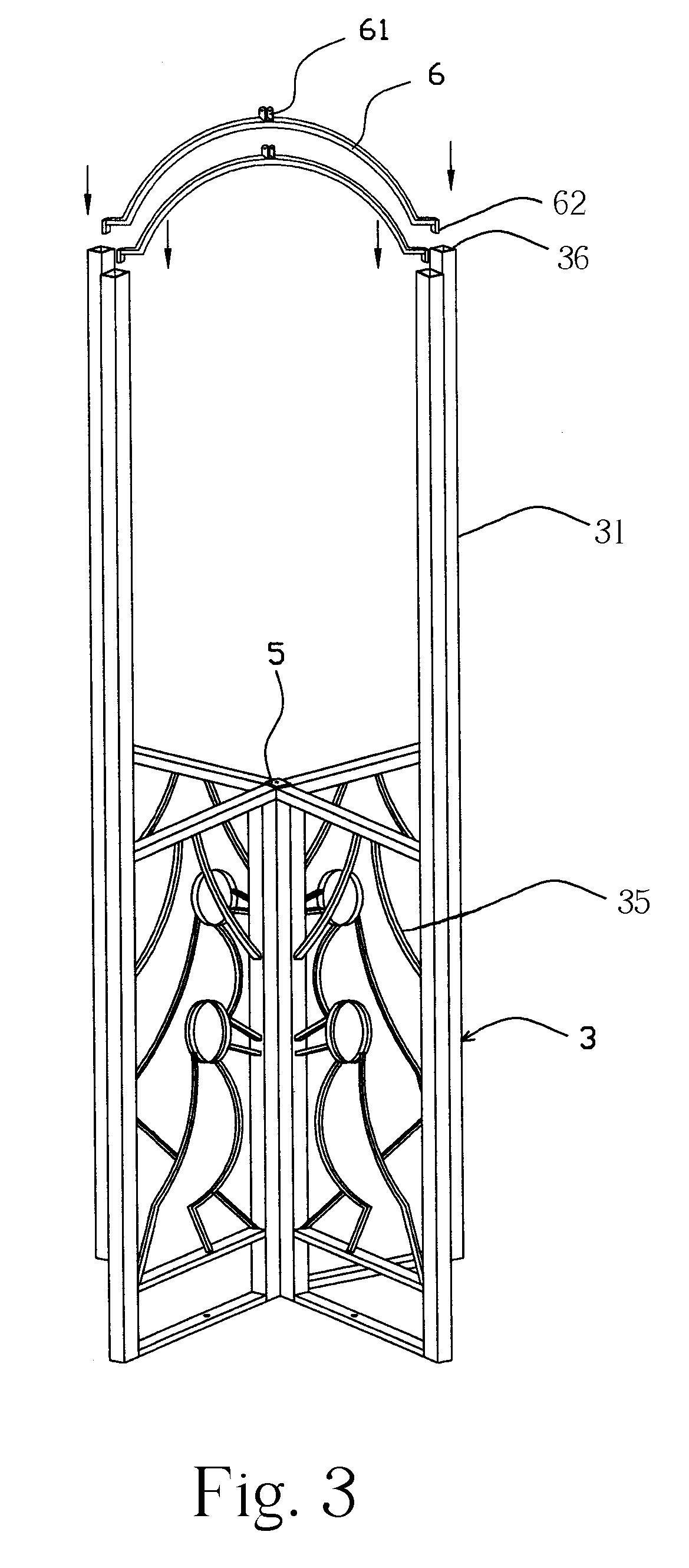

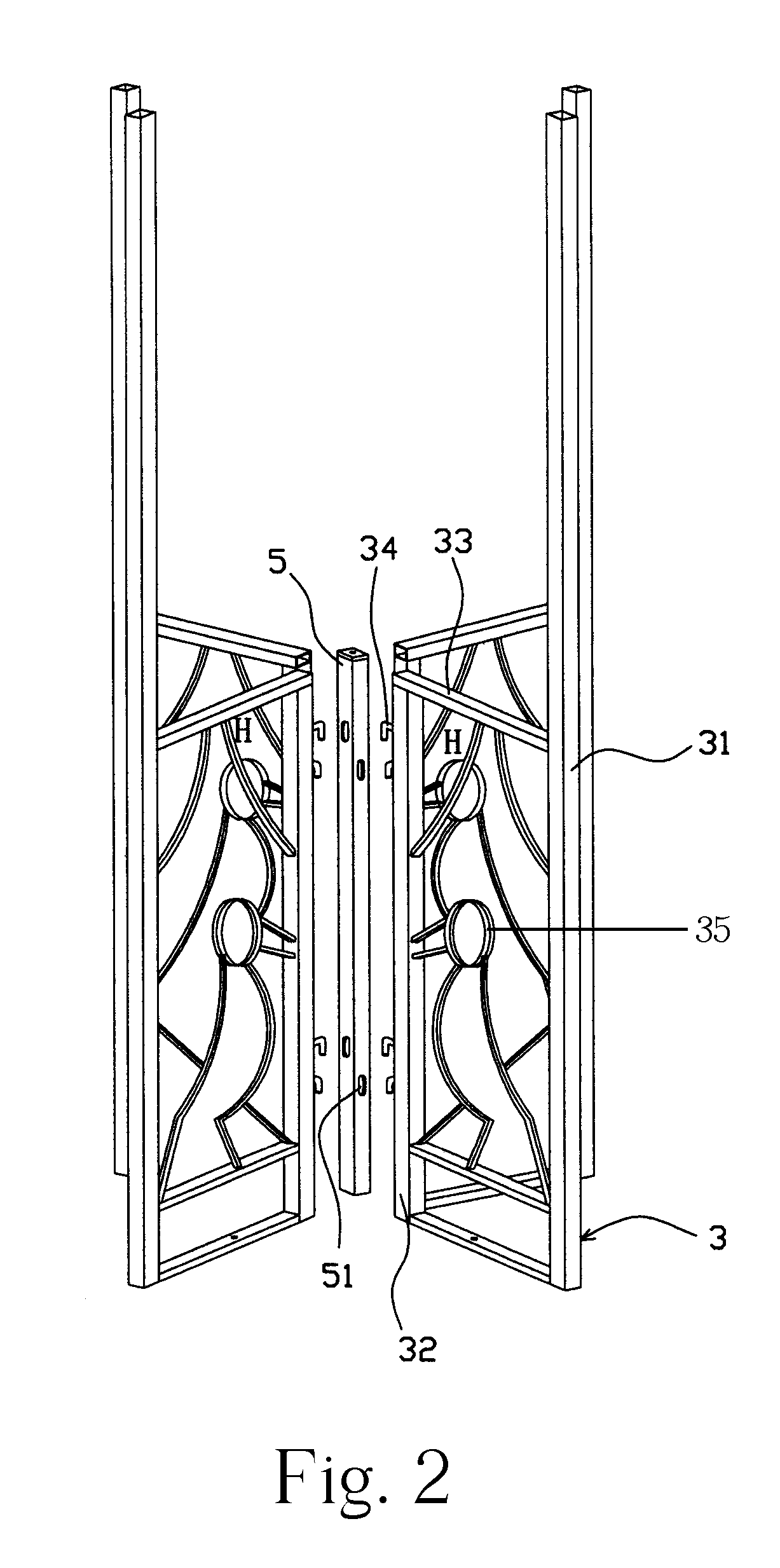

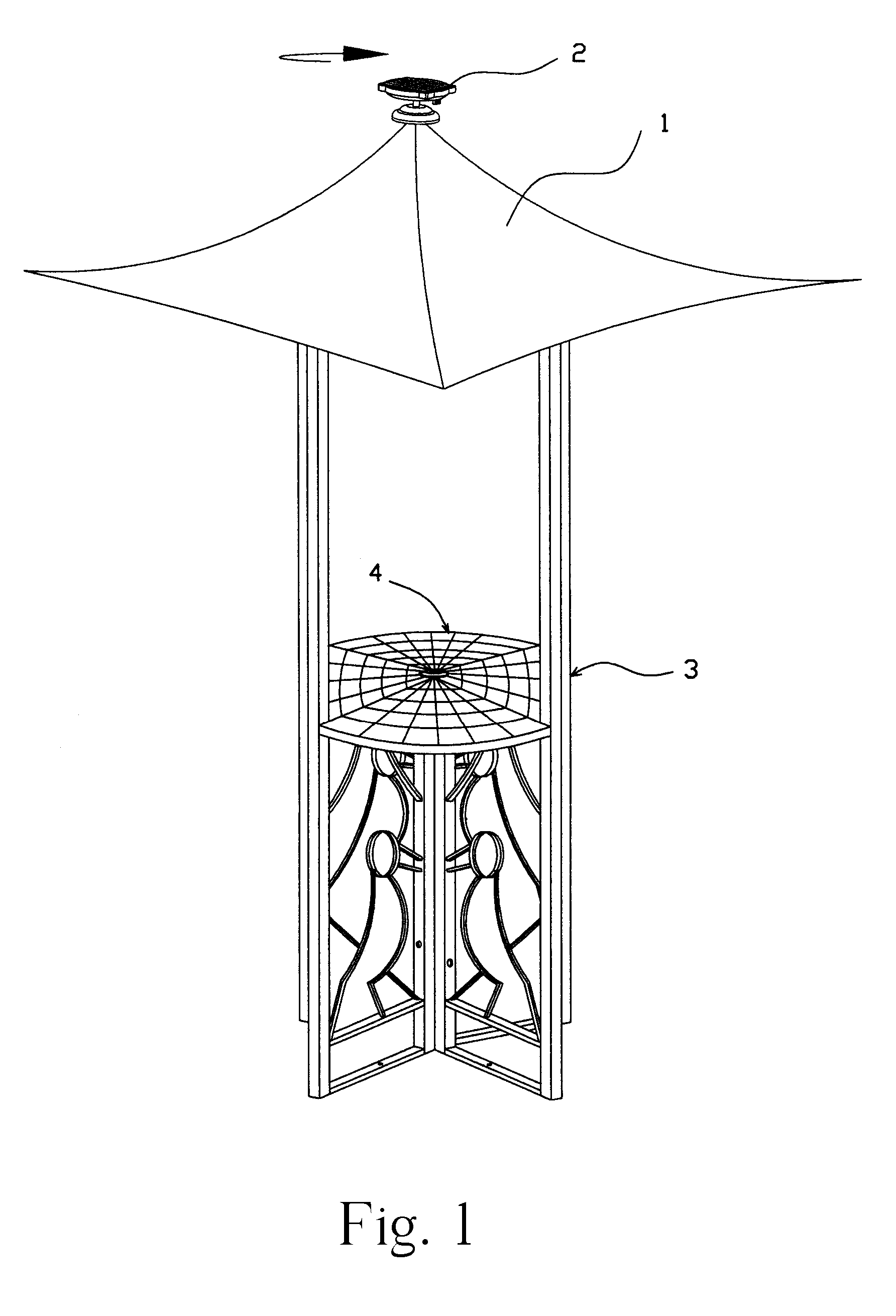

一种吧台桌棚，包括屋顶构件，其包括顶部中央连接组件，该组件进一步包括多向连接器，具有多个半径爪套筒，用于以一键方式接收插入其中的相应等数长骨；在中央顶部位置有垂直竖立的紧固杆，用于紧固防水布；站立框架构件包括至少三个直立面板，提供吧台桌支撑框架和围绕框架以支撑屋顶构件，每个直立面板包括两个不同高度的直立杆构件和两个直立杆构件之间的至少一对横杆；顶部连接组件具有顶部定位的横梁，其中间位置有U形叉支撑屋顶构件，横梁优选为弧形，位于屋顶构件和站立框架之间。因此，本发明的吧台桌棚不仅具有棚的功能，还具有吧台桌的功能，为户外使用提供更多便利。
Original abstractA bar table shelter includes a roof member comprising top central connection assembly which further includes a multi-direction connector with multiple radius claw sleeves for receiving corresponding equal-numbered long bones inserted therein in one-touch manner, at the central top place of which there is a vertically erecting fastener pole for fastening a tarpaulin cloth; a standing frame member comprising at least three upright panels, which provides a bar table support frame and a shelter surrounding frame to support the roof member, each upright panel includes two upright pole members with different heights and at least a pair of lateral bars between the two upright pole members; a top connection assembly having top positioned lateral beams at middle place of which there is a U-shaped fork supporting the roof member, the lateral beam preferably is a arc shaped one, which positioned between the roof member and the standing frame. Thereby the present invention of bar table shelter not only has the function of a shelter but also of a bar table, it provide more convenience for outdoor use.
专利附图（8）
