特别适合残疾人使用的餐桌洗碗机设备
Table-dishwasher apparatus particularly adapted for use by the handicapped
US-7398788-B2用于方便残疾人使用的集成洗碗机餐桌。
专利摘要
本发明提供一种包括一体式洗碗机单元的餐桌。在用餐表面中提供有通向洗碗机的进入盖，并适于在用户用餐时凹入用餐表面的部分内。从用餐表面下方延伸到洗碗机中的穿孔滑道用于放置和取回餐具以及在洗涤期间存储餐具。锅具洗涤器用于在单独的洗涤器中洗涤锅和其他大型器具。锅具洗涤器包括锅具洗涤器篮，其以这样的方式可滑动地安装在固定支撑上，使得可通过门从桌子的任一侧接近。开关装置防止锅具洗涤器在门关闭时被使用。控制面板以及用于调味品等的隔间以这样的方式安装，使得残疾人可接近。
Original abstractThe invention provides a dining table including integral dishwasher units. An access cover providing access to the dishwasher is provided in the dining surface and is adapted for being recessed within portions of the dining surface while the user is dining. A perforate chute extending from below the dining surface into the dishwasher is used for placing and retrieving dishes and for storing dishes during washing. A pot washer is used to wash pots and other large utensils in a separate washer. The pot washer includes a pot washer basket which is slidably mounted on a fixed support in such a way as to be accessible through doors from either side of the table. A switch arrangement prevents the potwasher from being used except when the doors are closed. The control panel as well as compartments for condiments and the like are mounted in such a way as to be accessible to the handicapped.

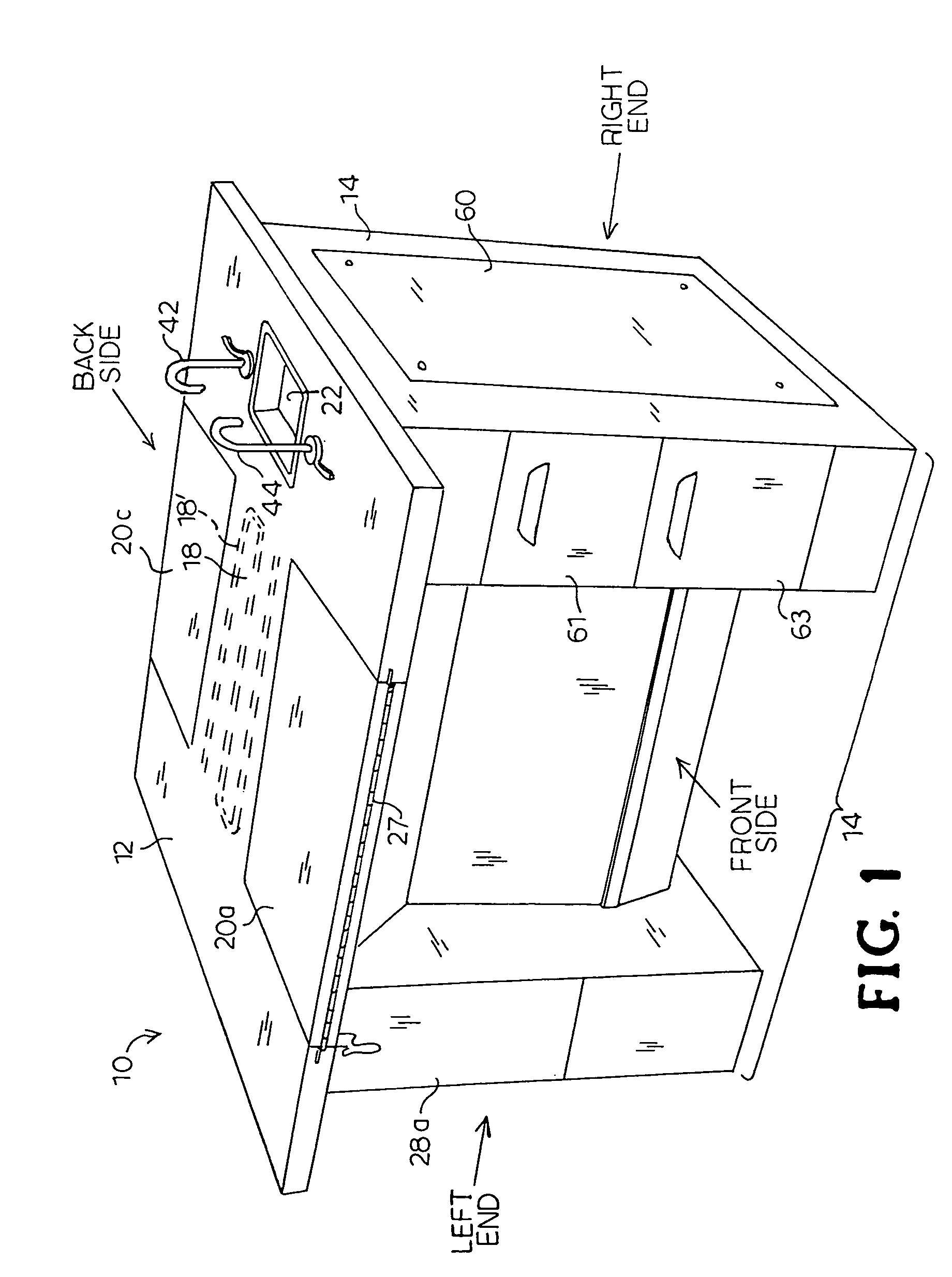

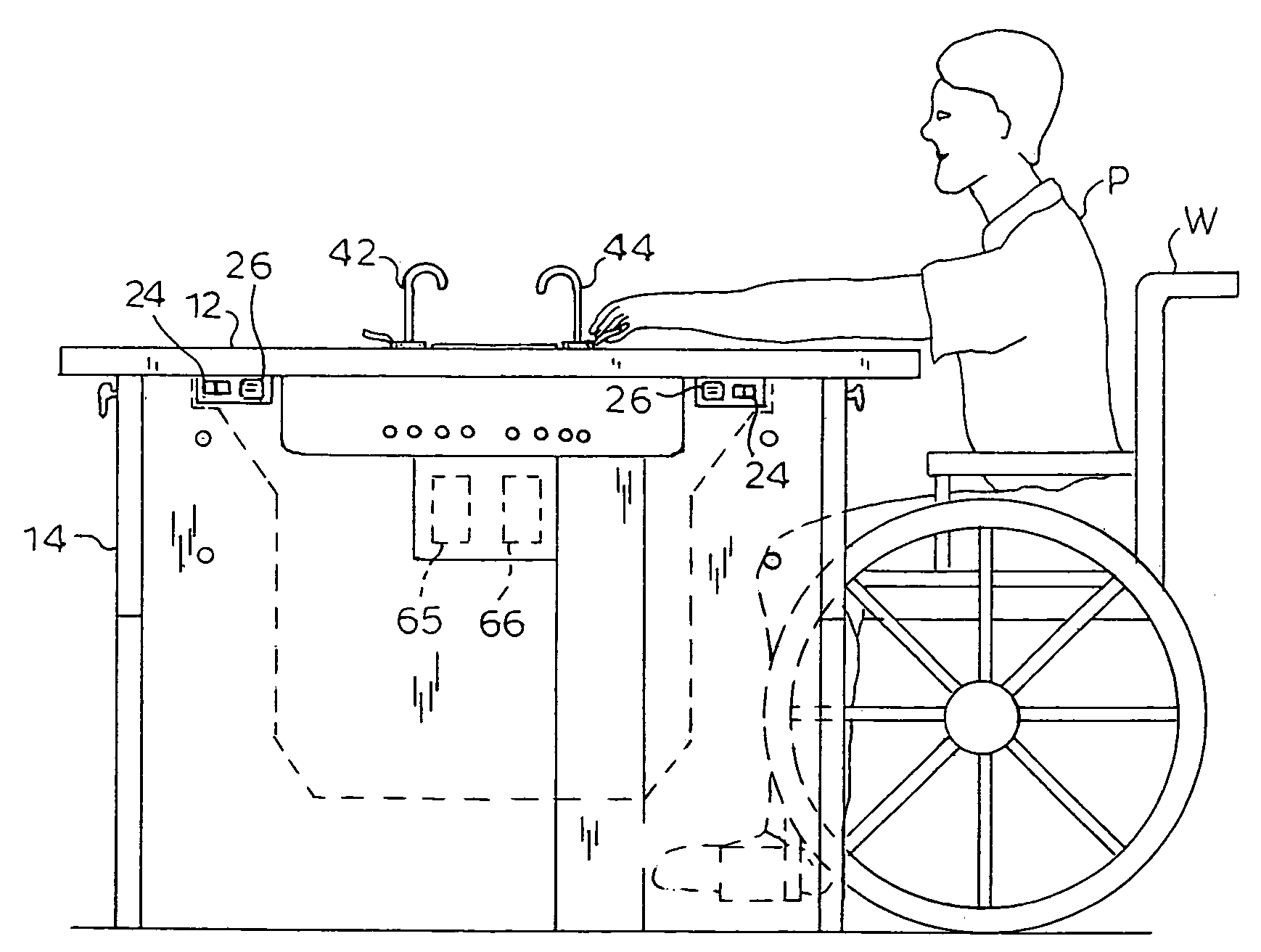

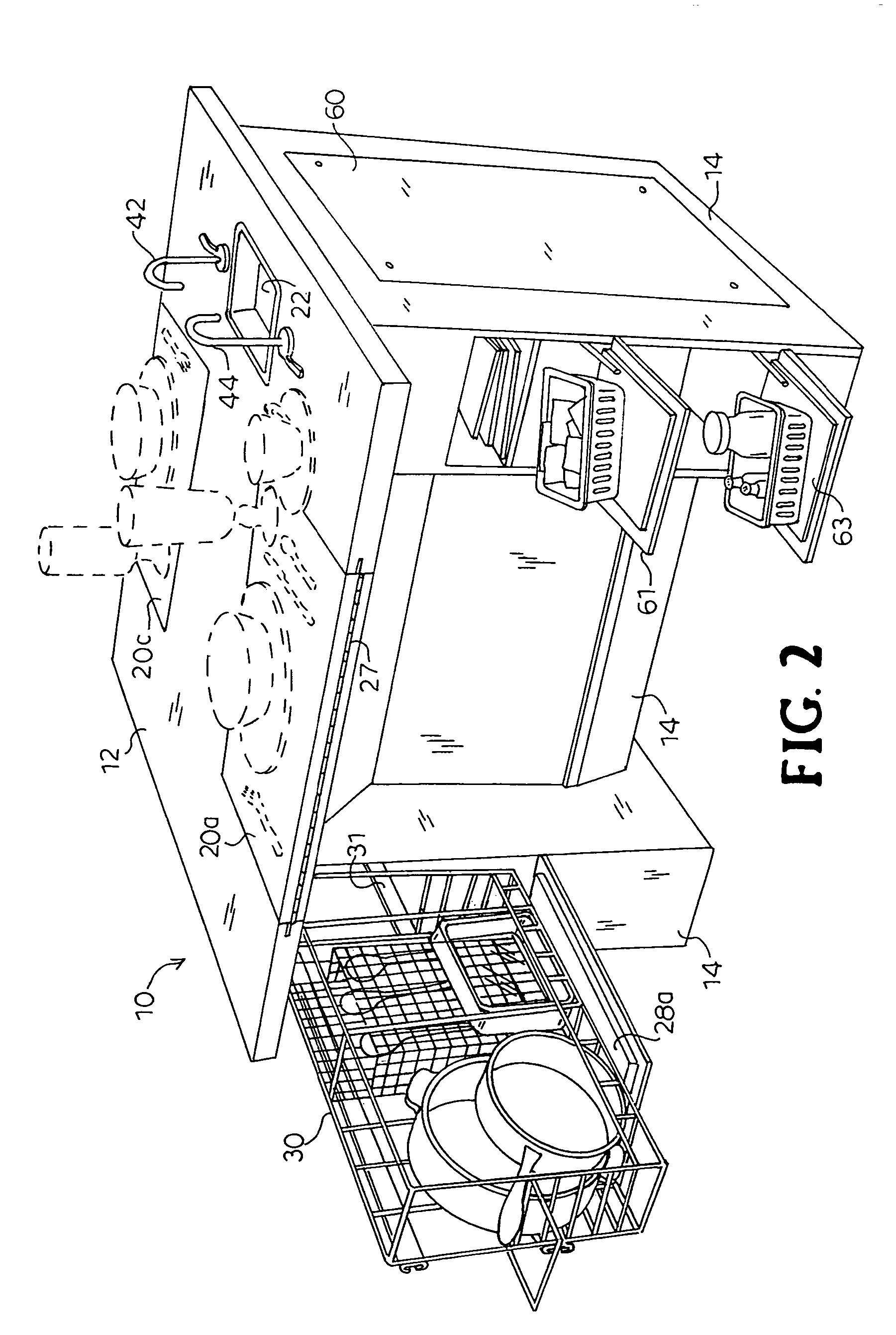

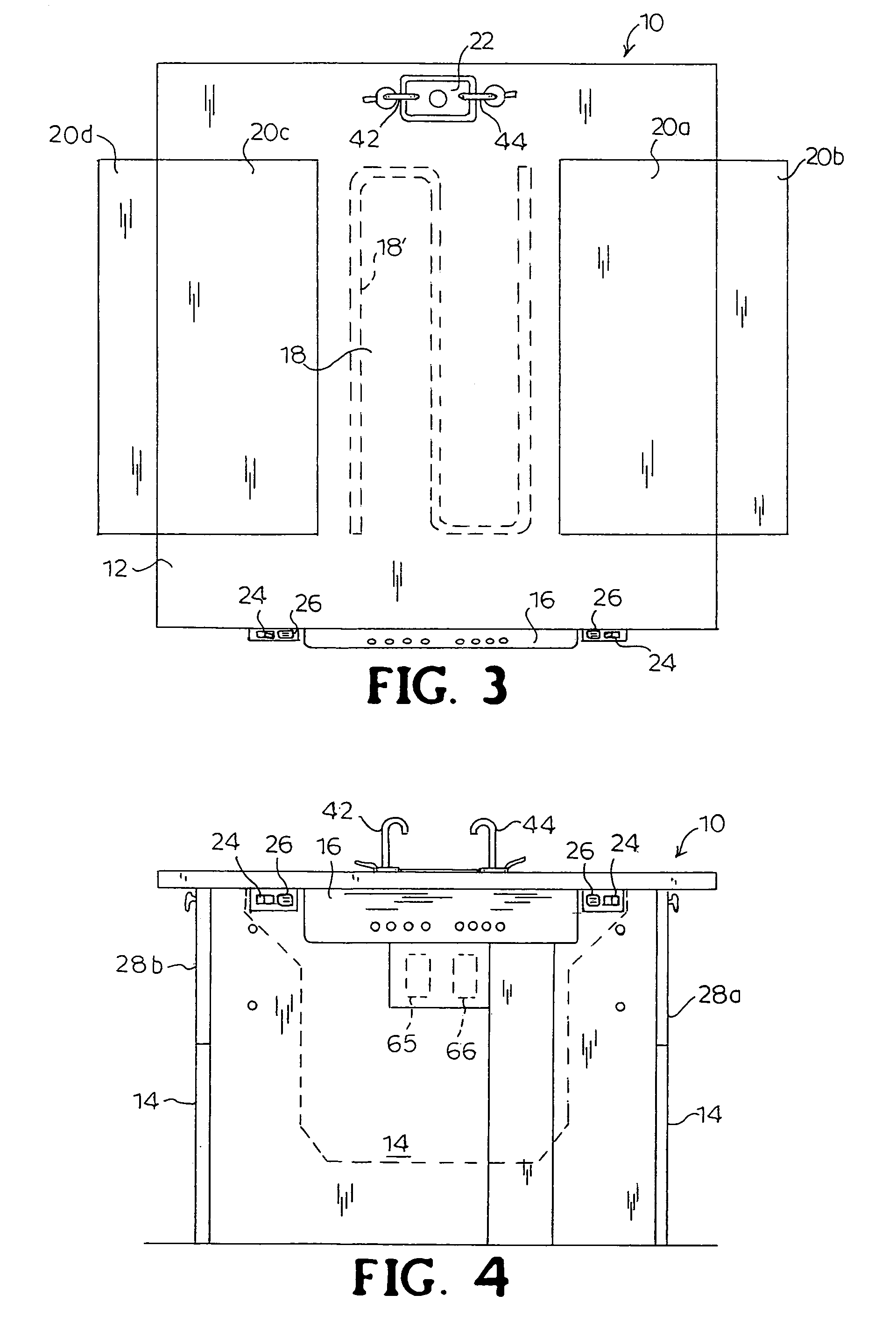

专利附图（8）
