用于抽屉和其他家具部件从家具主体滑出的滑动引导件

Sliding guide for drawers and other furniture parts slide out of the body of a piece of furniture

US-7396092-B2

用于家具抽屉等的平滑滑动。

专利摘要

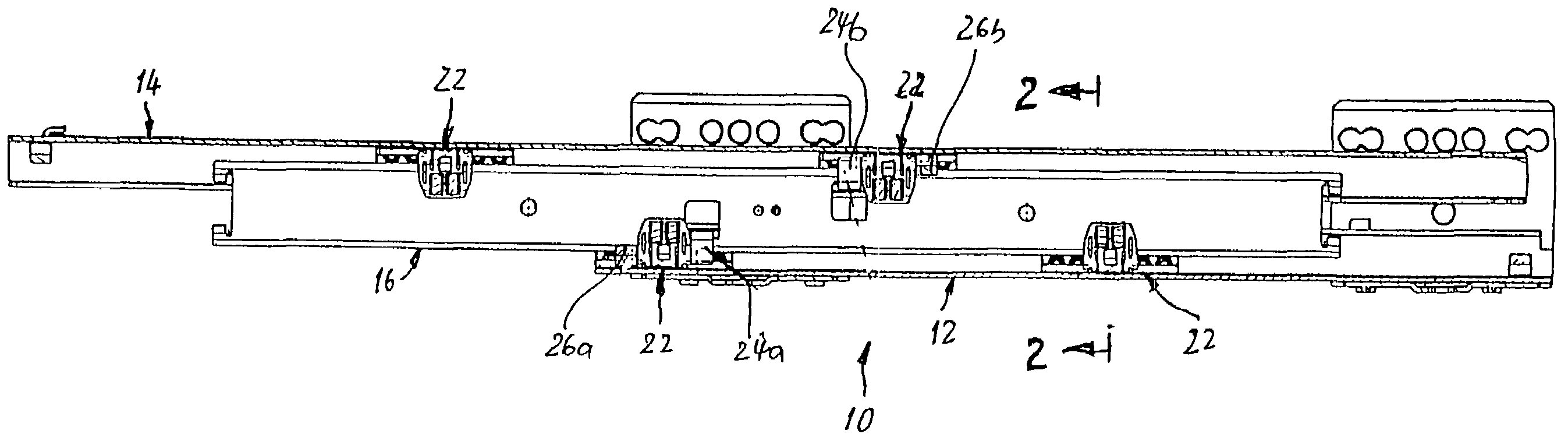

一种用于家具部件的拉出引导件（10），具有可固定到家具部件的运行轨道（14）和可固定到家具主体的主体轨道（12）以及设置在这两个轨道之间的中心轨道（16）。轨道被引导以通过负载传递减摩轴承相对于彼此纵向移位，该减摩轴承在每个情况下可旋转地保持在保持架（22）中。减摩轴承以本身已知的方式构造为圆柱形滚子（30; 34），其保持在相关联的保持架（22）中，以便在每种情况下围绕水平或垂直方向横向于拉出方向可旋转，并且可在构造在分别相关联的轨道上的细长平面轨道上滚动。至少一些滚子（30）安装成围绕水平轴线可旋转，并且设置在分别相关联的保持架（22）中，以便相对于安装在同一保持架（22）中以便围绕水平轴线可旋转的其他滚子（30），在其纵向中心轴线的方向上彼此横向偏移。

Original abstractPull-out guide ( 10 ) for furniture parts with a running rail ( 14 ) fixable to a furniture part and a carcass rail ( 12 ) fixable on the furniture carcass as well as and a central rail ( 16 ) which is provided between these two rails. The rails are guided so as to be longitudinally displaceable relative to one another by load-transmitting anti-friction bearings which are in each case retained rotatably in cages ( 22 ). The anti-friction bearings are constructed in a manner known per se as cylindrical rollers ( 30; 34 ) which are retained in the associated cage ( 22 ) so as to be rotatable transversely with respect to the pull-out direction about a horizontal or vertical as in each case, and which can roll on elongate planar tracks constructed on the respectively associated rails. At least some of the rollers ( 30 ) are mounted so as to be rotatable about the horizontal axis and are disposed in the respectively associated cage ( 22 ) so as to be offset with respect to one another laterally in the direction of their longitudinal central axes relative to other rollers ( 30 ) which are mounted in the same cage ( 22 ) so as to be rotatable about the horizontal axis.

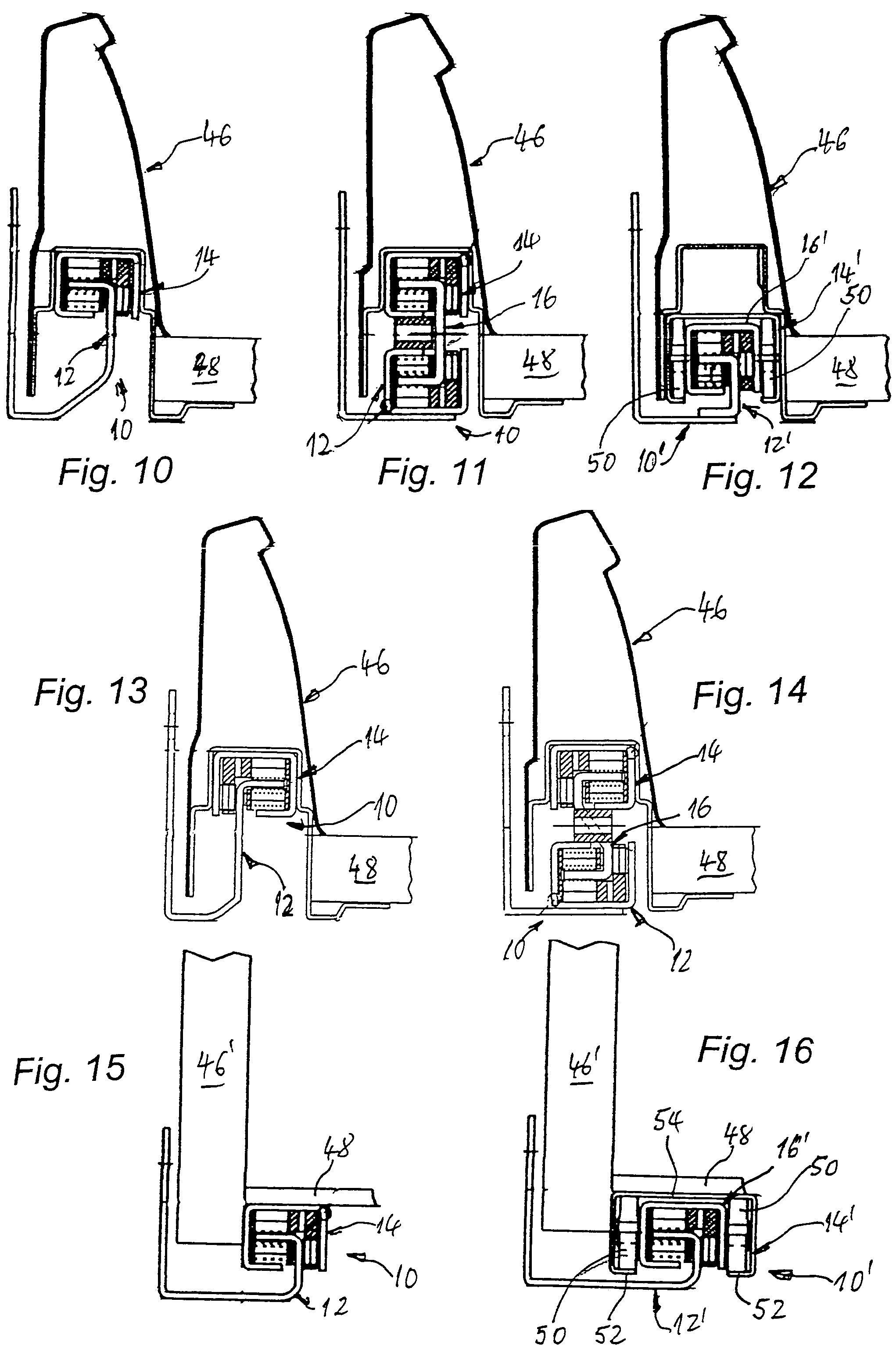

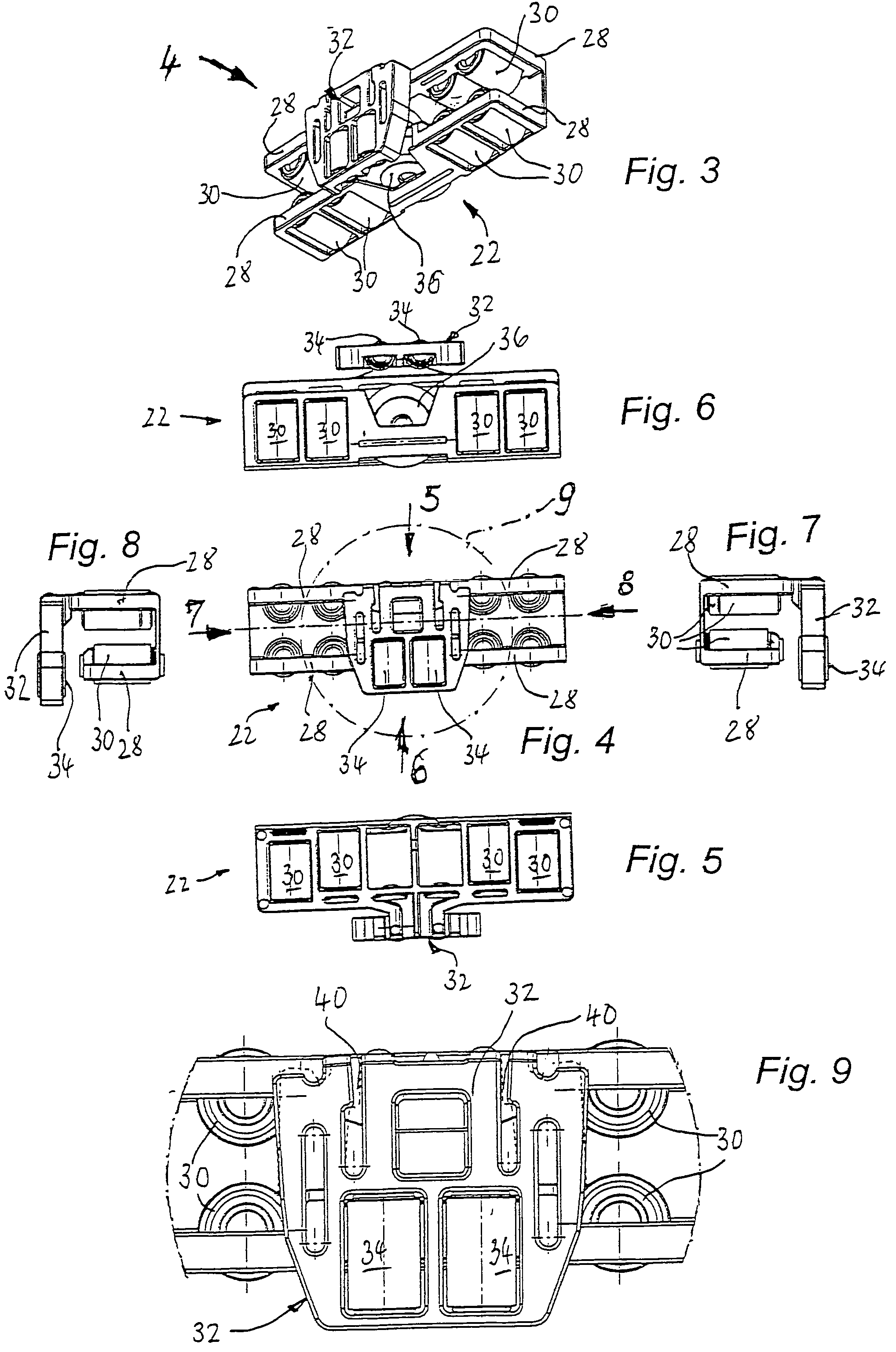

专利附图（8）
