马桶卫生座圈盖组件

Sanitary seat cover assembly for toilet bowl

US-7389550-B2

用于马桶座圈，提供卫生覆盖。

专利摘要

一种卫生座圈盖组件，用于在每次使用时用干净的卫生座圈盖覆盖座圈表面，该卫生座圈盖组件包括卫生座圈盖，其具有以预定面积范围覆盖座圈上表面的主体部分和从主体部分对应于座圈铰接的部分延伸突出的颈部；夹具，用于在座圈铰接的部分选择性地固定堆叠并重叠在彼此上的两个以上卫生座圈盖的颈部；以及支撑框架，用于保持卫生座圈盖的形状。

Original abstractA sanitary seat cover assembly to cover the surface of a seat with a clean sanitary seat cover at every use, the sanitary seat cover assembly including sanitary seat covers having a body part that covers the upper surface of the seat with a predetermined area range and a neck part extended and protruded correspondingly to a portion where the seat is hinged from the body part; a clamp for selectively fixing the neck part of the more than two sanitary seat covers piled and overlapped on one another at a portion where the seat is hinged; and a supporting frame for maintaining the shape of the sanitary seat covers.

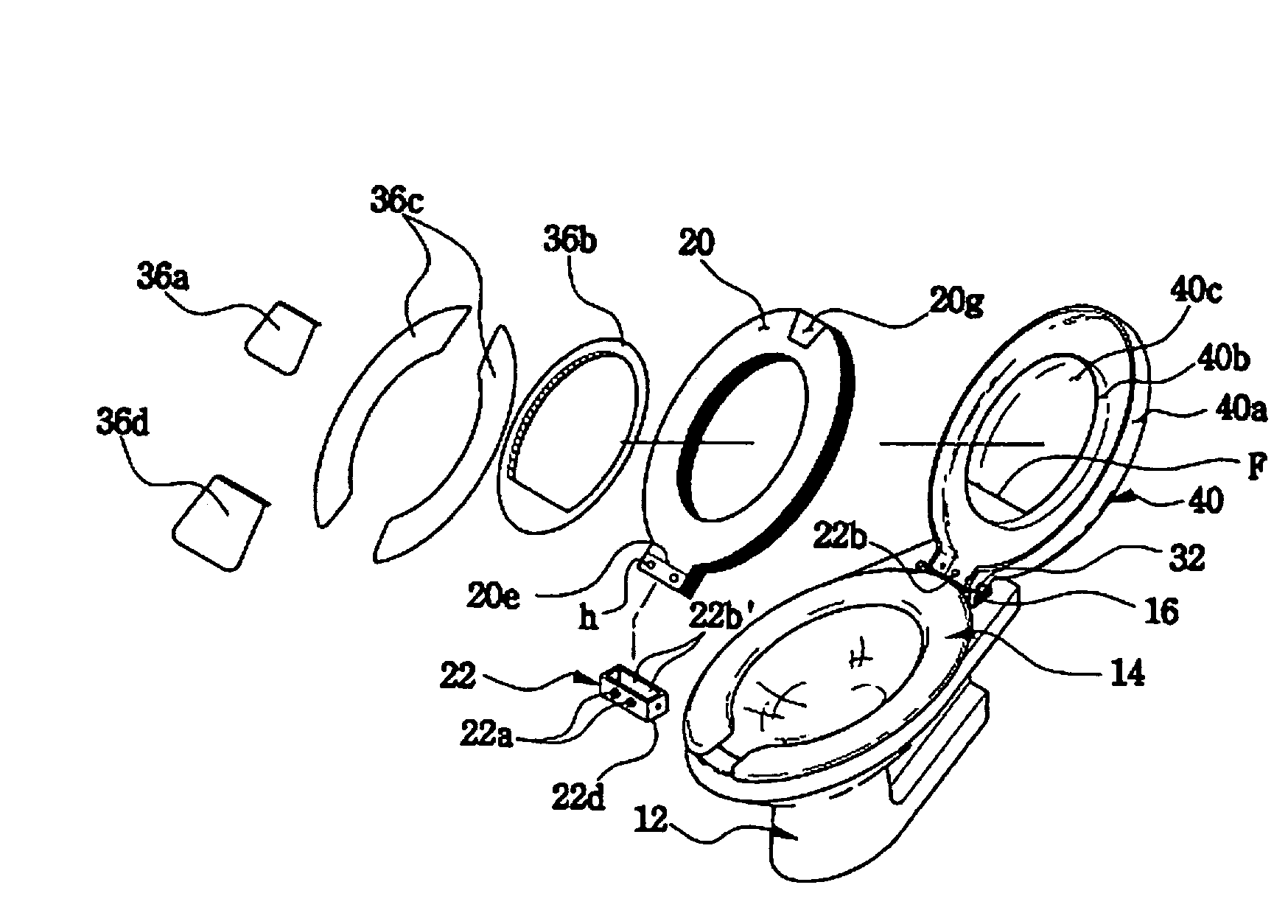

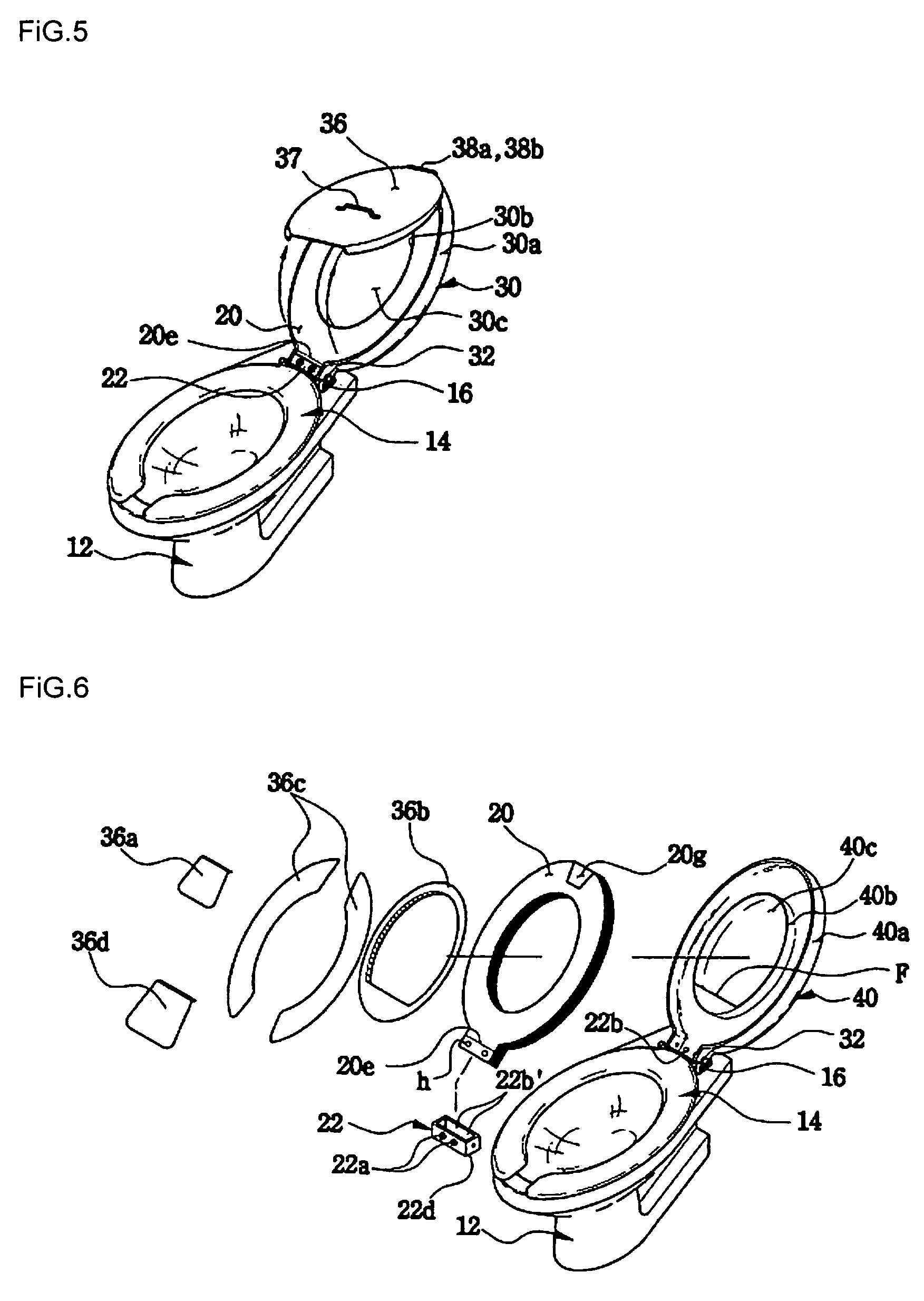

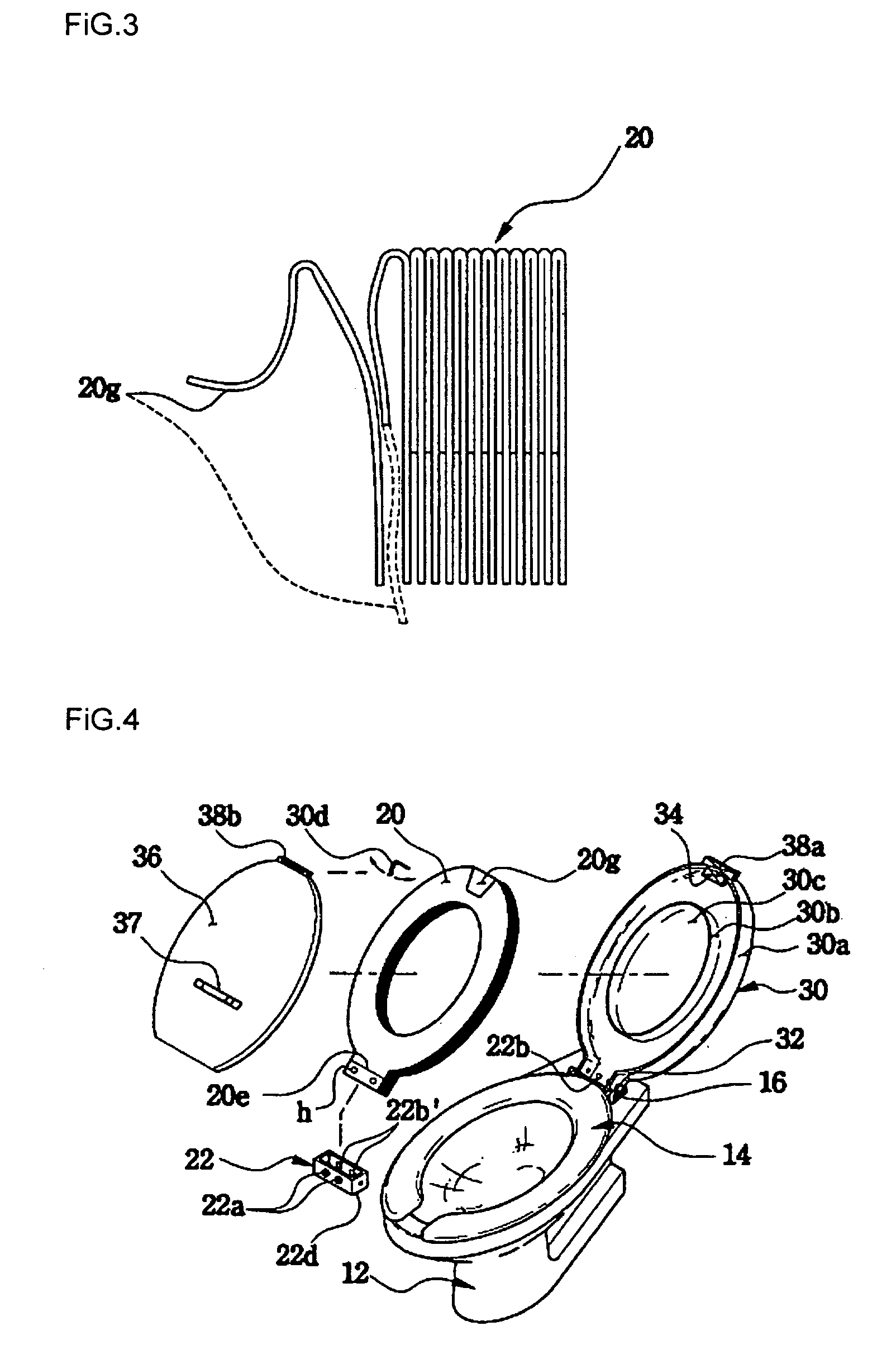

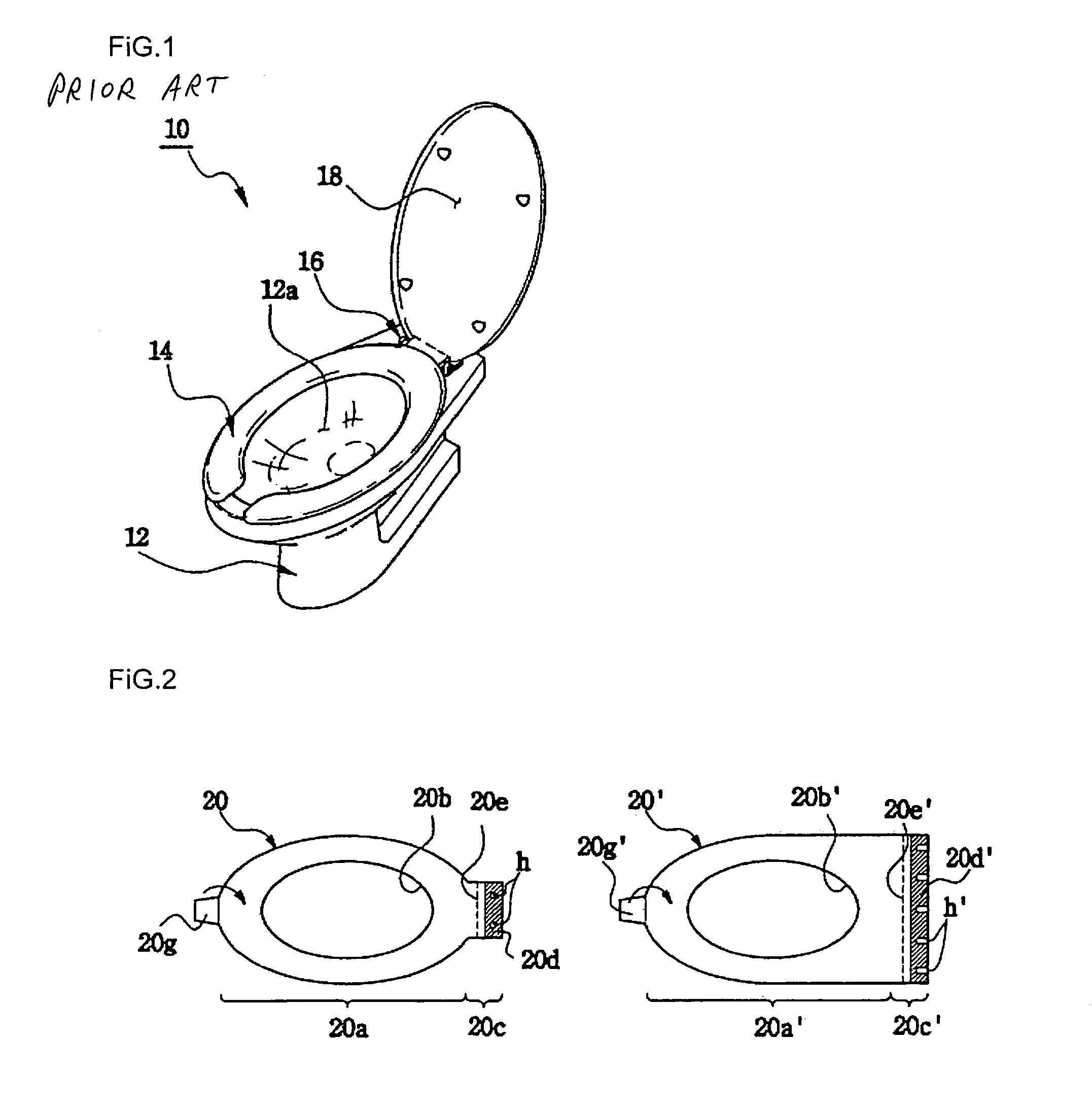

专利附图（8）
