快速释放马桶座圈铰链组件
Quick release toilet seat hinge assembly
US-7389549-B2便于快速拆卸马桶座圈和盖以进行清洁的铰链组件。
专利摘要

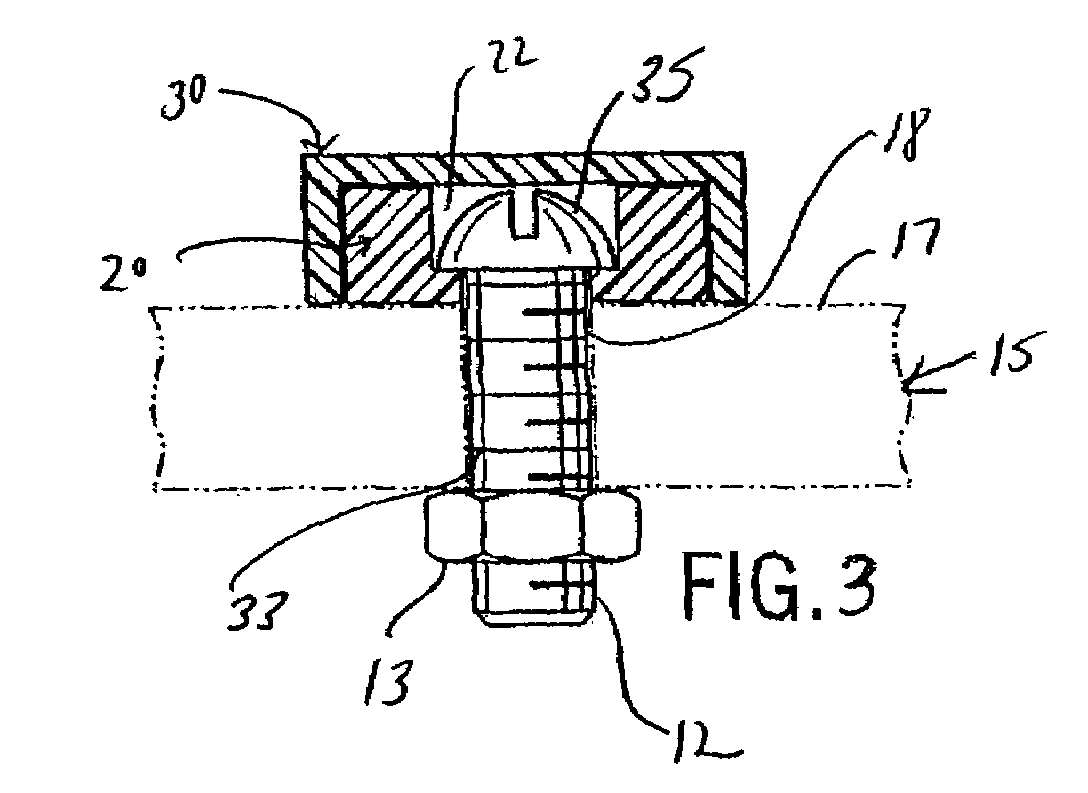

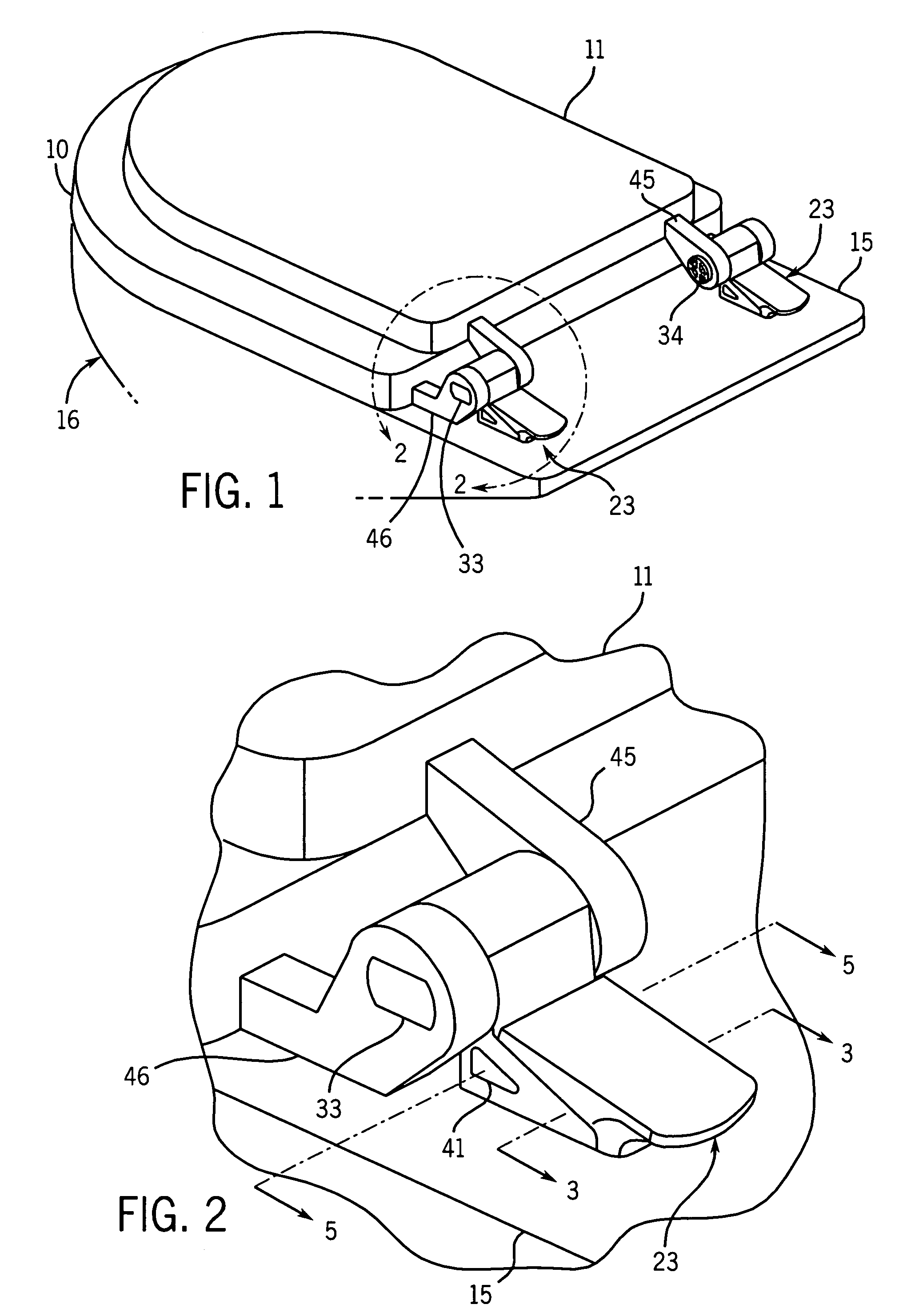

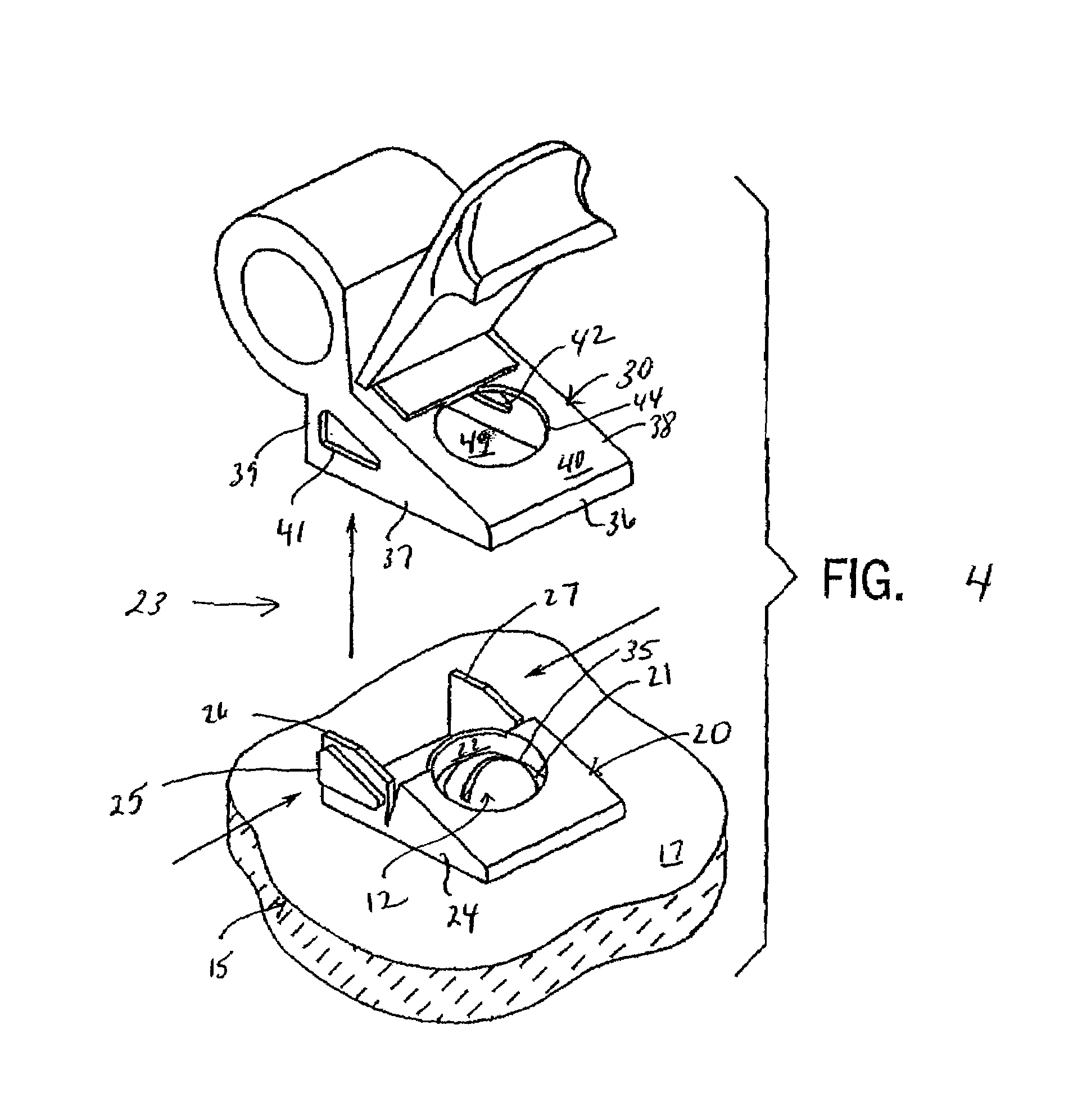

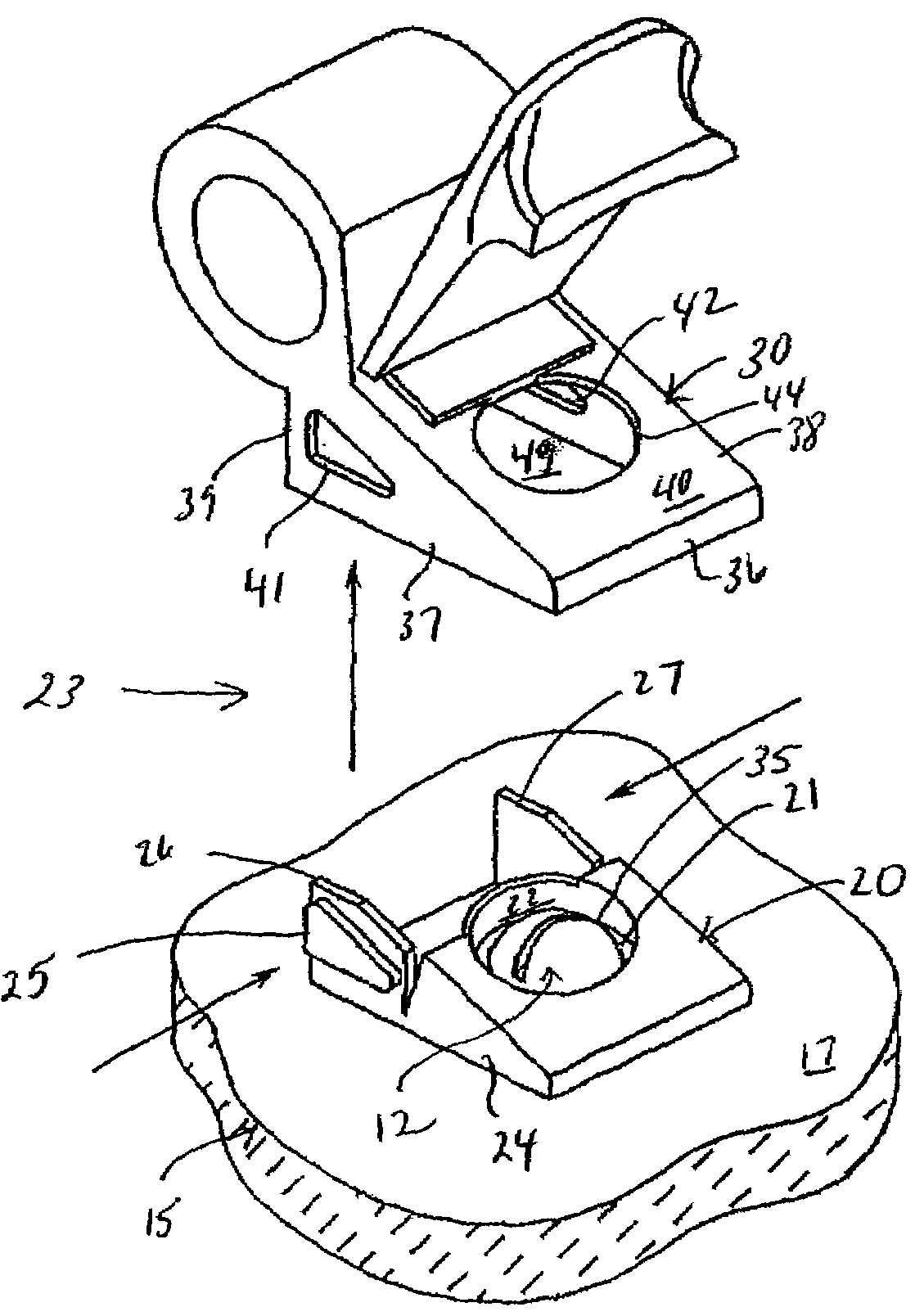

公开了一种用于将马桶座圈和盖连接到马桶便盆后方延伸部的铰链组件。两个底座构件以间隔方式永久固定到延伸部。两个铰链支撑构件设置成通过底座构件上的柔性凸片与铰链支撑件上的侧壁孔互连而卡扣连接到底座构件。铰链支撑件、座圈和盖可以通过挤压铰链支撑构件的侧面而从延伸部移除，仅留下底座附接到延伸部。这便于清洁。
Original abstractDisclosed is a hinge assembly for connecting a toilet seat and cover to a rearward extension behind a toilet bowl. Two base members are permanently affixed to the extension in spaced fashion. Two hinge support members are provided to snap connect to the base members by virtue of flexible tabs on the base members interconnecting with side wall holes on the hinge supports. The hinge supports, seat and cover can be removed from the extension by squeezing the sides of the hinge support members, leaving only the bases attached to the extension. This facilitates cleaning.
专利附图（8）
