来源记录显示 Expired
鞍袋式提桶架及其制造方法
Saddlebag bucket carrier and method of making
US-7387224-B1用于携带提桶，由橡胶一体成型。
专利摘要

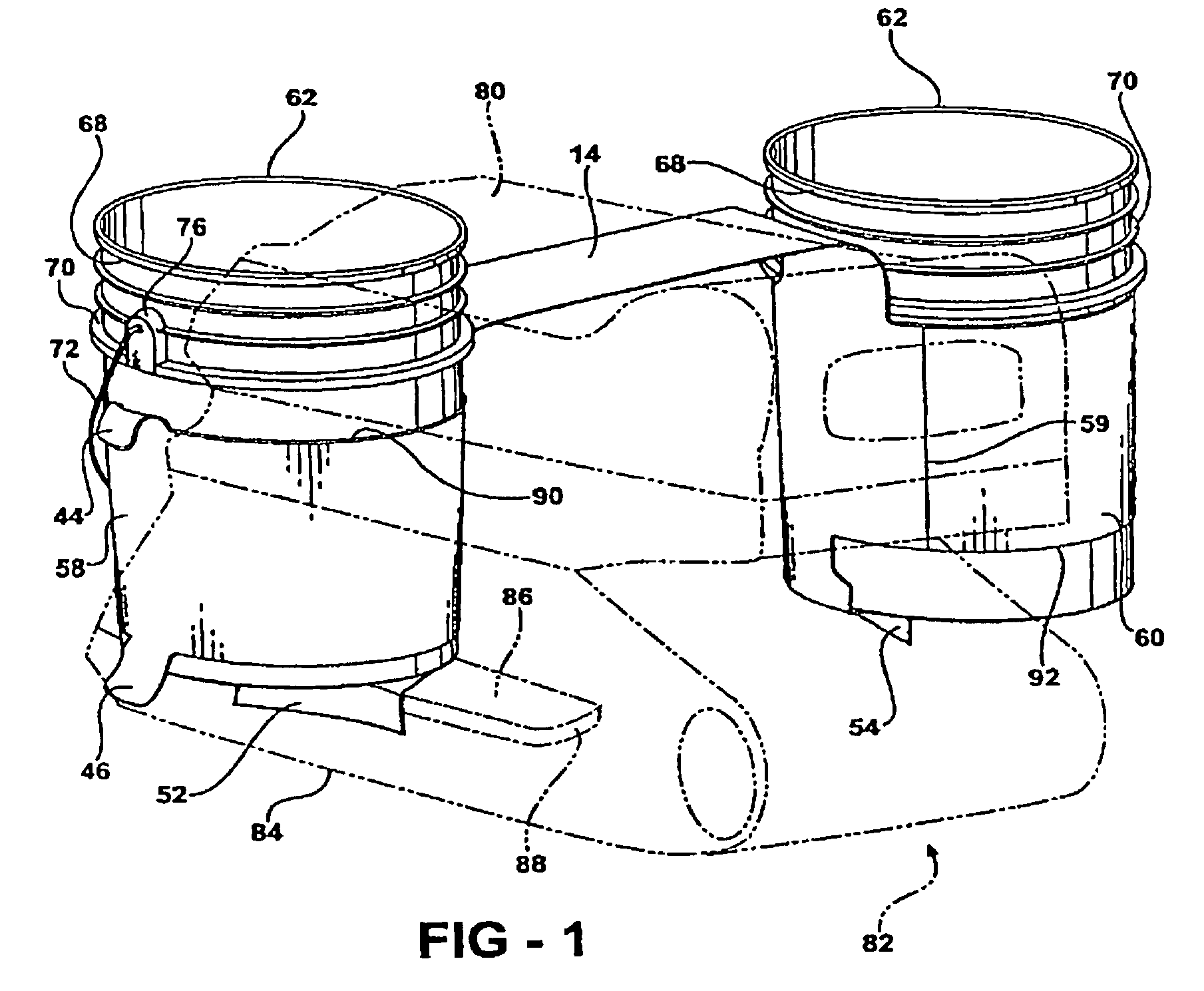

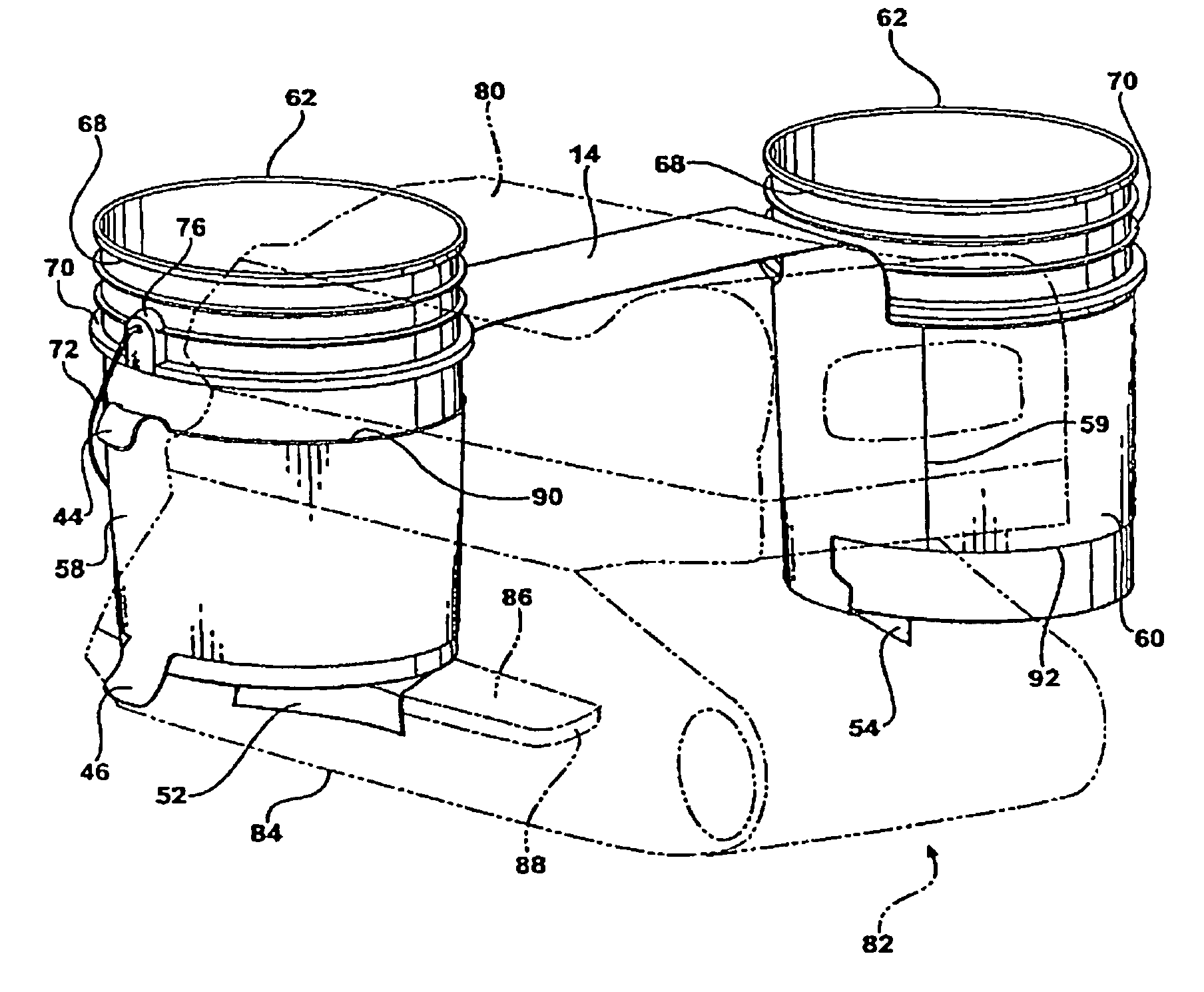

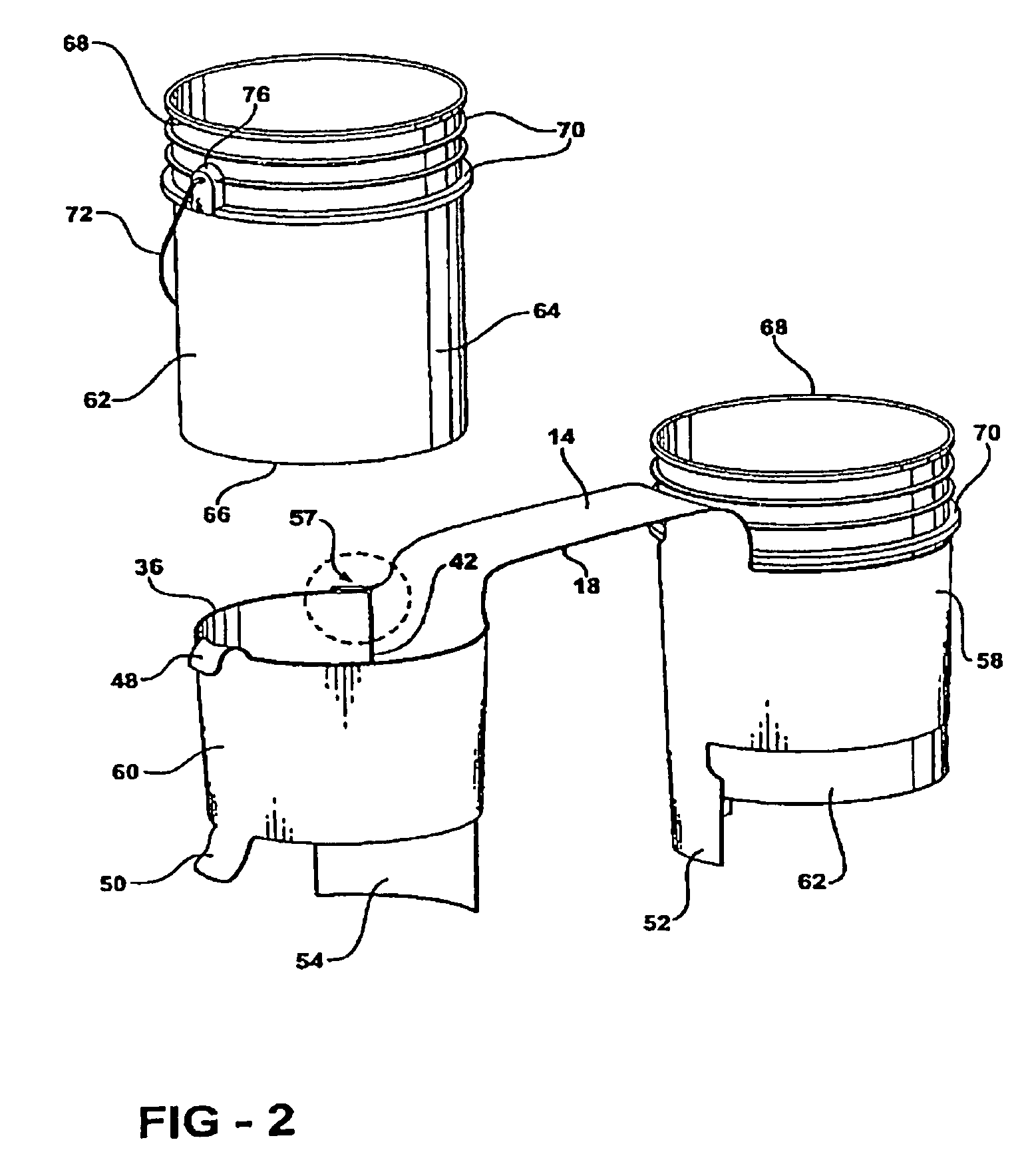

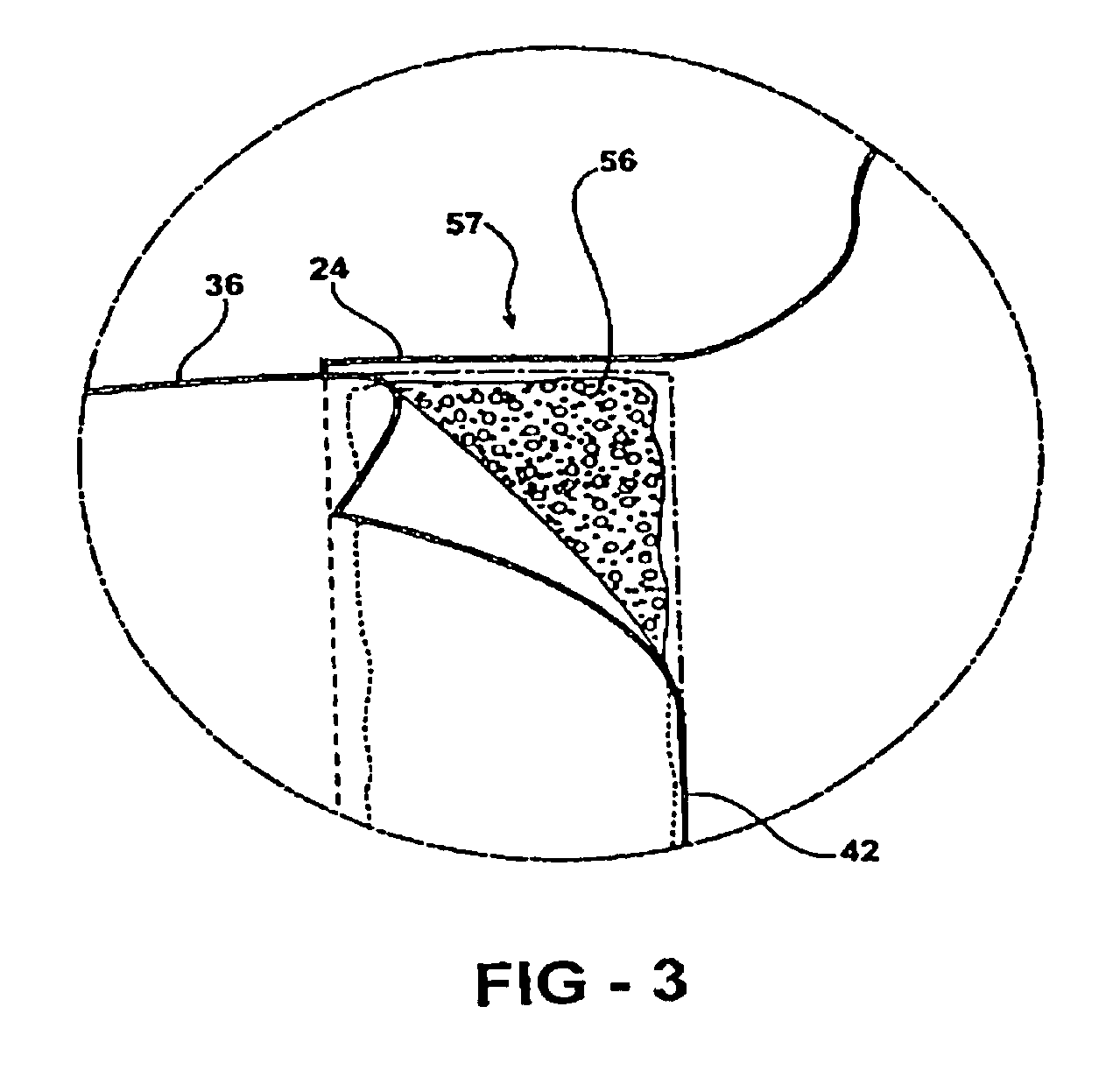

鞍袋式提桶架由从橡胶材料片材切割的一件式坯料构造。坯料具有中央条带，中央条带具有左端和右端。左前带部分和左后带部分与条带的左端成一体，并且其自由端通过粘合剂连接在一起，以形成具有左提桶接收通道的左提桶带。右前带部分和右后带部分与条带的右端成一体，并且其自由端通过粘合剂连接在一起，以形成具有右提桶接收通道的右提桶带。两个提桶接收通道均为锥形，并接收具有截锥形壁的提桶。提桶带的垂直高度超过待接收提桶高度的三分之一。
Original abstractThe saddle bag bucket carrier is constructed from a one piece blank cut from a sheet of rubber material. The blank has a central strip with a left end and a right end. A left front band portion and a left rear band portion are integral with the strip left end and have their free ends connected together by an adhesive to form a left bucket band with a left bucket receiving passage. A right front band portion and a right rear band portion are integral with the strip right end and have their free ends connected together by an adhesive to form a right bucket band with a right bucket receiving passage. Both bucket receiving passages are conical and receive buckets with frustoconical walls. The bucket bands have a vertical height that exceeds one-third the height of a bucket to be received.
专利附图（8）
来源状态与事件
暂无可展示的状态事件记录。
