用于可调节整理系统的顶轨组件
Top rail assembly for adjustable organizer system
US-7387212-B2用于墙面整理系统的安装和间隔定位。
专利摘要
一种可调节的墙壁安装设备及其安装方法，包括多个垂直立柱和一个顶轨组件。该顶轨组件被配置为安装到表面以实现选定的顶轨宽度。提供多个具有预定长度的盖。每个盖适于安装到所安装的支撑轨段的暴露部分并隐藏该暴露部分。每个盖可定位在多个垂直立柱中相邻立柱之间并用作间隔件，以设定从支撑轨段悬挂的相邻垂直立柱之间的预定距离。该方法包括安装顶轨、悬挂立柱，然后使用盖来正确间隔从顶轨悬挂的附加立柱。
Original abstractAn adjustable wall mounting apparatus and method of installing the same includes a plurality of vertical uprights and a top rail assembly. The top rail assembly is configured to be mounted to a surface to achieve a selected top rail width. A plurality of covers having a predetermined length are provided. Each cover is adapted to mount to and hide exposed portions of the installed support rail segments. Each cover can be positioned between and act as a spacer to set a predefined distance between adjacent ones of the plurality of vertical uprights hung from the support rail segments. The method includes installing the top rail, hanging an upright, and then using covers to correctly space additional uprights hung from the top rail.

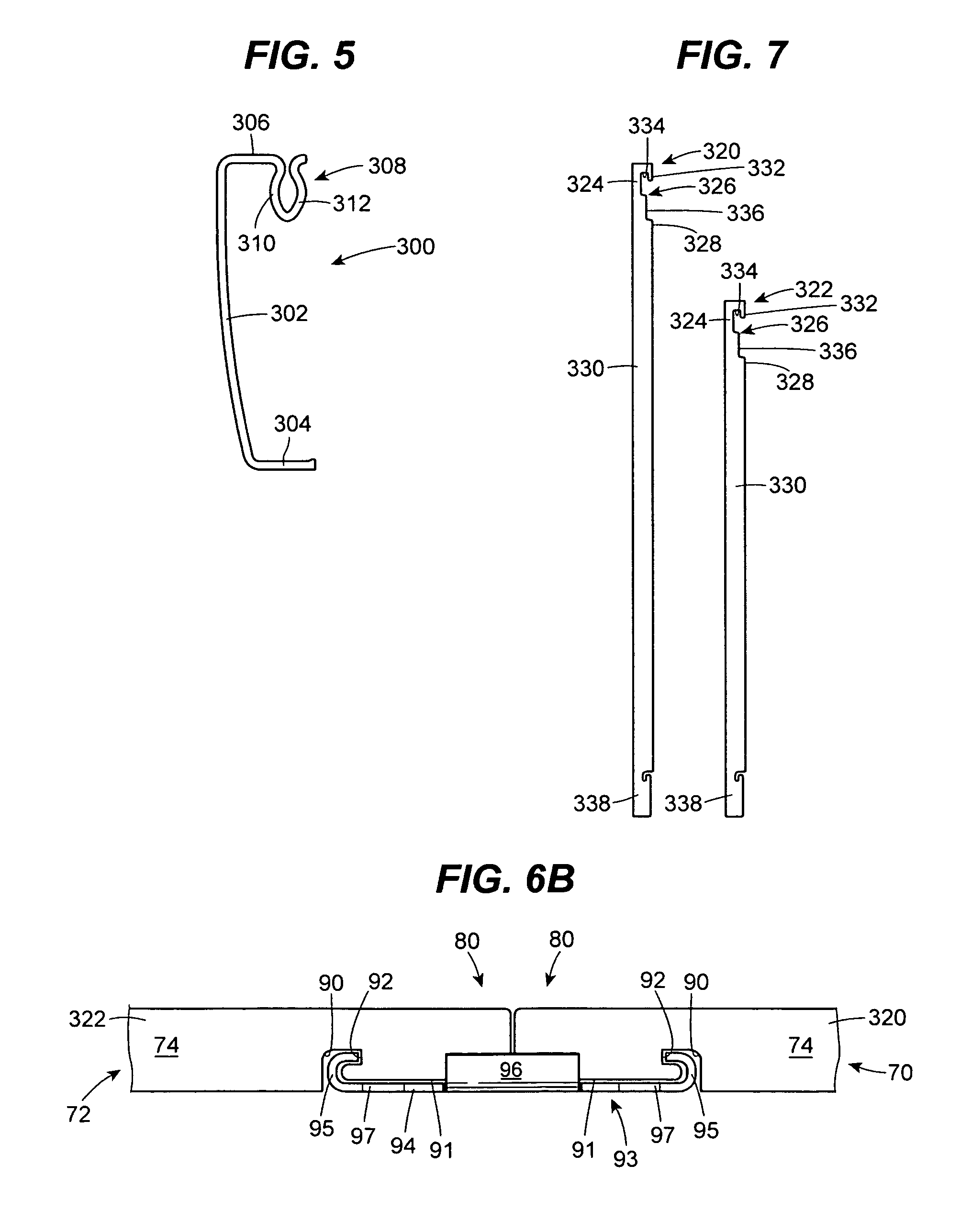

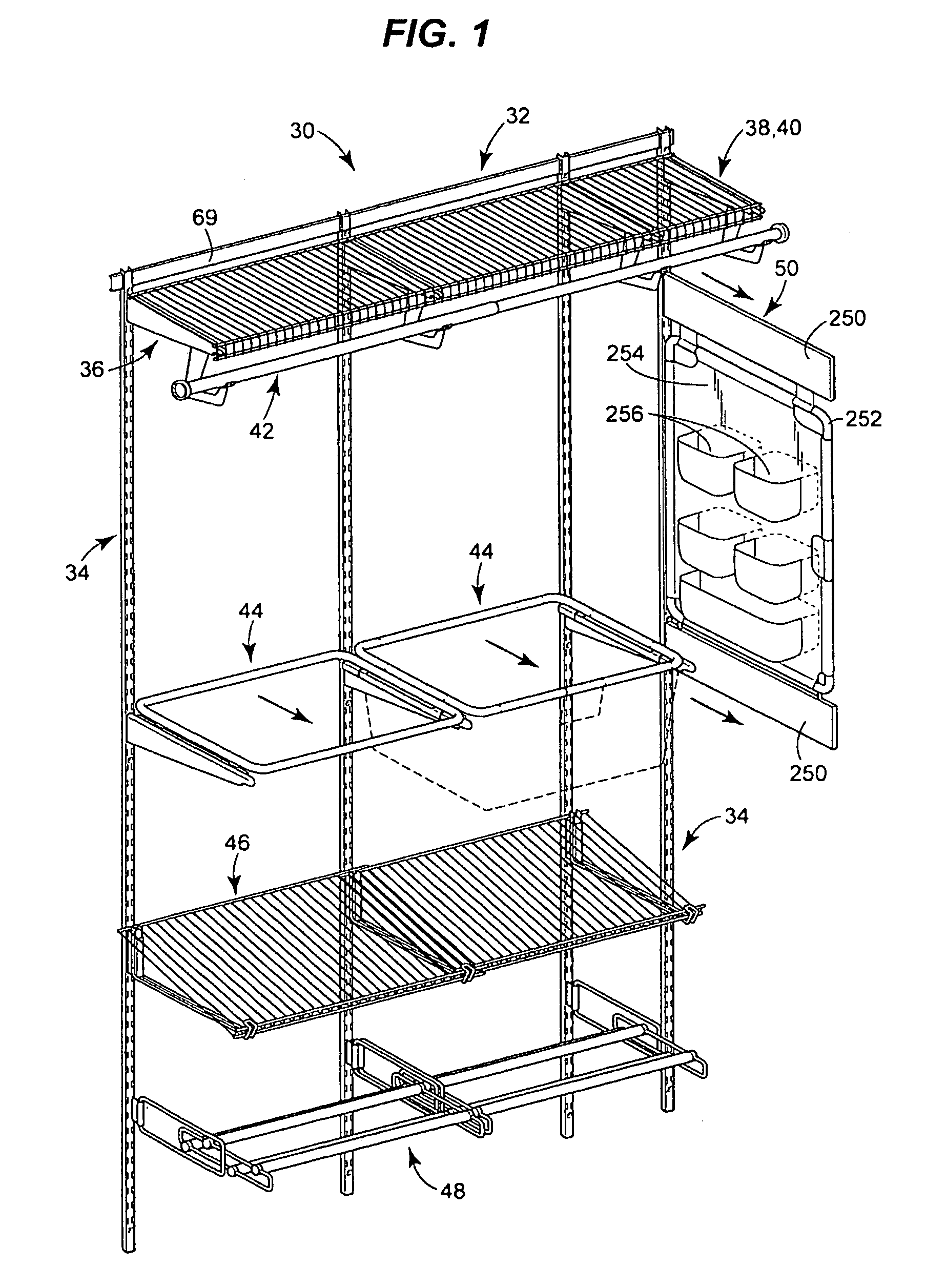

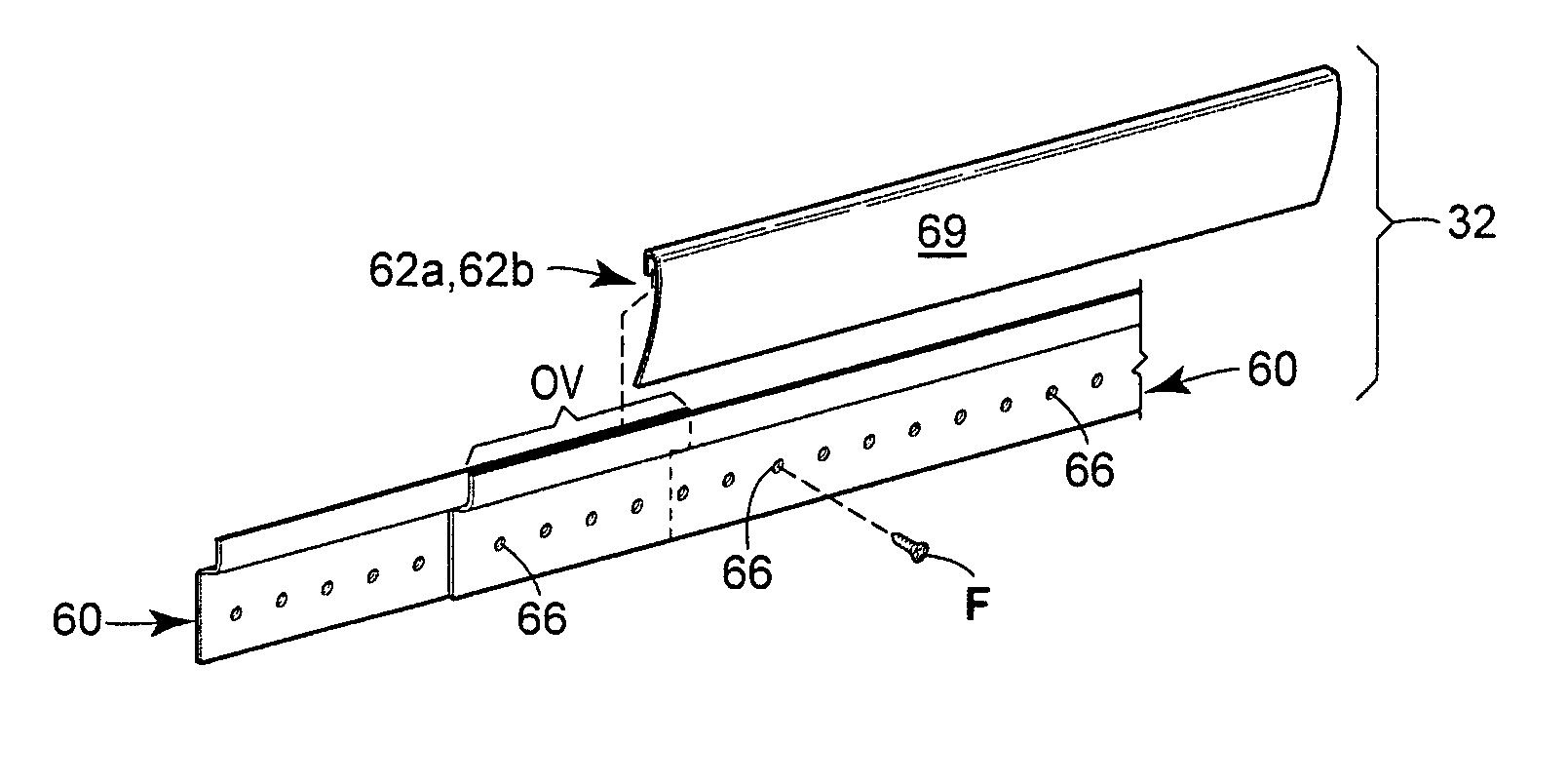

专利附图（8）
