提供一种可调节尺寸的抽屉分隔整理器。
专利摘要
公开了用于在抽屉内分隔物品的可扩展抽屉整理器的实施例。每个实施例利用至少一个托盘与另一个托盘保持可滑动地一致，从而提供可扩展抽屉整理器以变化以近似目标抽屉的尺寸约束。每个实施例还采用锁定机构，用于将相关托盘固定在用户指定的预定位置。还公开了利用可扩展分隔件的各种布置的附加实施例，该可扩展分隔件可以在各种托盘内以独特配置布置。还提出了若干具有保持器的实施例，用于进一步限制可扩展抽屉整理器在抽屉内的移动。还公开并要求保护若干实施例，这些实施例试图更精确地保持各种器具，即餐具，在一个这样的实施例中，在隐藏隔间中提供附加存储。
Original abstractEmbodiments of an expandable drawer organizer for segregating articles within a drawer are disclosed. Each embodiment utilizes at least one tray maintained in slidable agreement with another a tray, providing for the expandable drawer organizer to be varied to approximate the dimensional constraints of the subject drawer. Each embodiment further employs a locking mechanism for securing the associated trays in a user dictated predetermined position. Additional embodiments utilizing various arrangements of an expandable partition that may be arranged in unique configurations within the various trays is also disclosed. Several embodiments having retainers for further limiting the movement of the expandable drawer organizer within the drawer are also presented. Several embodiments are also disclosed and claimed that seek to more exactly retain various utensils i.e. cutlery, in one such embodiment additional storage is provided in a hidden compartment.

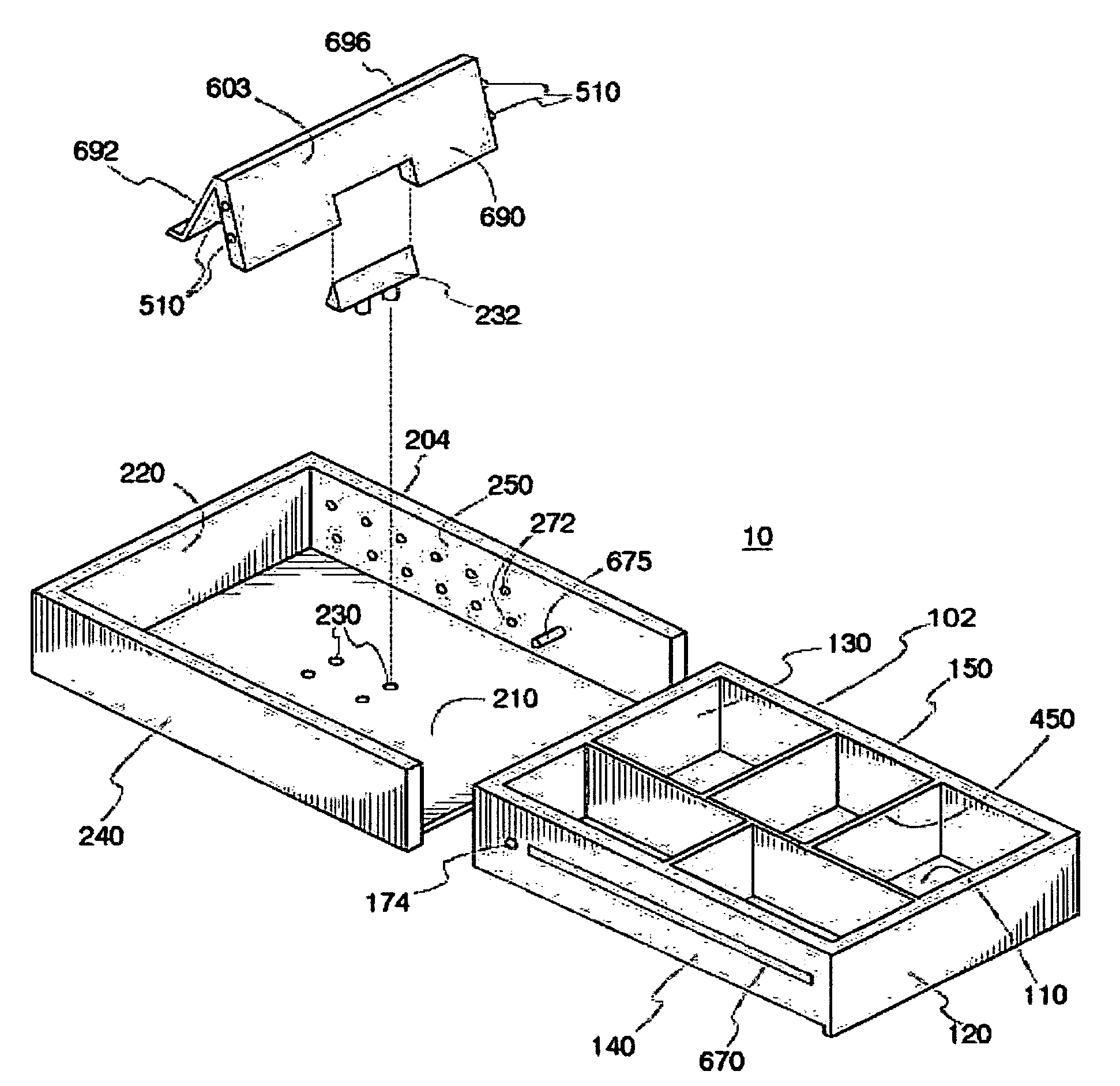

专利附图（8）
