一种可自动弹开的硬质钱包。
专利摘要
一种钱包，包括铰接连接到凹形底部的凹形顶部。铰链销具有中心孔，适于容纳圆柱形物品。顶部和底部各包括半个闩锁机构。还有一个弹簧连接到铰链销并支承在顶部或底部上，以及一个销，径向穿过铰链销和其中一个铰链节，用于将铰链销固定在钱包组件中。当顶部和底部彼此闩锁时，钱包保持关闭，并且当闩锁解锁时，钱包将自行打开。钱包优选地包括附接到顶部的徽章和内部弹簧，以将物品保持在顶部和底部。
Original abstractA wallet comprising a concave top hingably attached to a concave bottom. The hinge pin has a central bore adapted to receive a cylindrical article. The top and bottom each include a half latch mechanism. There is also a spring attached to the hinge pin and bearing on either the top or the bottom and a pin, passing radially through the hinge pin and one of the hinge knuckles, for securing the hinge pin in place in the wallet assembly. The wallet remains closed when the top and bottom are latched to each other and will open by itself when the latch is unlatched. The wallet preferably includes a badge attached to the top and internal springs to retain items against the top and bottom.

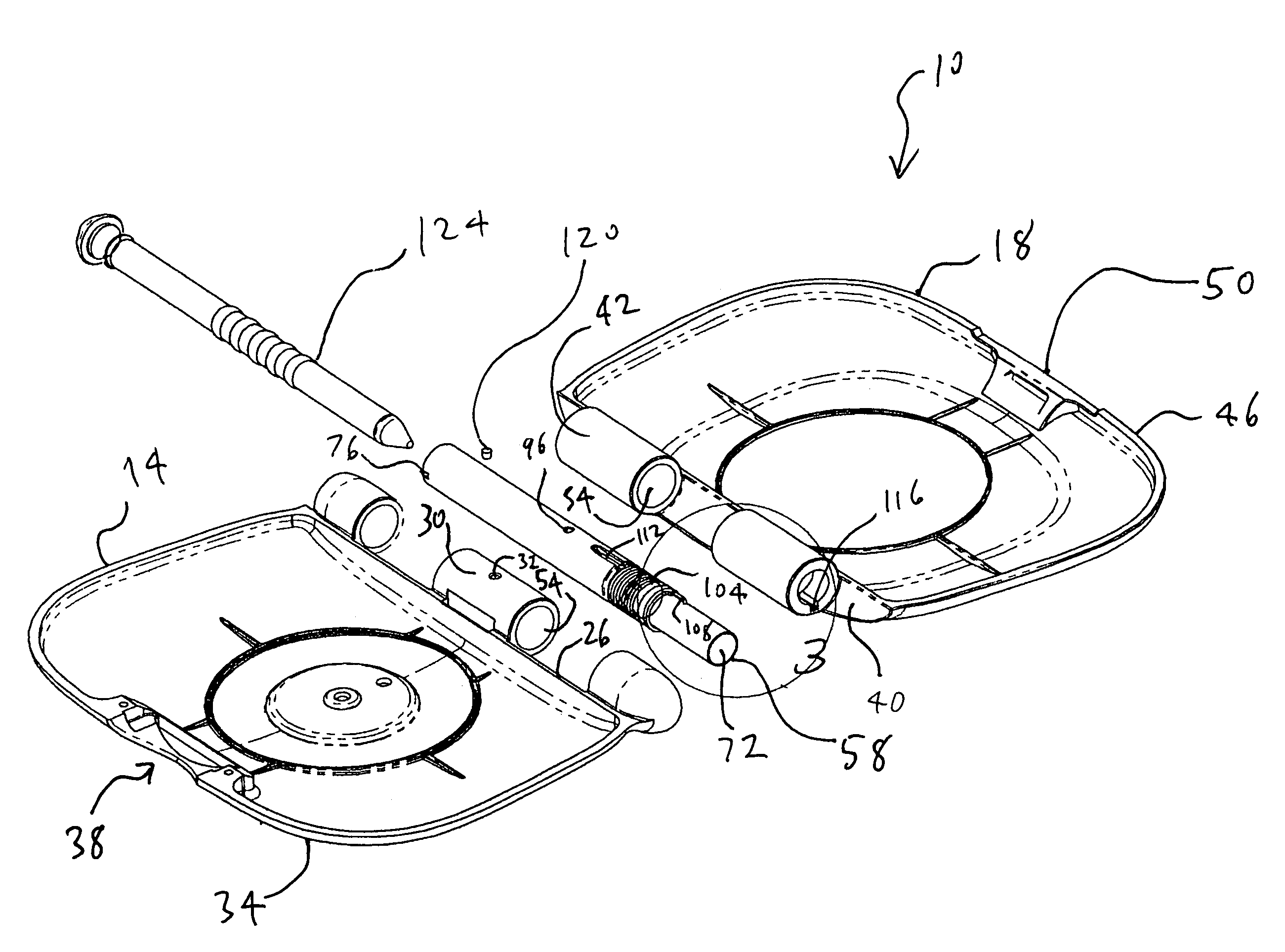

专利附图（8）
