用于淋浴间挂架安装，简化结构便于组装。
专利摘要

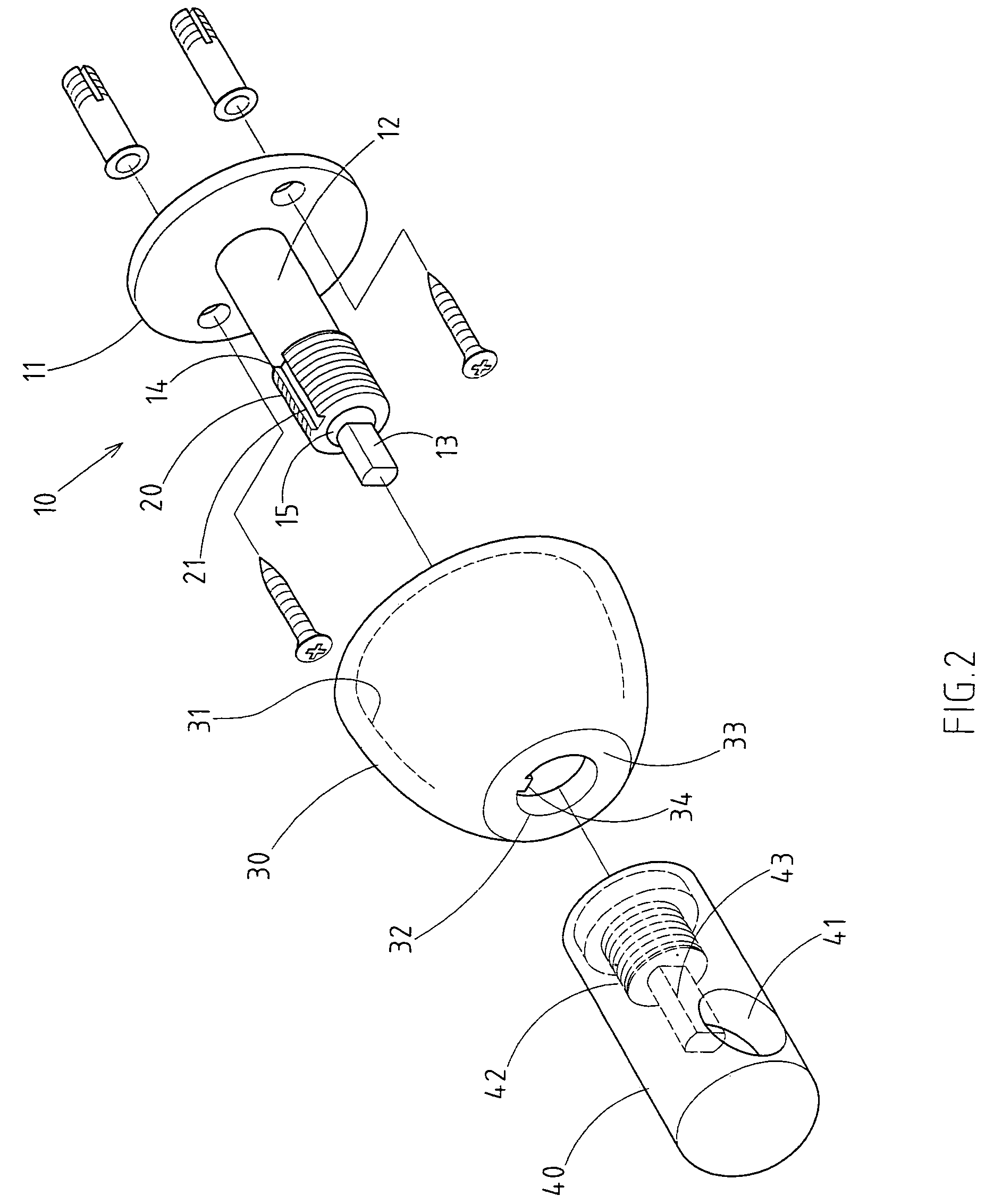

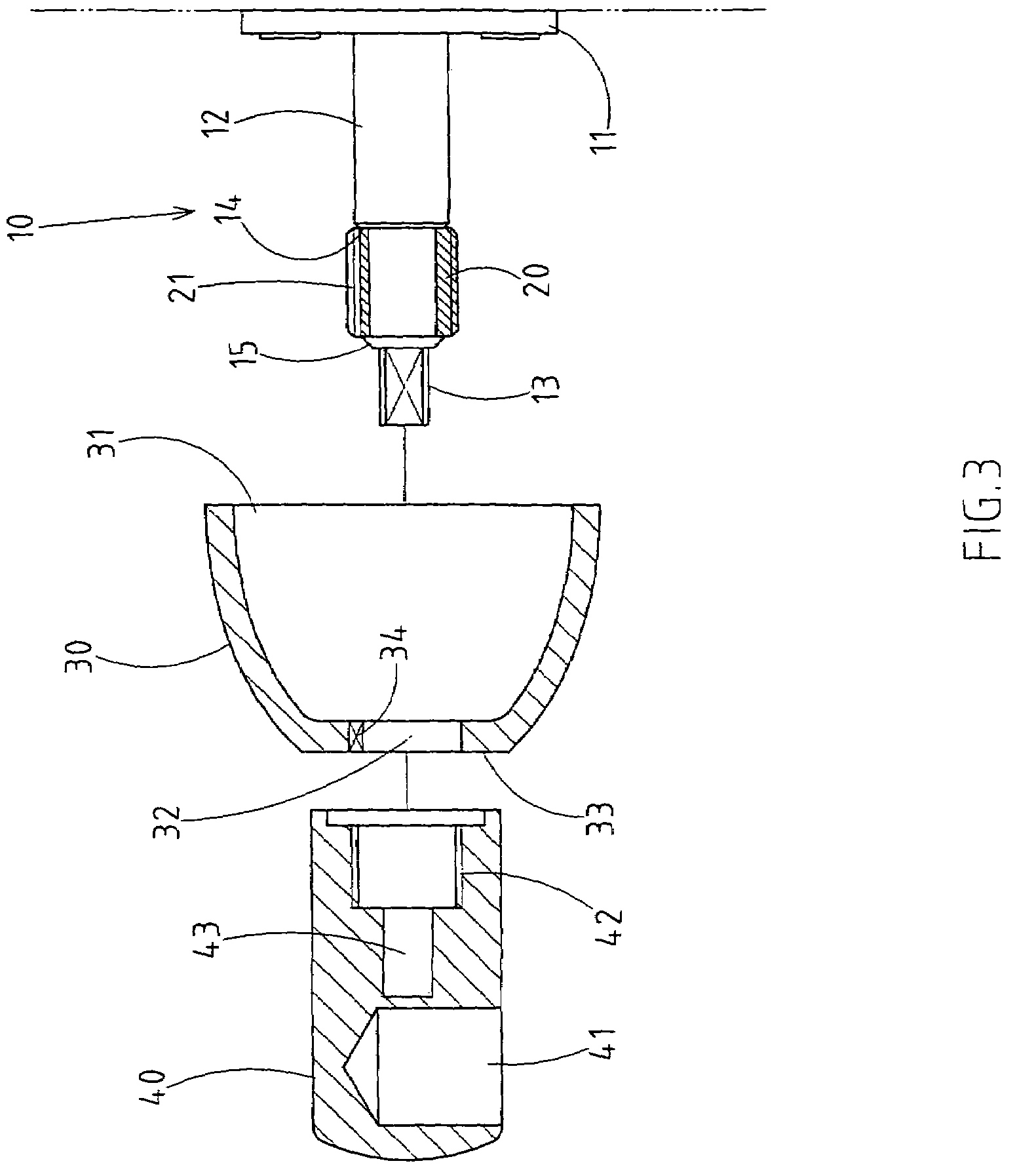

淋浴间挂架安装座的结构包括壁挂件、底座和挂架连接件。有一个可旋转螺栓座，可枢转地放置在壁挂件上突出杆的外端，可旋转螺栓座的一侧设有凹槽。底座外端的通孔用于可旋转螺栓座穿过底座的外表面，通孔的一侧设有凸块，可连接到可旋转螺栓座的凹槽，驱动底座和可旋转螺栓座。螺钉孔可与可旋转螺栓座拧紧，外观完美无孔，简化结构，使组装更方便实用。
Original abstractThe structure of the hanger mount for a shower room includes a wall mount, base and hanger connector. There is a rotatable bolt seat that can be placed on the external end of the protruding bar on the wall mount pivotally, and a groove is placed on one side of the rotatable bolt seat. The through opening on the external end of the base is for the rotatable bolt seat to go through the external surface of the base, and a protruding block is placed on one side of the through opening that can be connected to the grooves of the rotatable bolt seat, driving the base and the rotatable bolt seat. A screw hole can be screwed in with the rotatable bolt seat, having a perfect look without holes and simplifying the structure so that assembling is more convenient and practical.
专利附图（8）
