滑轨组件的定位结构
Locating structure for a slide assembly
US-7357468-B2用于滑轨组件的定位，实现多段滑动锁定。
专利摘要

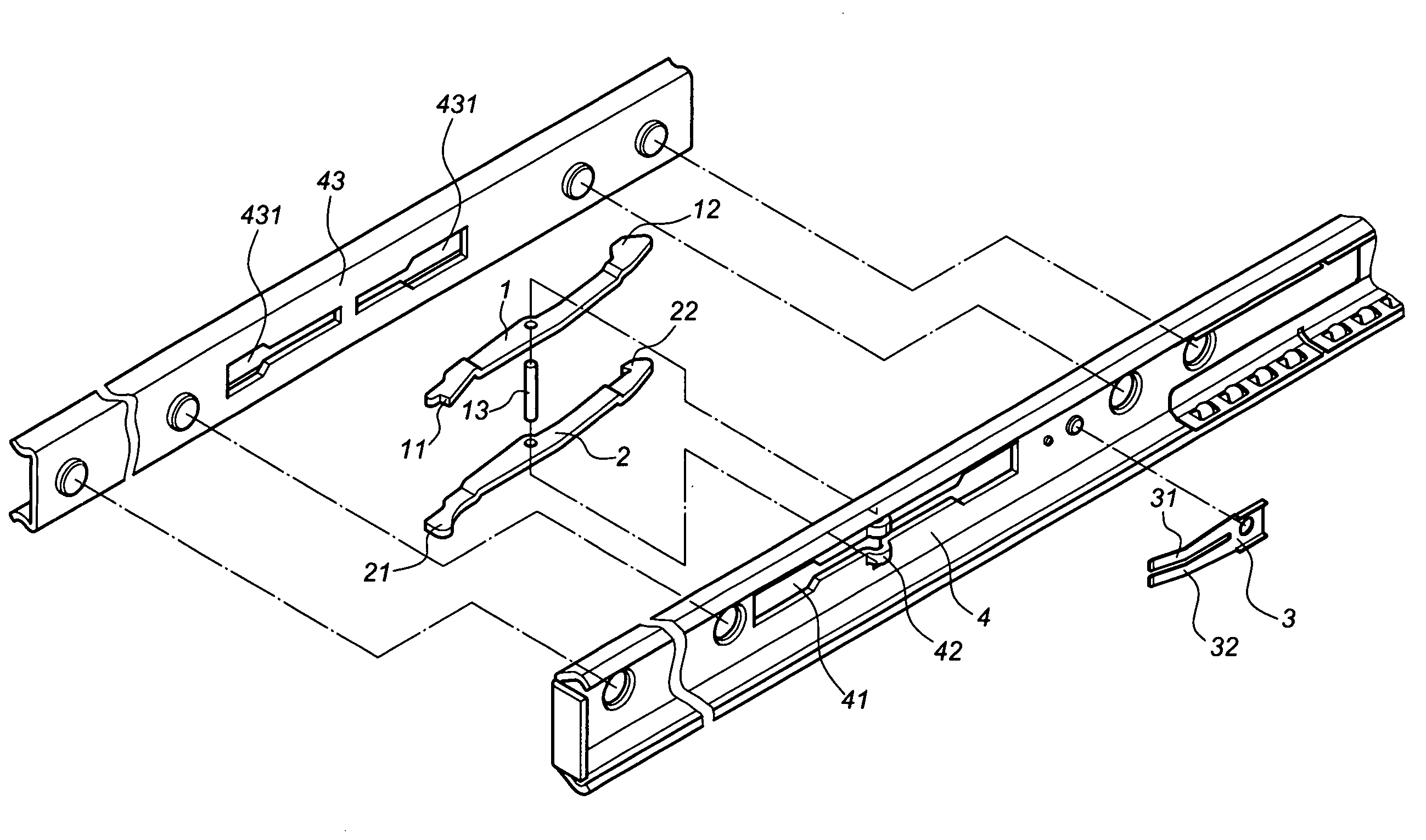

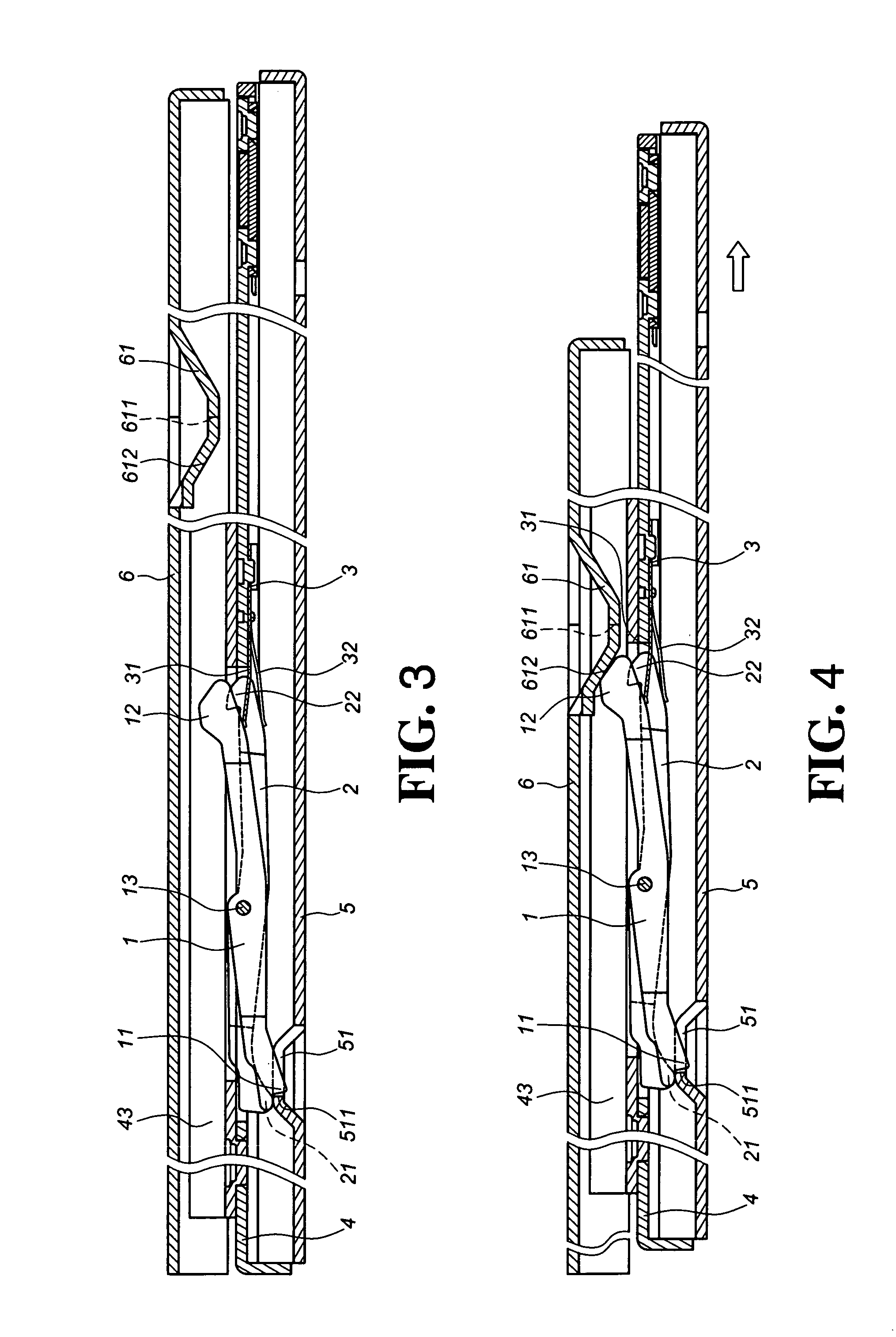

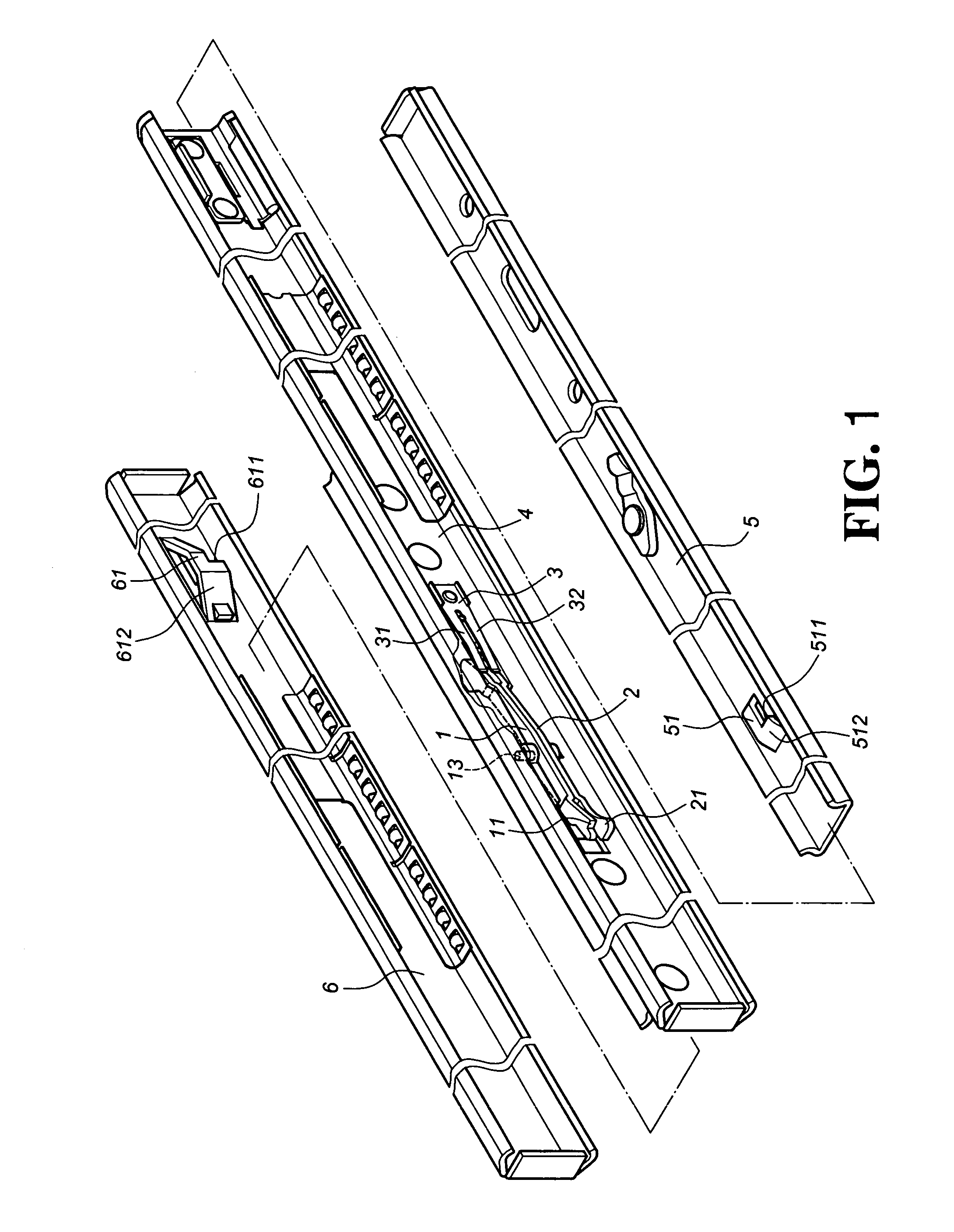

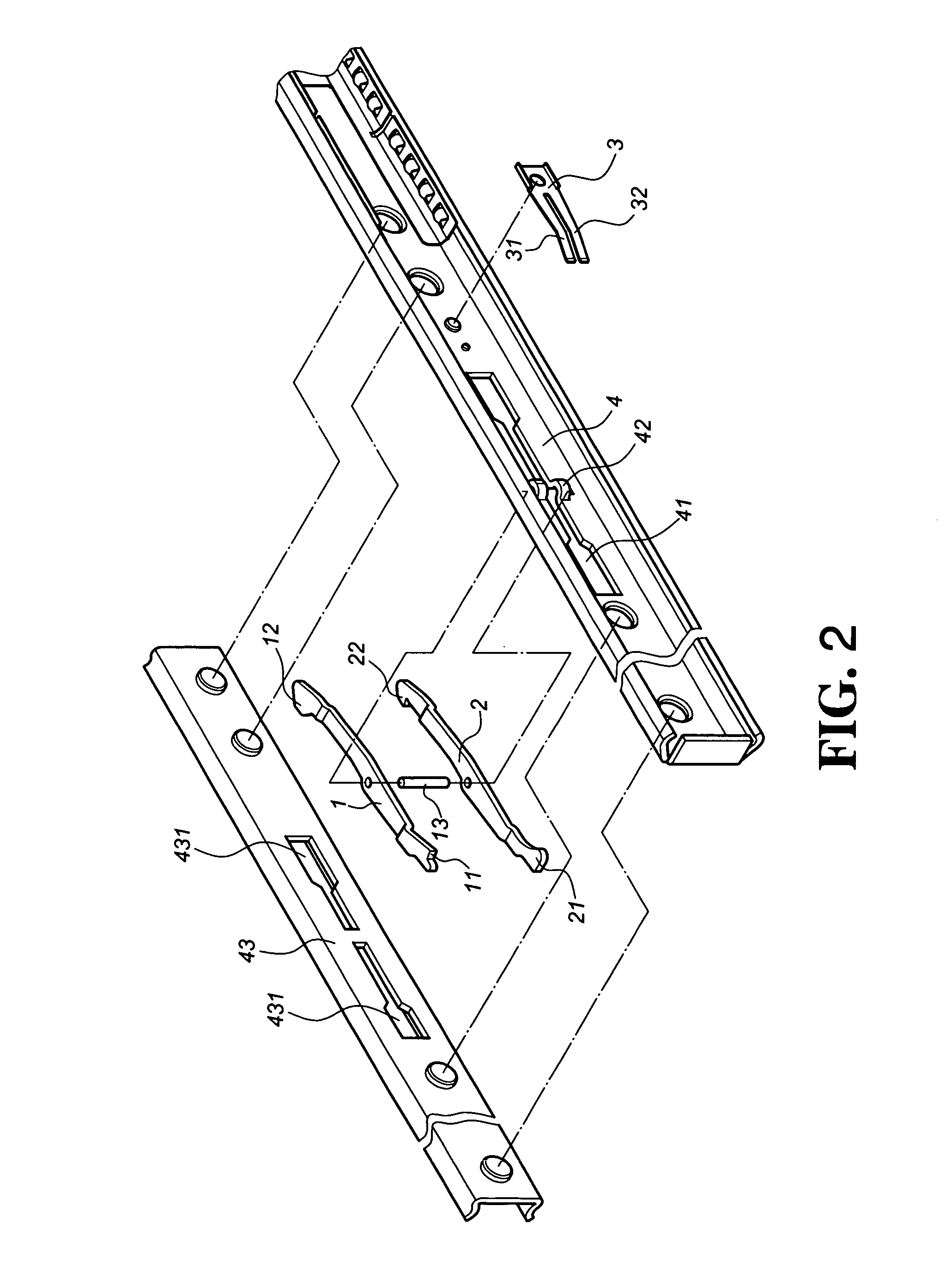

一种用于滑轨组件的定位结构，与中轨、内轨和外轨一起操作，内轨滑入中轨，中轨在外轨中滑动，包括连接件、定位件和弹性件。连接件和定位件均枢转地连接到中轨。内轨上设置有包含阻挡部分和斜面的第一突出壁。外轨上设置有包含保持部分和斜面的第二突出壁。连接件包括约束端和释放端。定位件包括释放端和固定端。弹性件固定到中轨以抵靠连接件的释放端和定位件的固定端。
Original abstractA locating structure for a slide assembly operates in conjunction with a middle, an inner, and an outer rail with the inner rail sliding into the middle rail and the middle rail sliding in the outer rail and includes a linking member, a locating member and an elastic member. Both the linking member and the locating member are pivotally connected to the middle rail. A first protruding wall containing a blocking portion and a slope is disposed on the inner rail. A second protruding wall containing a retaining portion and a slope is disposed on the outer rail. The linking member includes a constraining end and a release end. The locating member includes a release end and a fixation end. The elastic member is fixed to the middle rail to hold against the release end of the linking member and the fixation end of the locating member.
专利附图（8）
