用于存放个人物品的便携盒。
专利摘要
一种携带盒系统，包括：一个钱包大小的携带盒，用于容纳个人物品，所述钱包大小的携带盒包括：一个基本刚性的前面板，包括一个四边形平面主体和一个沿四边形平面主体的三个侧面延伸的直立边缘；一个基本刚性的后面板，包括一个四边形平面主体和一个沿四边形平面主体的三个侧面延伸的直立边缘；以及一个盖子；其中前面板与后面板铰接连接，使得它们各自的边缘能够相互接合，从而形成一个具有敞开面的封闭空间；并且其中盖子与后面板铰接连接，使得盖子能够与前面板接合，从而封闭所述封闭空间的敞开面。
Original abstractA carrying case system comprising: a wallet-sized carrying case for holding personal items, the wallet-sized carrying case comprising: a substantially rigid front panel comprising a four-sided planar body and an upstanding rim extending along three sides of the four-sided planar body;a substantially rigid rear panel comprising a four-sided planar body and an upstanding rim extending along three sides of the four-sided planar body; and a lid; wherein the front panel is hingedly connected to the rear panel such that their respective rims can be brought into engagement with one another so as to form an enclosure with an open face; and wherein the lid is hingedly connected to the rear panel such that the lid can be brought into engagement with the front panel so as to close off the open face of the enclosure.

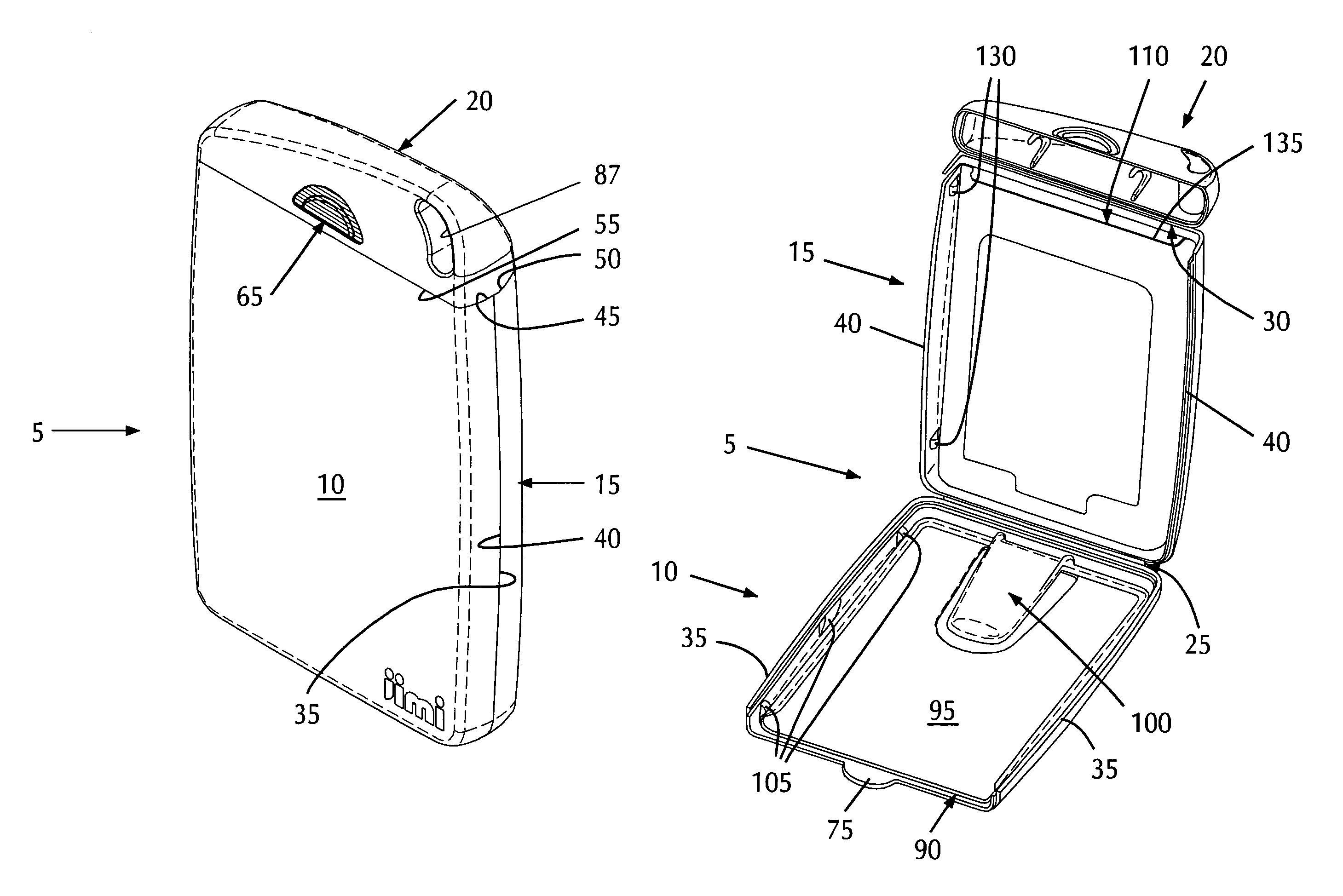

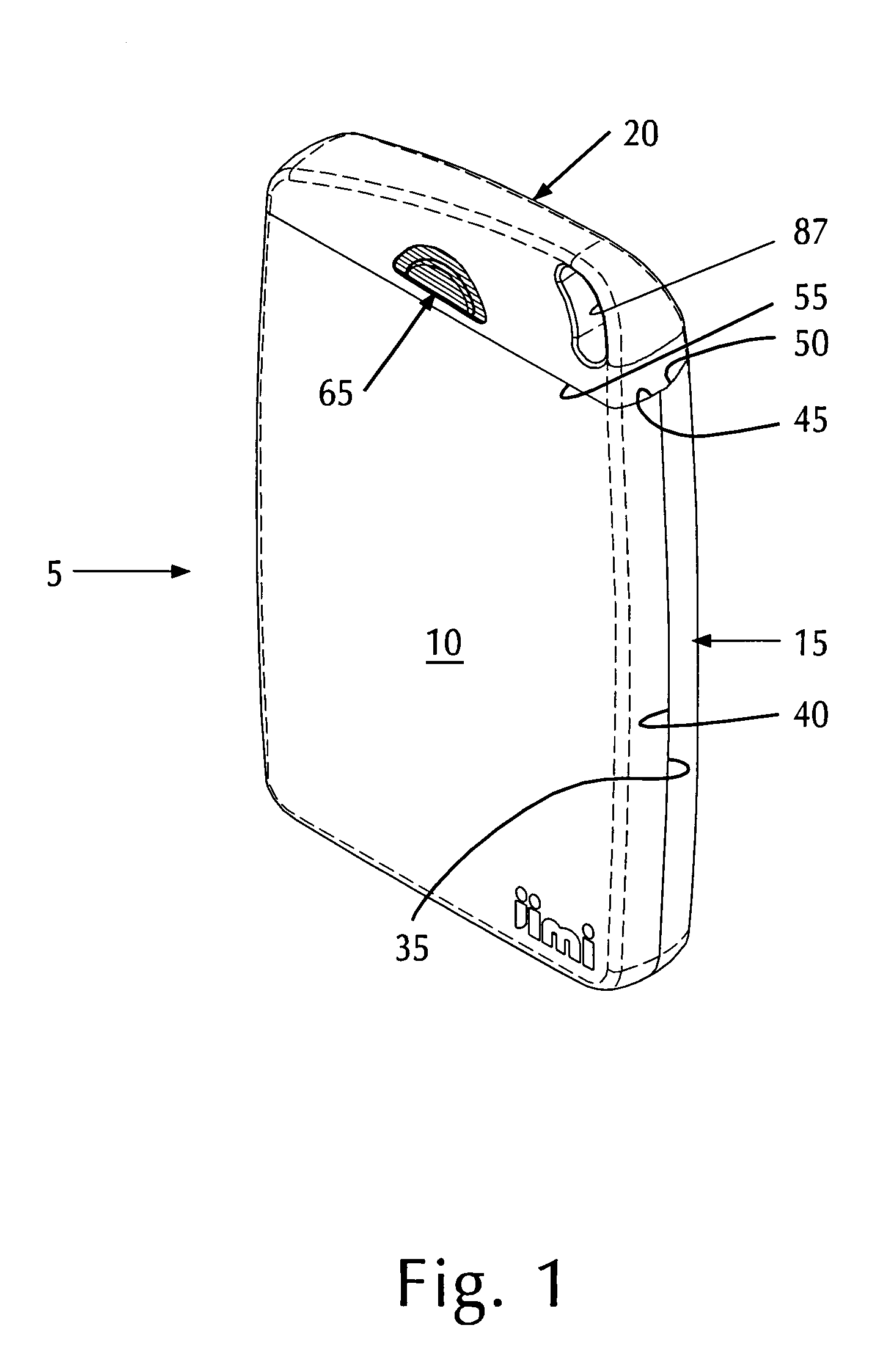

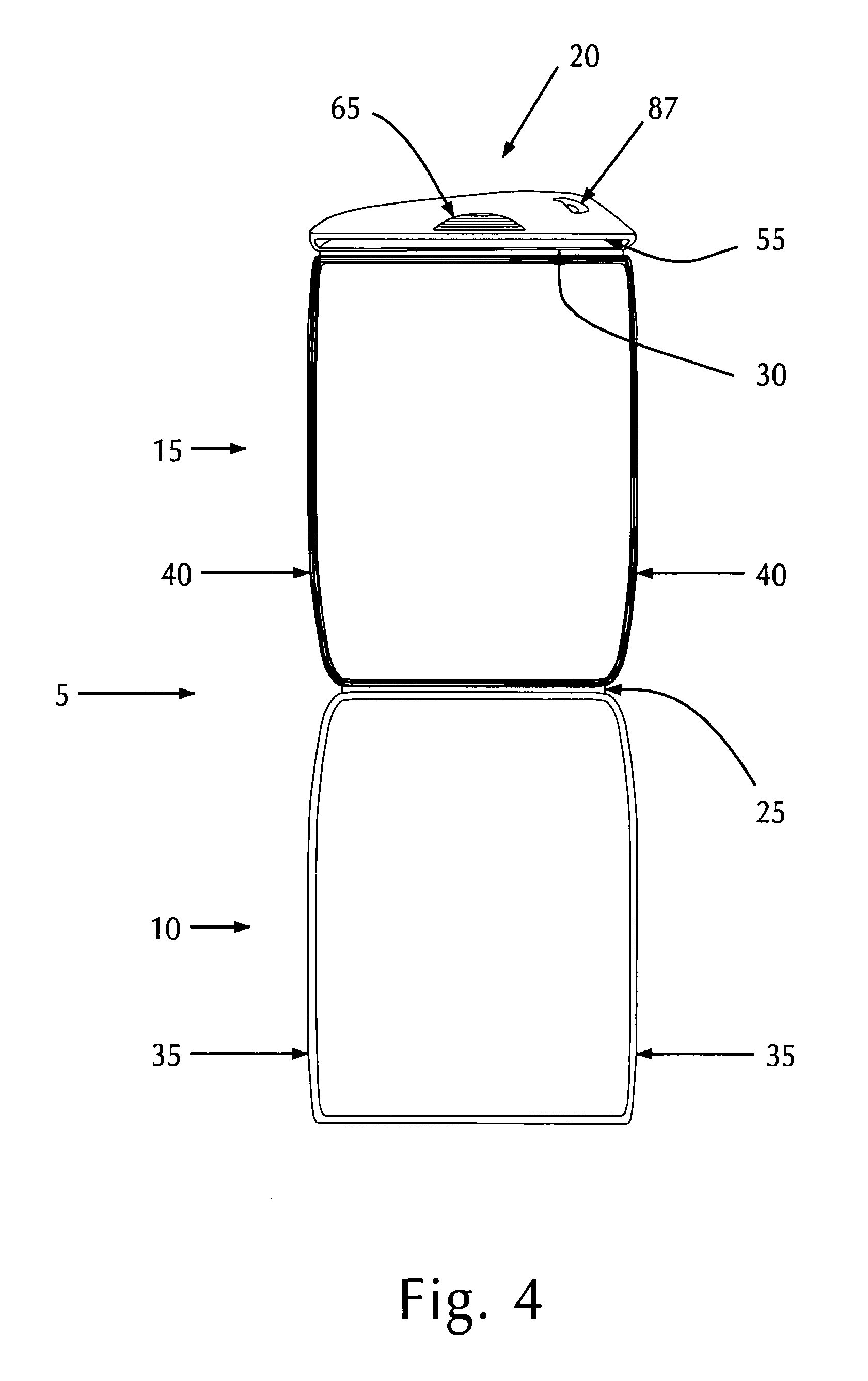

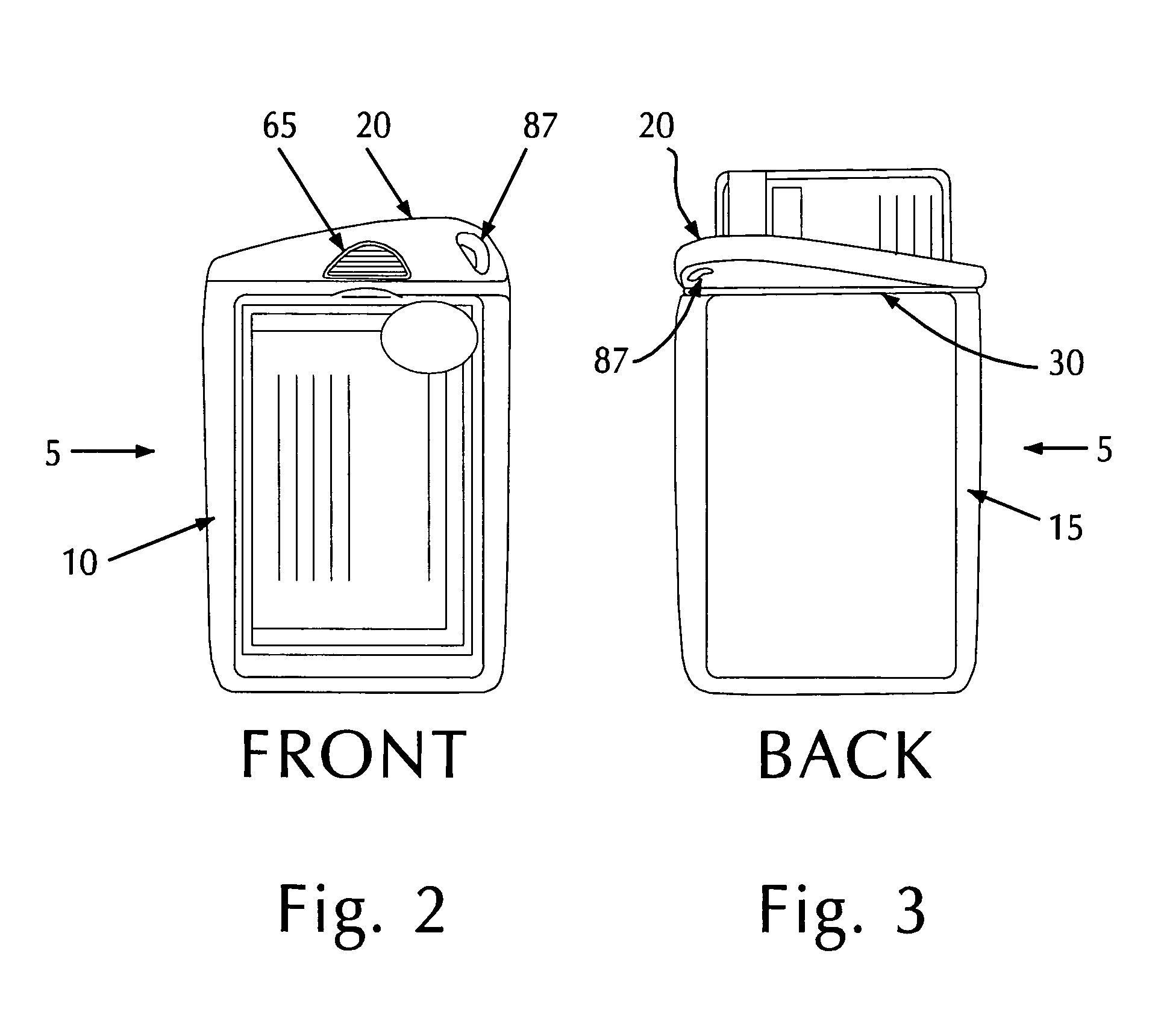

专利附图（8）
