用于马桶盖等装置的旋转传动控制。
专利摘要

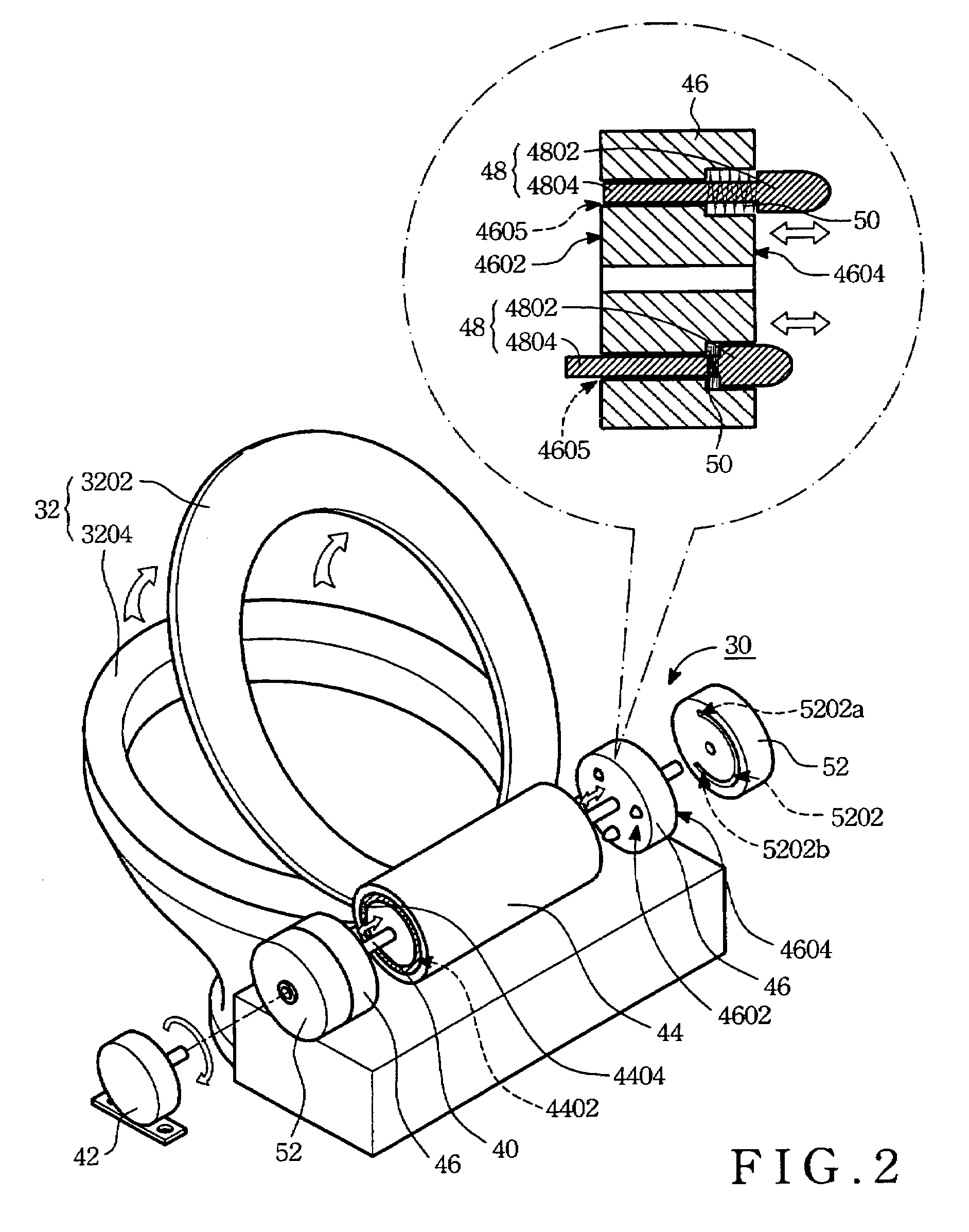

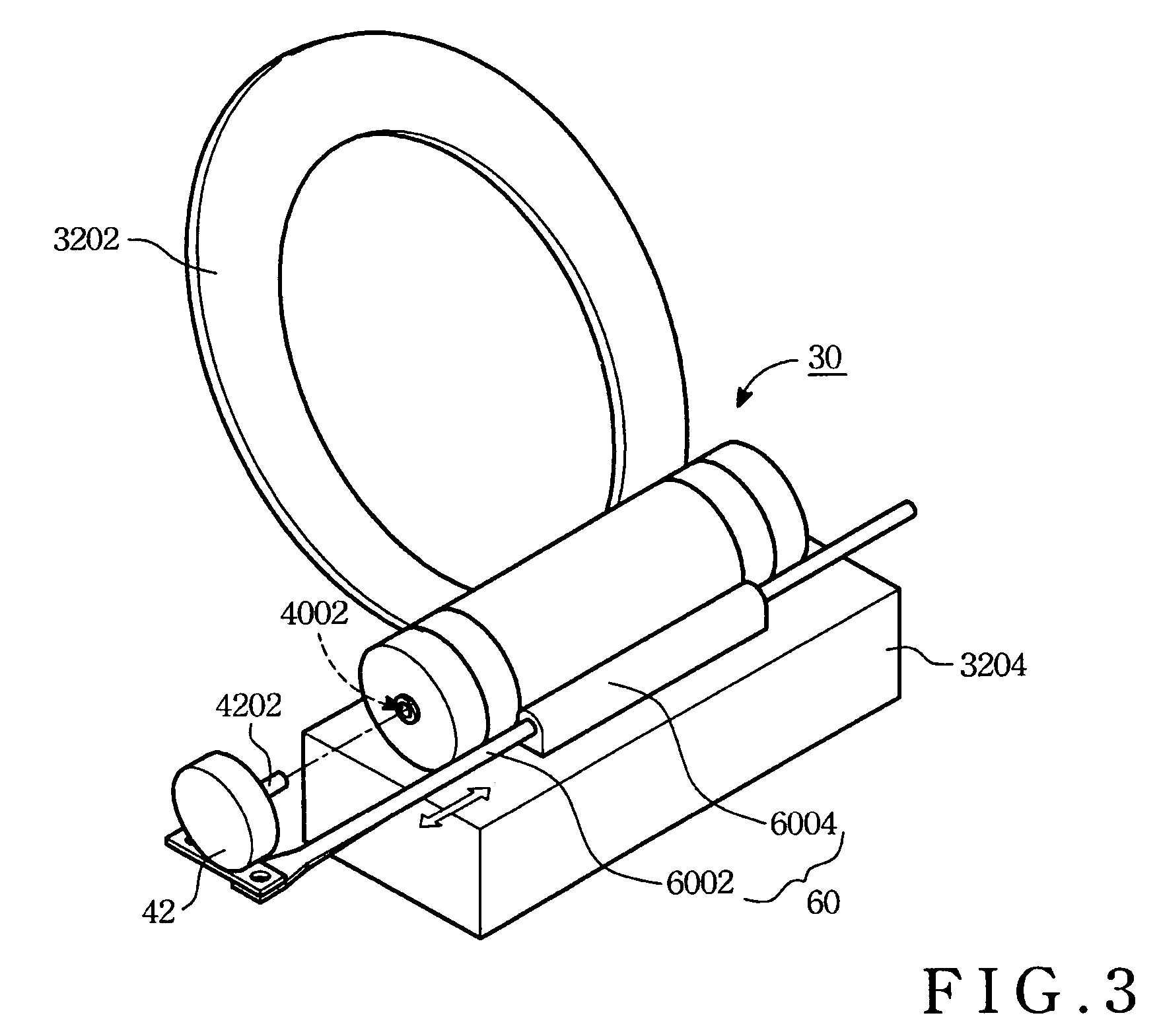

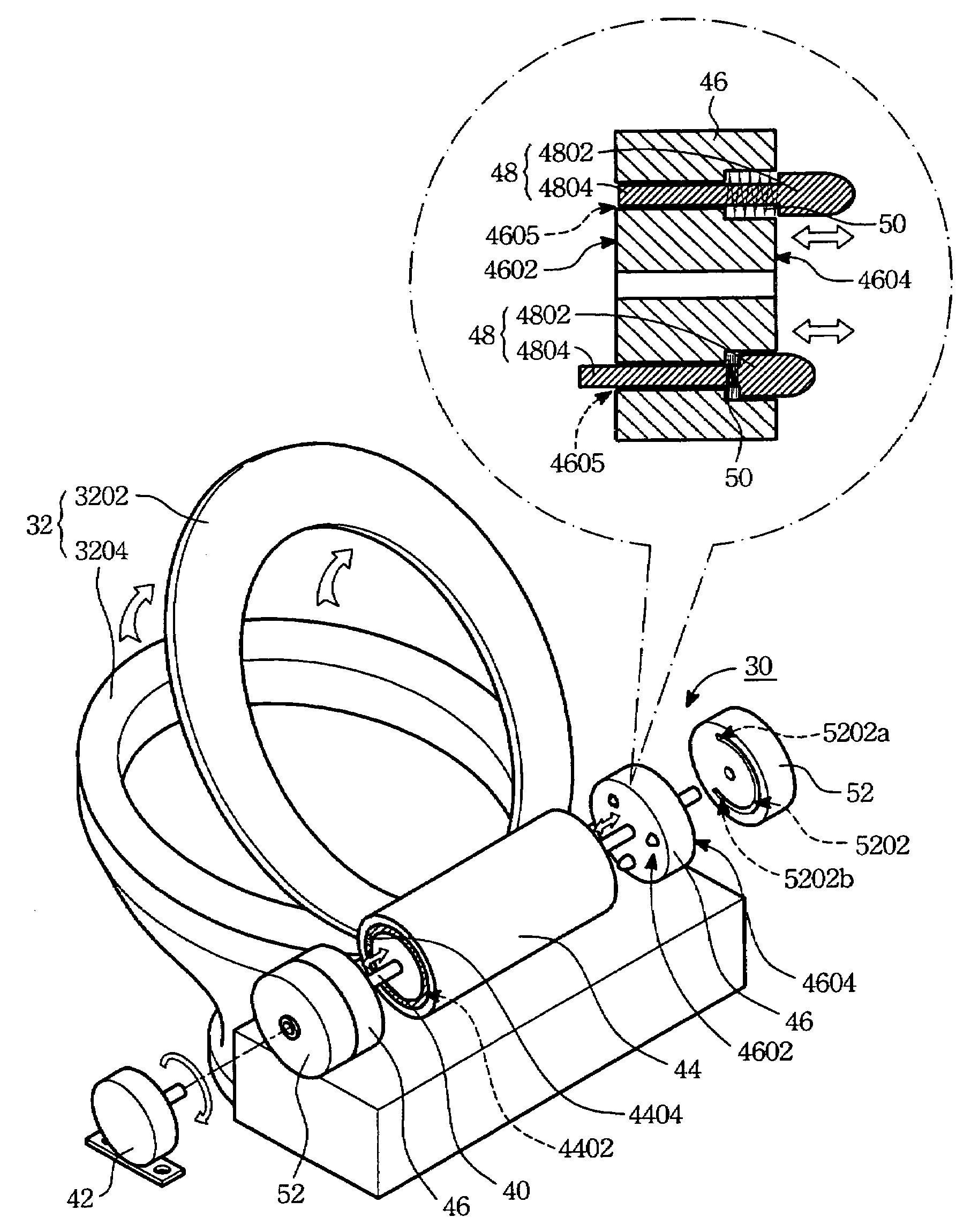

一种传动机构，包括旋转轴、主柱、旋转柱、杆、弹簧和固定柱。主柱具有容纳旋转轴的第一轴孔。主柱的端部具有带止挡的 O 形槽。与旋转轴固定的旋转柱在其第一端和第二端之间具有通孔。杆插入通孔中。与马桶固定的固定柱具有容纳旋转轴的第三轴孔。固定柱具有 C 形槽，该 C 形槽具有深的第一端和浅的第二端。弹簧设置成包围杆，并用于使杆弹性地伸出第一端或第二端，以插入 C 形槽或 O 形槽。
Original abstractA transmission mechanism comprises a rotating shaft, a main column, a rotating column, a stick, a spring and a fixed column. The main column has a first axle hole receiving the rotating shaft. End of the main column has an O-shaped trench having a stop within. The rotating column fixed with the rotating shaft has a through hole between its first end and second end. The stick is plugged into the through hole. The fixed column fixed with the toilet has a third axle hole receiving the rotating shaft. The fixed column has a C-shaped trench having a deep first terminal and a shallow second terminal. The spring is disposed to enclose the stick and is for elastically protruding the stick out the first end or the second end to insert the C-shaped trench or the O-shaped trench.
专利附图（8）
