用于分配纸巾。
专利摘要

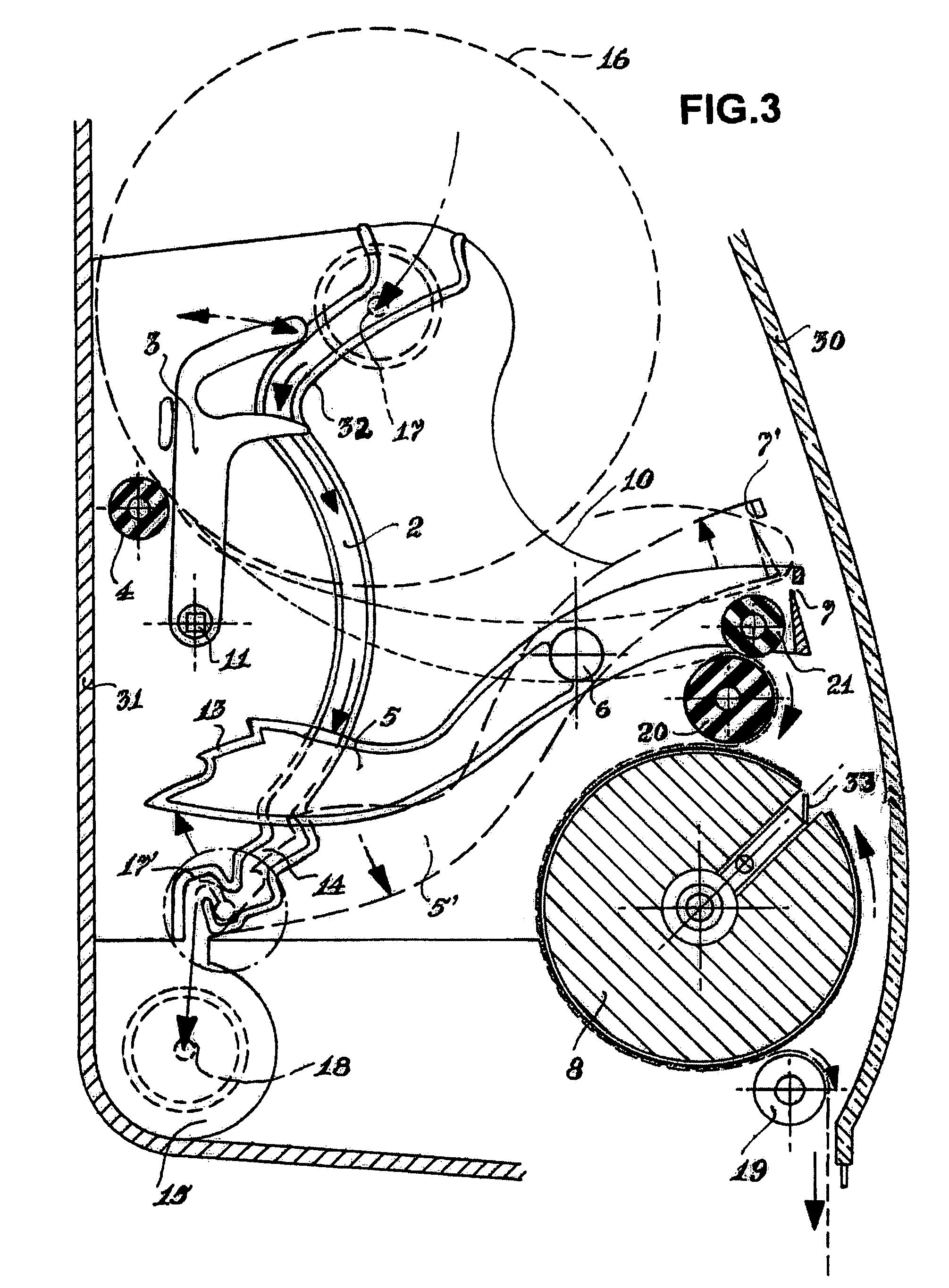

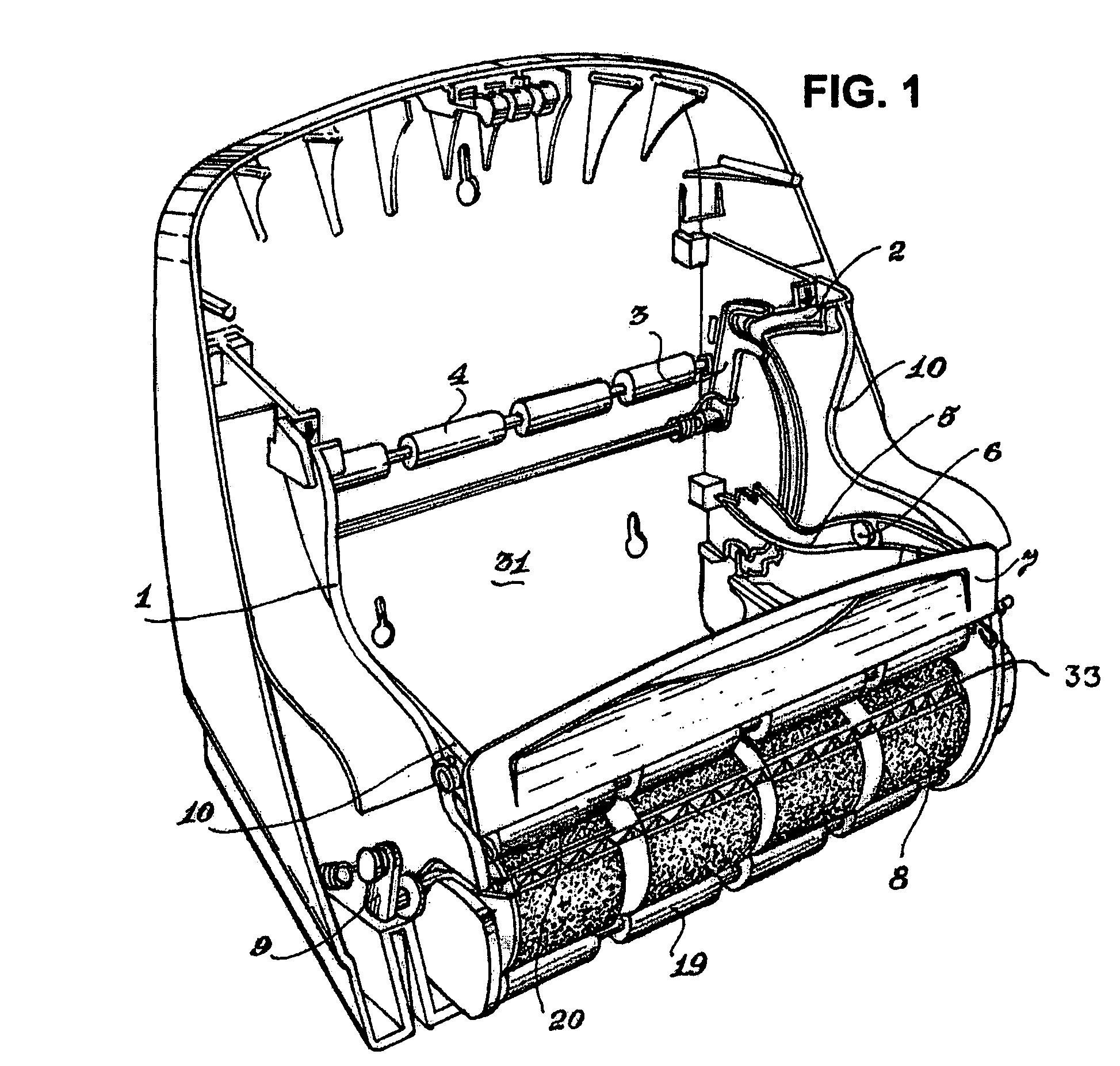

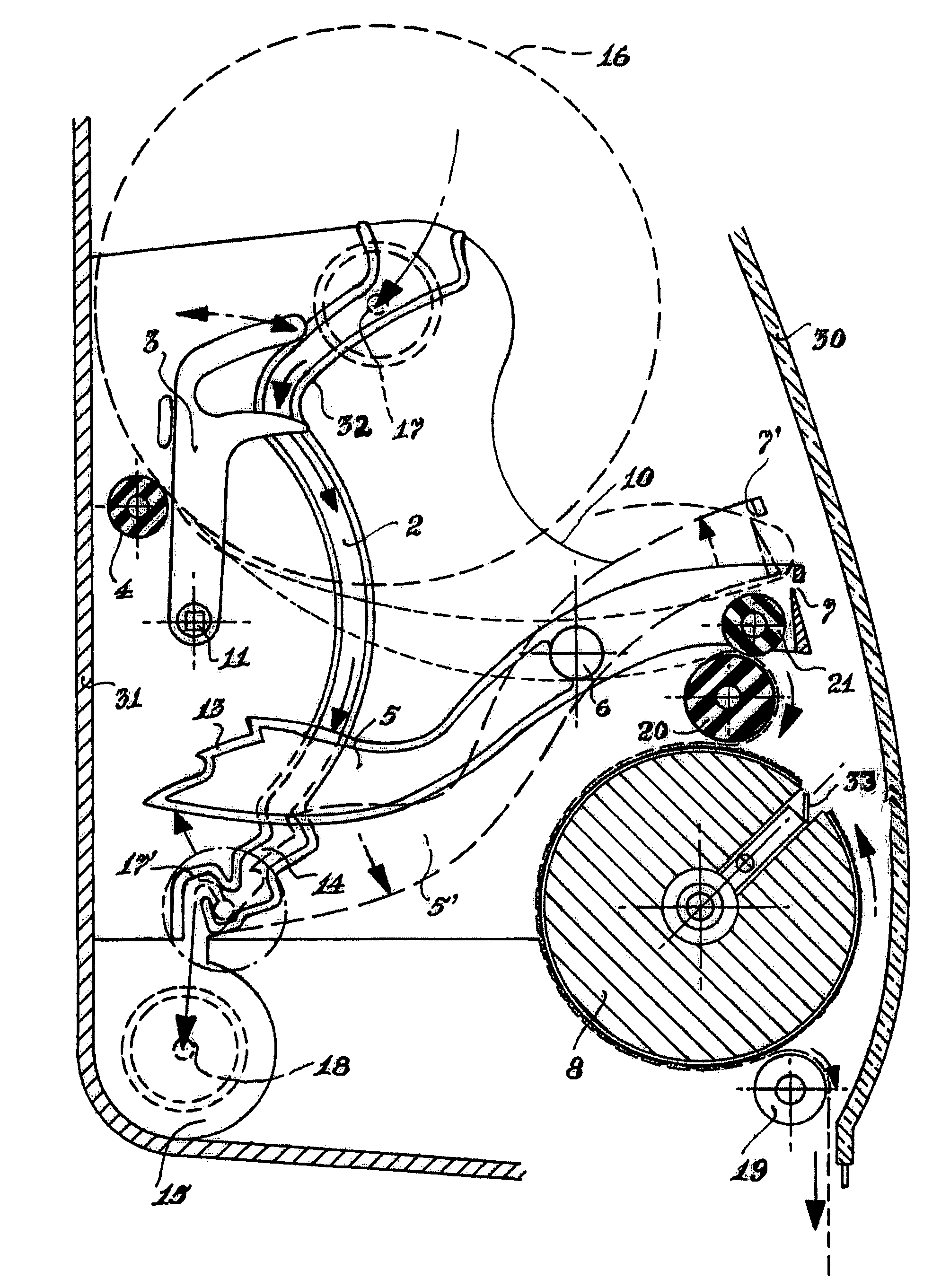

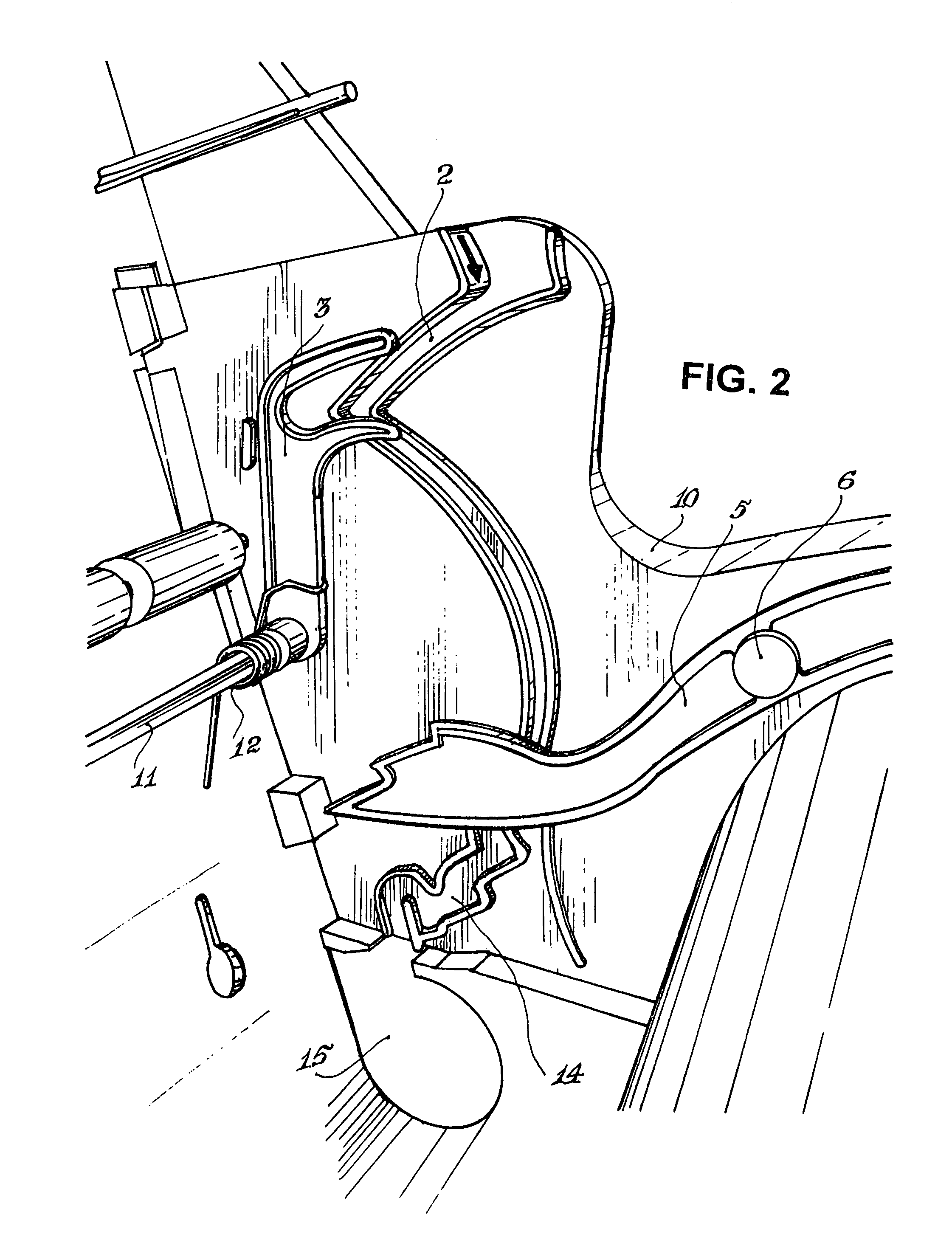

本发明涉及一种纸巾分配器，其中纸巾从围绕中心核卷绕的卷筒提供。该核在两端具有沿两个侧向下凹槽引导卷筒的引导装置；因此，卷筒可以沿下降方向滑动，直到所述卷筒的周边由旋转止挡件支撑。当卷筒的外径减小时，它继续沿凹槽滑动，直到引导装置进入卷筒的解锁装置，使卷筒下降，直到引导装置向下推动杠杆的后端，所述杠杆的另一端具有指示装置和新卷筒的穿线装置。所述后端在核为空时将其弹出朝向分配器下部的腔体，以便随后被取走。
Original abstractThe present invention relates to a paper towel dispenser in which the towels are provided from a reel enrolled around a central nucleus. The nucleus has at both ends guiding devices of the reel along both lateral descending grooves; thus, the reel can slide in a descending direction until the periphery of said reel is supported by a gyratory stop. When the external diameter of the reel decreases it continues sliding along the grooves until the guiding means enter into unlocking devices of the reels making the reel descend until the guiding devices push downwards a posterior end of a lever, the other end of said lever having indicating devices and threading devices of a new reel. Said posterior end ejects the nucleus when it is empty towards a cavity in the inferior part of the dispenser in order to be taken away afterwards.
专利附图（8）
