来源记录显示 Expired
具有可扩展隔间的滚轮行李箱
Rolling luggage with expandable compartment
US-7334669-B2用于扩展行李箱容量，方便整理和取用衣物。
专利摘要
公开了一种具有可伸缩扩展主体的带轮行李箱。行李箱主体可在运输过程中手动从正常尺寸的随身携带配置调整到到达最终目的地（如酒店房间）后垂直扩展的配置。主体还包括多个水平设置、垂直堆叠的内部搁板，以手风琴方式连接到内部衬里，以便当主体可伸缩扩展时，自动从紧凑配置扩展到扩展配置，从而提供一系列垂直间隔的搁板，方便取用内容物。行李箱可结合衣物折叠装置，提供一种工具，帮助用户快速将衣物折叠成与行李箱内存储空间相适应的尺寸。
Original abstractWheeled luggage having a telescopically expandable body is disclosed. The luggage body may be manually adjusted from a normally sized carry-on configuration during transit, to a vertically enlarged configuration once the final destination, such as a hotel room, is reached. The body further includes a plurality of interior horizontally disposed, vertically stacked shelves connected in accordion fashion to an internal liner so as to automatically expand from a compact configuration to an expanded configuration when the main body is telescopically expanded thereby providing a series of vertically spaced shelves which provide convenient access to the contents. A garment folding apparatus may be incorporated with the luggage to provide a tool that assists the user in quickly folding clothing to dimensions compatible with storage spaced within the luggage.

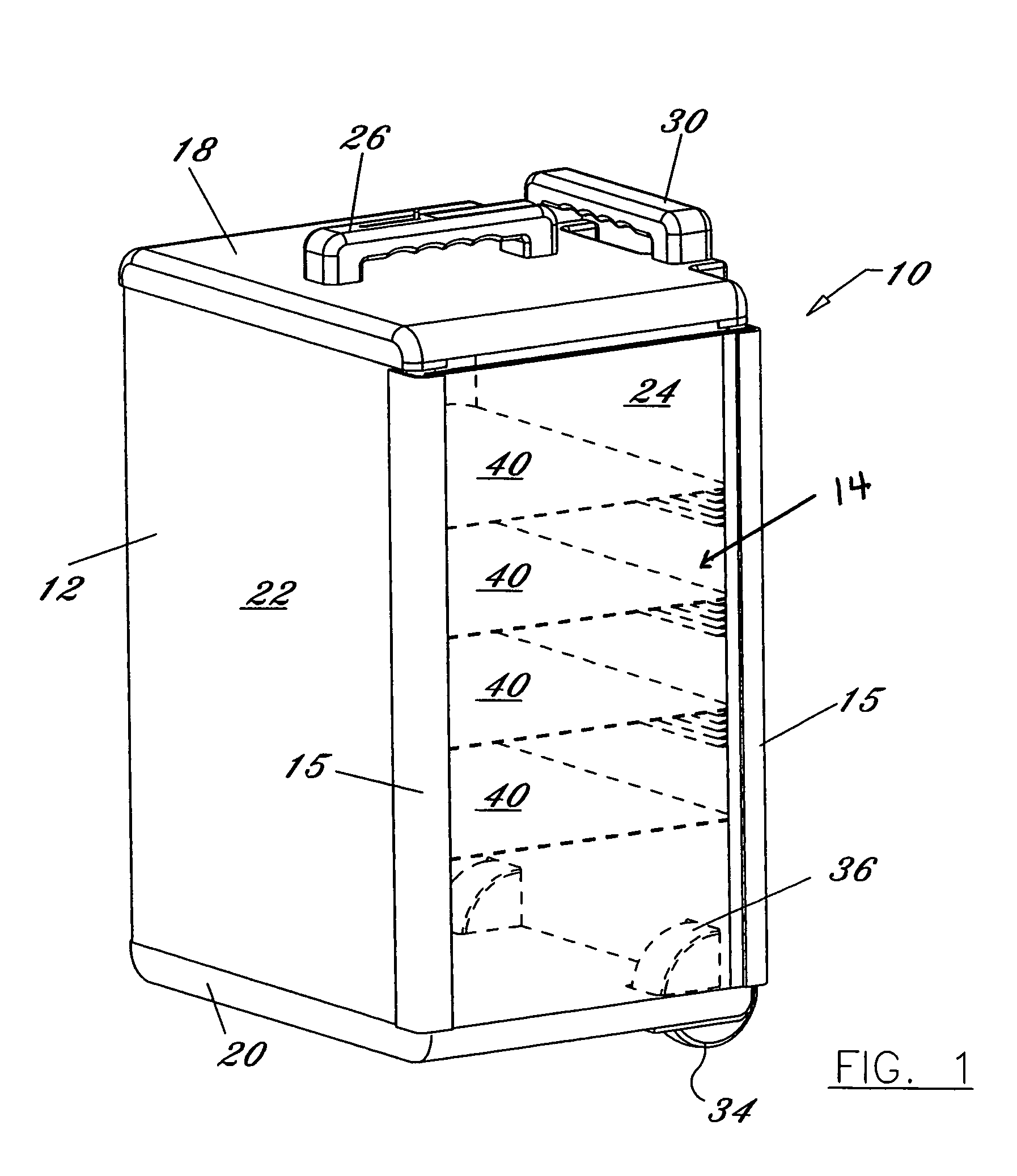

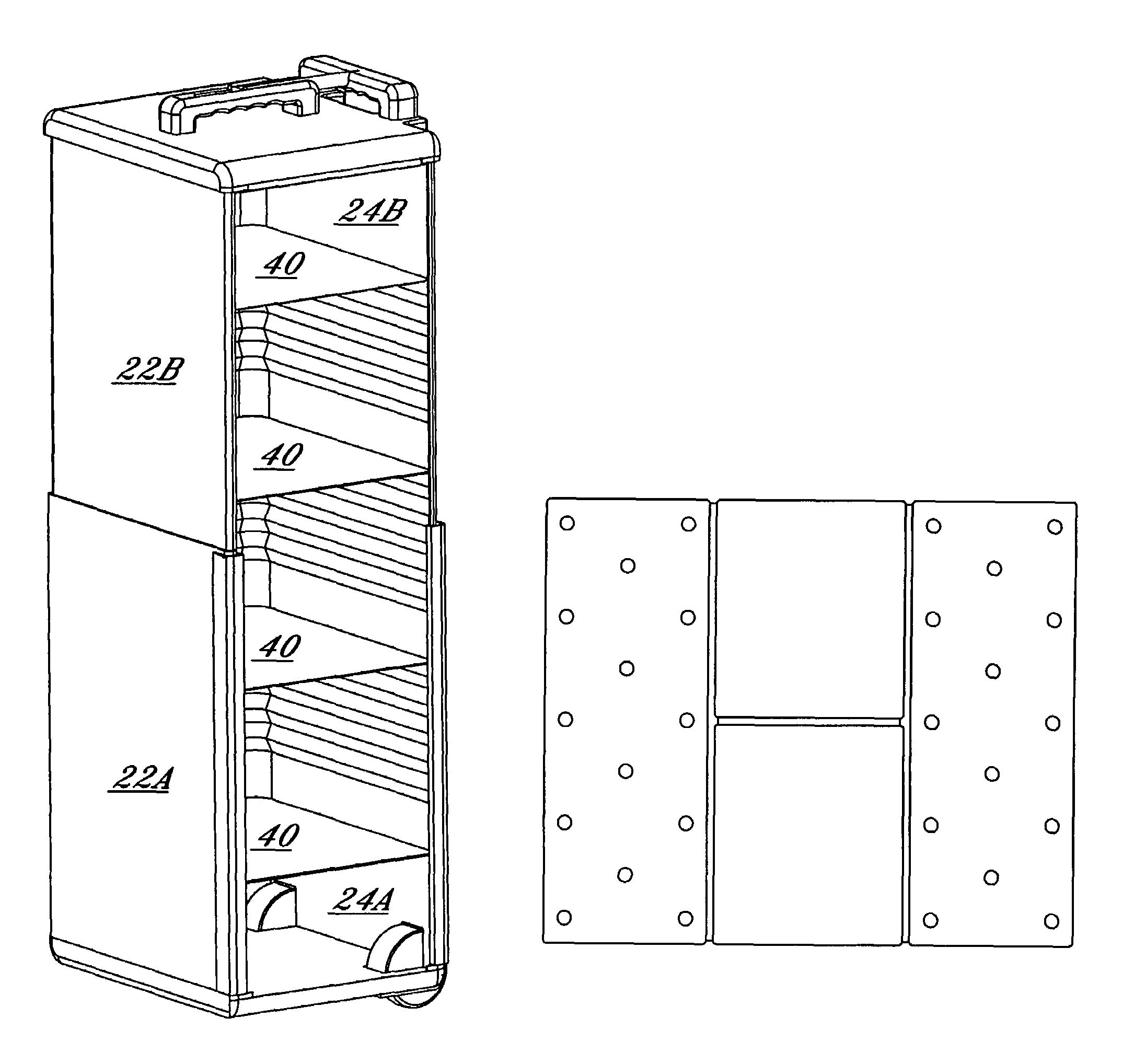

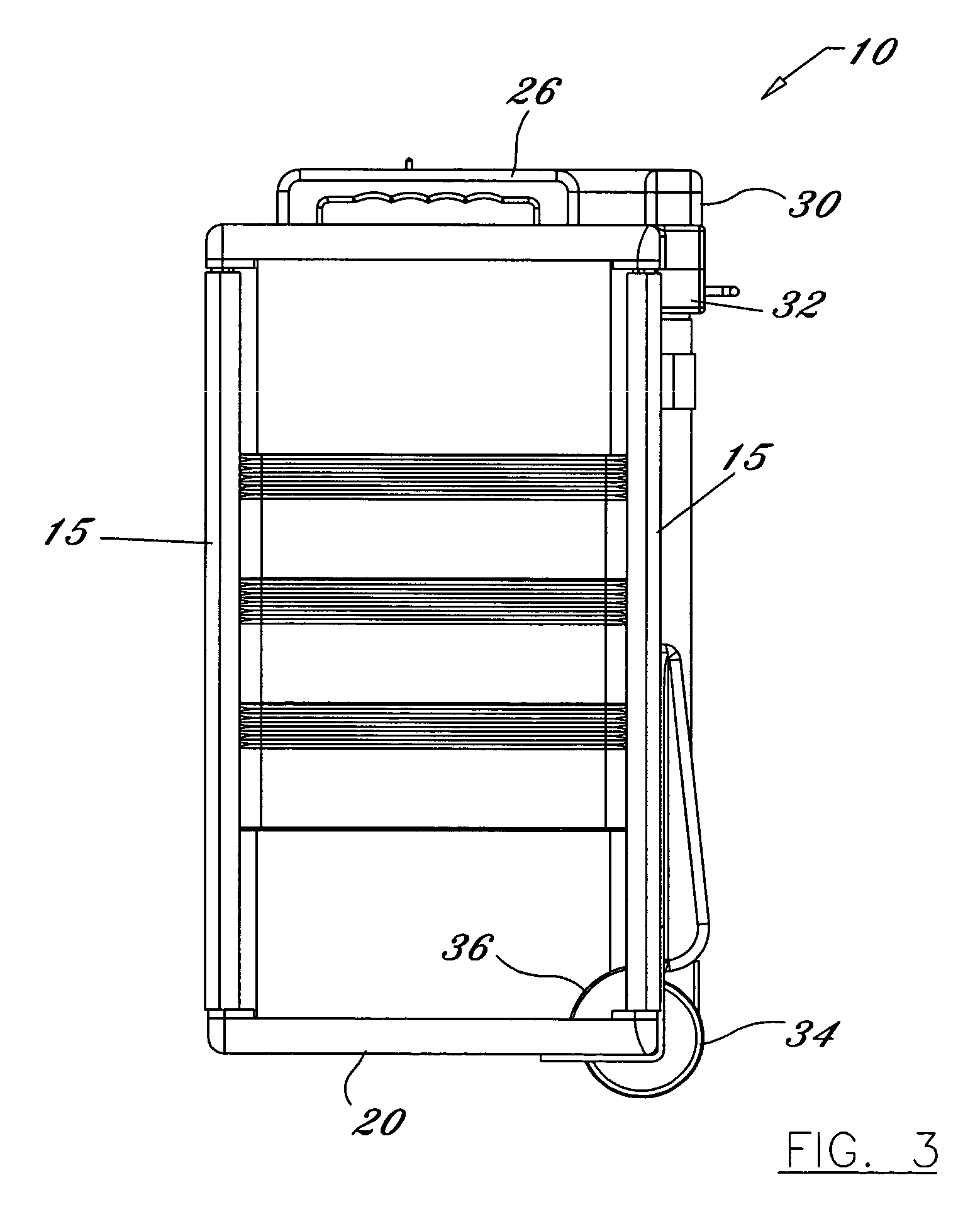

专利附图（8）
