用于自动分配纸巾，无需手接触。
专利摘要
一种免手纸巾分配器，包括具有前盖的壳体，前盖可在打开和关闭位置之间枢转。感测机构完全设置在柜体内部空间内，位于邻近前盖的位置，并朝向柜体的前盖，以允许检测邻近前盖的物体而无需物体接触前盖。当 前盖处于打开位置时，感测机构的至少一部分可接近。分配机构设置在壳体内用于分配一定长度的纸巾，分配机构包括驱动辊和与驱动辊驱动接合的电机。分配器还包括用于为分配器的操作供电的电源。
Original abstractA hands-free paper towel dispenser including a housing with a front cover that is pivotable between open and closed positions. A sensing mechanism is disposed entirely within the interior space of the cabinet at a location adjacent to the front cover and is oriented toward the front cover of the cabinet to permit detecting of an object adjacent the front cover without the object contacting the front cover. At least a portion of the sensing mechanism is accessible when the front cover is at the open position. A dispensing mechanism is disposed within the housing for dispensing a length of towel, with the dispensing mechanism including a drive roller and a motor in driving engagement with the drive roller. The dispenser also includes an electric power source for powering operation of the dispenser.

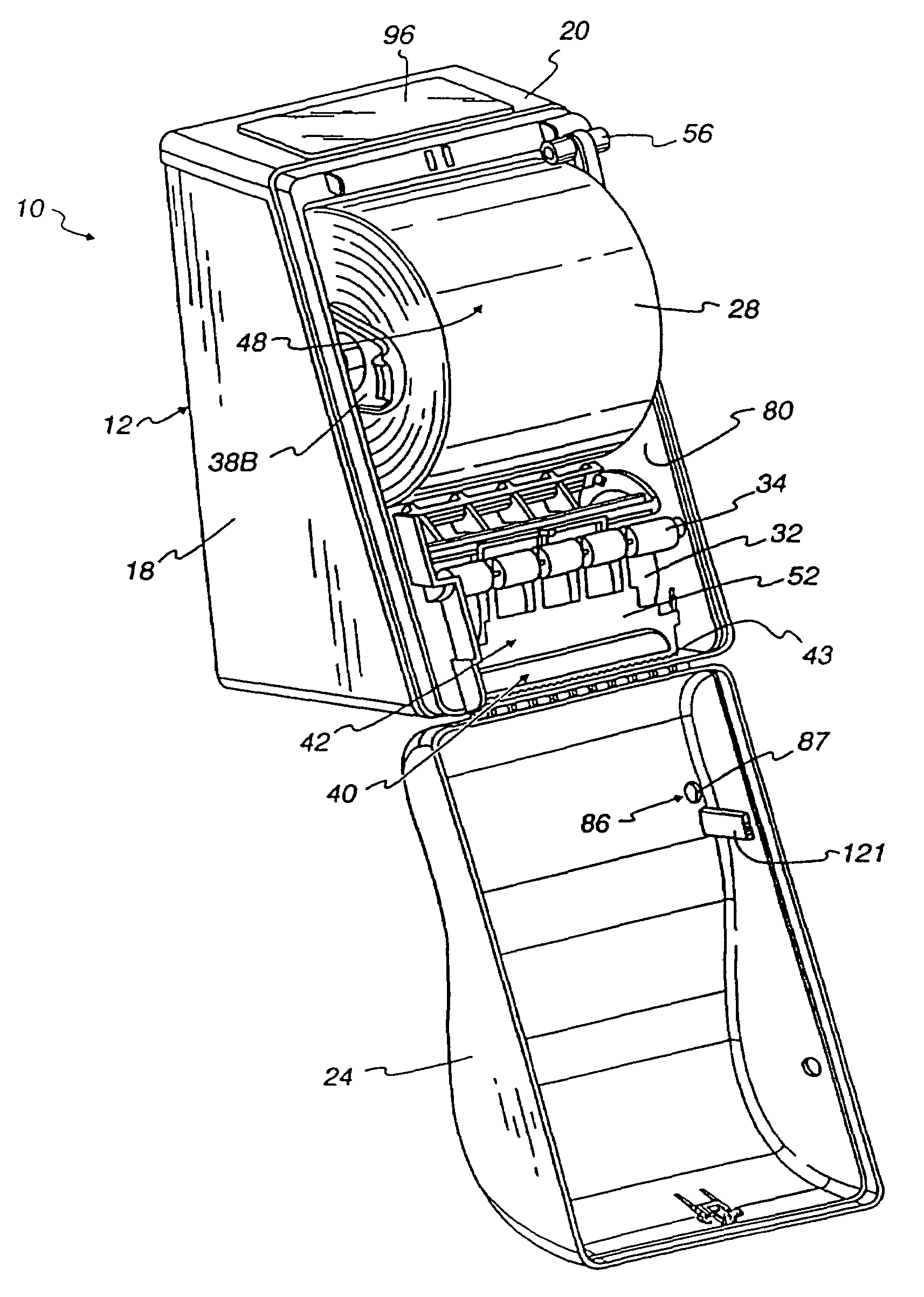

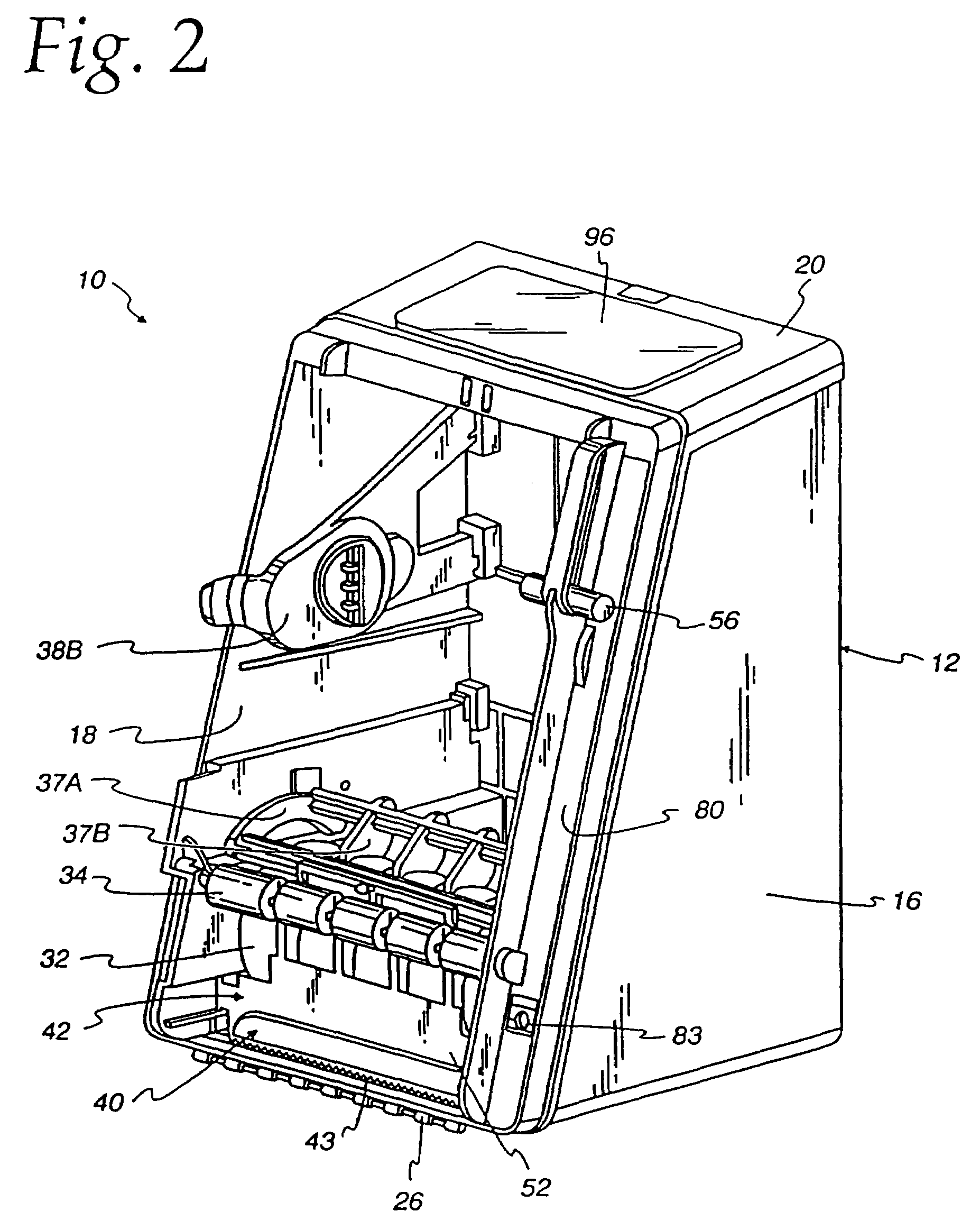

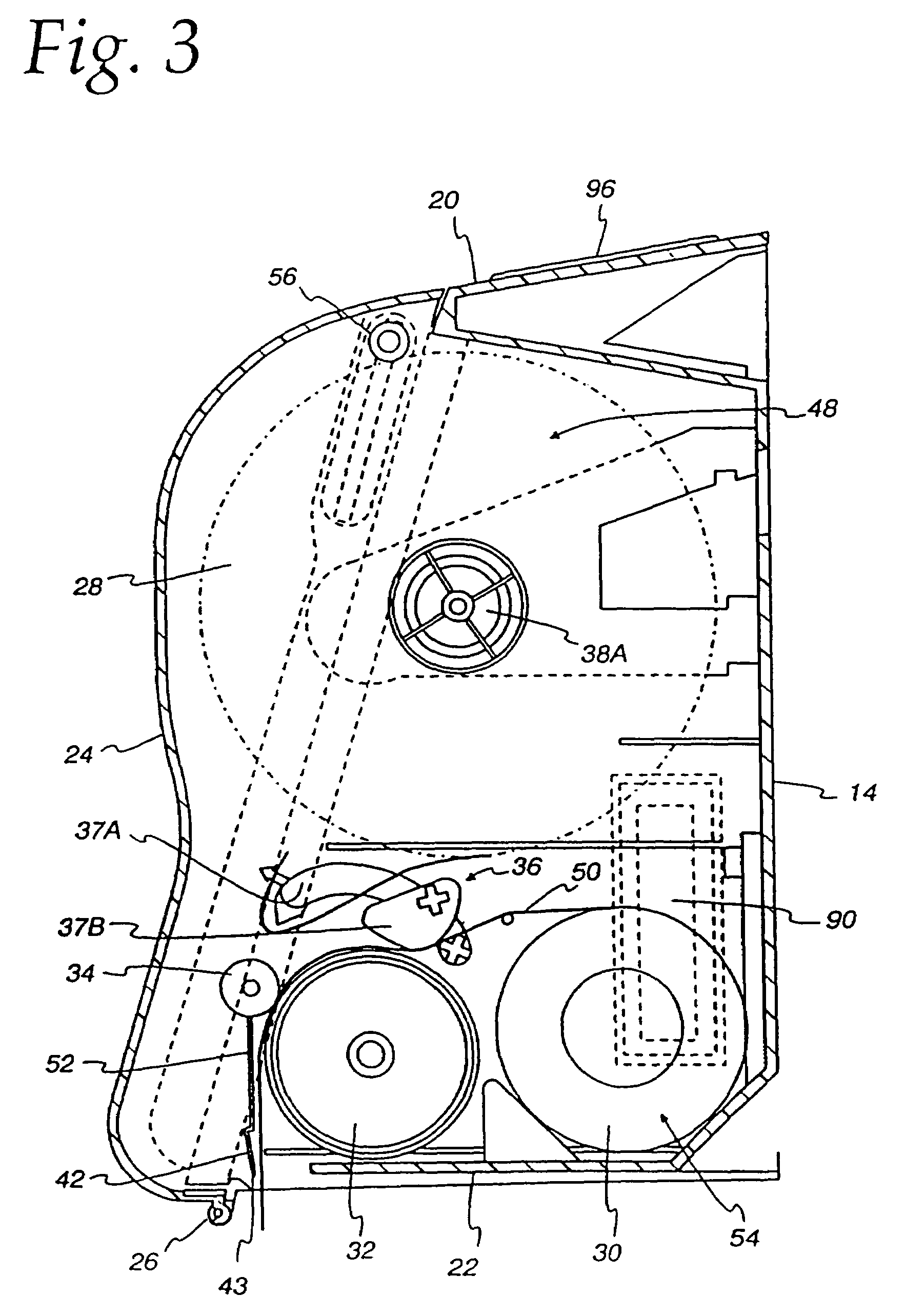

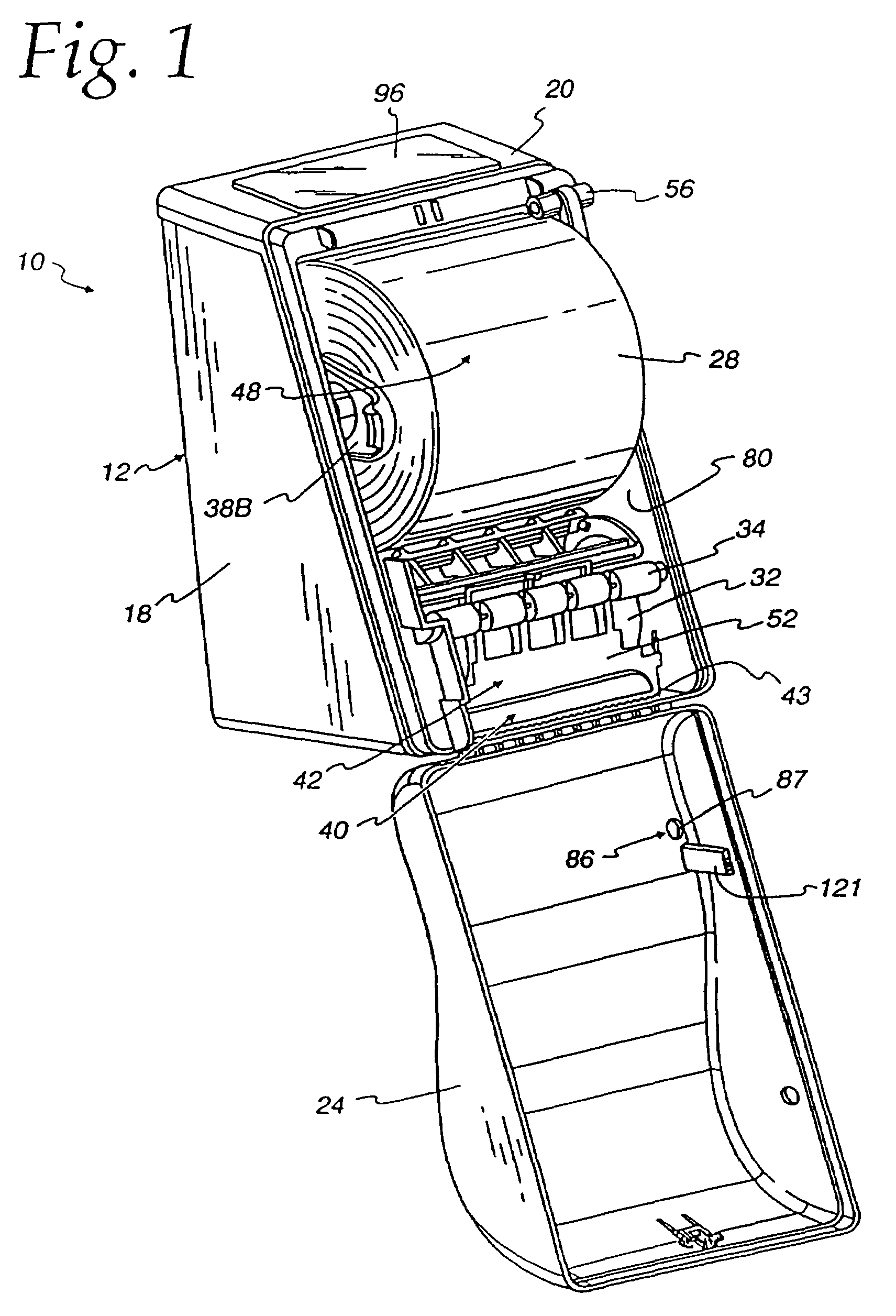

专利附图（8）
