来源记录显示 Expired
毛巾用两部分磁性扣件
Two-part magnetic closure for a towel
US-7322068-B1用于固定毛巾,便于穿戴或悬挂,通过磁力连接。
专利摘要
一种用于毛巾的两部分磁性扣件,第一部分包括毛巾和在一端缝制到毛巾上的双层材料带,以及在材料带相对端的双层材料之间固定的磁性圆盘。扣件的第二部分包括固定到第二双层材料带一端的夹扣。另一相反极性的磁性圆盘固定在第二双层材料带之间。该对材料带提供平面,用于毛巾相对于夹扣的旋转和滑动连接及运动。
Original abstractA two part magnetic closure for a towel has a first part including a towel and a double thickness strip of material sewn to the towel at one end and a magnetic disk secured between the double thickness strip of material at the opposing end of the strip. A second part of the closure includes a clasp secured to one end of a second double thickness strip of material. Another magnetic disk of opposite polarity is secured between the second double thickness strip of material. The pair of strips of material provides planar surfaces for rotational and slidable connection and movement of the towel relative to the clasp.

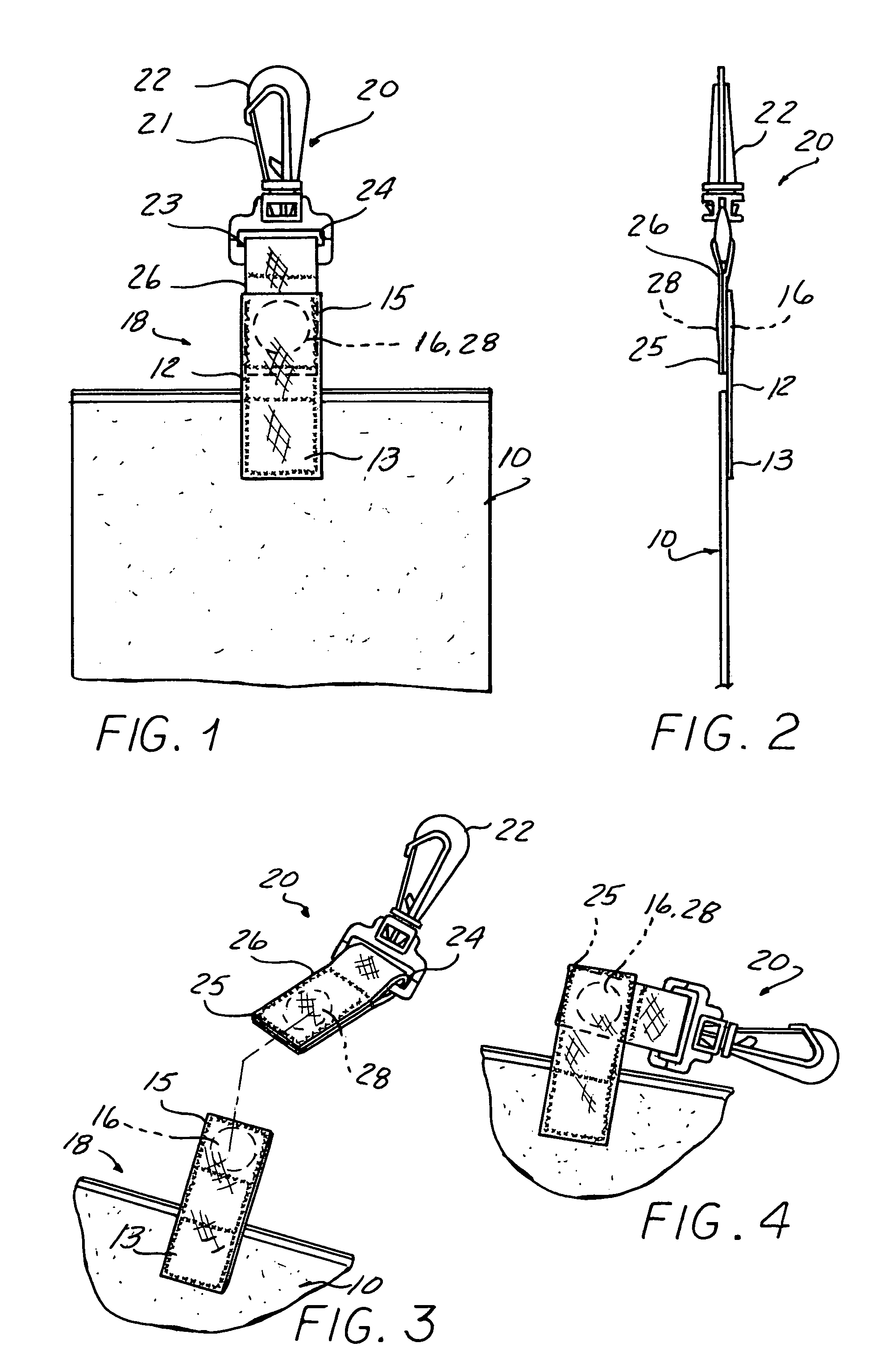

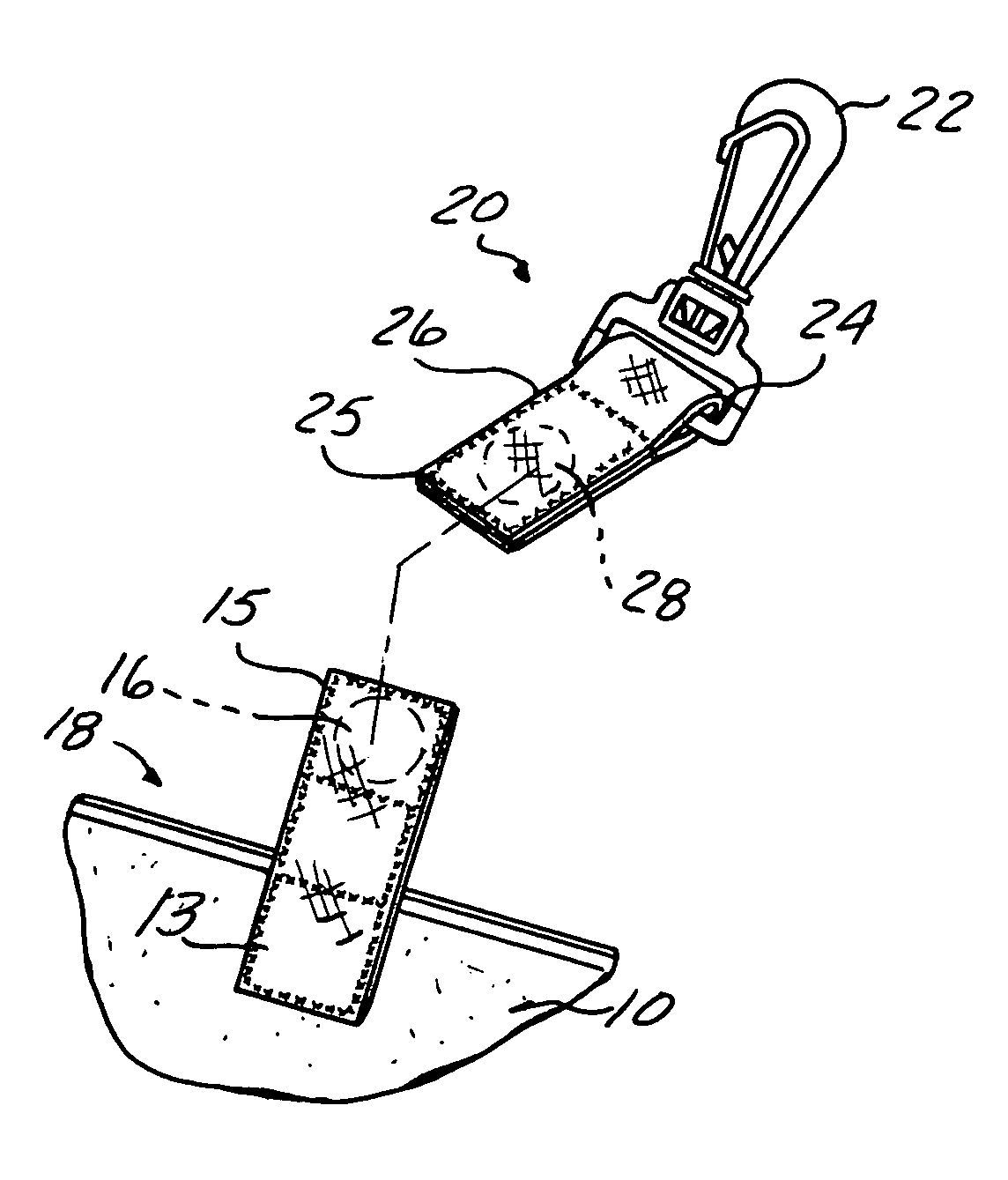

专利附图(4)




来源状态与事件
暂无可展示的状态事件记录。
