来源记录显示 Expired
轮式行李上辅助包的支撑装置
Support for secondary bag on wheeled luggage
US-7318507-B2用于在拉杆箱上稳定放置辅助包。
专利摘要

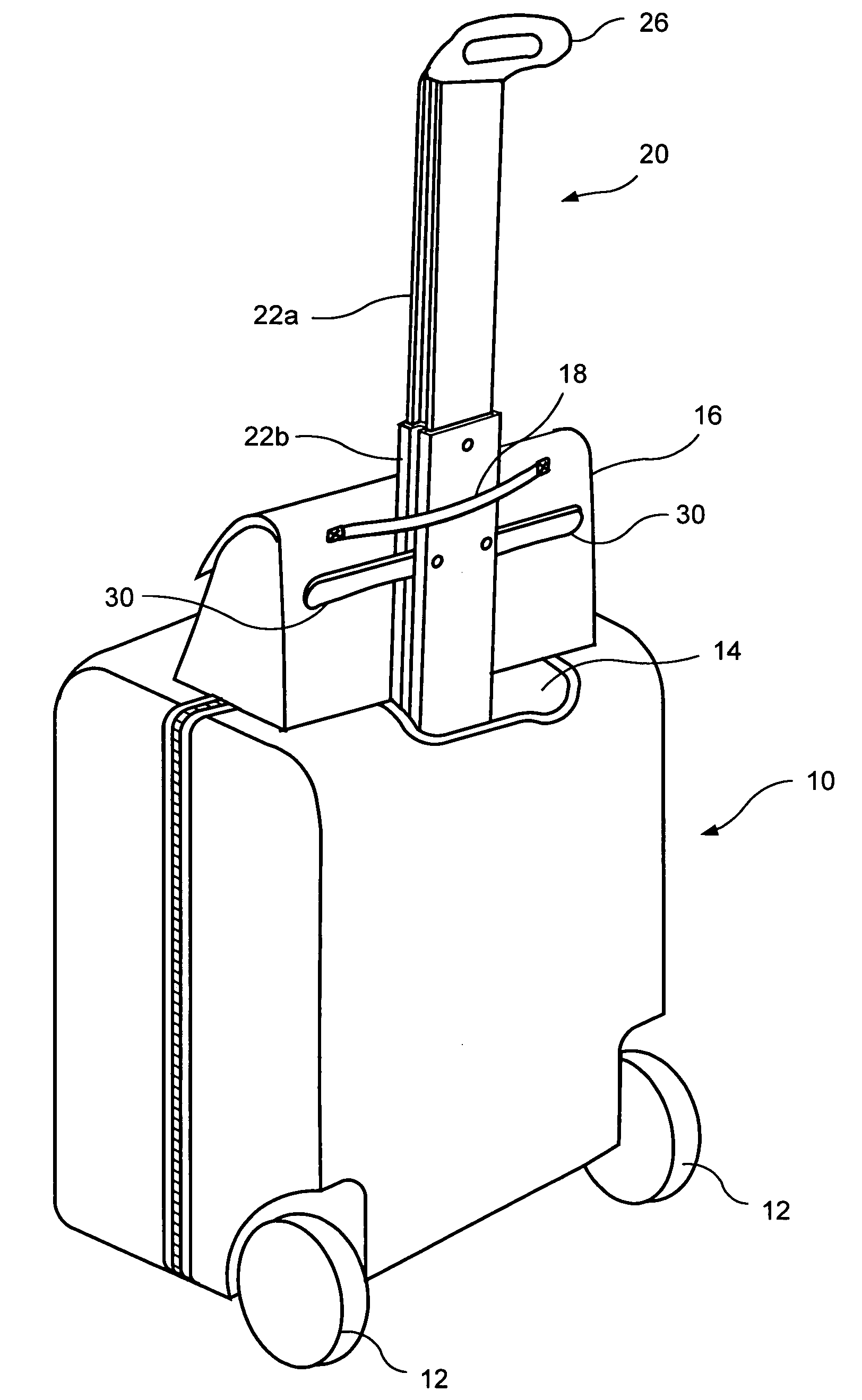

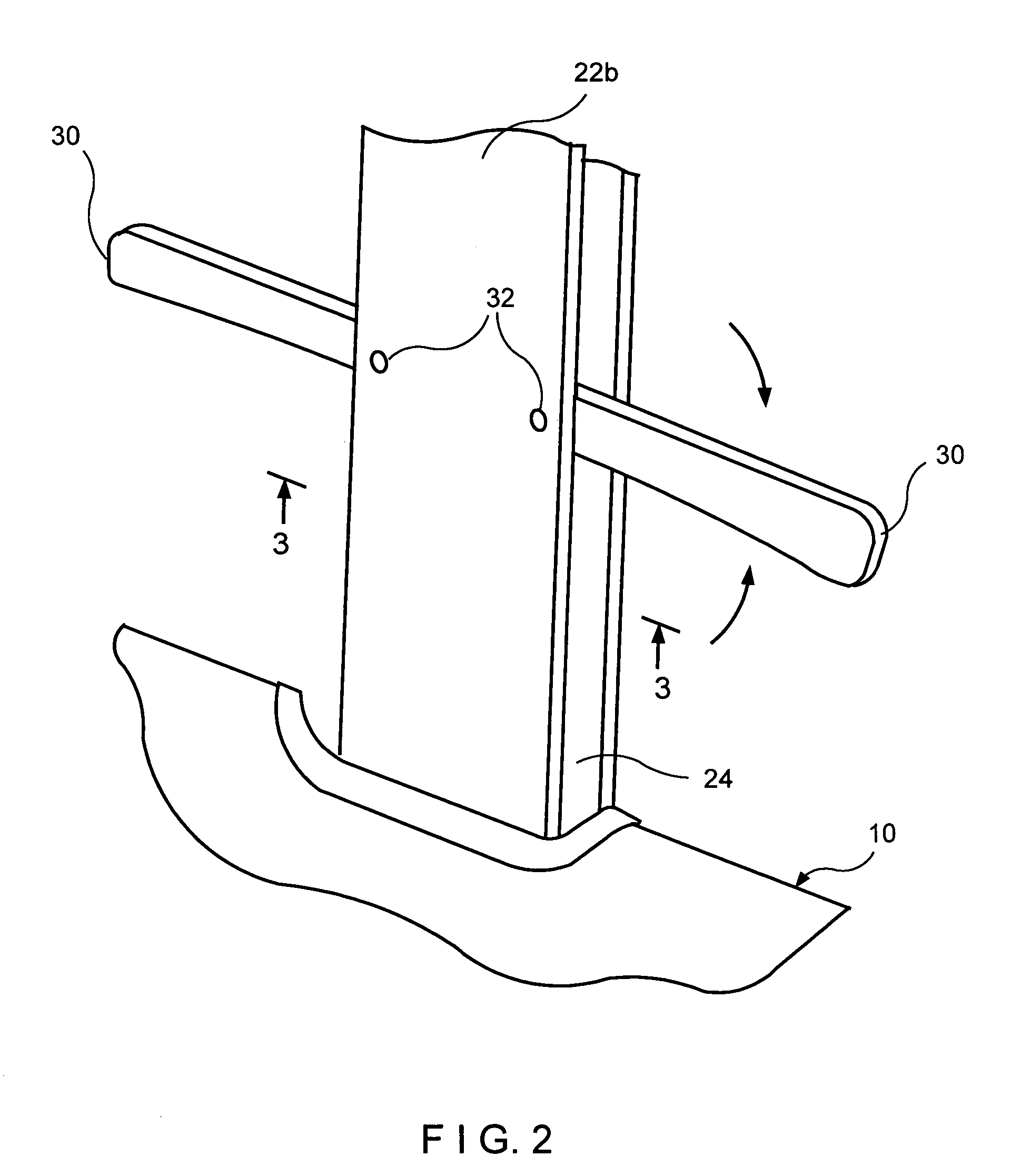

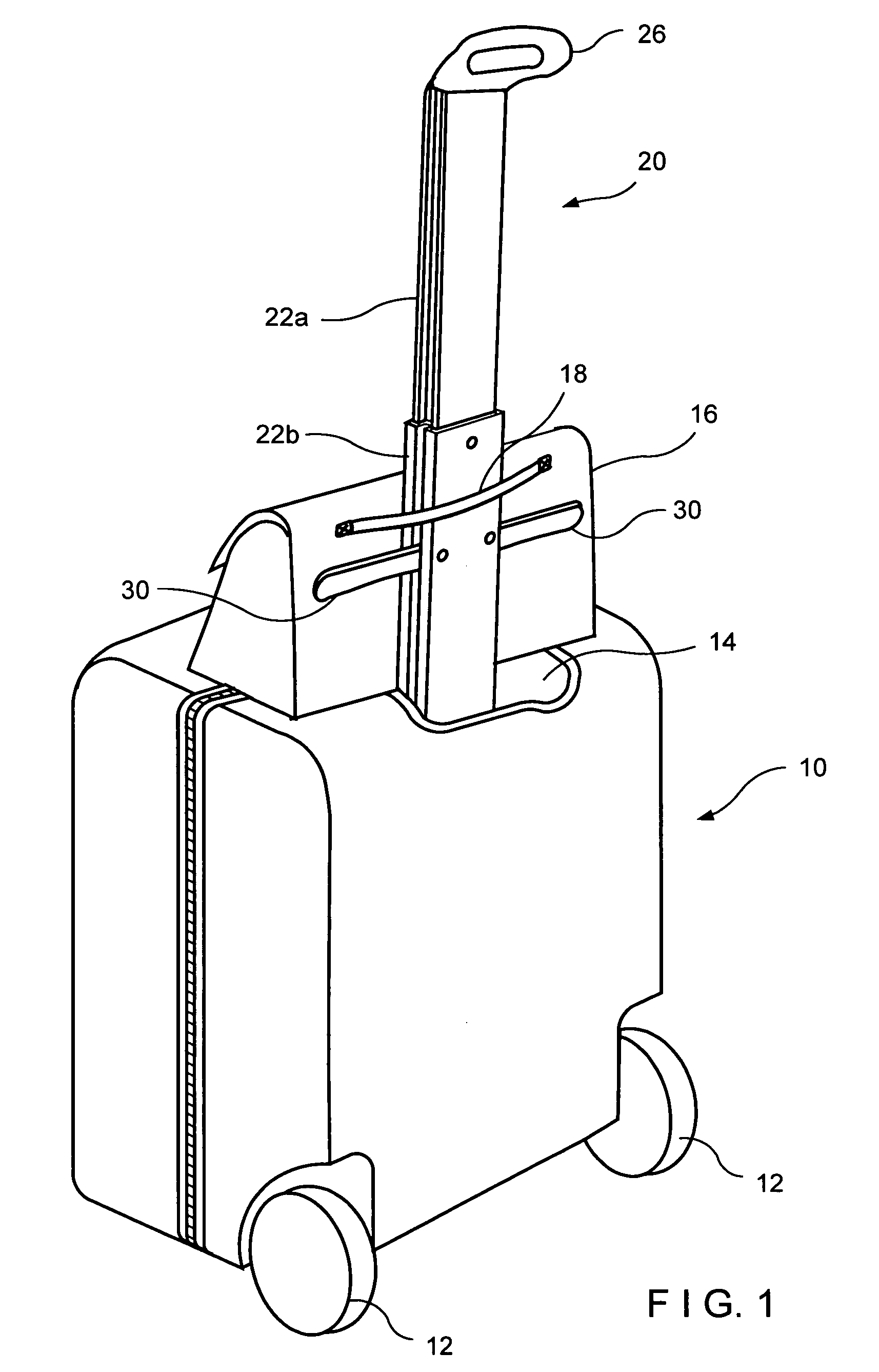

一种用于轮式行李箱上携带的辅助包的稳定装置，其附接到箱包的可伸缩手柄组件。手柄组件具有单个伸缩管以及一个或多个稳定臂，所述稳定臂可枢转地安装在伸缩管的外部区段上。当手柄组件从箱包中拉出时，稳定臂枢转到水平位置。当手柄缩回箱包时，臂枢转到与管区段平行的位置。在另一实施例中，固定在管外部区段上的套环承载一对L形构件，每个构件具有向下延伸且平行于管区段的腿。套环和L形臂随外部管区段移入和移出箱包。
Original abstractStabilizing means for a secondary bag carried on a wheeled luggage case is attached to the telescoping handle assembly of the case. The handle assembly has a single telescoping tube and a stabilizing arm or arms pivotally mounted on the outer section of the telescoping tube. When the handle assembly is withdrawn from the case, the stabilizing arm or arms are pivoted to a horizontal position. On retraction of the handle into the case, the arm or arms are pivoted to a position parallel to the tube section. In another embodiment, collar affixed to the outer section of the tube carries a pair of L-shape members, each with a leg extending downwardly and parallel to the tube section. The collar and L-shaped arms move with the outer tube section into and out of the luggage case.
专利附图（8）
