具有快速联接扣组件的自排空袋，特别是用于肩带

Self-emptying bag having a quick coupling buckle assembly, in particular for shoulder-strap

US-7300206-B2

用于肩带袋，可快速排空袋内物品。

专利摘要

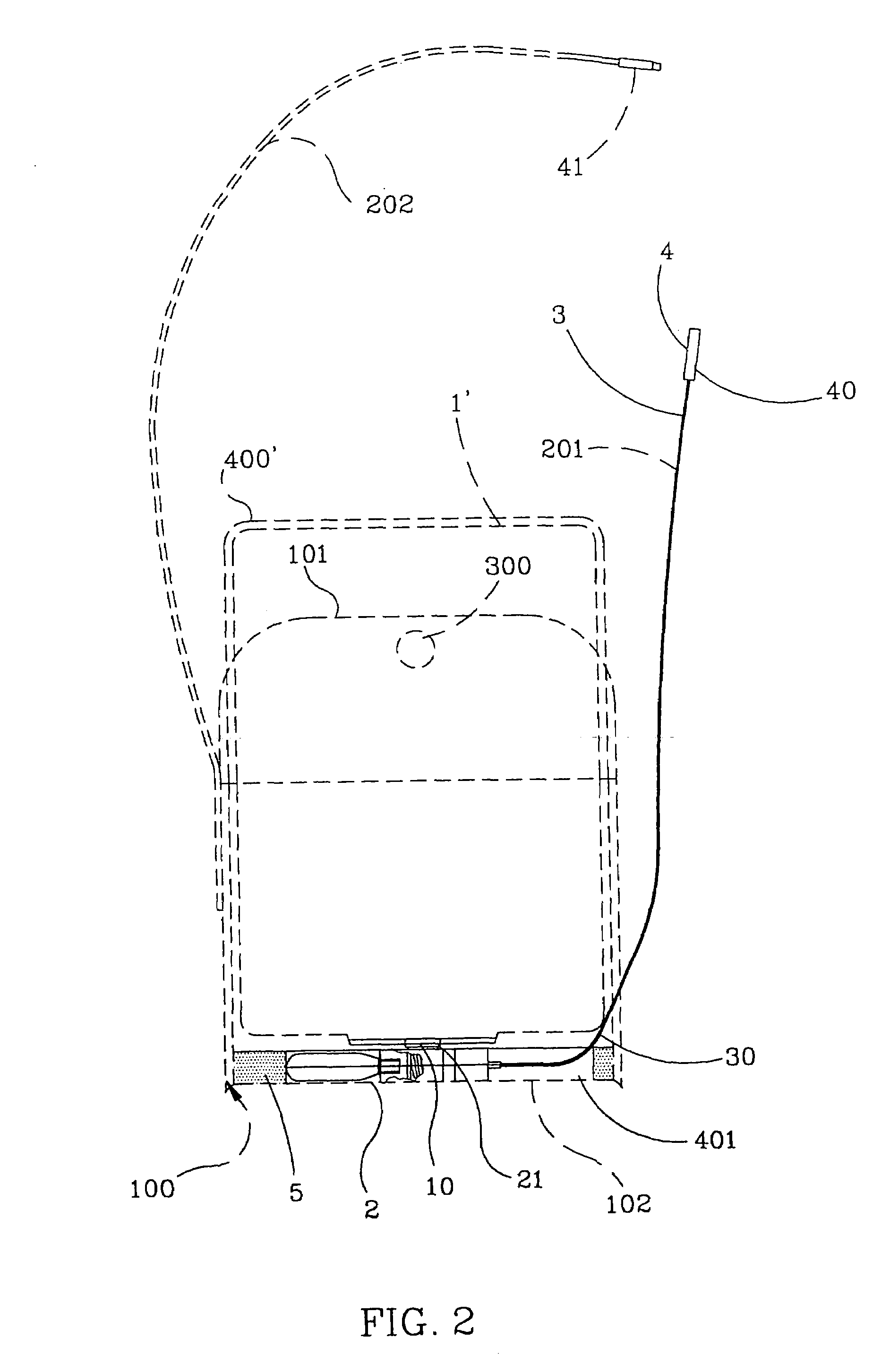

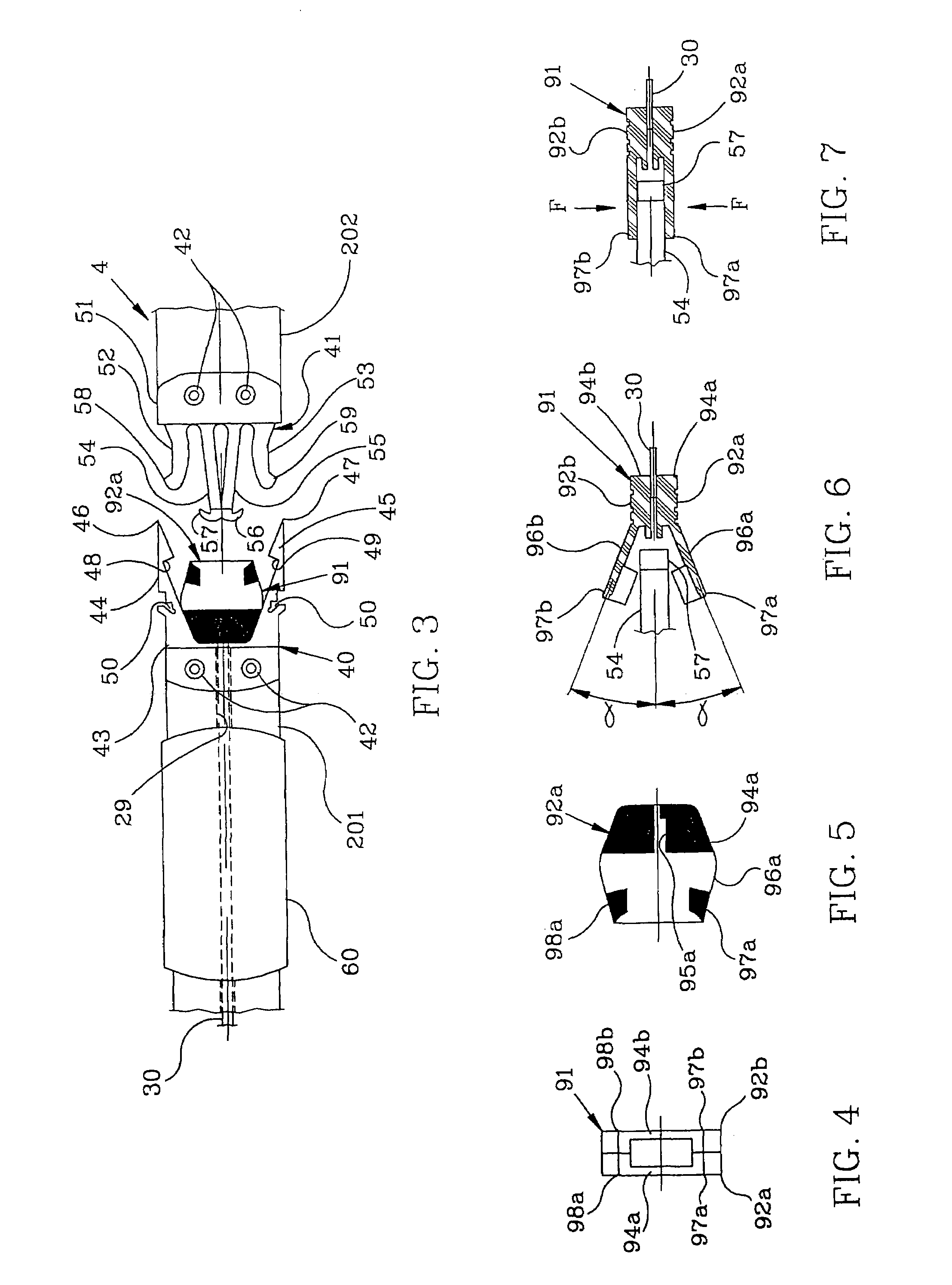

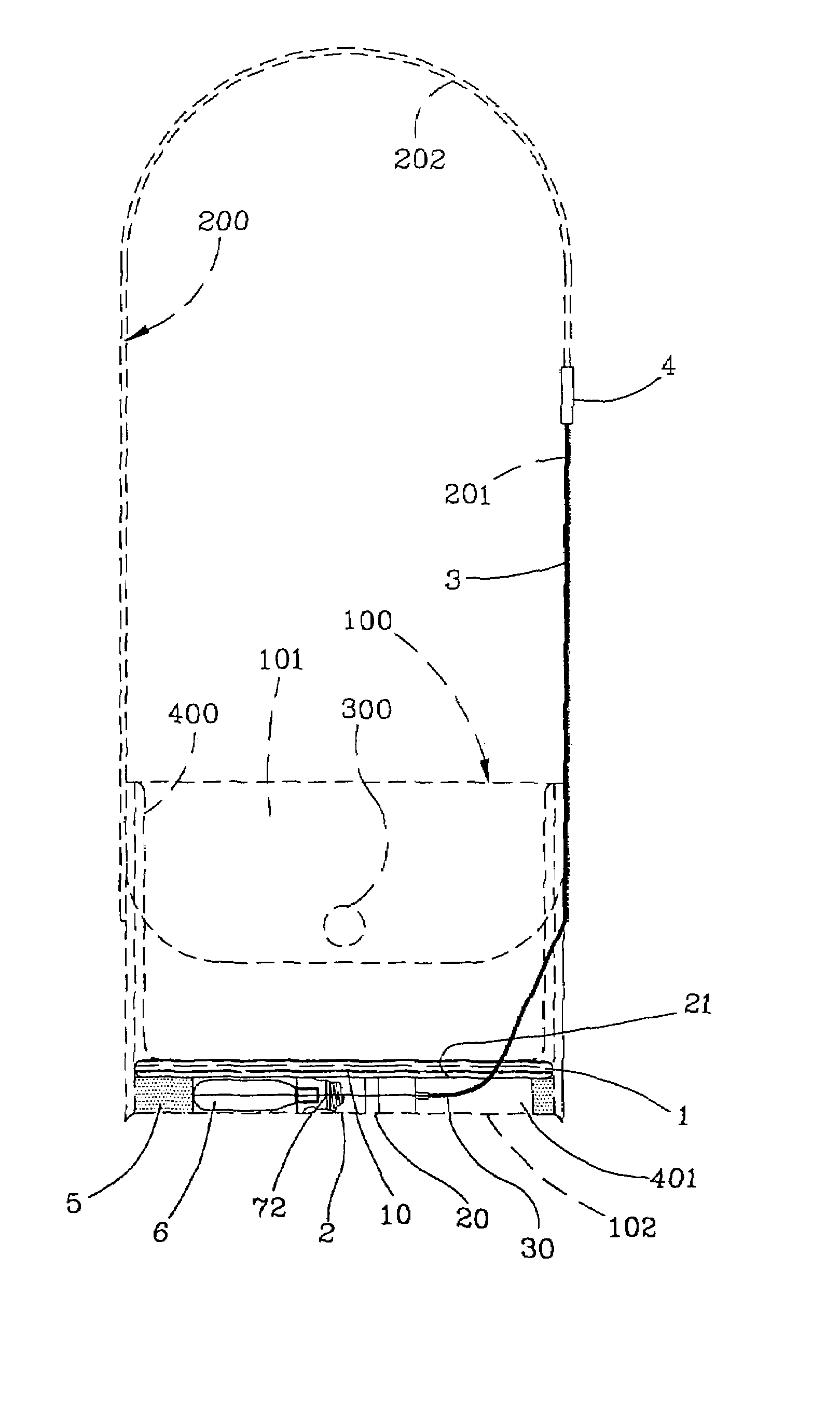

一种具有快速联接扣组件的自排空袋，特别是用于肩带，其具有由两个部分（40、41）组成的扣组件（4），这两个部分分别固定到袋的肩带（200）的两个区段（201、202）上，使得通过柔性传动装置（30）对袋的猛拉操作释放机构，并使可膨胀囊充气以将袋内物品向外倒出。柔性传动装置（30）连接到能够在扣组件（4）的第一部分（40）内部移动的联接构件（91）。扣的两个部分形成为使得首先第二部分（41）能够从第一部分（40）拆卸，然后在已经对联接构件（91）施加牵引力之后，第二部分（41）能够从联接构件（91）拆卸。

Original abstractA self-emptying bag having a quick coupling buckle assembly, in particular for shoulder-strap, has a buckle assembly ( 4 ) comprised of two parts ( 40, 41 ) that are respectively fixed to two sections ( 201, 202 ) of a shoulder-strap ( 200 ) of a bag so that a snatch on the bag, through the flexible transmission ( 30 ), operates the release mechanism and causes the expandable sack to be inflated to upset outside the contents in the bag. Flexible transmission ( 30 ) is connected to a coupling member ( 91 ) movable inside the first part ( 40 ) of the buckle assembly ( 4 ). The two parts of buckle are formed in such a way that first the second part ( 41 ) can be detached from the first part ( 40 ), and then the second part ( 41 ) can be detached from the coupling member ( 91 ) after a traction has been exerted on the coupling member ( 91 ).

专利附图（8）
