用于加热卷发器并保温，方便卷绕头发定型。
专利摘要

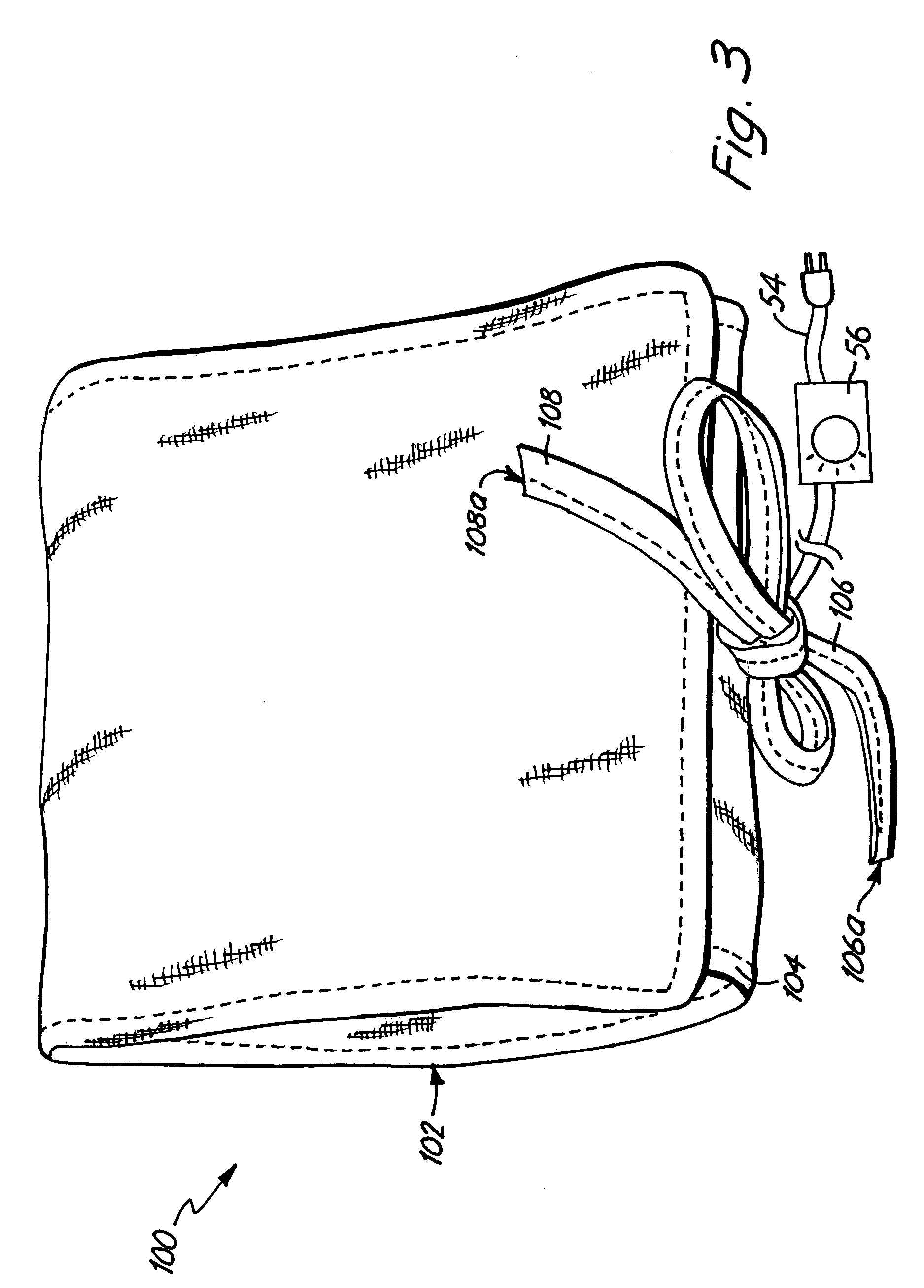

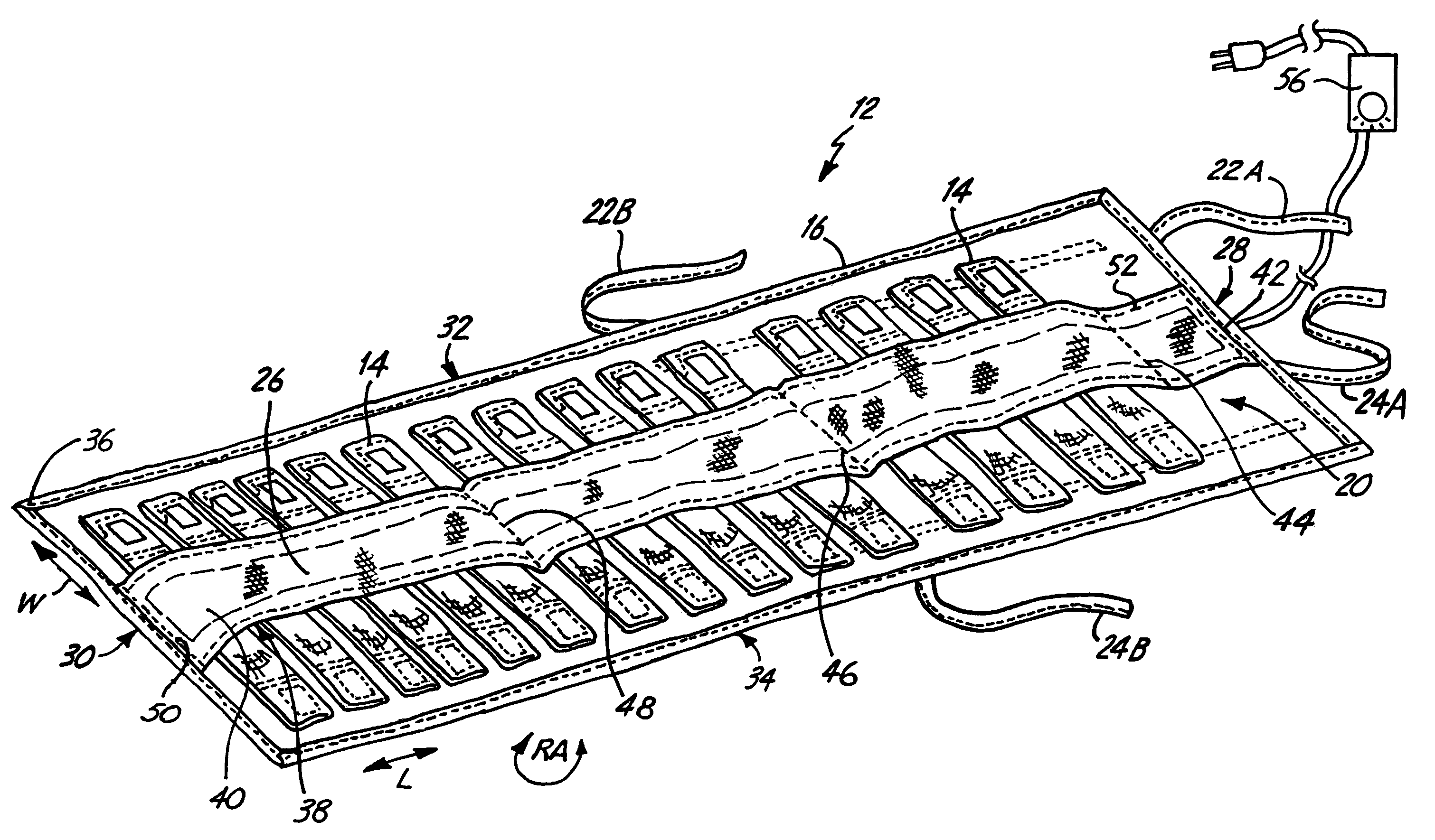

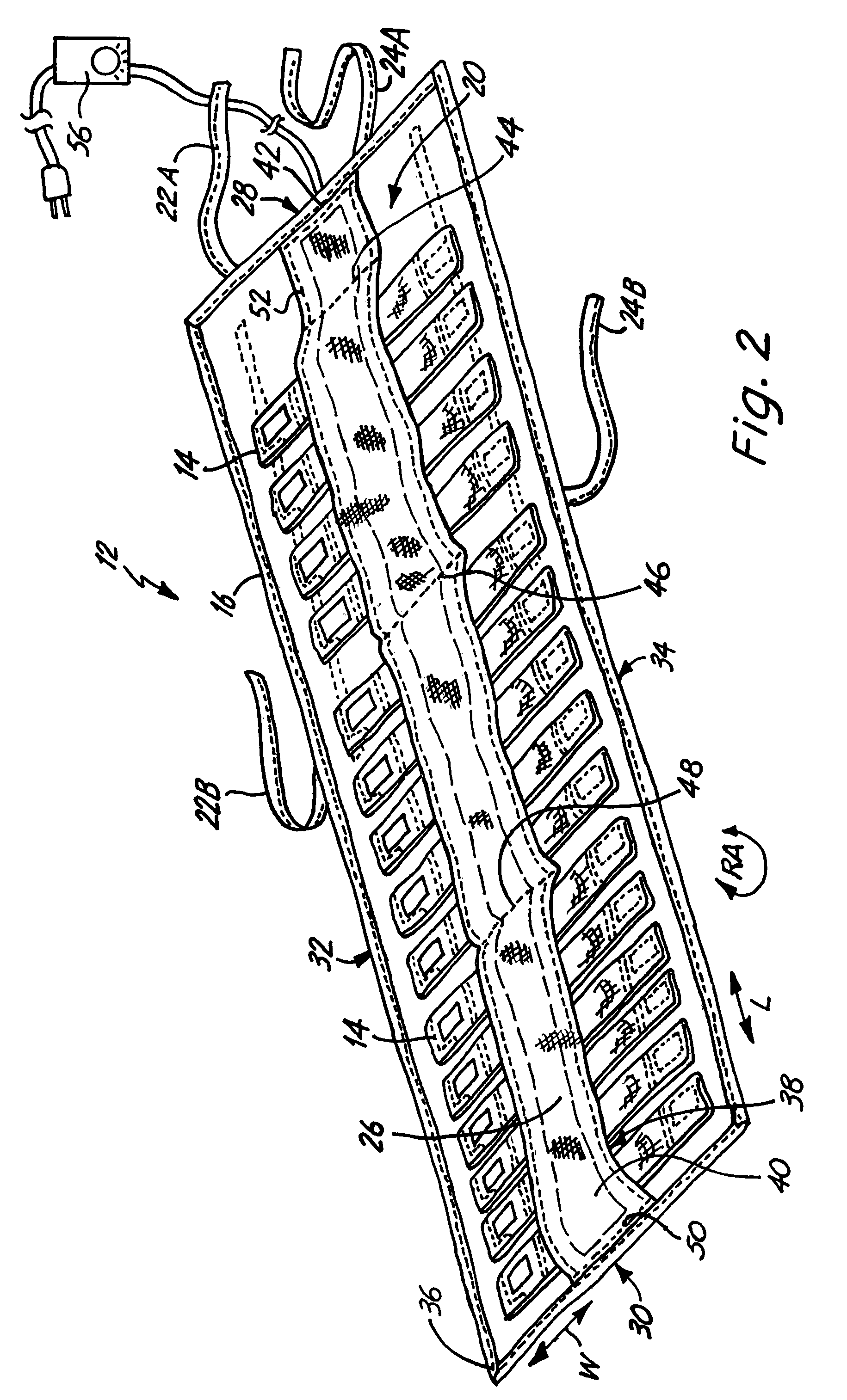

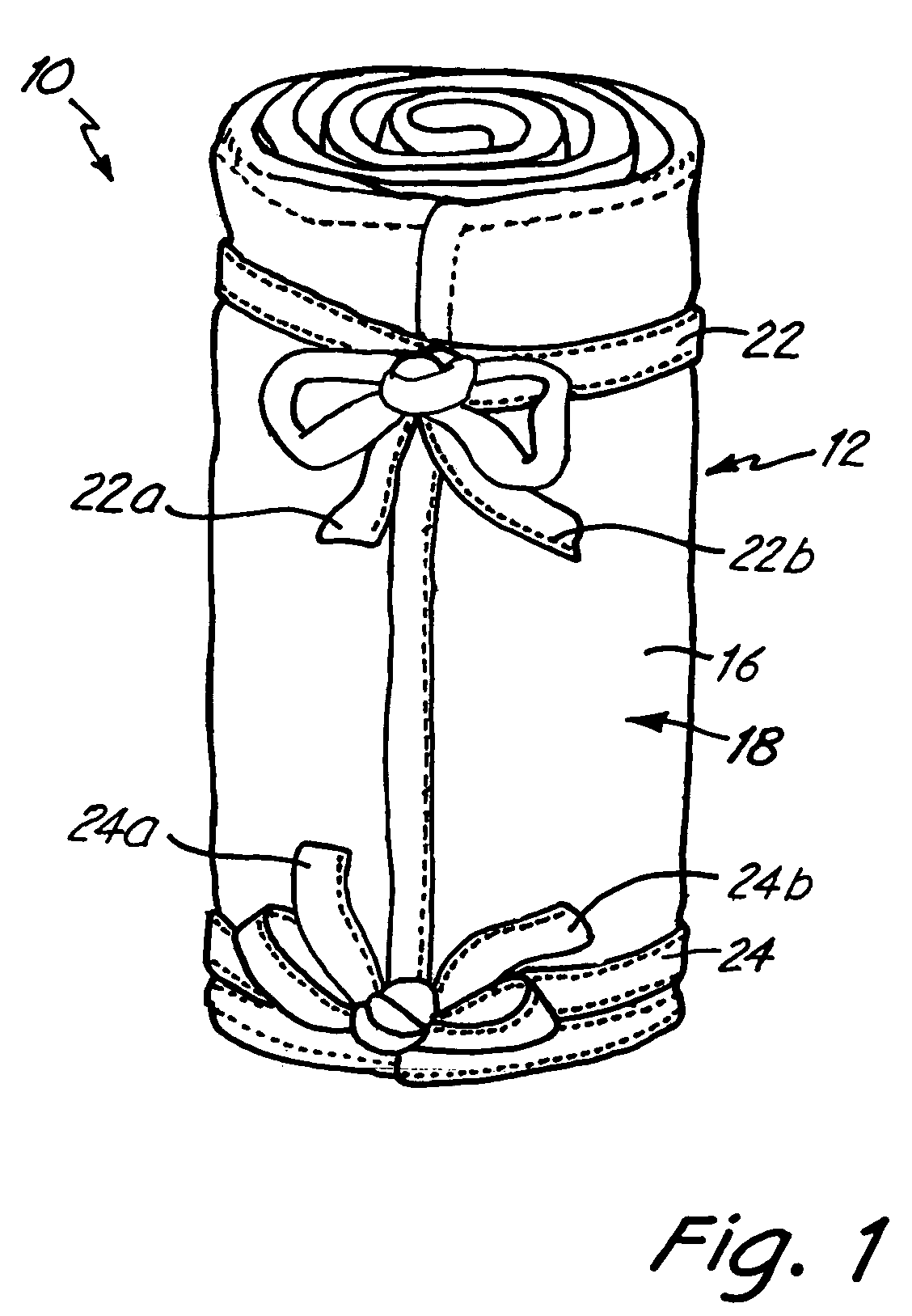

一种可加热的卷发装置，包括多个用于卷绕人类头发的卷发器以及一个隔热载体，用于保持卷发器并在单个卷发器使用前使卷发器隔热以防止热量损失。每个卷发器包括由柔性材料制成的细长外壳，其具有可相互连接的第一端和第二端、一个主体以及一个轴向长度。每个卷发器的主体内含有吸热材料。隔热载体具有一个长度，并包括由柔性耐热材料制成的内部件和外部件。柔性耐热材料的内部件连接至柔性耐热材料的外部件。中心带沿载体的内部件的长度设置，并包括由柔性耐热材料制成的下部件和上部件。加热元件容纳在载体的柔性耐热材料内部件和外部件之间以及中心带的柔性耐热材料下部件和上部件之间。
Original abstractA heatable hair curling device includes a plurality of hair curlers for winding up human hair and a thermally insulating carrier for retaining the curlers and insulating the curlers from heat loss prior to individual curler use. Each curler includes an elongate casing of flexible material having opposite first and second ends attachable to each other, a body, and an axial length. A heat absorbent material is contained within the body of each curler. The thermally insulating carrier has a length and includes an interior and an exterior piece of flexible heat-safe material. The interior piece of flexible heat-safe material is attached to the exterior piece of flexible heat-safe material. A center strap is disposed along the length of the interior piece the carrier and includes a lower and an upper piece of flexible heat-safe material. A heating element is contained between the interior and exterior pieces of flexible heat-safe material of the carrier and between the lower and upper pieces of flexible heat-safe material of the center strap.
