带工作区的文件夹

Padfolio with work area

US-7281877-B1

用于组织办公用品并支撑PDA和时钟的文件夹。

专利摘要

本发明提供一种文件夹、公文夹或其他可折叠办公配件,其组织有三个铰接页(包括两个主页和一个在闭合时折叠覆盖主页的覆盖页),可展开平放以露出整体内部的各种内部元件。这些元件被组织成:记事本设置在中页,而一个相对的侧页包括凸起的时钟底座,该底座具有凹槽或凹陷用于固定带折叠支架的时钟,该支架可从平放位置升高到倾斜的站立位置。一个主页还包括可拆卸地支撑个人数字助理(PDA)的支撑底座,该PDA通常平靠在该页上固定,但可向上铰接成至少一个可调节的倾斜位置,从而使PDA倾斜以便在文件夹的另一区域(如记事本)工作时更容易观看。以此方式,它更易接近和使用。在折叠页时,时钟和PDA均可固定在平放方向以便紧凑存放。这些页可包括各种用于携带文件、物品和办公配件的口袋和套筒。在示例性实施例中,最左侧主页可包括PDA的口袋,中页可包括记事本,覆盖页包括时钟。

Original abstractThis invention provides a padfolio, portfolio or other foldable business accessory that is organized with three hinged leaves (including two main leaves and one overriding leaf that folds over the main leaves when closed together) that may be unfolded and laid flat to expose various internal elements within an overall interior. The elements are organized so that a notepad is provided in a center leaf, while one of the opposing side leaves include a raised clock base having a well or recess for securing a clock having a folding stand that can be raised into an angled, standing position from a flat position. One main leaf also includes a support base that removably supports a personal digital assistant (PDA), that is normally secured flat against the leaf, but that can be hinged upwardly into at least one adjustable angled position whereby the PDA is tilted for easier viewing whilst working in another area of the padfolio, such as the notepad. In this manner, it is more accessible and easier to use. During folding of the leaves, both the clock and the PDA can be secured in a flat orientation for compact storage. The leaves can include, variously, a series of pockets and sleeves for carrying documents, effects and business accessories. In an illustrative embodiment, the a leftmost main leaf can include the pockets the PDA, the center leaf can include the notepad and the overriding leaf includes the clock.

专利附图(8)

US-7281877-B1 figure 1
1

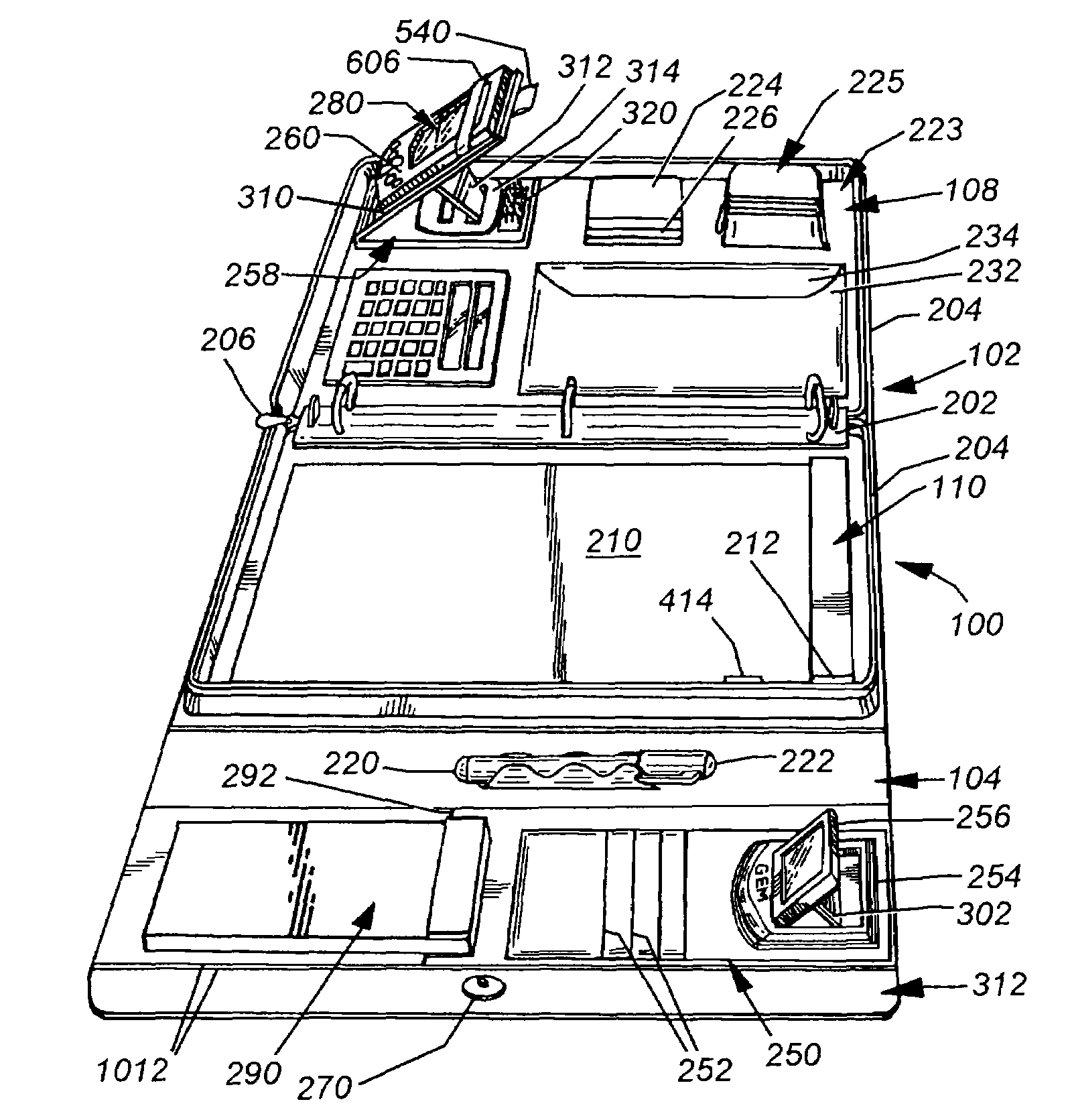

US-7281877-B1 figure 2
2
US-7281877-B1 figure 3
3

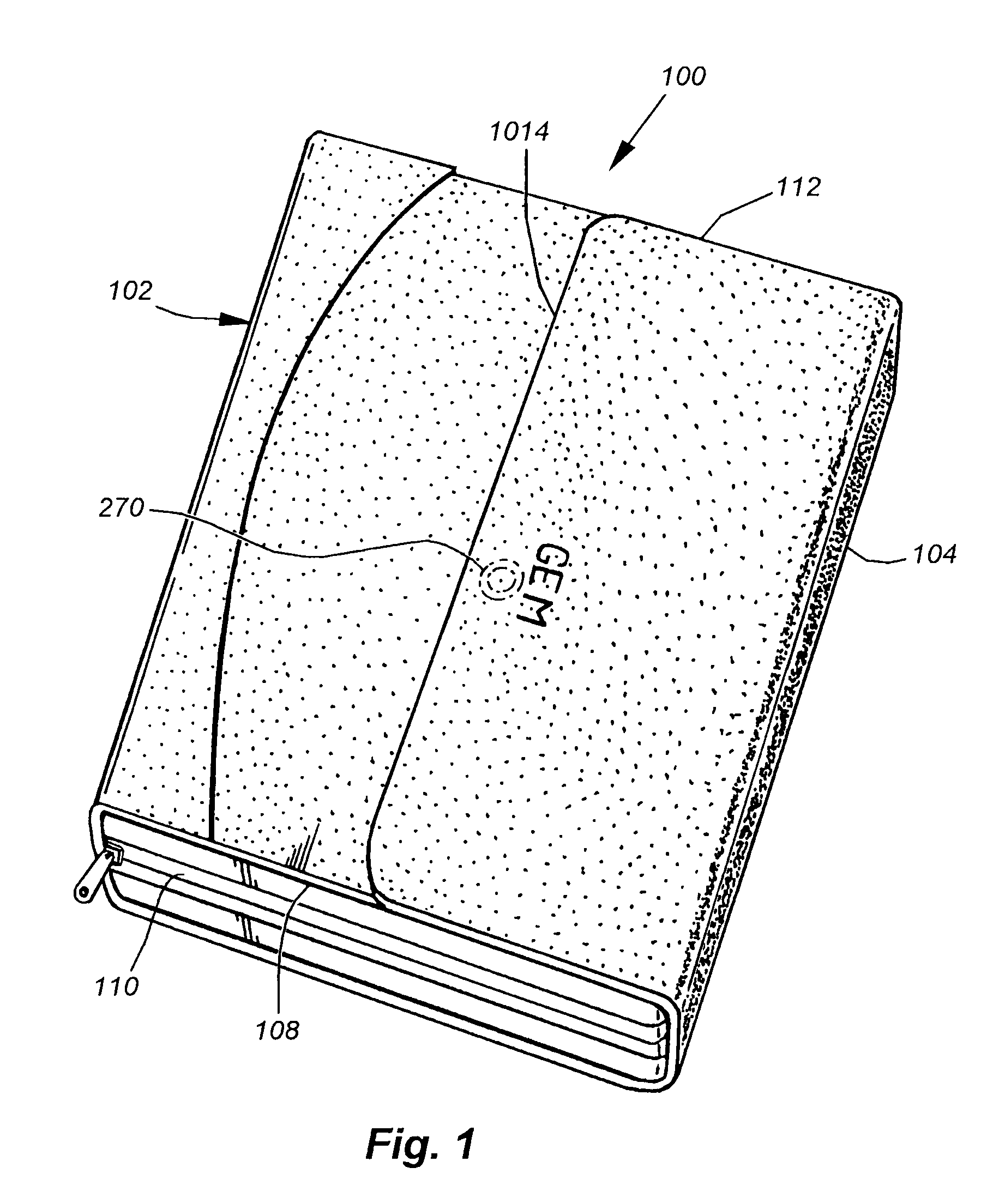

US-7281877-B1 figure 4
4
US-7281877-B1 figure 5
5

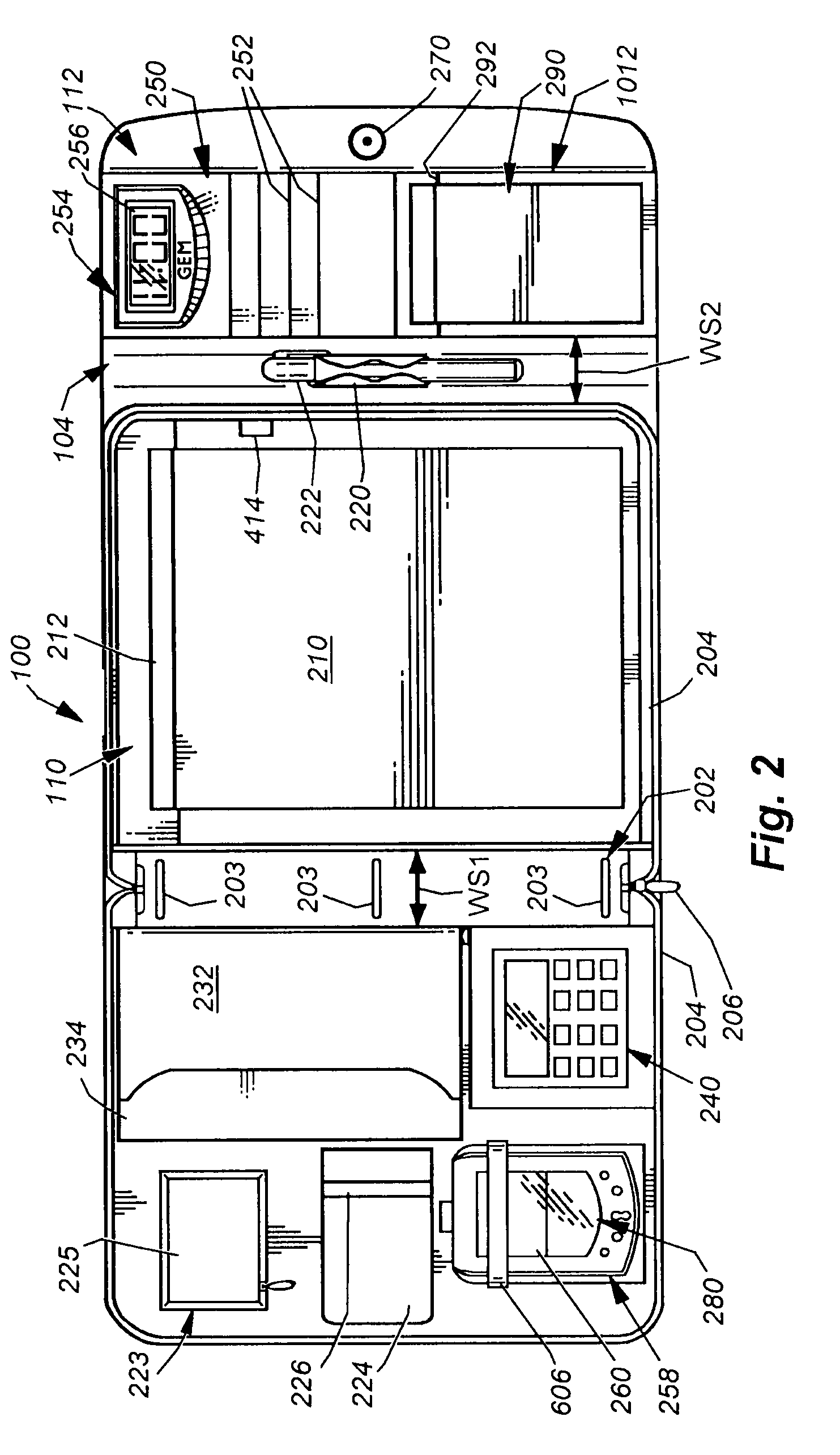

US-7281877-B1 figure 6
6
US-7281877-B1 figure 7
7

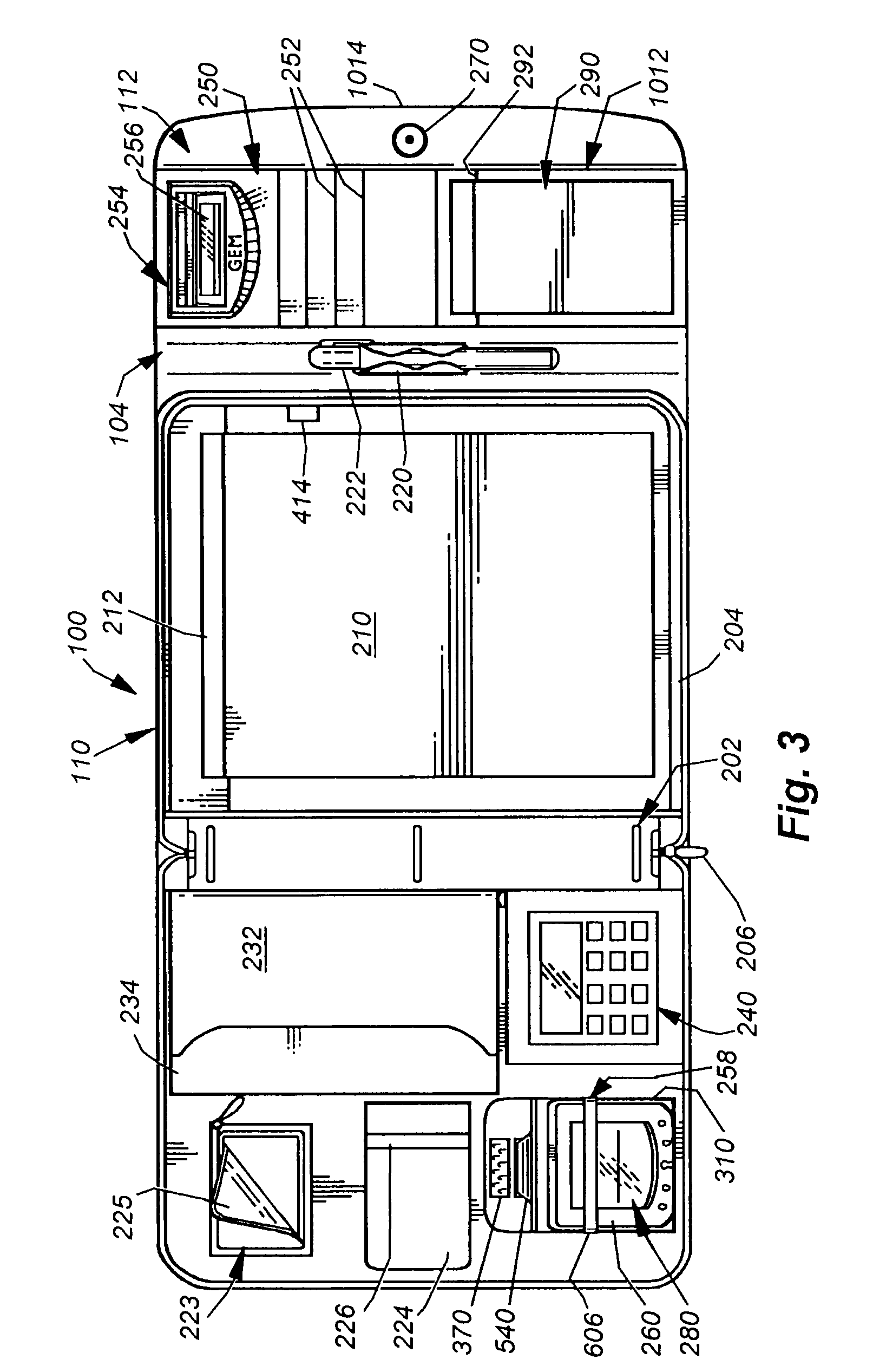

US-7281877-B1 figure 8
8
