具有枢转握柄的行李手柄系统

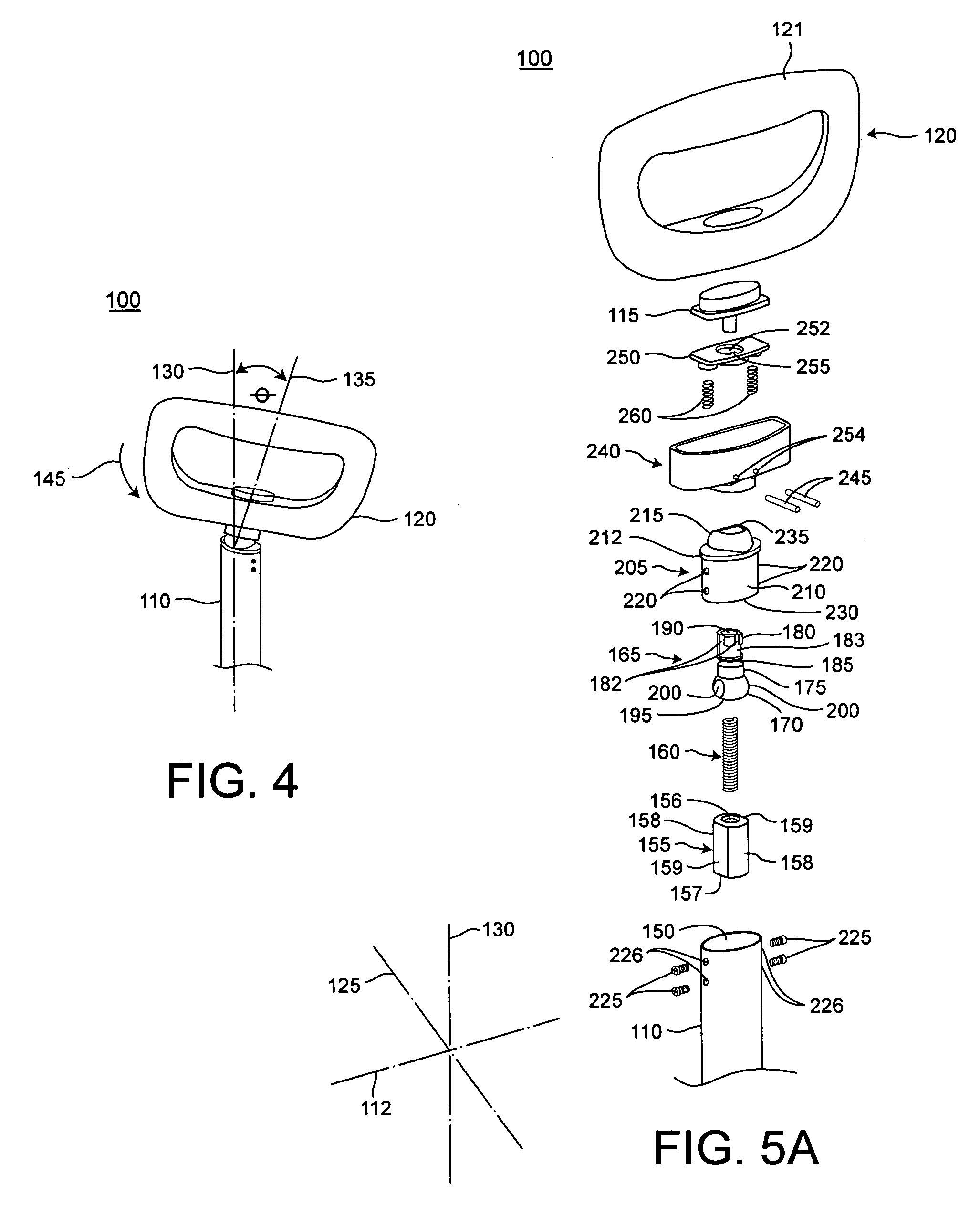

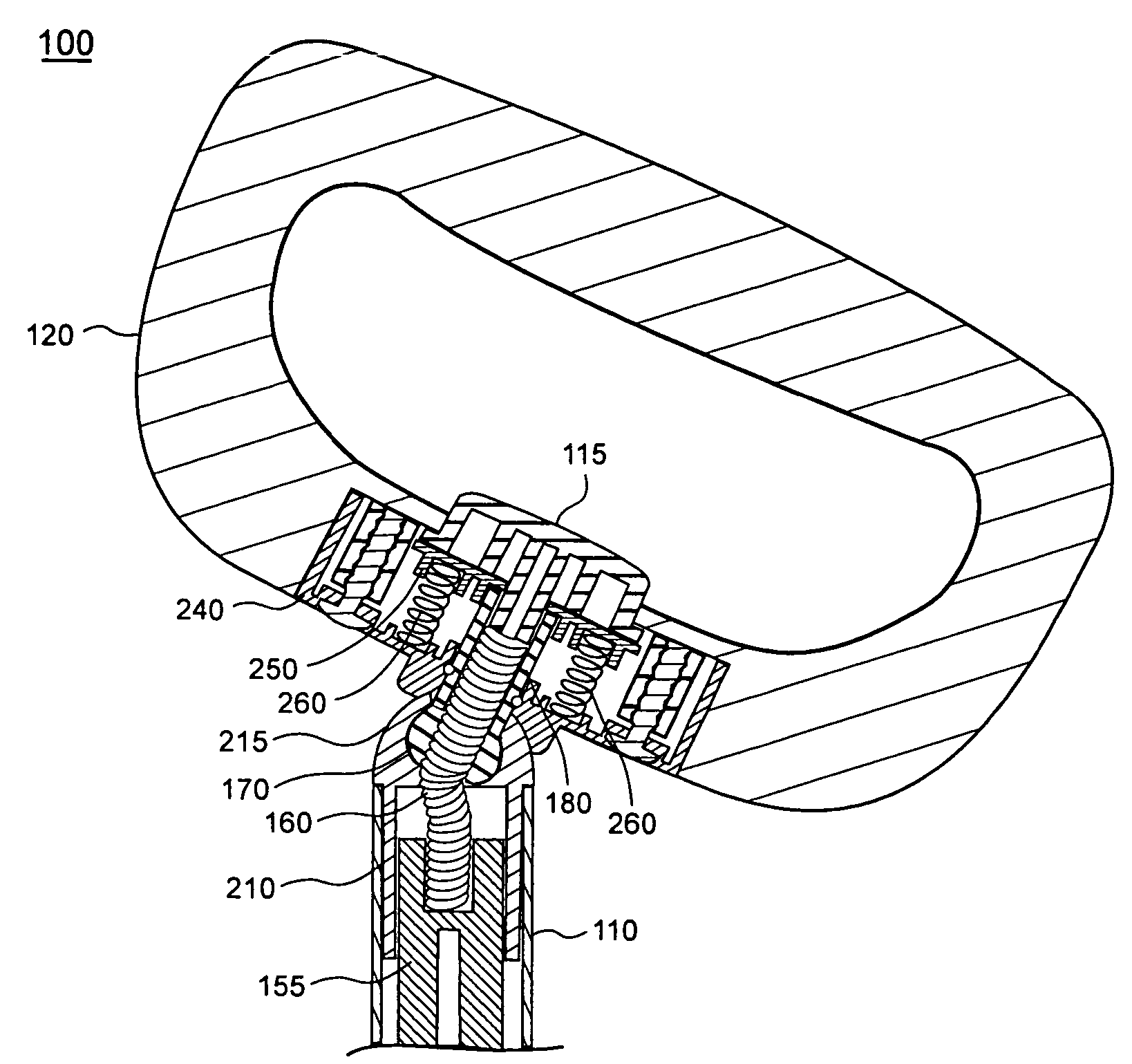

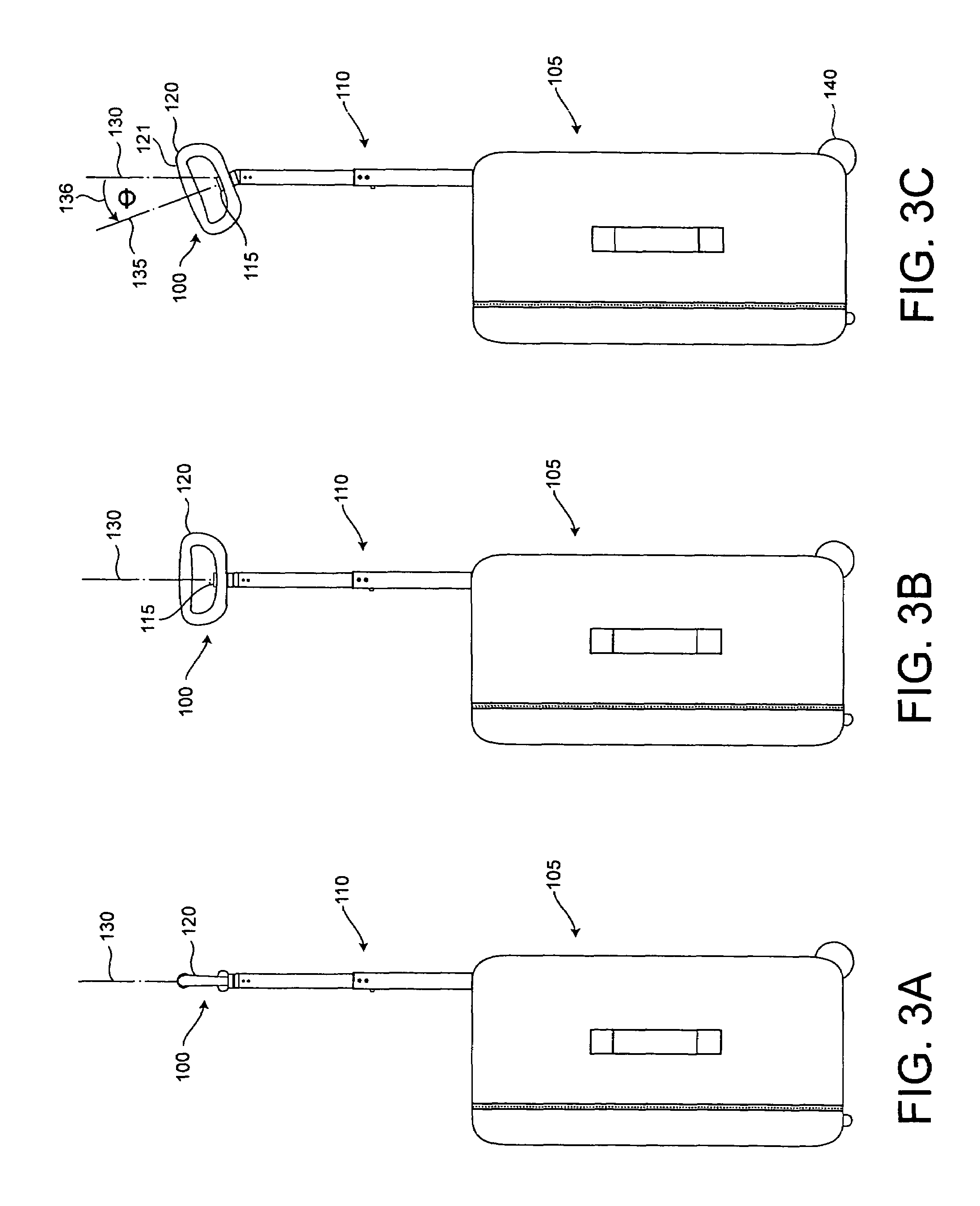

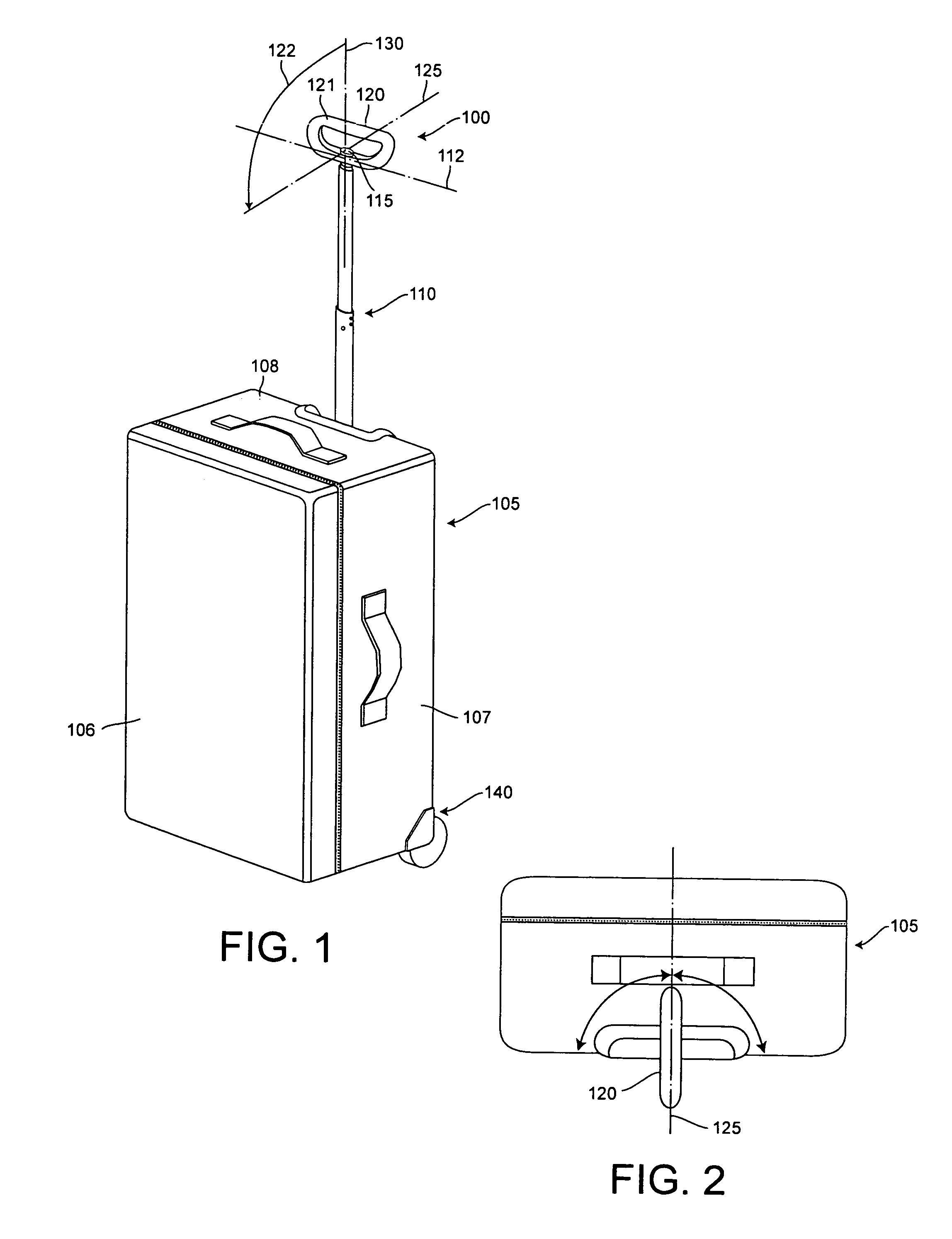

Original abstractA handle system for a rolling luggage case can include a luggage case in which one or more articles can be stored and having a top, bottom, front, and back panels, and a pair of sidewalls. The luggage case can include a wheel assembly provided at a location on the bottom panel and adjacent to the back panel; at least one telescoping member that is extensible from a retracted position within the luggage case to an extended position protruding from the luggage case; and a gear assembly that is attached to an end of the telescoping member(s) that is distal from the luggage case. The handle system can include a handle attached to the telescoping member(s) through the gear assembly. The gear assembly can provide pivotal and rotational movement of the handle about the end of the telescoping member(s).
