用于安全携带和存放多个电表。
专利摘要
一种用于携带电表的手提箱，包括盖部，该盖部与基部铰接连接，可在打开和关闭位置之间枢转运动，以及将盖部和基部可释放地固定在一起的锁扣系统。每个部分均设有多个空腔。当盖部关闭时，盖部中的空腔与基部中的空腔相对，以提供多个凹槽。每个凹槽适于接收并定位一个电表。这些部分可以彼此分离。铰接连接允许盖部在被枢转打开之前升高以避开电表。两个部分中的空腔可以由面板插入件形成，这些插入件可移除，以便由适于容纳更大或更小电表的其他面板插入件替换。
Original abstractA tote for carrying electric meters includes a lid section having a hinged connection to a base section for pivotal movement between open and closed positions, and a latching system releasably securing the lid and base sections together. Each of the sections is provided with a plurality of cavities. When the lid section is closed, the cavities in the lid section confront the cavities in the base section to provide a plurality of pockets. Each pocket is adapted to receive and locate one of the meters. The sections may be separable from one another. The hinged connection permits the lid section to be raised to clear the meters prior to being pivoted open. The cavities in the two sections may be formed by panel inserts which are removable for replacement by other panel inserts adapted to accommodate larger or smaller meters.

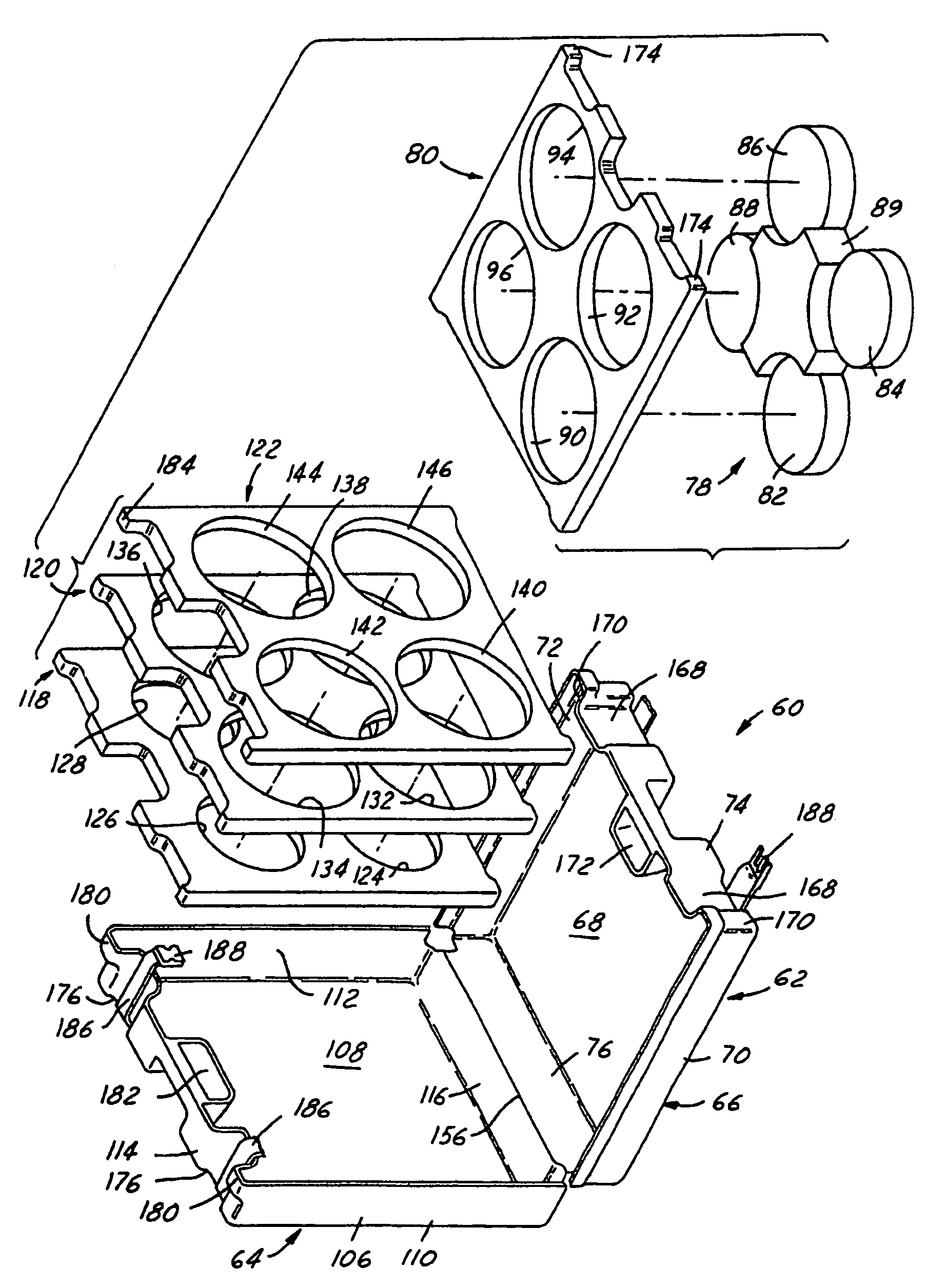

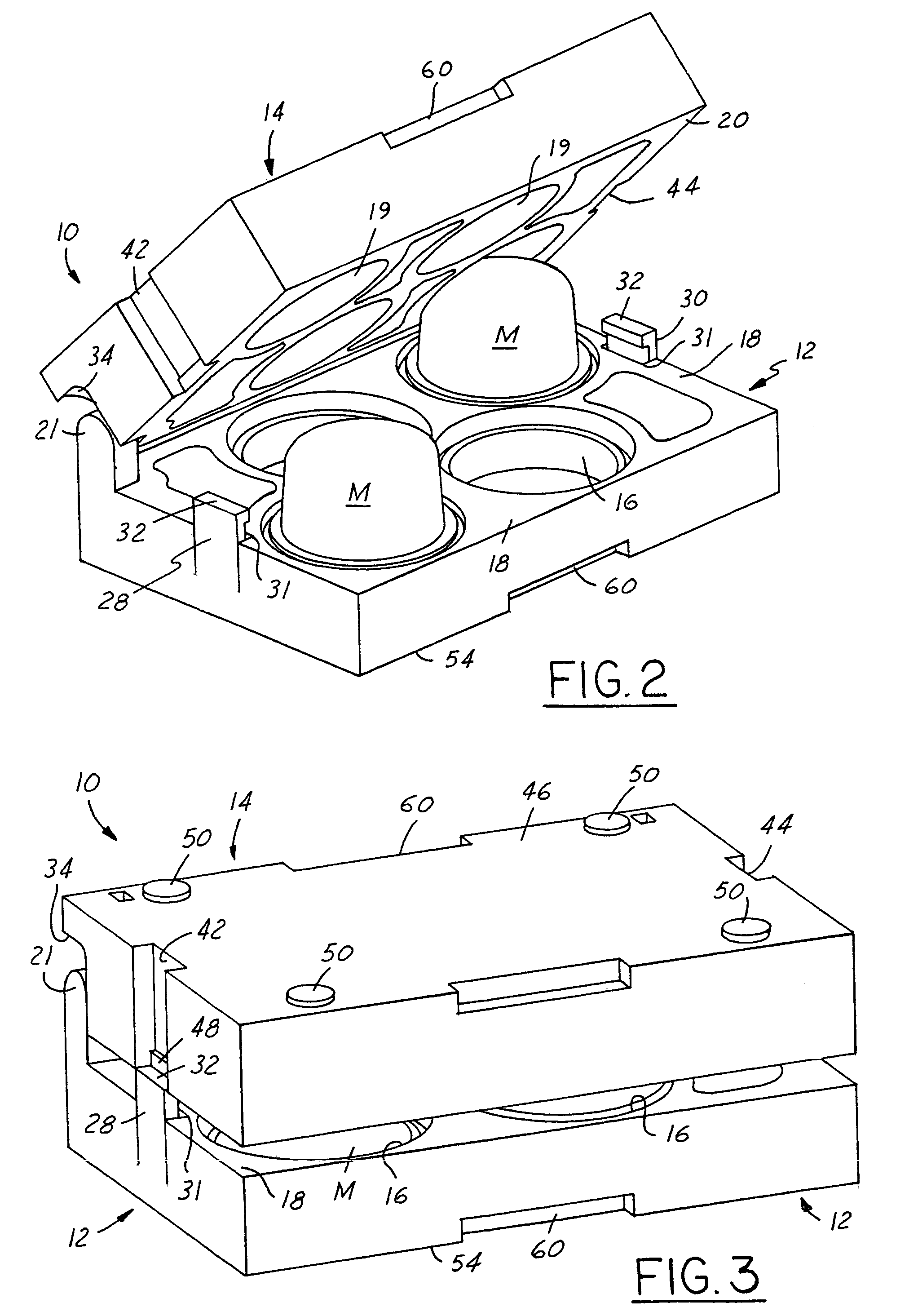

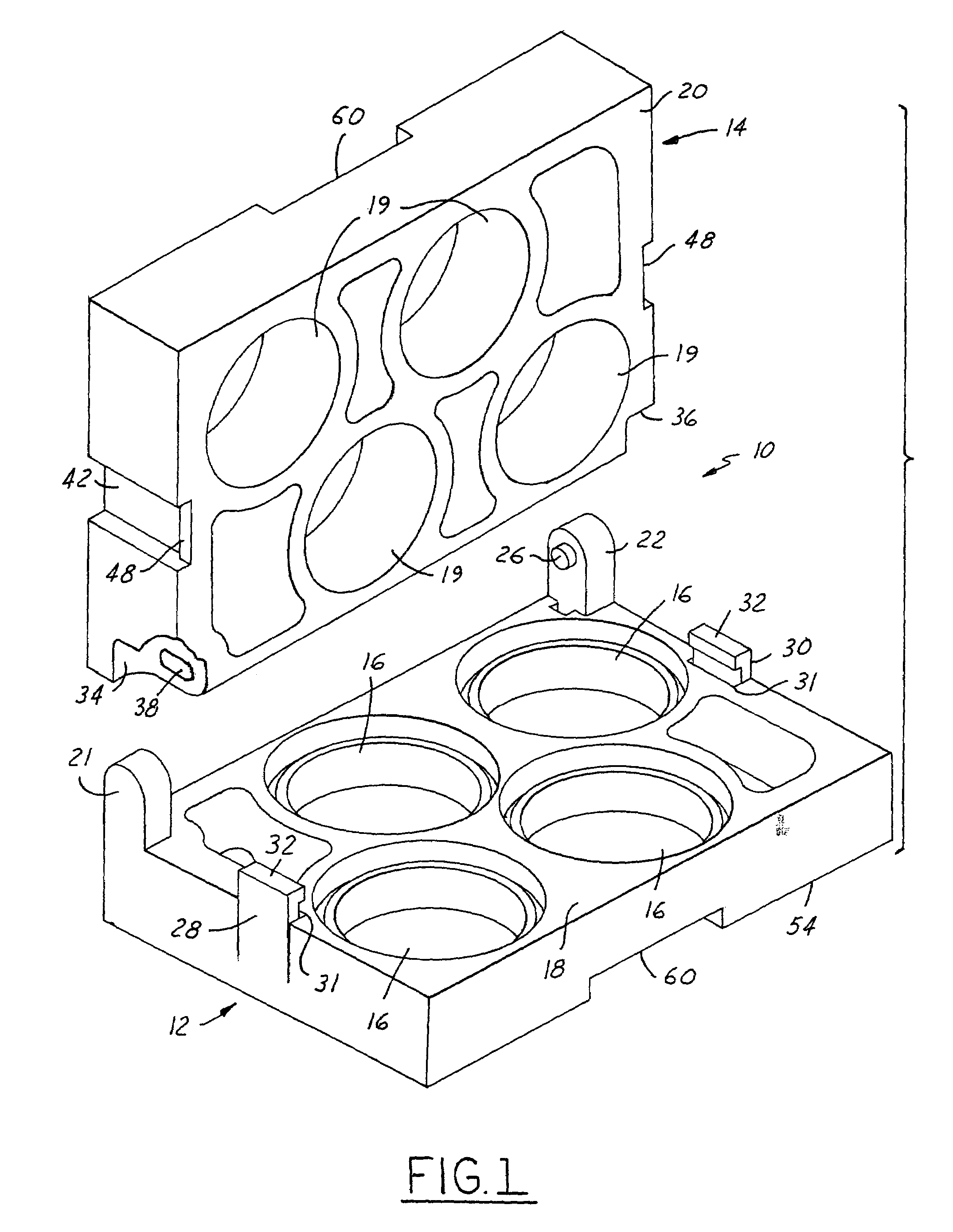

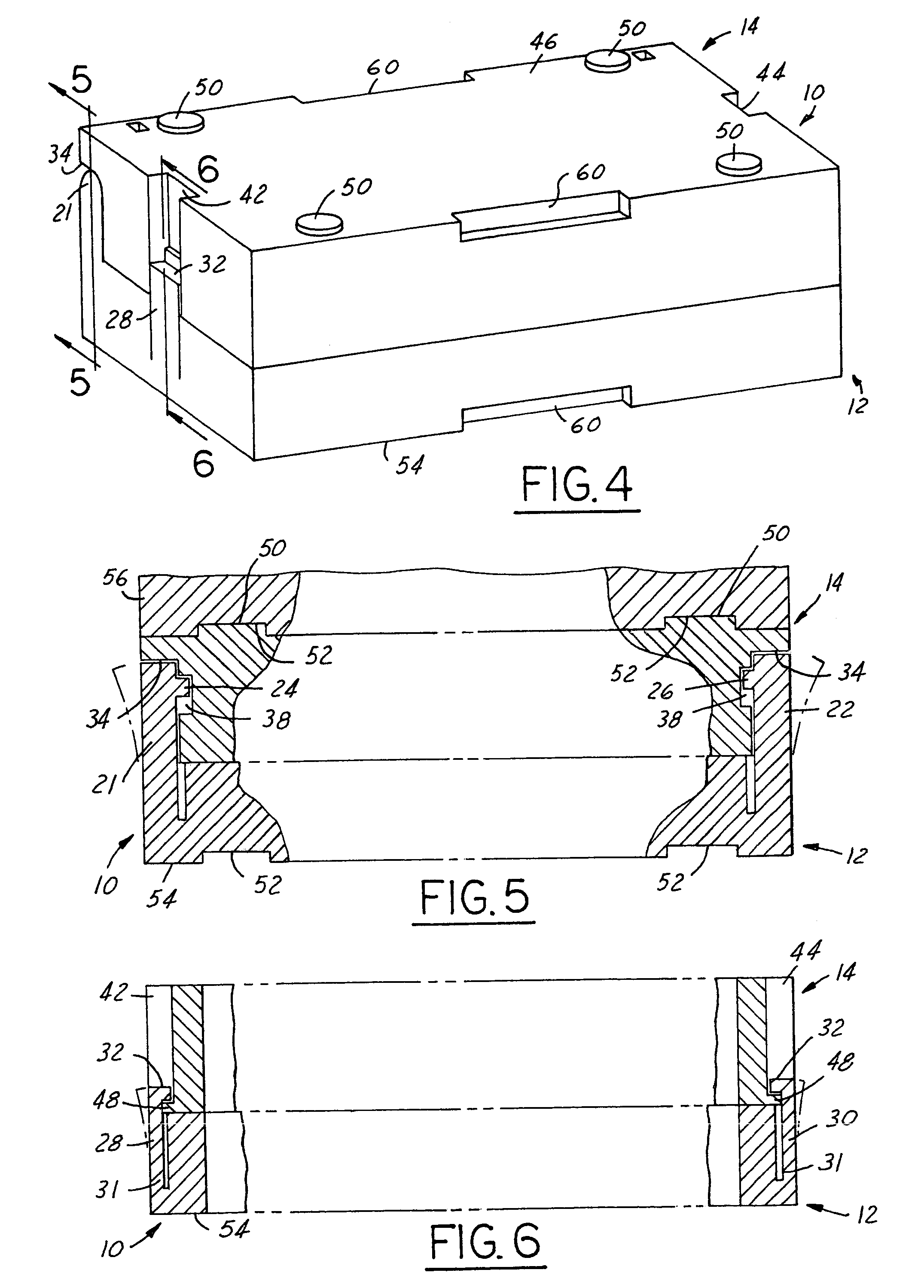

专利附图（8）
