来源记录显示 Expired
沿铰链线具有熔融液体流断开孔的蜂窝电话外壳
Cellular phone casing with melted liquid flow disconnection hole along hinge line
US-7255228-B2用于存放和保护手机，防冲击和防潮。
专利摘要
本发明涉及一种改进的蜂窝电话外壳，当蜂窝电话存放在包中携带时，能够防止外部冲击，并且能够在雨中或海滩上防止蜂窝电话受潮。该蜂窝电话存放外壳包括：外壳主体，其具有特定尺寸和深度的内部存放空间，用于存放普通蜂窝电话，其上部开口以便于蜂窝电话的存放和取出；盖体，其与外壳主体分开制造，在蜂窝电话密封于外壳主体的内部存放空间的状态下存放或取出，其中盖体相对于外壳主体打开和关闭；铰链连接部，其设计成使盖体能够相对于外壳主体的一个表面旋转；以及锁定部，其将盖体相对于外壳主体密封接合或打开。
Original abstractThe present invention relates to an improved cellular phone casing capable of storing a cellular phone (a mobile phone) from an external impact when a cellular phone is stored in a bag and is carried and capable of preventing a cellular phone from moisture in rain or at a beach. The cellular phone storing casing comprises a casing body that has an inner storing space having a certain size and depth for storing a common cellular phone wherein an upper side of the same is opened for an easier storing and unloading of a cellular phone; a cover body that is fabricated in separation with the casing body and stores or unloads in a state that a cellular phone is sealed in the inner storing space of the casing body wherein the cover body is opened and closed with respect to the casing body; a hinge connection part that is designed so that the cover body is rotatable with respect to one surface of the casing body; and a locking part sealingly engages or opens the cover body with respect to the casing body.

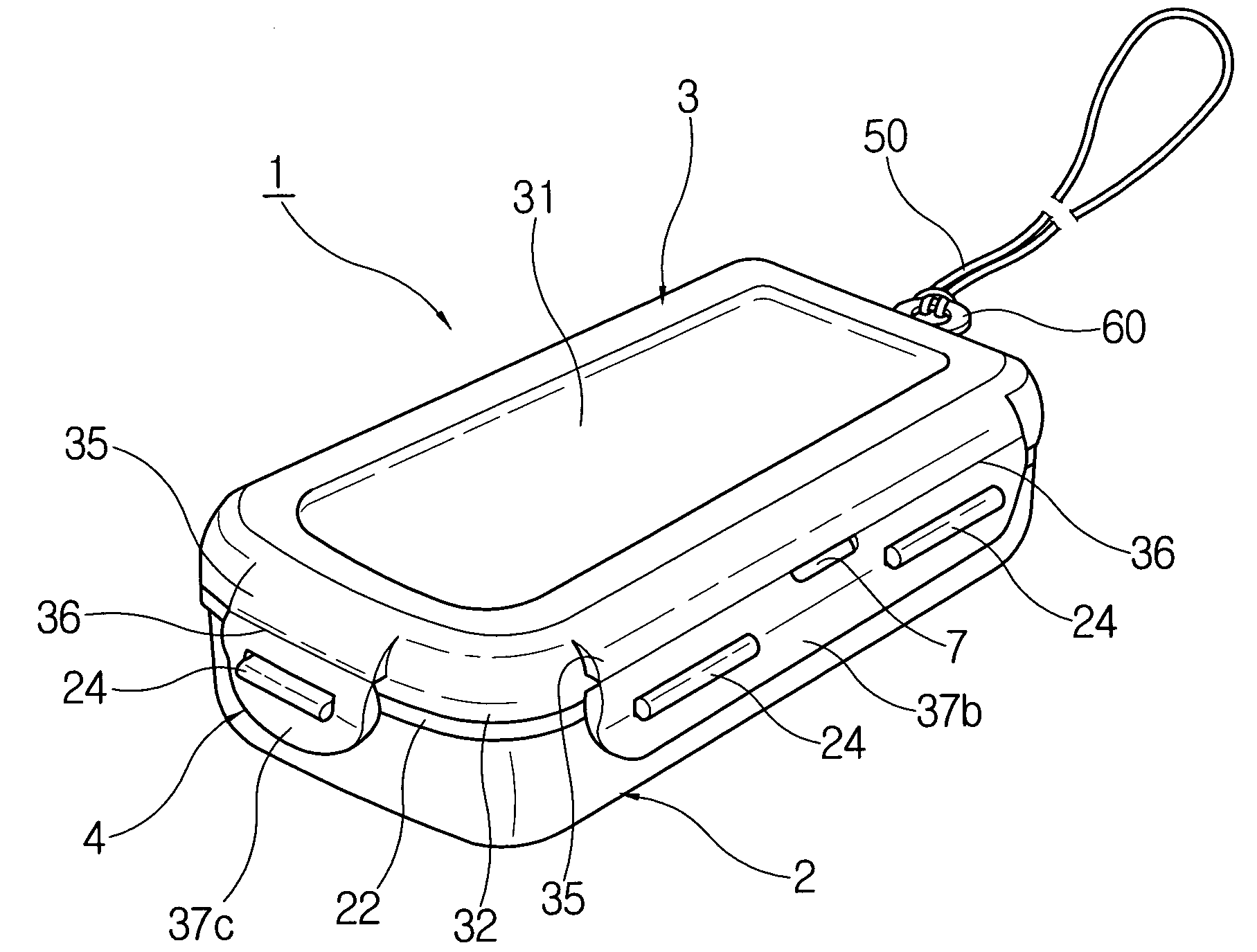

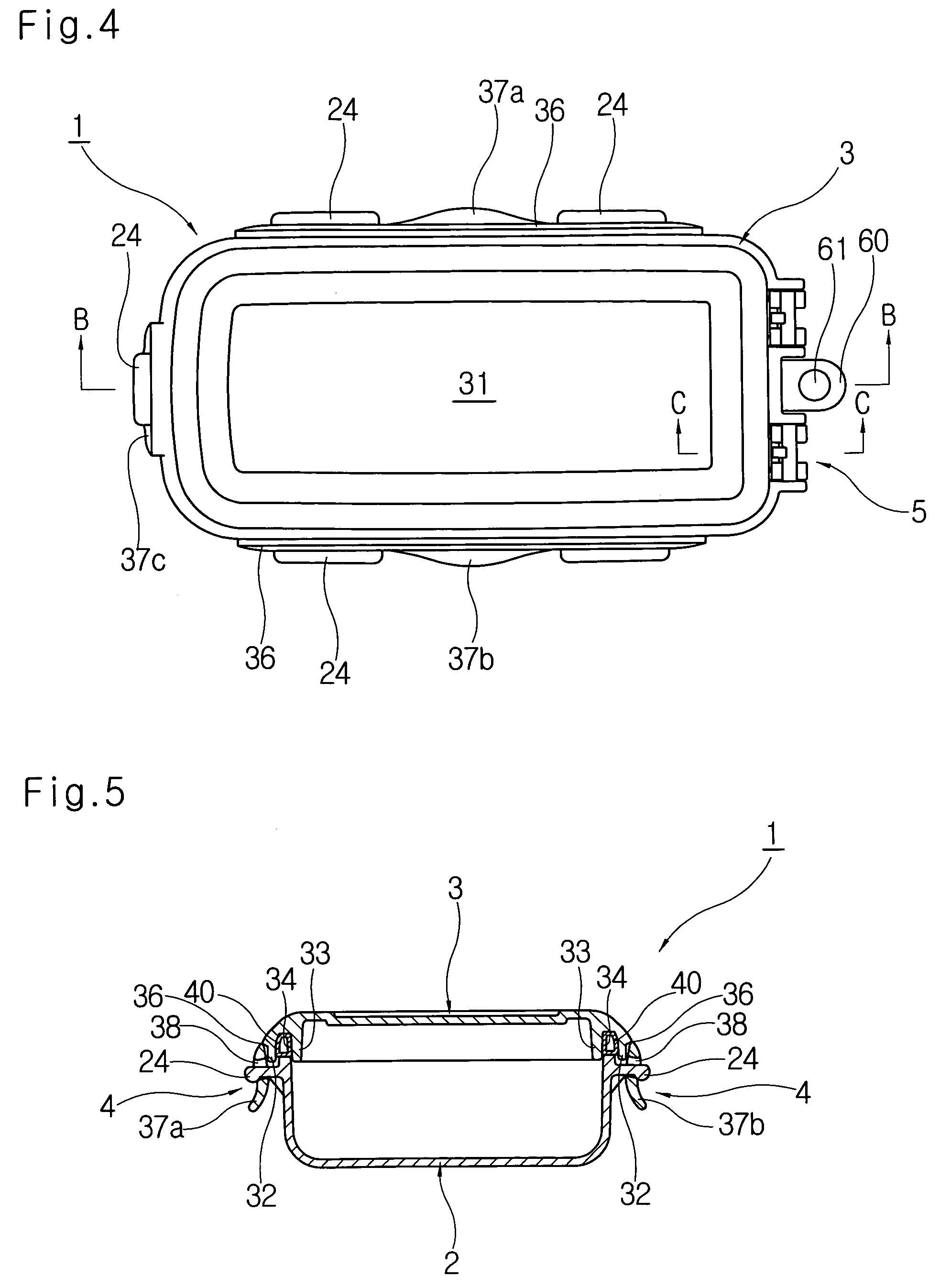

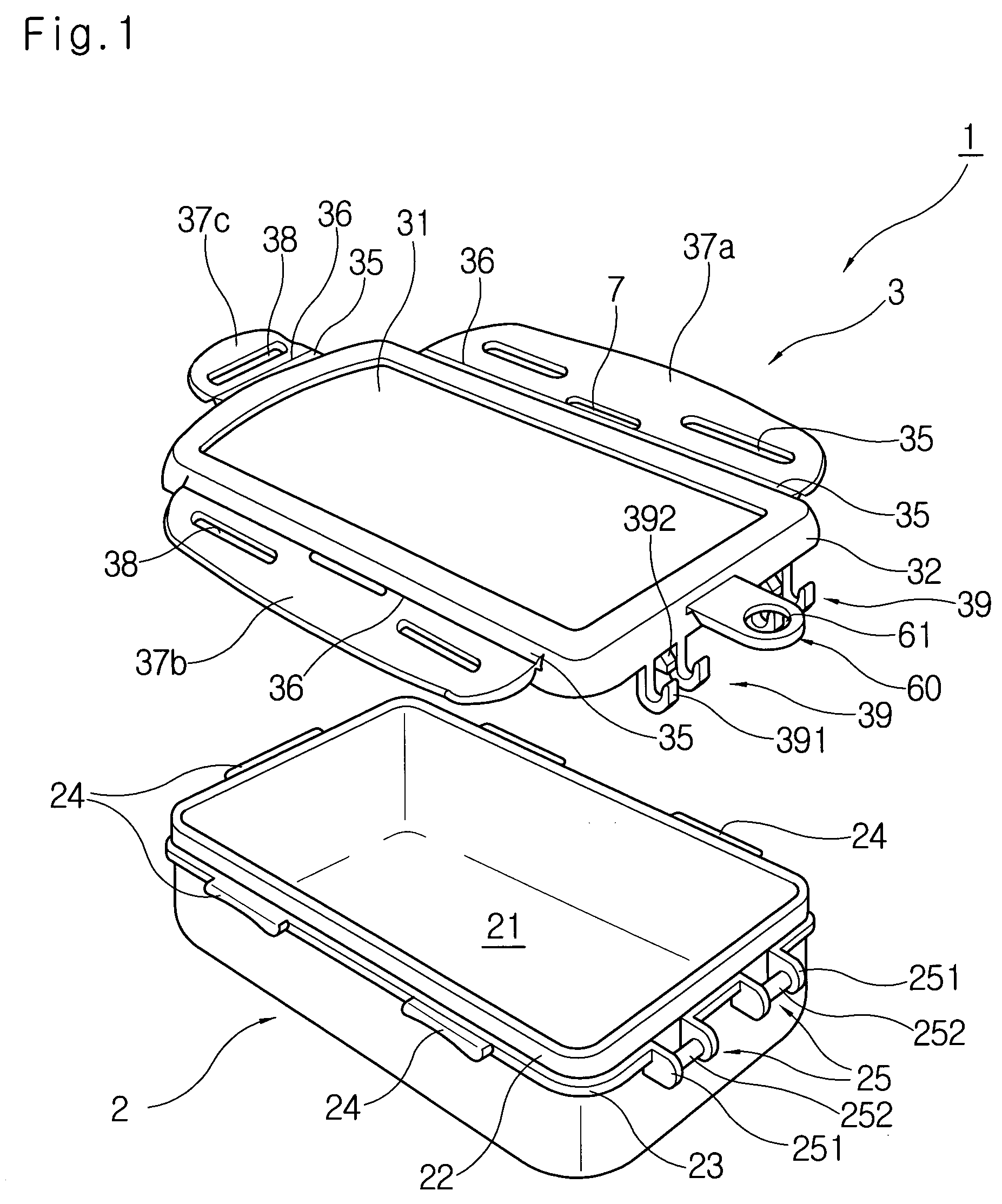

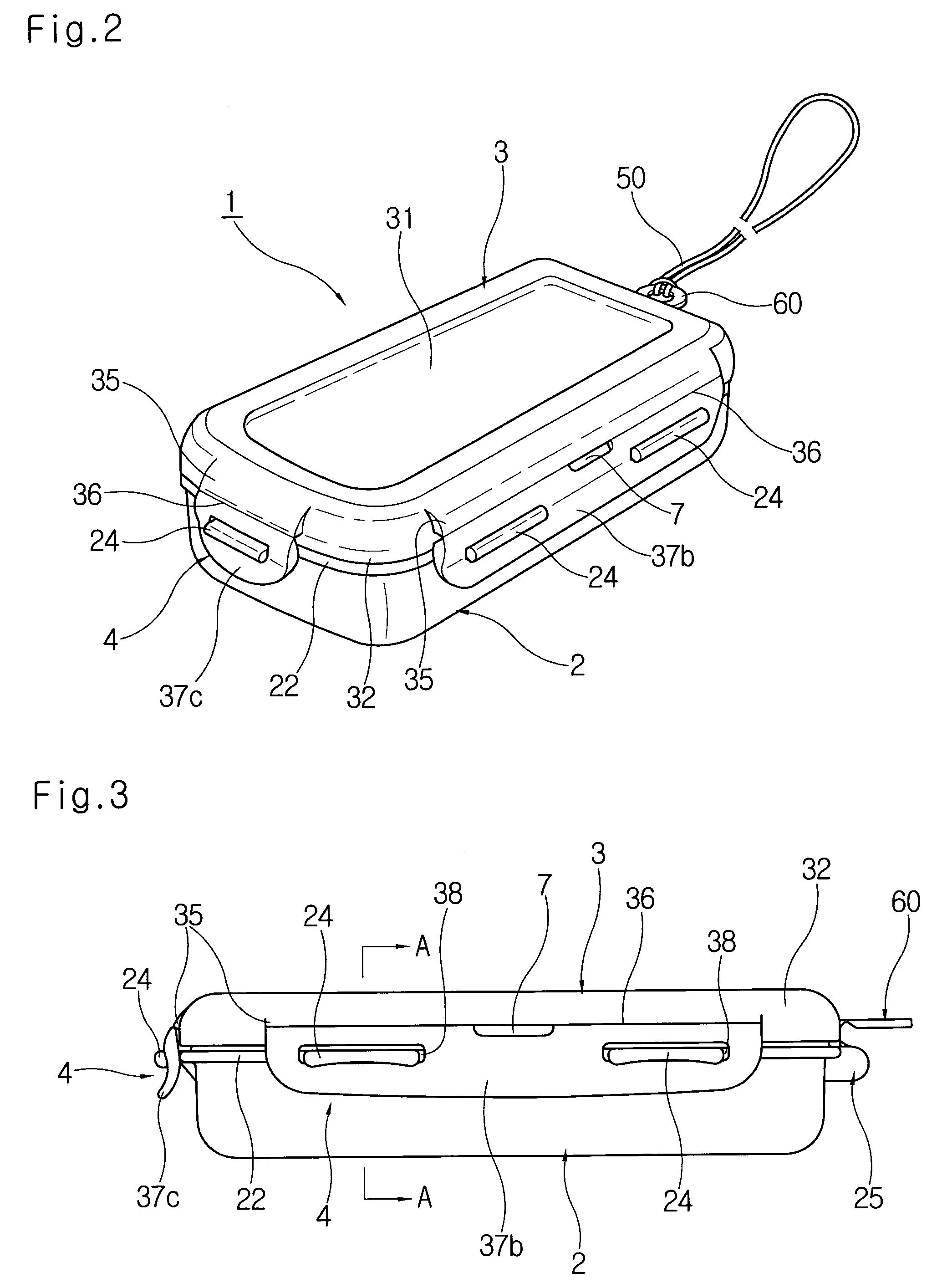

专利附图（8）
