用于撑开袋子使其保持展示状态，便于展示或存储。
专利摘要
一种用于放置在袋中的袋填充物，包括第一面板、第二面板以及连接在第一和第二面板之间的铰接支撑梁。铰接梁具有收缩存储位置，其中第一和第二面板基本彼此相邻且基本平行，用于袋的存储位置；以及伸展或展开的支撑位置，用于将第一和第二面板保持彼此间隔开，并将袋保持在填充展示位置。铰接支撑梁还具有至少两个梁面板和至少一个弹性带，用于将两个梁面板朝向彼此偏压，从而将铰接支撑梁从收缩存储位置朝向展开支撑位置偏压。
Original abstractA bag stuffer for placement in a bag, comprising a first panel, a second panel, and an articulated support beam connected between the first and second panels. The articulated beam has a collapsed storage position with the first and second panels substantially adjacent each other and substantially parallel to each other for a storage position of the bag, and an extended or expanded bracing position for holding the first and second panels spaced from each other and for holding the bag in a stuffed display position. The articulated support beam also has at least two beam panels and at least one elastic band for biasing the two beam panels toward each other for biasing the articulated support beam from the collapsed storage toward the expanded bracing position.

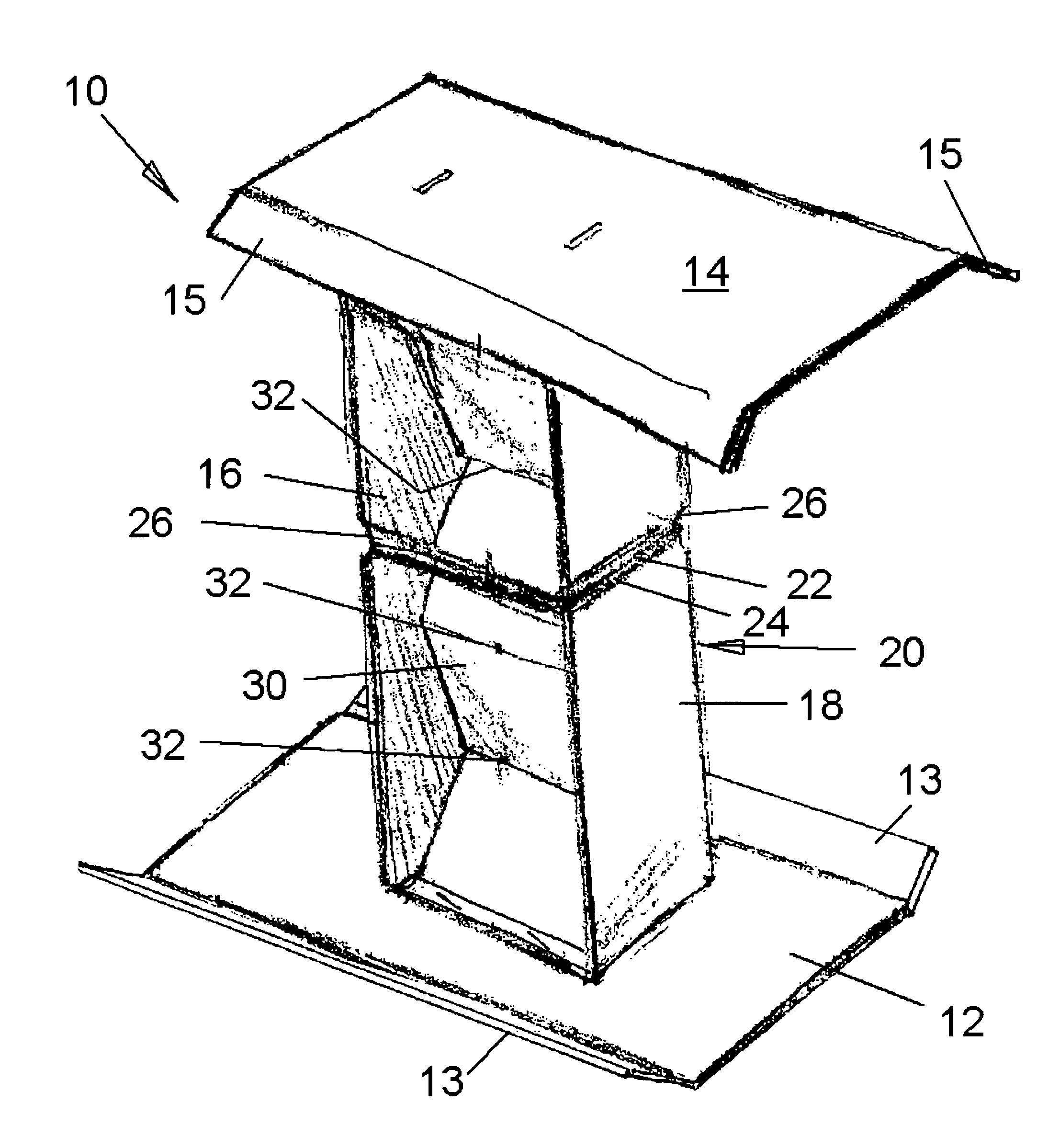

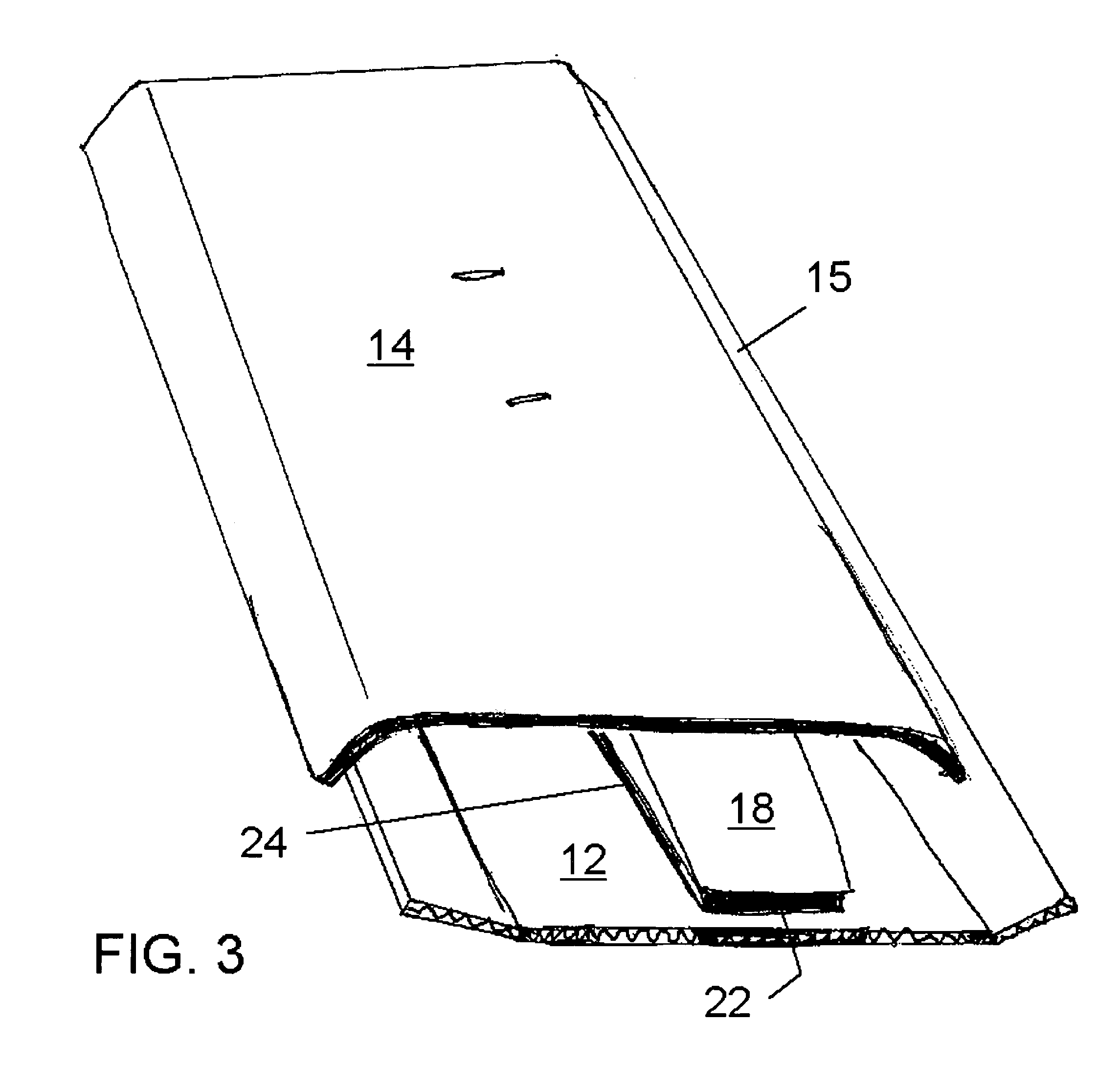

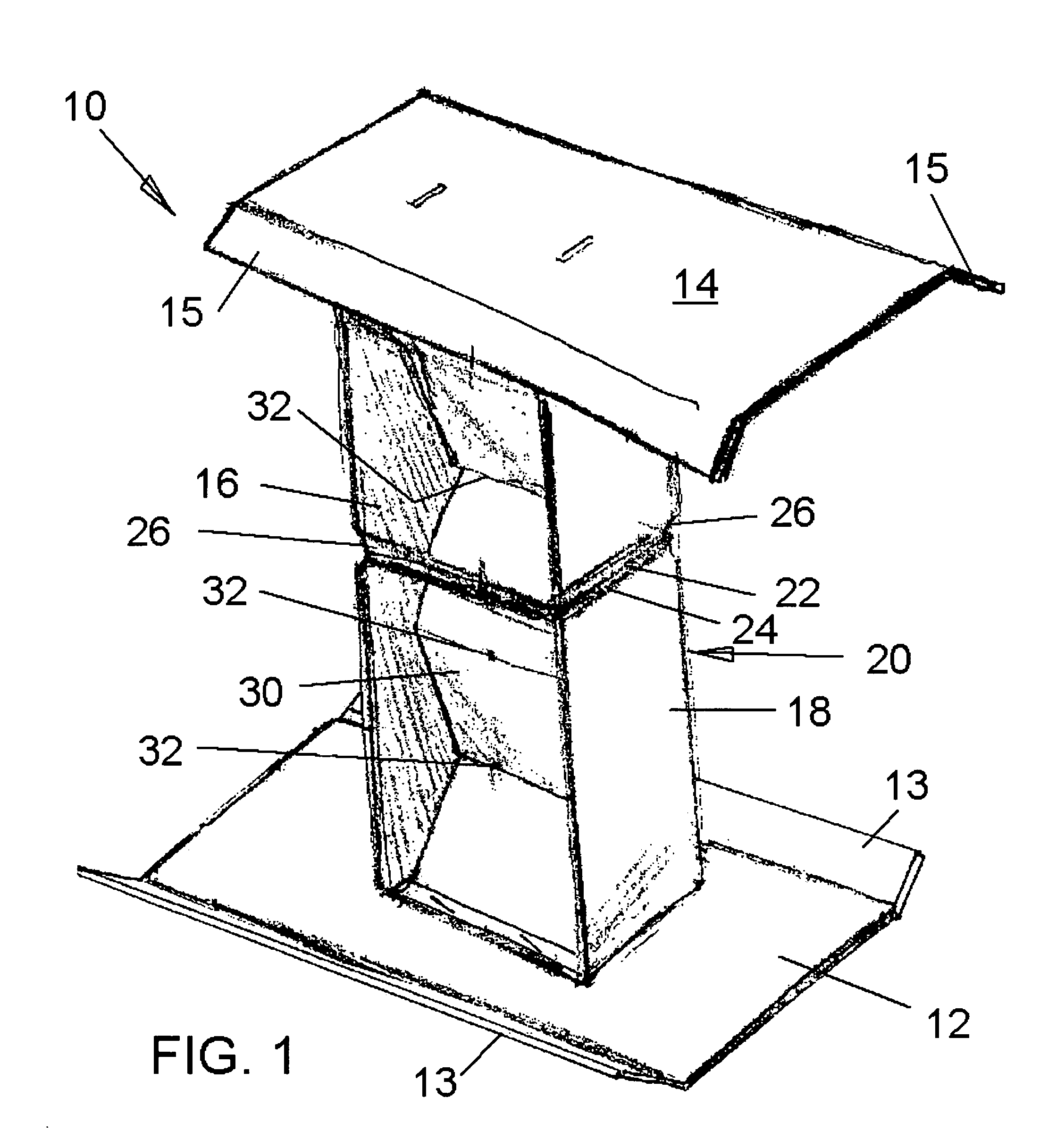

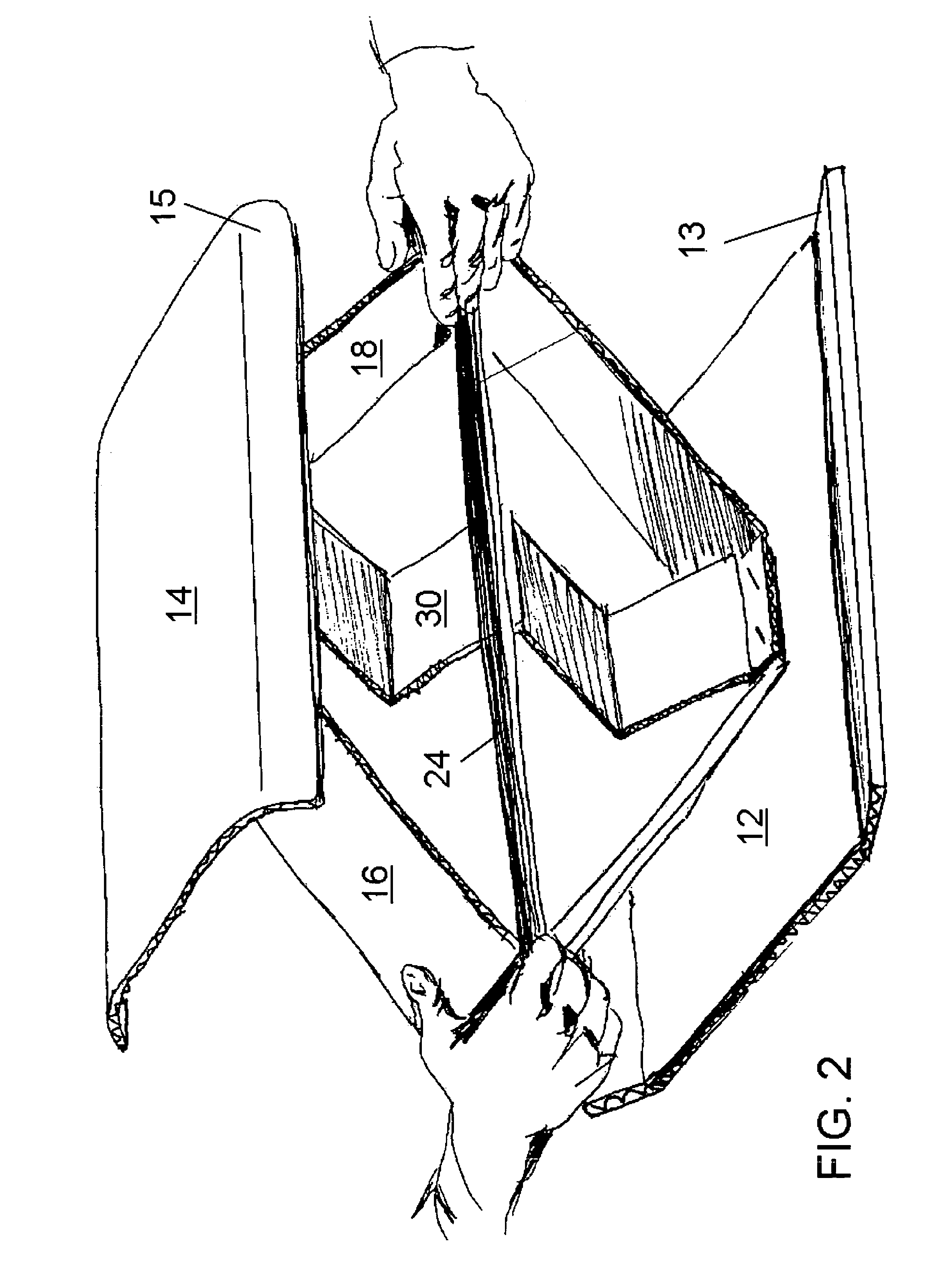

专利附图（8）
