带有折叠椅的随身行李容器

Carry-on baggage container with a folding chair

US-7213692-B2

为行李容器提供可折叠座椅，方便休息。

专利摘要

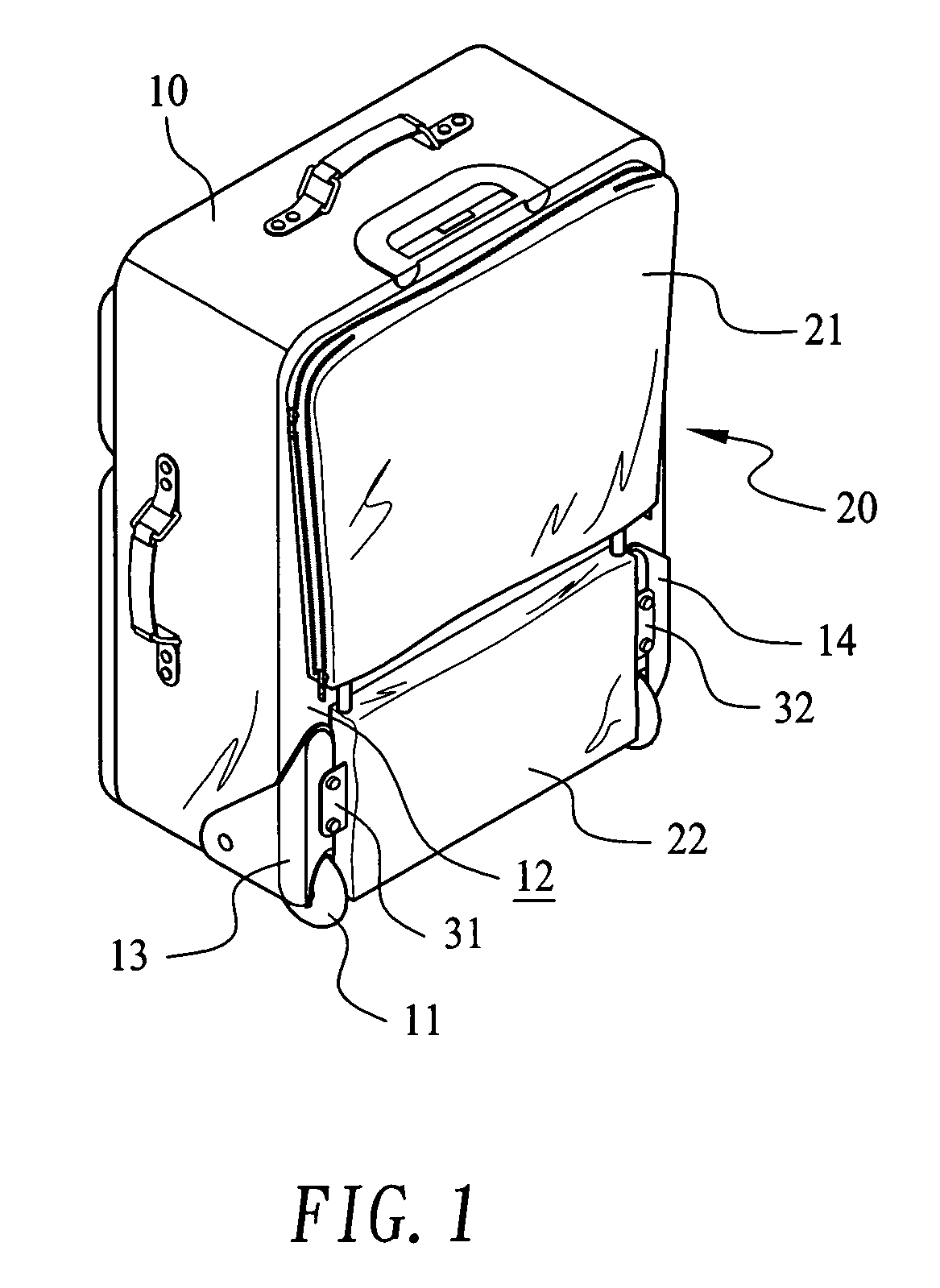

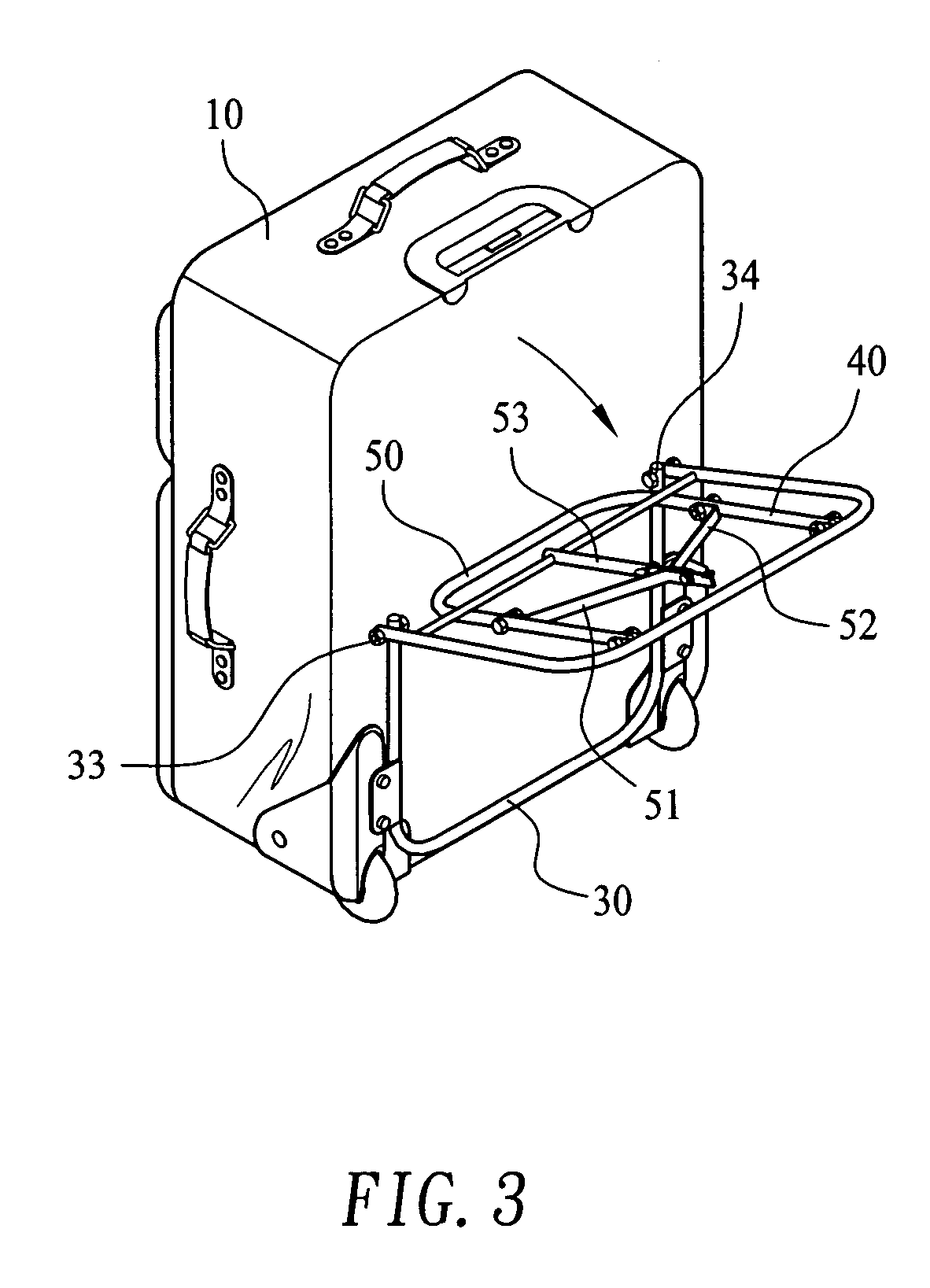

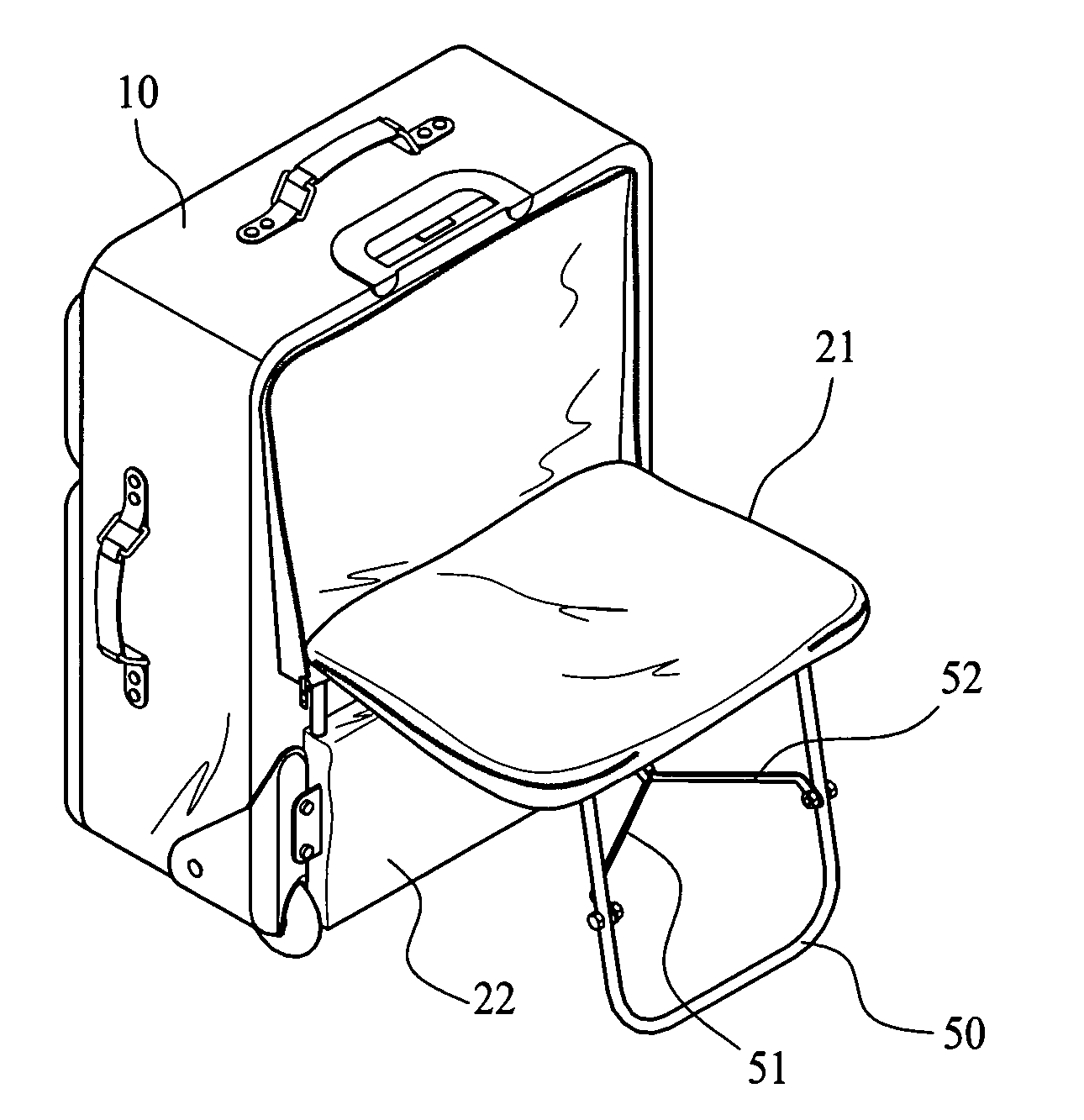

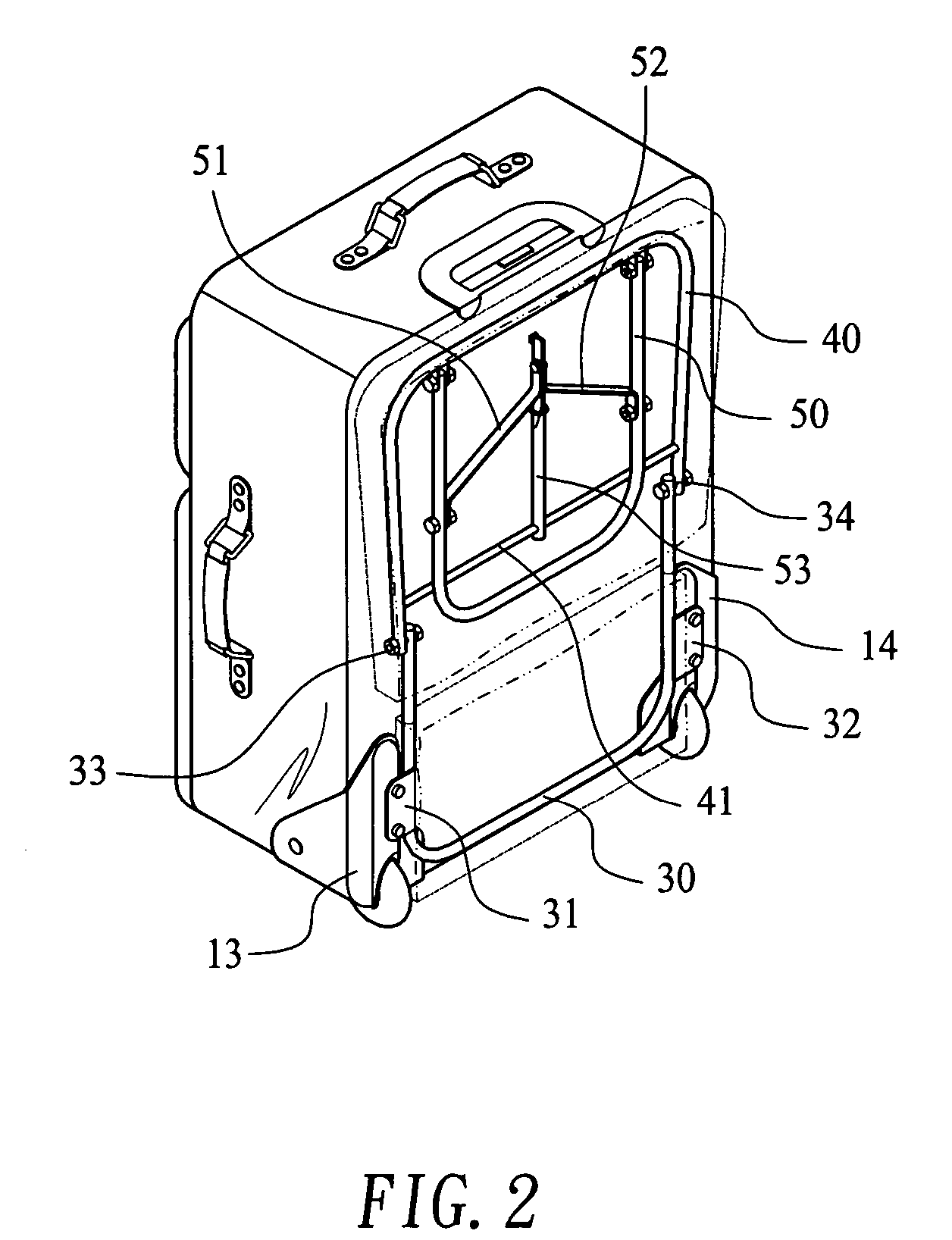

一种随身行李容器，在一个表面上设置有折叠椅，所述折叠椅包括固定附接到行李容器表面的基部、在后端枢转连接到基部顶部的座位部、以及在上端枢转连接到座位部的前横杆的腿部。所述腿部包括两个斜撑，所述斜撑在外端枢转连接到腿部的两个侧边，并在平坦且弯曲的内端枢转连接到中心杆的第一端的平坦部分，所述中心杆的第二端枢转连接到座位部的后横杆。所述折叠椅通常处于平坦附接到行李容器的折叠位置，并且可以容易地转动到展开位置以供使用。

Original abstractA carry-on baggage container is provided on one surface with a folding chair, which includes a base portion fixedly attached to the baggage container surface, a seat portion pivotally connected at a rear end to a top of the base portion, and a leg portion pivotally connected at an upper end to a front crossbar of the seat portion. The leg portion includes two slant stays pivotally connected at outer ends to two lateral sides of the leg portion and at flat and bent inner ends to a flat section at a first end of a central bar, of which a second end is pivotally connected to a rear crossbar of the seat portion. The folding chair is normally in a folded position flatly attached to the baggage container and can be readily turned to an extended position for use.

专利附图（8）
